PREPARATION

PREPARATION

Commercial Service Tools

INFOID:0000000006166635

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0191E

AV-326

< REMOVAL AND INSTALLATION >

[PREMIUM WITH NAVIGATION]

AUDIO UNIT

REMOVAL AND INSTALLATION

AUDIO UNIT

Removal and Installation

INFOID:0000000006166636

AUDIO UNIT

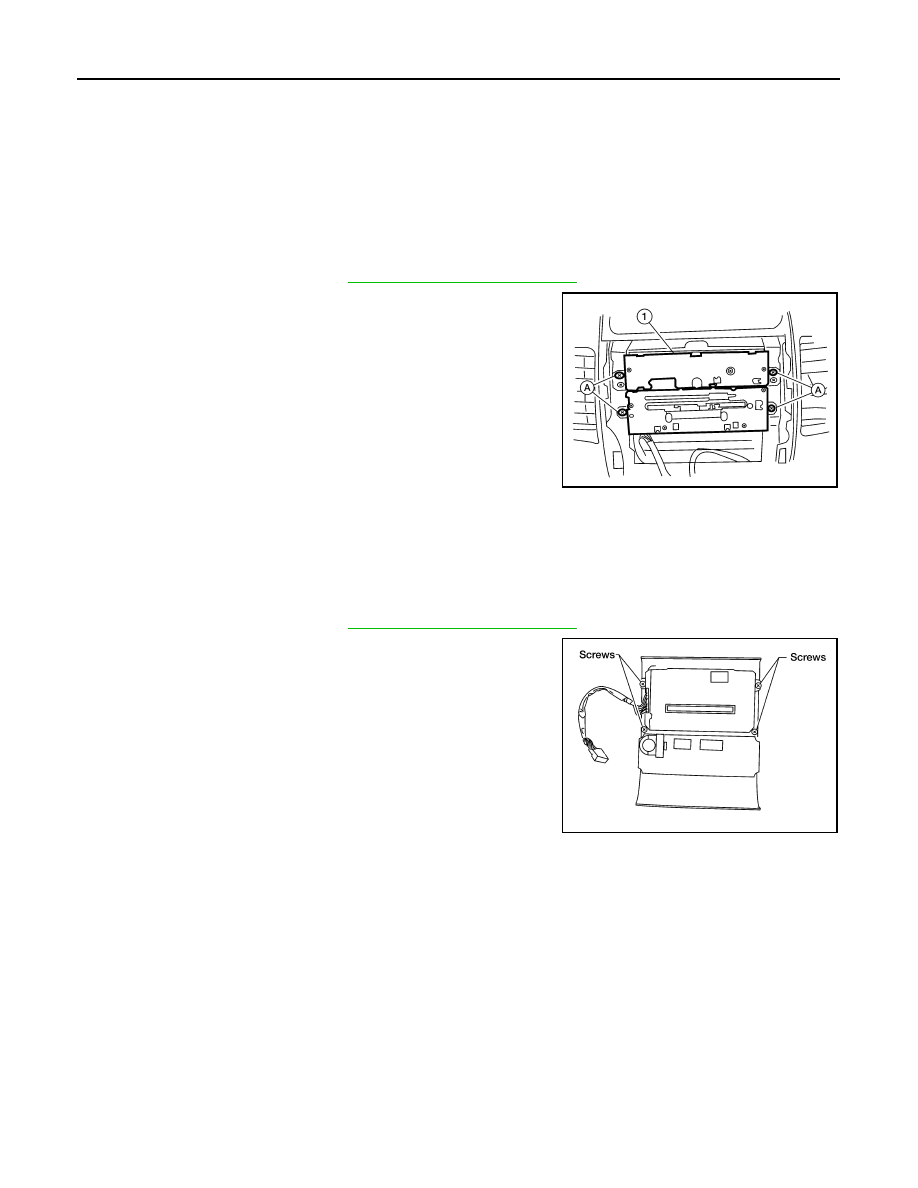

Removal

1. Disconnect the battery negative terminal.
2. Remove the cluster lid C. Refer to

IP-15, "Removal and Installation"

.

3. Remove the audio unit screws (A), using power tool.
4. Pull out the audio unit (1) and disconnect the audio unit connec-

tors.

Installation

Installation is in the reverse order of removal.

AV SWITCH

Removal

1. Disconnect battery negative terminal.
2. Remove the cluster lid C. Refer to

IP-15, "Removal and Installation"

.

3. Remove the AV switch screws.
4. Carefully remove the AV switch.

Installation

Installation is in the reverse order of removal.

ALNIA0646ZZ

WKIA1798E

AV

DISPLAY UNIT

AV-327

< REMOVAL AND INSTALLATION >

[PREMIUM WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DISPLAY UNIT

Removal and Installation

INFOID:0000000006166637

DISPLAY UNIT

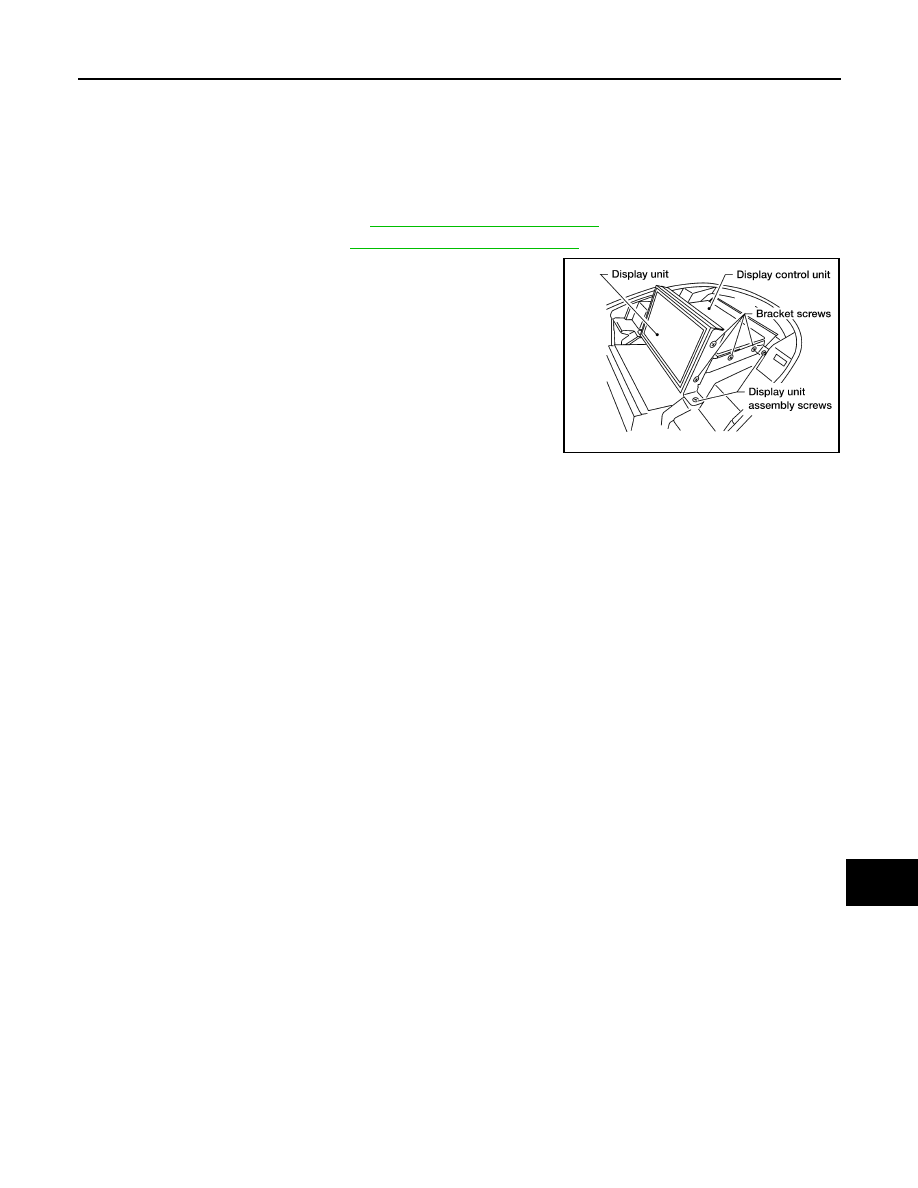

Removal

1. Remove the center console. Refer to

IP-19, "Removal and Installation"

.

2. Remove the cluster lid D. Refer to

IP-14, "Removal and Installation"

.

3. Remove the display control unit.
4. Disconnect the display unit connectors.

5. Remove the display unit.
6. Remove the display unit brackets.

Installation

Installation is in reverse order of removal.

WKIA1512E

AV-328

< REMOVAL AND INSTALLATION >

[PREMIUM WITH NAVIGATION]

FRONT TWEETER

 FRONT TWEETER

Removal and Installation

INFOID:0000000006166638

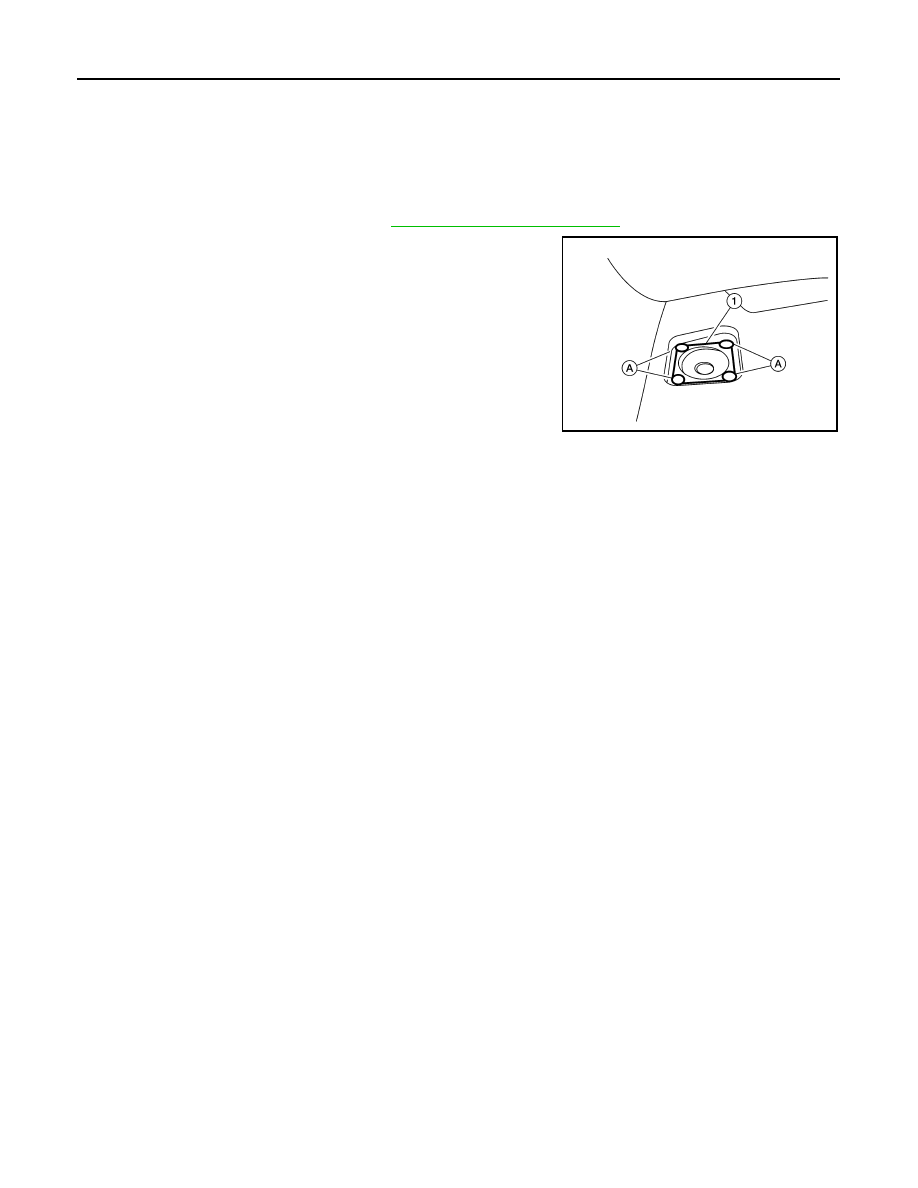

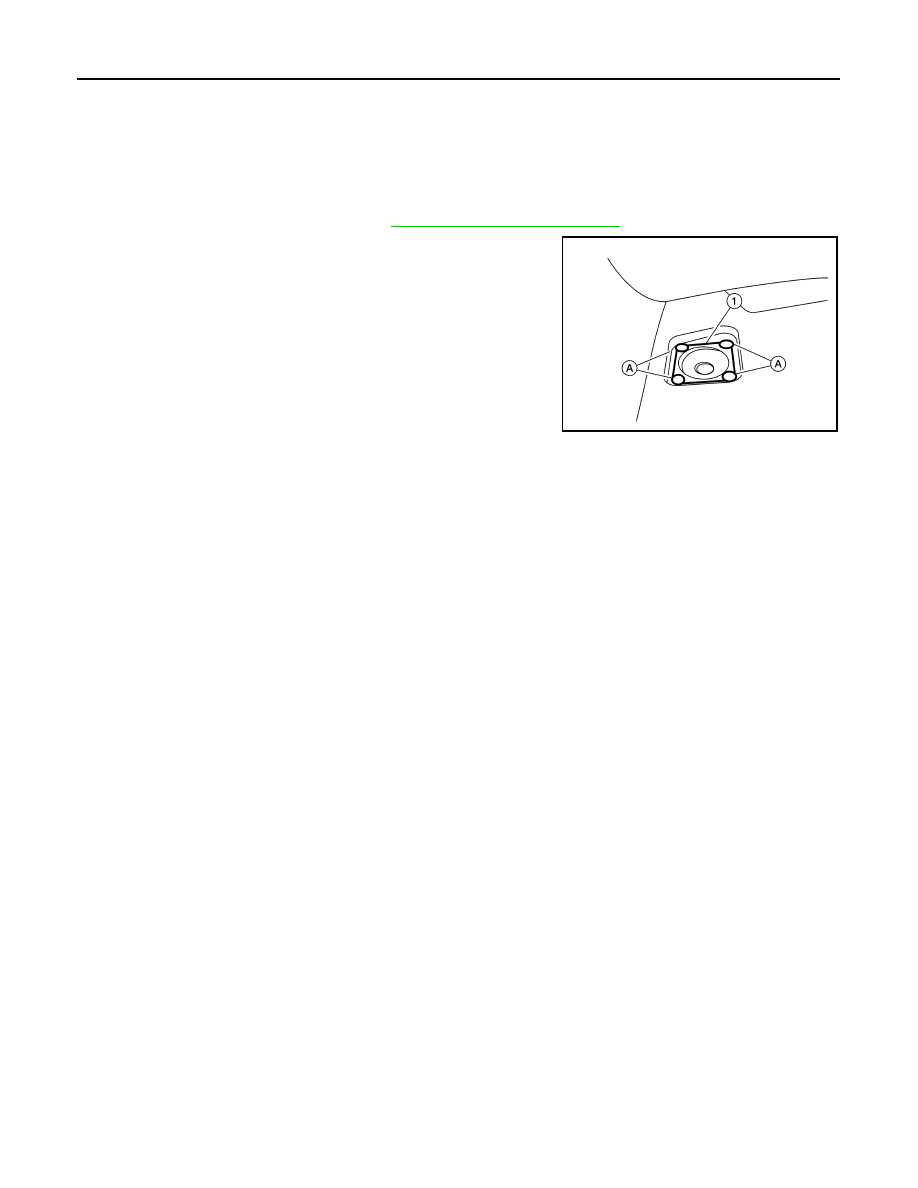

FRONT TWEETER

Removal

1. Remove the front tweeter grille. Refer to

IP-12, "Removal and Installation"

.

2. Remove the front tweeter clips (C103) (A).
3. Disconnect the front tweeter connector and remove the front

tweeter (1).

Installation

Installation is in the reverse order of removal.

ALNIA0642ZZ
