SYSTEM DESCRIPTION

AUDIO SYSTEM

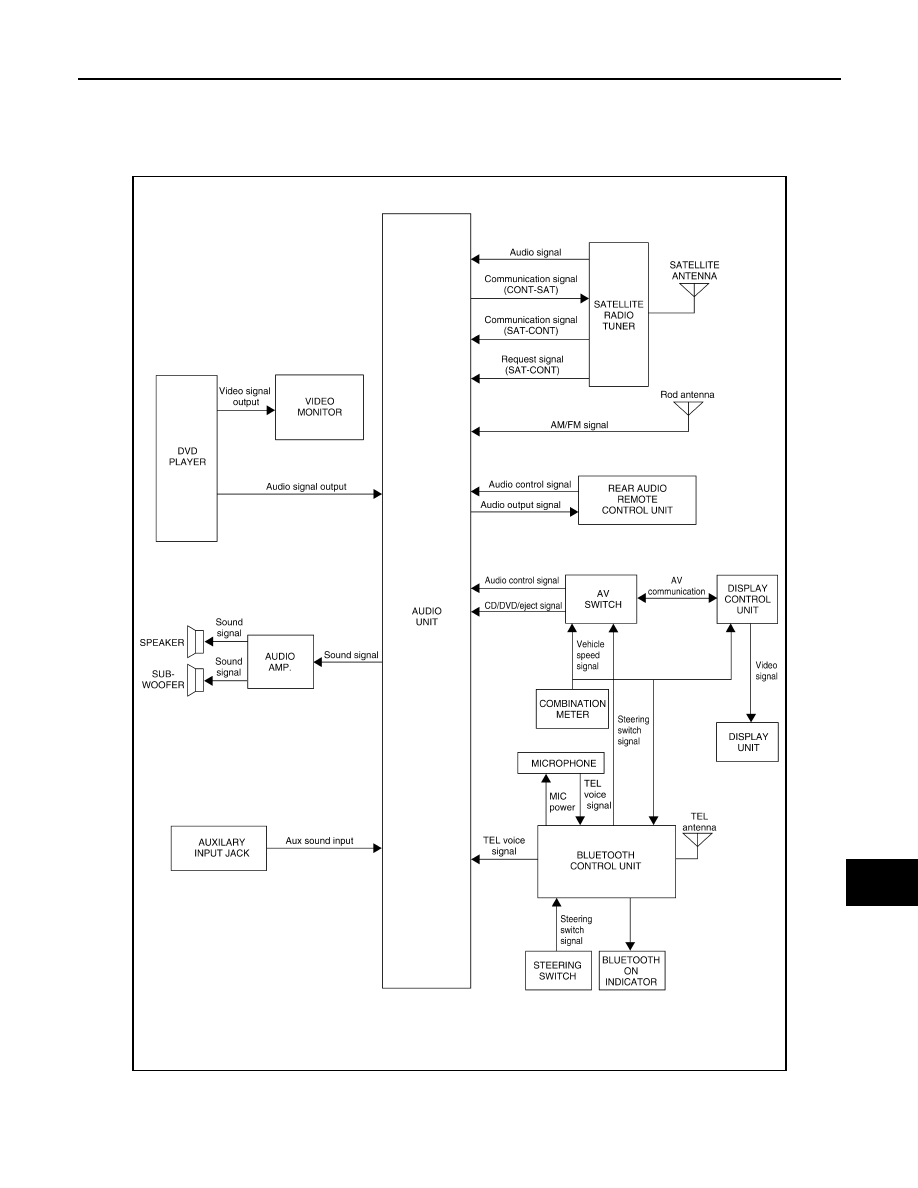

System Diagram

INFOID:0000000006166553

System Description

INFOID:0000000006166554

AUDIO SYSTEM

AWNIA1564GB

AV-194

< SYSTEM DESCRIPTION >

[PREMIUM WITH NAVIGATION]

AUDIO SYSTEM

The audio system consists of the following components

• Audio unit

• Display unit

• Display control unit

• Audio amp.

• Rod antenna

• Steering wheel audio control switches

• AV switch

• Rear audio remote control unit

• Front door speakers

• Front tweeters

• Center speaker

• Rear door speakers

• Rear door tweeters

• Subwoofer

When the audio system is on, radio signals are received by the rod antenna. The audio unit then sends audio

signals to the audio amp. The audio amp. amplifies the audio signals before sending them to the front door

speakers, front tweeters, center speaker, rear door speakers, rear door tweeters and the subwoofer.

Refer to Owner's Manual for audio system operating instructions.

SATELLITE RADIO SYSTEM

The satellite radio system consists of the following components

• Satellite antenna

• Satellite radio tuner

When the satellite radio system is on, radio signals are supplied to the satellite radio tuner from the satellite

antenna. The satellite radio tuner then sends audio signals to the audio unit.

Refer to Owner's Manual for satellite radio system operating instructions.

SPEED SENSITIVE VOLUME SYSTEM

Volume level of this system goes up and down automatically in proportion to the vehicle speed. The control

level can be selected by the customer. Refer to Owner's Manual for operating instructions.

AV

AUDIO SYSTEM

AV-195

< SYSTEM DESCRIPTION >

[PREMIUM WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

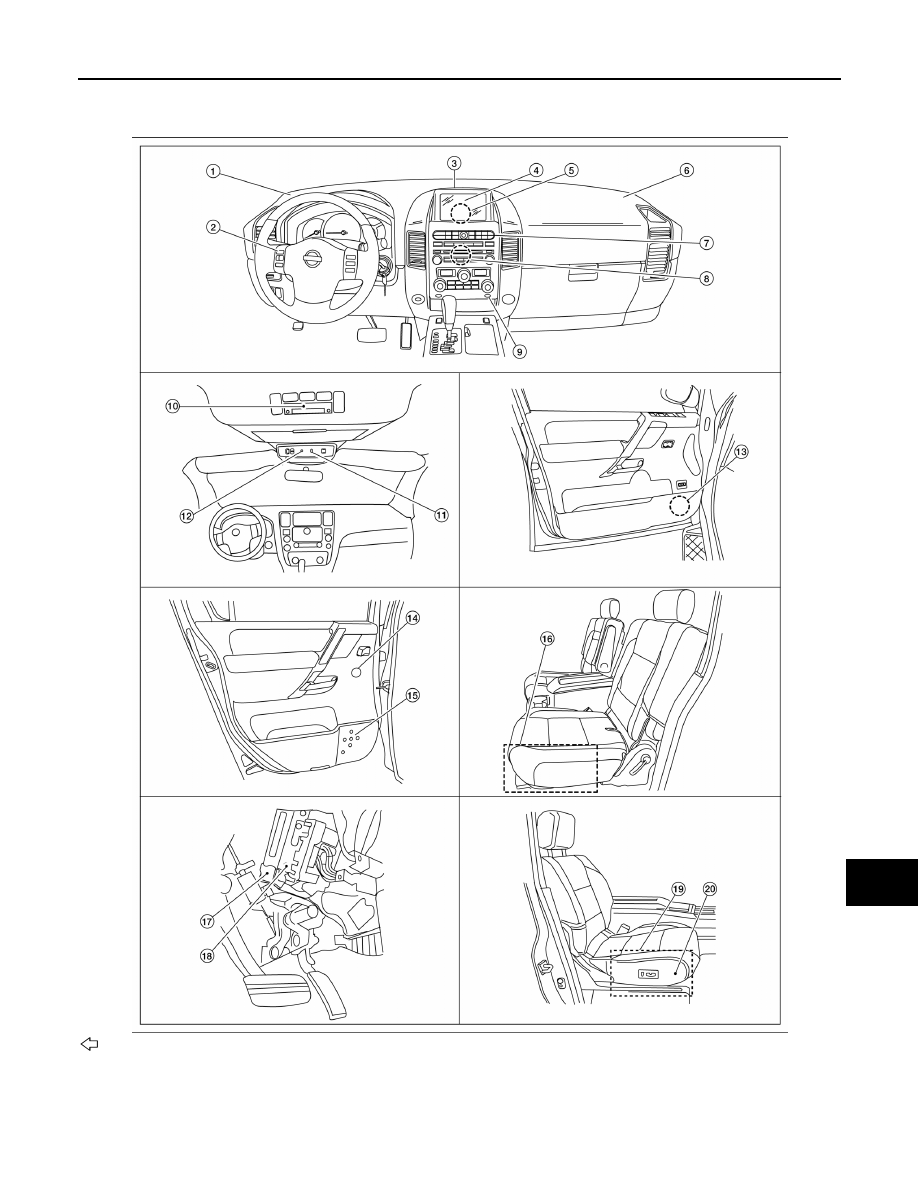

Component Parts Location

INFOID:0000000006166555

 :FRONT

1.

Front tweeter LH M109

2.

Steering wheel audio control switch-
es

3.

Center speaker M110

4.

Display unit M93

5.

Display control unit M94, M95

6.

Front tweeter RH M111

7.

AV switch M98

8.

Audio unit M42, M43, M44, M45, M46 9.

Aux jack M104

AWNIA2290ZZ

AV-196

< SYSTEM DESCRIPTION >

[PREMIUM WITH NAVIGATION]

AUDIO SYSTEM

Component Description

INFOID:0000000006166556

10. Rear audio remote control unit R204 11. Bluetooth ON indicator R105

12. Microphone R109

13. Front door speaker

LH D12
RH D112

14. Rear door tweeter

LH D208
RH D308

15. Rear door speaker

LH D207
RH D307

16. Subwoofer B72 (under driver’s seat) 17. Audio amp. M112, M113 (view behind

instrument panel above accelerator
pedal)

18. Satellite radio tuner M41, M129

19. NAVI control unit B151, B152, B160

(located under passenger front seat)

20. Bluetooth control unit B142, B143

Part name

Description

Audio unit

Controls audio system and satellite radio system functions

Display unit

Displays all audio and navigation related information received from the dis-
play control unit

Display control unit

Receives audio and navigation related information and outputs that informa-
tion to the display unit

Audio amp.

Receives power (amp ON) and audio signals from audio unit and outputs au-
dio signals to each speaker.

Steering switches

• Audio operation can be operated
• Steering switch signal is output to audio unit

Front door speakers

• Outputs audio signal from audio amp.
• Outputs high, mid and low range sounds

Front tweeters

• Outputs audio signal from audio amp.
• Outputs high range sounds

Center speaker

• Outputs audio signal from audio amp.
• Outputs high range sounds

Rear door speakers

• Outputs audio signal from audio amp.
• Outputs high, mid and low range sounds

Rear door tweeters

• Outputs audio signal from audio amp.
• Outputs high range sounds

Subwoofer

• Outputs audio signal from audio amp.
• Outputs low range sounds

Satellite radio tuner

• Receives radio signals from satellite antenna
• Sends audio signals to audio unit

Satellite antenna

Audio signal (satellite radio) is received and output to audio unit.
