Nissan Titan A60. Manual - part 91

AV

TEL ANTENNA

AV-189

< REMOVAL AND INSTALLATION >

[PREMIUM WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

TEL ANTENNA

Removal and Installation

INFOID:0000000006166550

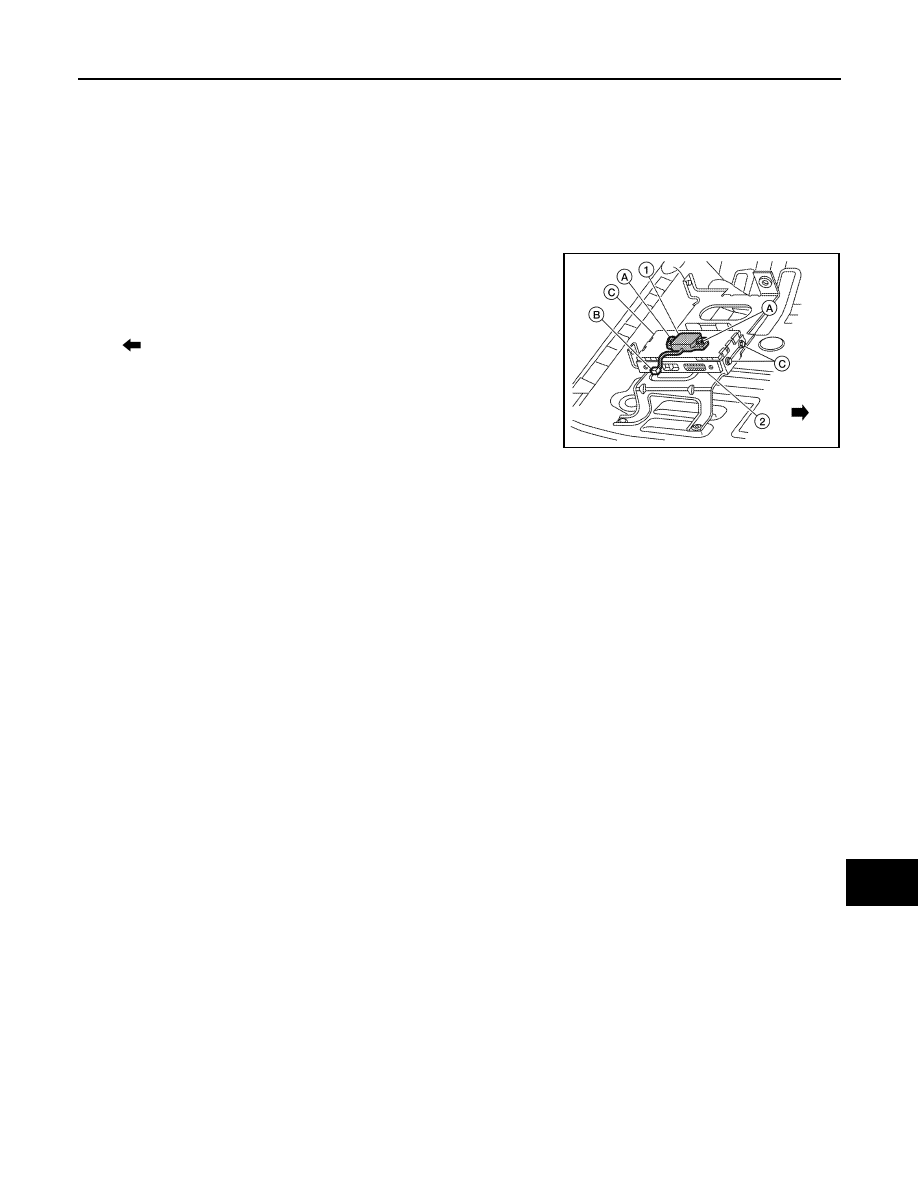

REMOVAL

1. Disconnect the battery negative terminal.
2. Slide the front passenger seat fully forward.
3. Remove the Bluetooth control unit kick shield screws and remove the Bluetooth control unit kick shield.
4. Remove the Bluetooth antenna screws (A), disconnect the Blue-

tooth antenna connector (B) and remove the Bluetooth antenna

(1).

• Bluetooth control unit screws (C)

• Bluetooth control unit (2)
•

:Front of vehicle

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0281ZZ

AV-190

< REMOVAL AND INSTALLATION >

[PREMIUM WITHOUT NAVIGATION]

BLUETOOTH CONTROL UNIT

BLUETOOTH CONTROL UNIT

Removal and Installation

INFOID:0000000006166551

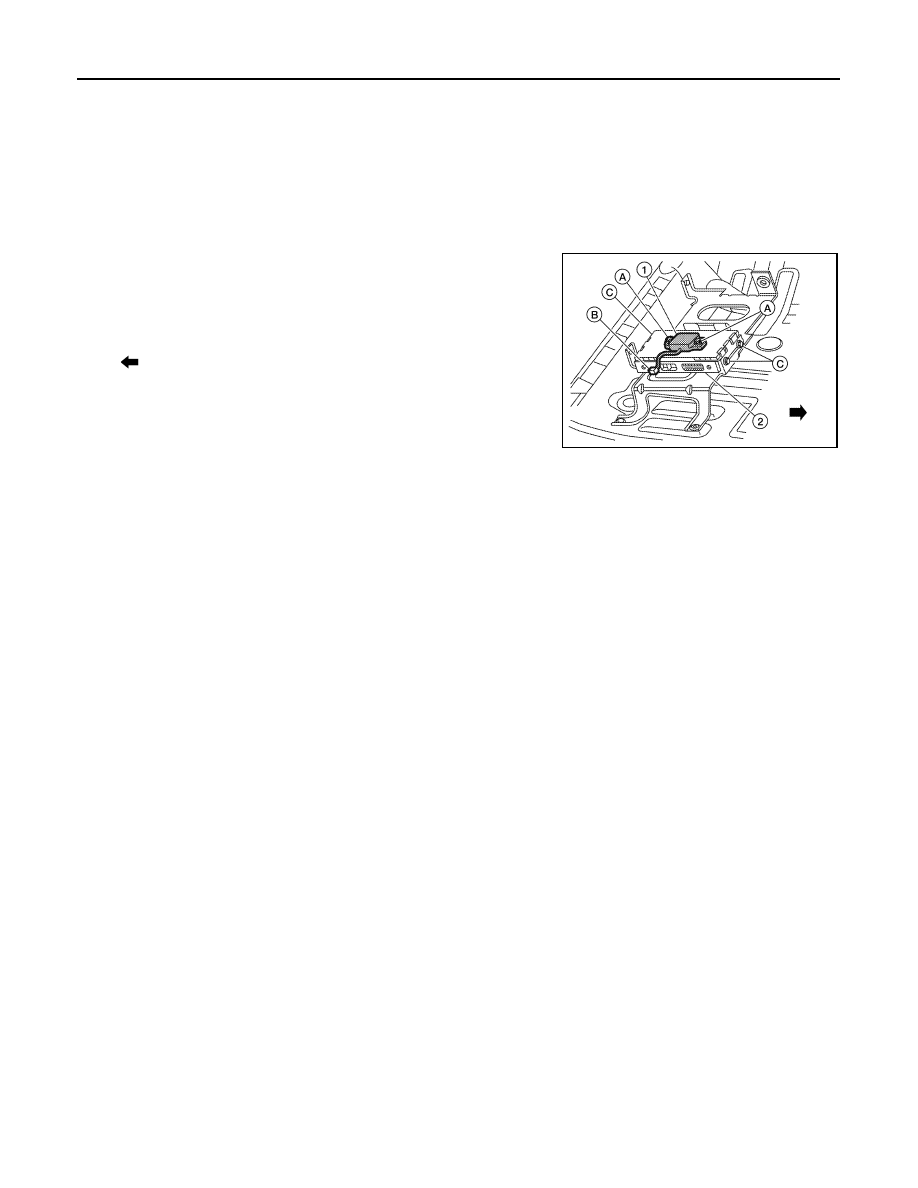

REMOVAL

1. Disconnect the negative battery terminal.
2. Slide the front passenger seat fully forward.
3. Remove the Bluetooth control unit kick shield screws and remove the Bluetooth control unit kick shield.
4. Remove the Bluetooth control unit screws (C), disconnect the

Bluetooth control unit connectors and remove the Bluetooth con-

trol unit (2).

• Bluetooth antenna (1)

• Bluetooth antenna screws (A)

• Bluetooth antenna connector (B)
•

:Front of vehicle

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0281ZZ

AV

DIAGNOSIS AND REPAIR WORKFLOW

AV-191

< BASIC INSPECTION >

[PREMIUM WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

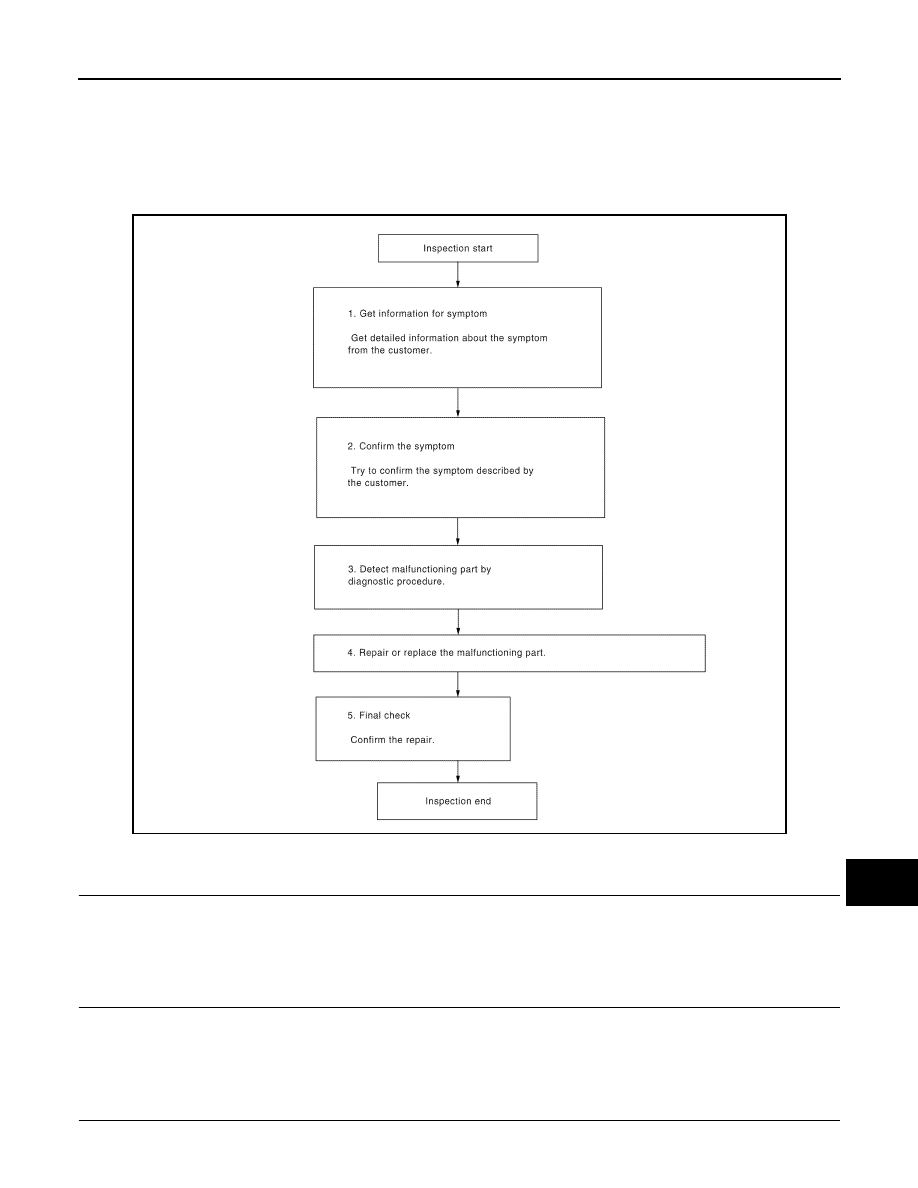

Work Flow

INFOID:0000000006166552

OVERALL SEQUENCE

DETAILED FLOW

1.

GET INFORMATION FOR SYMPTOM

Get detailed information from the customer about the symptom (the condition and the environment when the

incident/malfunction occurred).

>> GO TO 2.

2.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer. Verify relation between the symptom and the condition

when the symptom is detected.

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE

Inspect according to Diagnostic Procedure of the system.

ALNIA0182GB

AV-192

< BASIC INSPECTION >

[PREMIUM WITH NAVIGATION]

DIAGNOSIS AND REPAIR WORKFLOW

Is malfunctioning part detected?

YES

>> GO TO 4.

NO

>> GO TO 2.

4.

REPAIR OR REPLACE THE MALFUNCTIONING PART

1. Repair or replace the malfunctioning part.

2. Reconnect parts or connectors disconnected during Diagnostic Procedure.

>> GO TO 5.

5.

FINAL CHECK

Refer to confirmed symptom in step 2, and make sure that the symptom is not detected.
Was the repair confirmed?

YES

>> Inspection End.

NO

>> GO TO 2.
