AUDIO SYSTEM

AV-101

< SYSTEM DESCRIPTION >

[PREMIUM WITHOUT NAVIGATION]

Component Description

INFOID:0000000006166492

10. Bluetooth ON indicator R105

11. Front door speaker

LH D12
RH D112

12. Rear door tweeter (crew cab)

LH D208
RH D308

13. Rear door speaker (crew cab)

LH D207
RH D307

14. Rear door speaker (king cab)

LH B76
RH B159

15. Subwoofer B72 (under driver’s seat)

16. Audio amp M112, M113 (view behind

instrument panel above accelerator
pedal)

17. Satellite radio tuner M41, M129

18. Bluetooth control unit B142, B143

(view with passenger front seat re-
moved)

Part name

Description

Audio unit

Controls audio system and satellite radio system functions

Audio amp.

Receives power (amp ON) and audio signals from Audio unit and outputs au-
dio signals to each speaker.

Steering wheel audio control switches

• Audio operation can be operated
• Steering switch signal is output to audio unit

Front door speakers

• Outputs audio signal from audio amp.
• Outputs high, mid and low range sounds

Front tweeters

• Outputs audio signal from audio amp.
• Outputs high range sounds

Center speaker

• Outputs audio signal from audio amp.
• Outputs high range sounds

Rear door speakers

• Outputs audio signal from audio amp.
• Outputs high, mid and low range sounds

Rear door tweeters (crew cab)

• Outputs audio signal from audio amp.
• Outputs high range sounds

Subwoofer

• Outputs audio signal from audio amp.
• Outputs low range sounds

Satellite radio tuner

• Receives radio signals from satellite antenna
• Sends audio signals to Audio unit

Satellite antenna

Audio signal (satellite radio) is received and output to Audio unit.

AV-102

< SYSTEM DESCRIPTION >

[PREMIUM WITHOUT NAVIGATION]

HANDS-FREE PHONE SYSTEM

HANDS-FREE PHONE SYSTEM

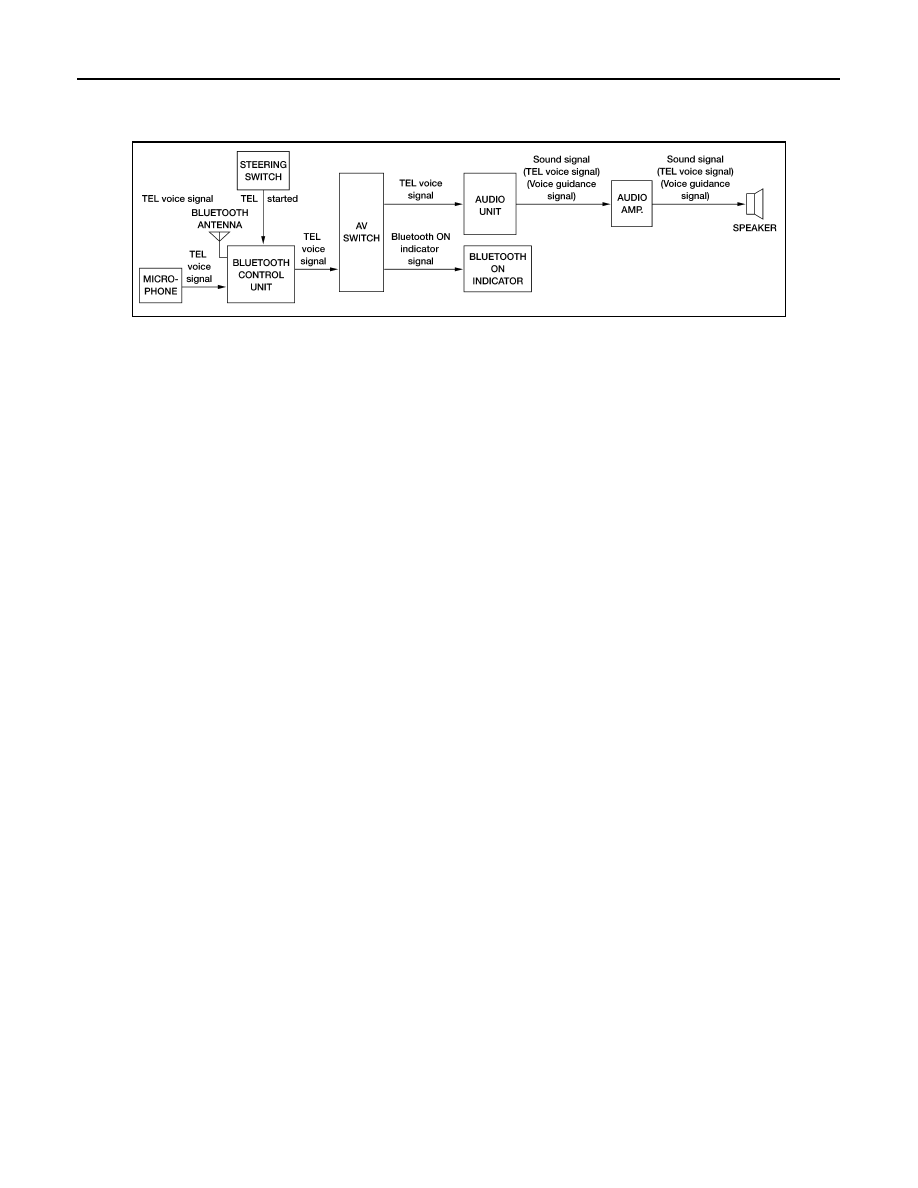

System Diagram

INFOID:0000000006166493

System Description

INFOID:0000000006166494

Refer to the Owner's Manual for Bluetooth telephone system operating instructions.

NOTE:

Cellular telephones must have their wireless connection set up (paired) before using the Bluetooth telephone

system.

Bluetooth telephone system allows users who have a Bluetooth equipped cellular telephone to make a wire-

less connection between their cellular telephone and the Bluetooth control unit. Hands-free cellular telephone

calls can be sent and received. Personal memos can be created using the Nissan Voice Recognition system.

Some Bluetooth cellular telephones may not be recognized by the Bluetooth control unit. When a cellular tele-

phone or the Bluetooth control unit is replaced, the telephone must be paired with the Bluetooth control unit.

Different cellular telephones may have different pairing procedures. Refer to the cellular telephone operating

manual.

BLUETOOTH CONTROL UNIT

When the ignition switch is turned to ACC or ON, the Bluetooth control unit will power up. During power up, the

Bluetooth control unit is initialized and performs various self checks. Initialization may take up to 10 seconds.

If a phone is present in the vehicle and paired with the Bluetooth control unit, Nissan Voice Recognition will

then become active. Bluetooth telephone functions can be turned off using the Nissan Voice Recognition sys-

tem.

STEERING WHEEL AUDIO CONTROL SWITCHES

When buttons on the steering wheel audio control switch are pushed, the resistance in steering wheel audio

control switch circuit changes depending on which button is pushed. The Bluetooth control unit uses this sig-

nal to perform various functions while navigating through the voice recognition system.

The following functions can be performed using the steering wheel audio control switch:

• Initiate Self Diagnosis of the Bluetooth telephone system

• Start a voice recognition session

• Answer and end telephone calls

• Adjust the volume of calls

• Record memos

MICROPHONE

The microphone is located in the roof console assembly. The microphone sends a signal to the Bluetooth con-

trol unit. The microphone can be actively tested during self-diagnosis.

AUDIO UNIT

The audio unit receives signals from the Bluetooth control unit and sends audio signals to the audio amp. then

on to the speakers.

AWNIA1619GB

HANDS-FREE PHONE SYSTEM

AV-103

< SYSTEM DESCRIPTION >

[PREMIUM WITHOUT NAVIGATION]

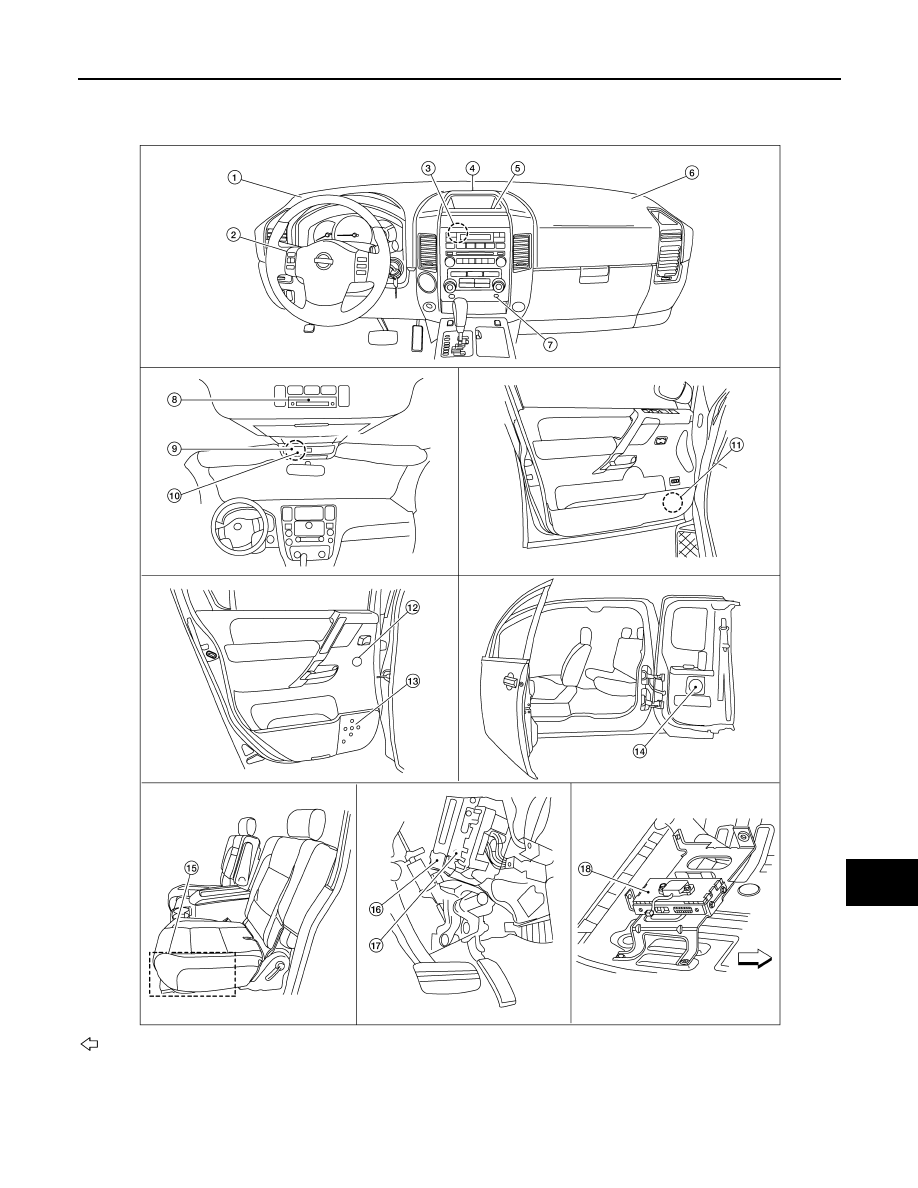

Component Parts Location

INFOID:0000000006166495

:FRONT

Front tweeter LH M109

Steering wheel audio control switch-
es

Audio unit M170, M171, M172, M173
(crew cab), M174, M175 (king cab)

Center speaker M110

AV switch M98

Front tweeter RH M111

Aux jack M104

Rear audio remote control unit R204 9.

Microphone R109

AWNIA1561GB

AV-104

< SYSTEM DESCRIPTION >

[PREMIUM WITHOUT NAVIGATION]

HANDS-FREE PHONE SYSTEM

Component Description

INFOID:0000000006166496

10. Bluetooth ON indicator R105

11. Front door speaker

LH D12
RH D112

12. Rear door tweeter (crew cab)

LH D208
RH D308

13. Rear door speaker (crew cab)

LH D207
RH D307

14. Rear door speaker (king cab)

LH B76
RH B159

15. Subwoofer B72 (under driver’s seat)

16. Audio amp M112, M113 (view behind

instrument panel above accelerator
pedal)

17. Satellite radio tuner M41, M129

18. Bluetooth control unit B142, B143

(view with passenger front seat re-
moved)

Part name

Description

Audio unit

• Receives telephone voice signal from Bluetooth control unit
• Sends telephone voice and voice guidance signals to the speakers

Audio amp.

• Receives audio signals from the audio unit
• Outputs amplified audio signals to the speakers.

Front door speaker

Receives telephone voice and voice guidance signals from the audio amp.

Front tweeter

Center speaker

Steering wheel audio control switches

• Start a voice recognition session
• Answer and end telephone calls
• Adjust the volume level

Microphone

Sends voice signals to Bluetooth control unit

Bluetooth control unit

Controls hands-free phone functions

Bluetooth antenna

Sends telephone voice signal to Bluetooth control unit

Bluetooth ON indicator

Controlled by the Bluetooth control unit
