MICROPHONE

Removal and Installation

INFOID:0000000006713607

REMOVAL

1. Remove the front roof console finisher. Refer to

IP-12, "Removal

and Installation"

.

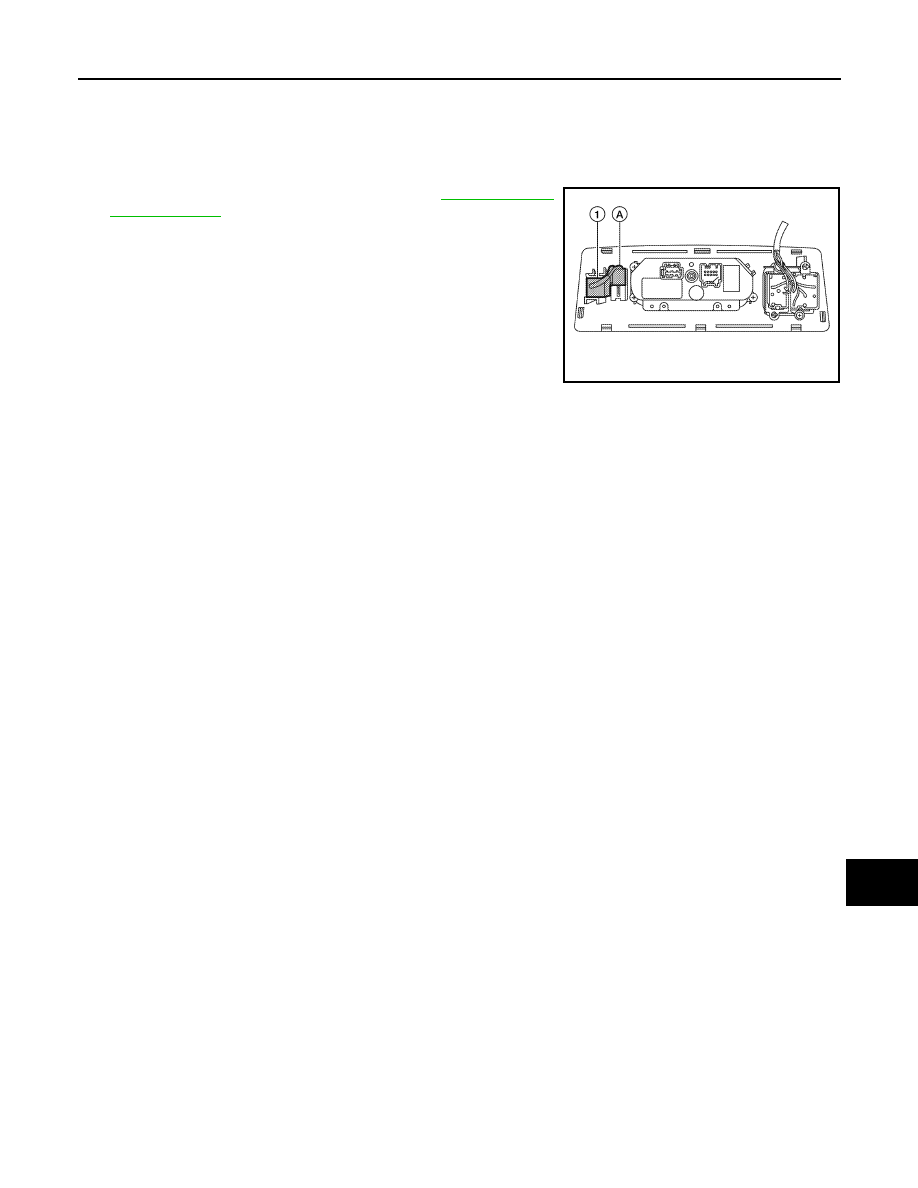

2. Disconnect the Bluetooth microphone connector (A).
3. Detach the Bluetooth microphone (1) from the front roof console

finisher and remove the Bluetooth microphone (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0275ZZ

ALNIA0274ZZ

AV-94

< REMOVAL AND INSTALLATION >

[MID AUDIO]

TEL ANTENNA

TEL ANTENNA

Removal and Installation

INFOID:0000000006713608

REMOVAL

1. Disconnect the battery negative terminal.
2. Slide the front passenger seat fully forward.
3. Remove the Bluetooth control unit kick shield screws and remove the Bluetooth control unit kick shield.

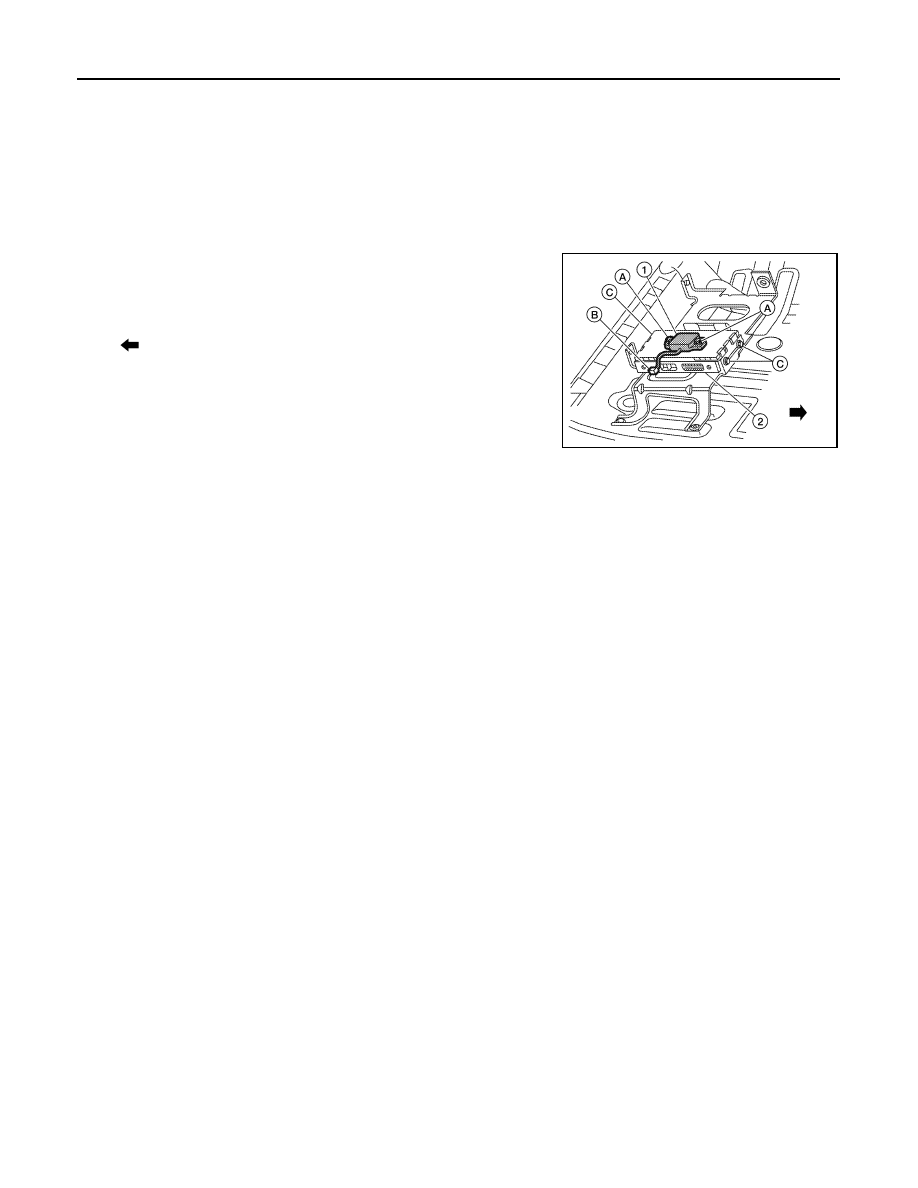

4. Remove the Bluetooth antenna screws (A), disconnect the Blue-

tooth antenna connector (B) and remove the Bluetooth antenna

(1).

• Bluetooth control unit screws (C)

• Bluetooth control unit (2)
•

:Front of vehicle

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0281ZZ

AV

BLUETOOTH CONTROL UNIT

AV-95

< REMOVAL AND INSTALLATION >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BLUETOOTH CONTROL UNIT

Removal and Installation

INFOID:0000000006713609

REMOVAL

1. Disconnect the negative battery terminal.
2. Slide the front passenger seat fully forward.
3. Remove the Bluetooth control unit kick shield screws and remove the Bluetooth control unit kick shield.

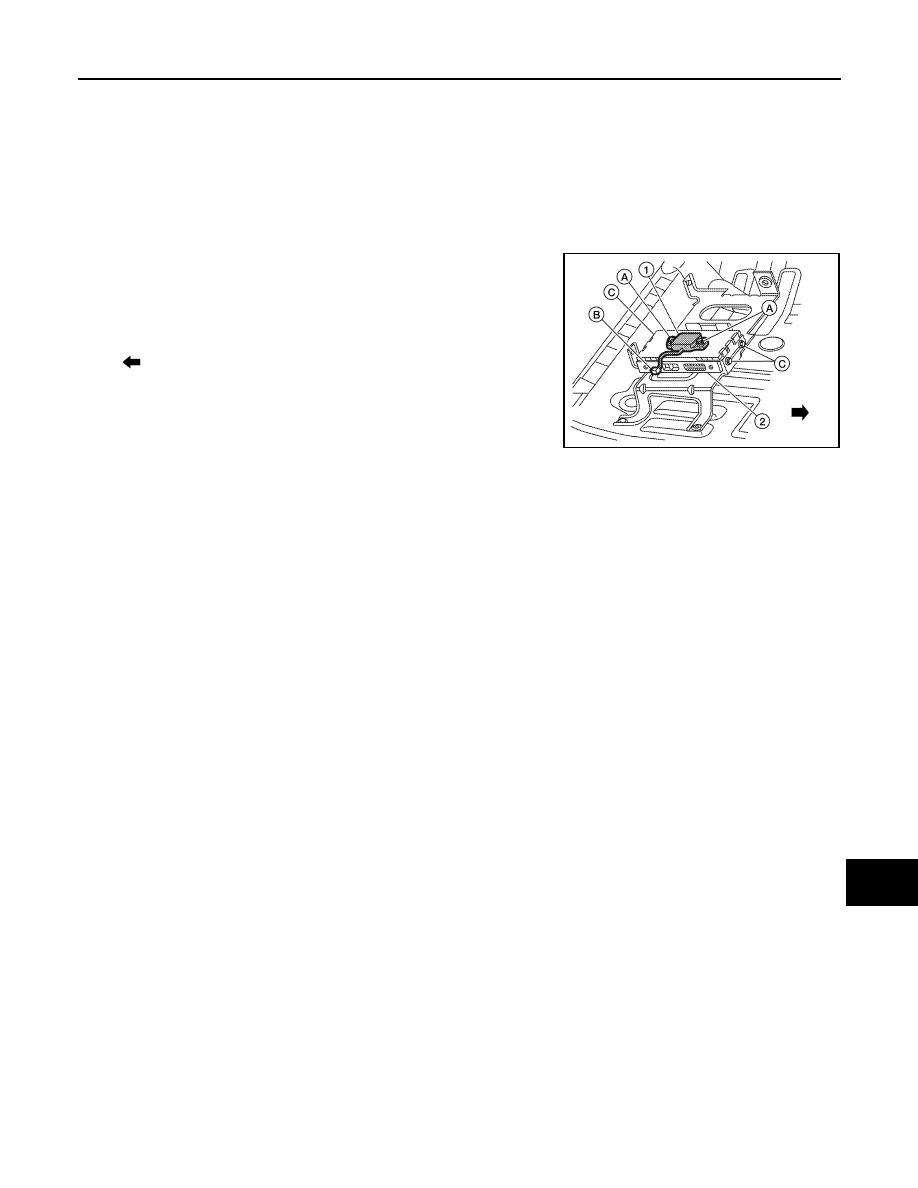

4. Remove the Bluetooth control unit screws (C), disconnect the

Bluetooth control unit connectors and remove the Bluetooth con-

trol unit (2).

• Bluetooth antenna (1)

• Bluetooth antenna screws (A)

• Bluetooth antenna connector (B)
•

:Front of vehicle

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0281ZZ

AV-96

< BASIC INSPECTION >

[PREMIUM WITHOUT NAVIGATION]

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000006166488

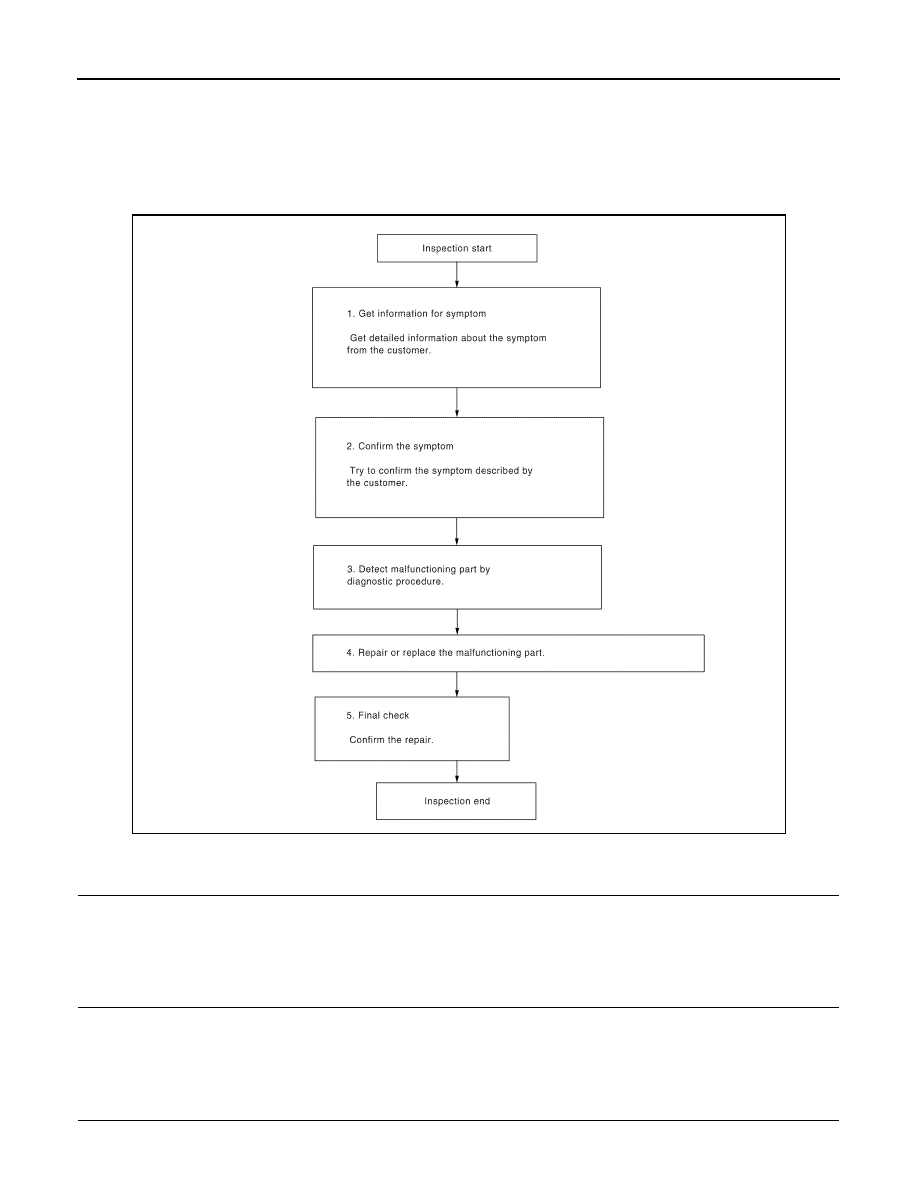

OVERALL SEQUENCE
