AV

REAR DOOR SPEAKER

AV-89

< REMOVAL AND INSTALLATION >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000006166485

REAR DOOR SPEAKER

Removal

1. Remove the rear door finisher. Refer to

INT-10, "Removal and Installation"

 (Crew Cab) or

INT-10,

"Removal and Installation"

 (King Cab).

2. Remove the three rear door speaker screws and remove the

rear door speaker.

Installation

Installation is in the reverse order of removal.

REAR DOOR TWEETER

Removal

1. Remove the rear door finisher. Refer to

INT-10, "Removal and Installation"

.

2. Remove the rear door tweeter screws and remove the rear door

tweeter.

3. Disconnect the rear door tweeter connector.

Installation

Installation is in the reverse order of removal.

WKIA1492E

WKIA1494E

AV-90

< REMOVAL AND INSTALLATION >

[MID AUDIO]

STEERING SWITCH

STEERING SWITCH

Removal and Installation

INFOID:0000000006166486

STEERING WHEEL AUDIO CONTROL SWITCHES

Removal

1. Remove the steering wheel. Refer to

ST-11, "Removal and Installation"

.

2. Remove the steering wheel rear cover screws and remove the steering wheel rear cover.
3. Remove the steering wheel switch assembly screws and

remove the steering wheel switches.

Installation

Installation is in the reverse order of removal.

WKIA1226E

AV

AUDIO ANTENNA

AV-91

< REMOVAL AND INSTALLATION >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AUDIO ANTENNA

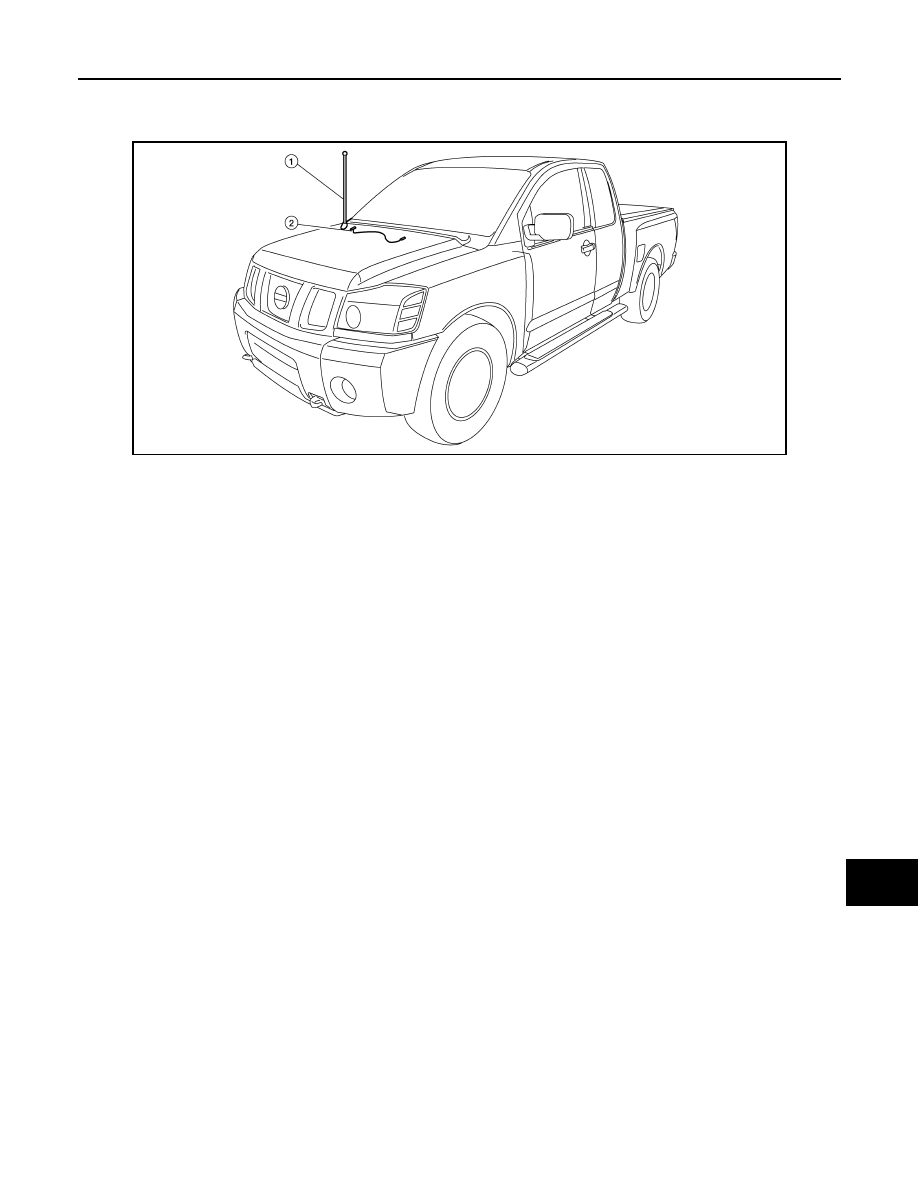

Location of Antenna

INFOID:0000000006166487

ALNIA0824GB

1.

Antenna

2.

Main feeder cable

AV-92

< REMOVAL AND INSTALLATION >

[MID AUDIO]

AUXILIARY INPUT JACK

AUXILIARY INPUT JACK

Removal and Installation

INFOID:0000000006713551

Removal

1. Remove the Cluster lid D. Refer to

IP-15, "Removal and Installation"

.

2. Remove the auxiliary input jack.

Installation

Installation is in the reverse order of removal.
