AV

DIAGNOSIS AND REPAIR WORKFLOW

AV-97

< BASIC INSPECTION >

[PREMIUM WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Is malfunctioning part detected?

YES

>> GO TO 4.

NO

>> GO TO 2.

4.

REPAIR OR REPLACE THE MALFUNCTIONING PART

1. Repair or replace the malfunctioning part.

2. Reconnect parts or connectors disconnected during Diagnostic Procedure.

>> GO TO 5.

5.

FINAL CHECK

Refer to confirmed symptom in step 2, and make sure that the symptom is not detected.
Was the repair confirmed?

YES

>> Inspection End.

NO

>> GO TO 2.

AV-98

< SYSTEM DESCRIPTION >

[PREMIUM WITHOUT NAVIGATION]

AUDIO SYSTEM

SYSTEM DESCRIPTION

AUDIO SYSTEM

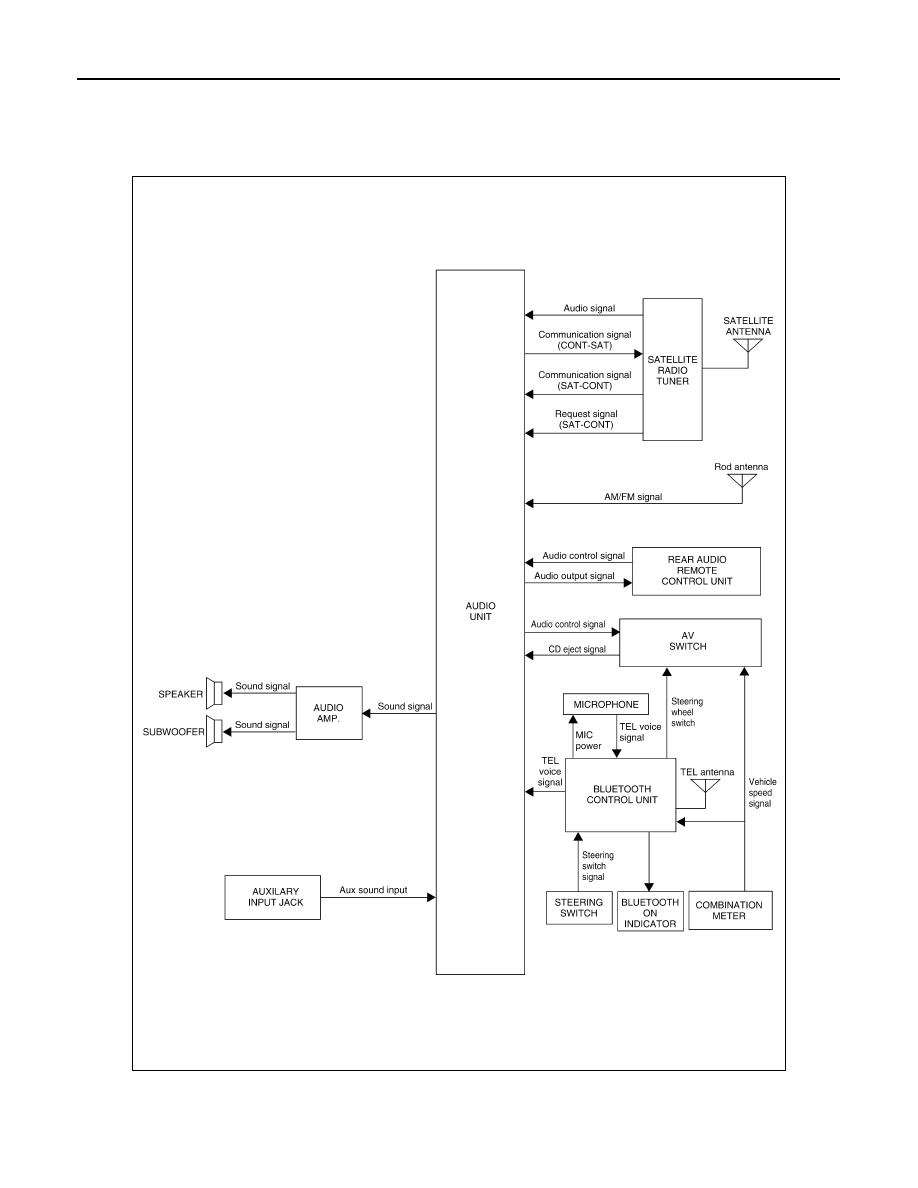

System Diagram

INFOID:0000000006166489

System Description

INFOID:0000000006166490

AUDIO SYSTEM

ABNIA1823GB

AV

AUDIO SYSTEM

AV-99

< SYSTEM DESCRIPTION >

[PREMIUM WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

The audio system consists of the following components

• Audio unit

• Audio amp.

• Rod antenna

• Steering wheel audio control switches

• AV switch

• Rear audio remote control unit

• Front door speakers

• Front tweeters

• Center speaker

• Rear door speakers

• Rear door tweeters (crew cab)

• Subwoofer

When the audio system is on, radio signals are received by the rod antenna. The audio unit then sends audio

signals to the audio amp. The audio amp. amplifies the audio signals before sending them to the front door

speakers, front tweeters, center speaker, rear door speakers, rear door tweeters (crew cab) and the sub-

woofer.

Refer to Owner's Manual for audio system operating instructions.

SATELLITE RADIO SYSTEM

The satellite radio system consists of the following components

• Satellite antenna

• Satellite radio tuner

When the satellite radio system is on, radio signals are supplied to the satellite radio tuner from the satellite

antenna. The satellite radio tuner then sends audio signals to the audio unit.

Refer to Owner's Manual for satellite radio system operating instructions.

SPEED SENSITIVE VOLUME SYSTEM

Volume level of this system goes up and down automatically in proportion to the vehicle speed. The control

level can be selected by the customer. Refer to Owner's Manual for operating instructions.

AV-100

< SYSTEM DESCRIPTION >

[PREMIUM WITHOUT NAVIGATION]

AUDIO SYSTEM

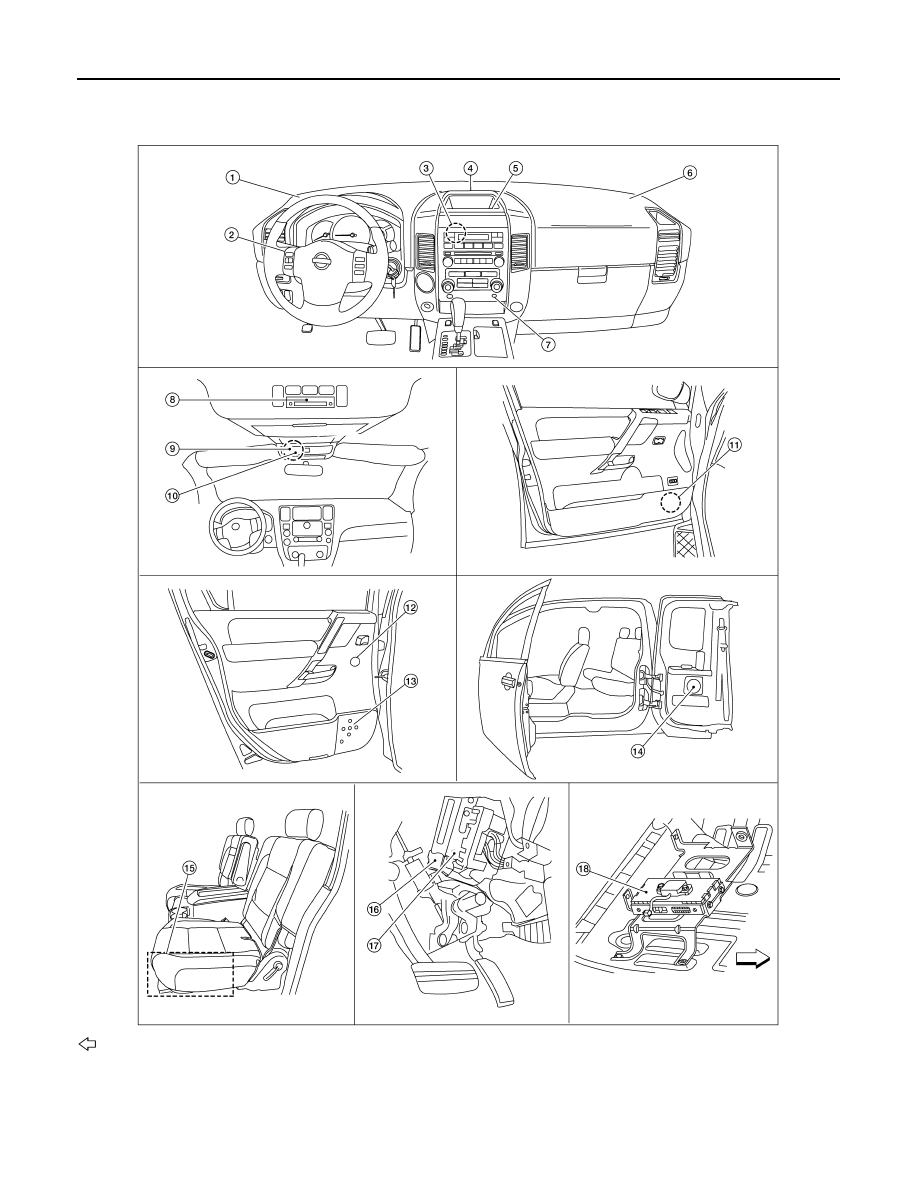

Component Parts Location

INFOID:0000000006166491

 :FRONT

1.

Front tweeter LH M109

2.

Steering wheel audio control switch-
es

3.

Audio unit M170, M171, M172, M173
(crew cab), M174, M175 (king cab)

4.

Center speaker M110

5.

AV switch M98

6.

Front tweeter RH M111

7.

Aux jack M104

8.

Rear audio remote control unit R204 9.

Microphone R109

AWNIA1561GB
