METER SYSTEM

MWI-29

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

• The combination meter judges showing/hiding of “engine oil warning”, according to the signals below:

Other (Maintenance)

• When all the following operating conditions are satisfied, the combination meter displays a other warning on

the information display by an interrupt.

• The combination meter judges showing/hiding of “other warning”, according to the signals below:

Meter Illumination Level Indication

When receiving the following signals, the combination meter causes an interrupt on the information display to
indicate an illumination level.

WARNING CHECK INDICATION

• The combination meter can cause an interrupt on the information display to indicate a warning, based on

signals received from each unit and switch.

• The indicated warning can be checked with “WARNING” during the satisfaction of an interrupt indication

condition for each warning.

SETTING

Warning indication timing and time can be set.

Alert

Setting values for travel time, and low ambient temperature can be adjusted to meet the user's needs.

Maintenance

Setting values for engine oil, oil filter, tire, and other maintenance items can be adjusted to meet the user's
needs.

Operating condition

Ignition switch

ON

Mileage

More than value set in “SETTING”

Signal name

Signal Path

Ignition signal

Vehicle speed signal

ABS actuator and electric unit (control unit)

Combination

meter

Operating condition

Ignition switch

ON

Mileage

More than value set in “SETTING”

Signal name

Signal Path

Ignition signal

Vehicle speed signal

ABS actuator and electric unit (control unit)

Combination

meter

Signal name

Signal Path

Ignition signal

Illumination control switch signal (+)

Illumination control switch

 Combination meter

Illumination control switch signal (

)

Setting item

Setting range

Setting unit

Alert

Timer

No setting, 0.5 h - 6 h

0.5 h

ICY

ON/OFF

MWI-30

< SYSTEM DESCRIPTION >

METER SYSTEM

Options

Setting values for language, unit, and effect items can be adjusted to meet the user's needs.

Settings-reject Indication

• Regarding settings-reject indications, “SETTING CAN BE OPERATED WHEN STOPPED” is shown on the

information display when indication conditions are satisfied.

• When reaching 5 km/h (3.1 MPH) after accelerating from a stopping condition, a settings-reject indication is

displayed.

• When reaching less than 2 km/h (1.2 MPH) after decelerating from 5 km/h (3.1 MPH), a settings-reject indi-

cation is cancelled to allow settings.

• The combination meter judges a vehicle condition based on the following signals and displays a settings-

reject indication on the information display.

Setting item

Setting range

Maintenance

Engine oil

No setting, 500 km - 30,000 km

(No setting, 250 mile - 18,500 mile)

Oil filter

No setting, 500 km - 30,000 km

(No setting, 250 mile - 18,500 mile)

Tire

No setting, 500 km - 30,000 km

(No setting, 250 mile - 18,500 mile)

Other

No setting, 500 km - 30,000 km

(No setting, 250 mile - 18,500 mile)

Setting item

Options

Language

ENGLISH

FRANCAISE

Unit

miles, MPG,

°

F

km, l/100 km,

°

C

Effect

ON/OFF

Signal name

Signal Path

Ignition signal

Vehicle speed signal

ABS actuator and electric unit (control unit)

 Combination meter

MWI

METER SYSTEM

MWI-31

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

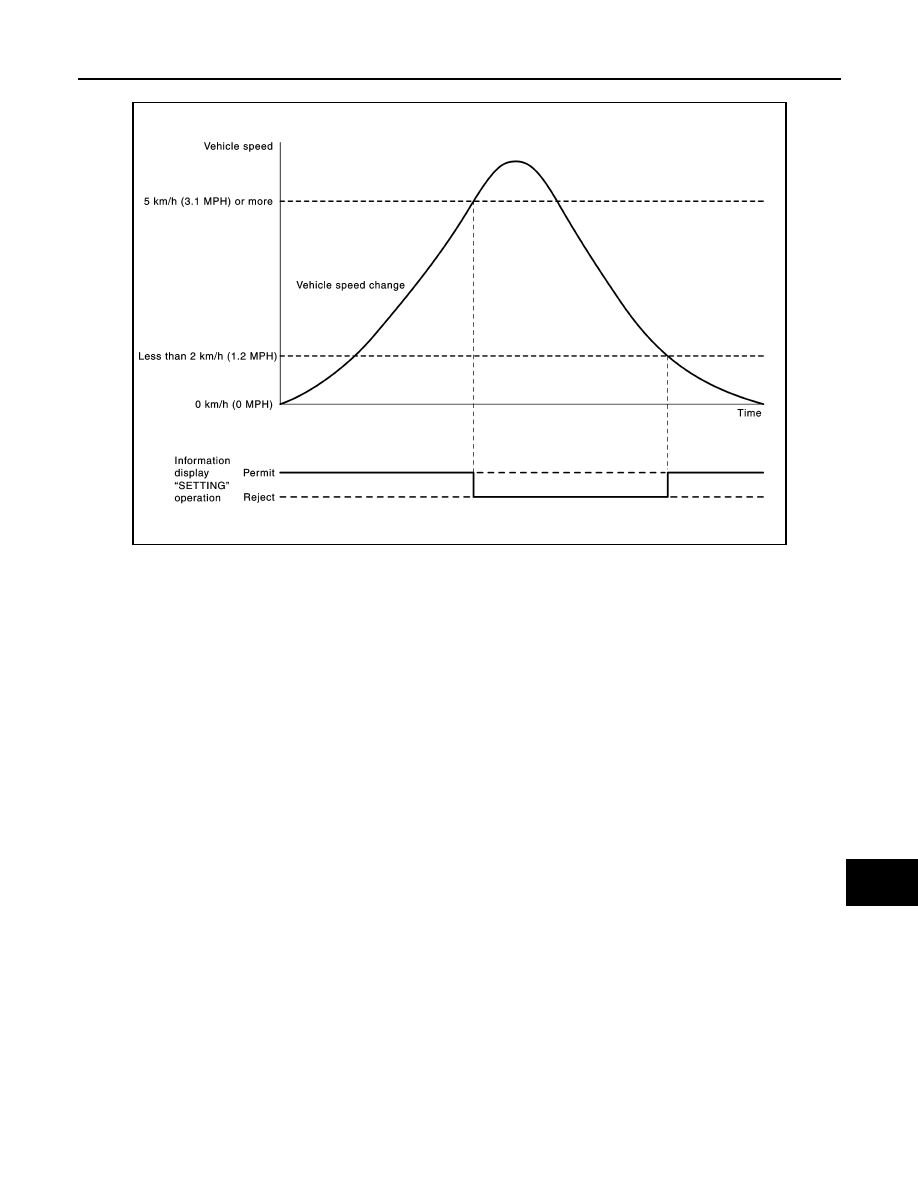

TIMING CHART

JSNIA4356GB

MWI-32

< SYSTEM DESCRIPTION >

COMPASS

COMPASS

System Description

INFOID:0000000009651481

DESCRIPTION

• This electronic compass is able to display 8 primary directions: N, NE, E, SE, S, SW, W, NW.
• The inside mirror switch is used to operate the compass.

Switch Operation

• All standard compasses determine direction relative to magnetic north, however, this electronic compass is

designed to display direction relative to true north.

• The difference between magnetic north and true north varies from place to place across the surface of the

earth.

• This electronic compass must be “told” approximately where it is on the earth’s surface so that the magnetic

north reading can be properly converted into a true north display.

• To tell the electronic compass where it’s at, the earth is separated into numbered “Zone Variances”. The

zone variance number in which the compass is to function must be entered into this electronic compass.

• Each zone is magnetically about 4.2

°

 wide. Typically, anything under a 22.5

°

 total zone change is not noticed

on the electronic compass display. However, if a change over 22.5

°

 occurs, a reading may be off by one or

more primary directions.

• On long trips, the vehicle may leave its original zone and enter one or more new zones. Generally, you do

not need to reset the compass zone if you travel between 3 or 4 zones, such as business travel or vacation.
The typical driver will not notice any difference on the display within 3 or 4 zones. However, if the vehicle is
“permanently” moved to a new location, it is recommended that the compass zone be reset.

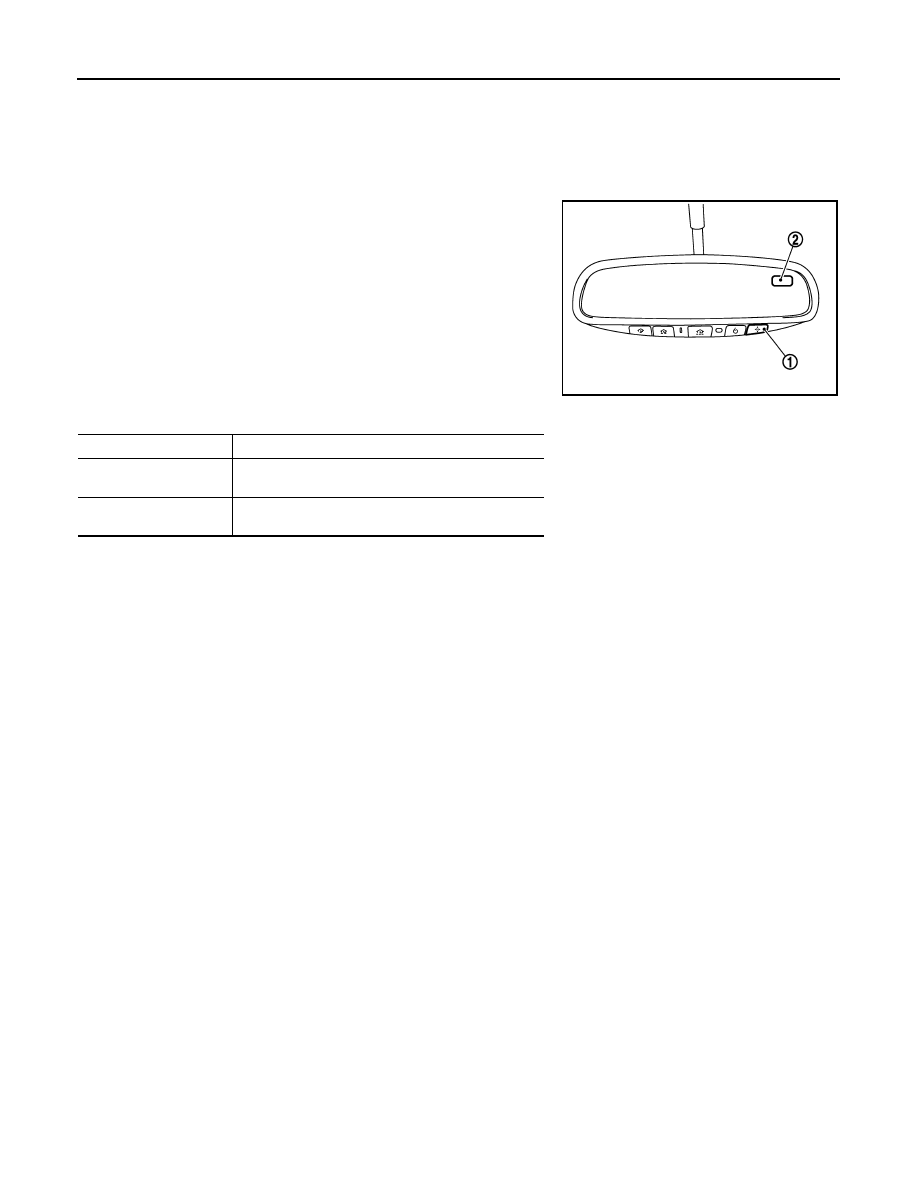

1

: Compass switch

2

: Compass display

SKIB8868E

Press

Compass is turned ON/OFF

Press and hold
(for 3- 9 sec.)

Compass display turns to zone variation change
mode

Press and hold (for more
than 9 sec.)

Compass display turns to calibration mode
