Nissan Quest E52. Manual - part 904





MWI

METER SYSTEM

MWI-21

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

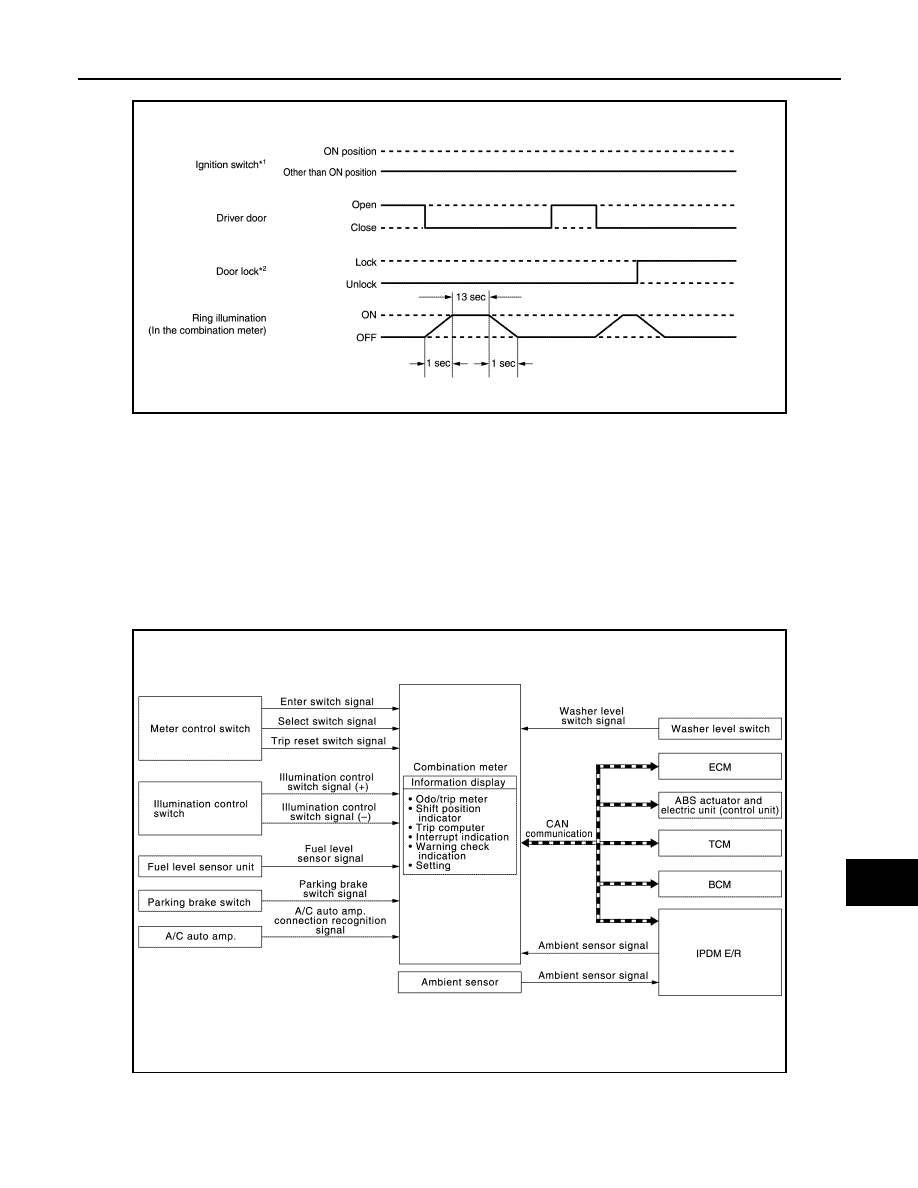

Timing Chart

• *1: The driver welcome function is not performed when the driver’s door is opened/closed for the first time

after turning the ignition switch from ON to LOCK.

• *2: The operation of the following switches allows the door to be locked/unlocked.
- Door lock/unlock button of the Intelligent Key
- Door request switch
- Door key cylinder switch
- Door lock and unlock switch

INFORMATION DISPLAY

INFORMATION DISPLAY : System Description

INFOID:0000000009651480

SYSTEM DIAGRAM

DESCRIPTION

• The combination meter receives signals necessary for controlling the operation of the information display

from each unit, sensor and switch.

JSNIA4336GB

JSNIA4140GB

MWI-22

< SYSTEM DESCRIPTION >

METER SYSTEM

• The combination meter incorporates a trip computer that displays the warning/information according to the

information received from each unit, sensor and switch.

• The combination meter shows the following functions on the information display.
- Odo/trip meter
- Shift position indicator
- Trip computer
- Interrupt indication
- Warning check indication
- Setting

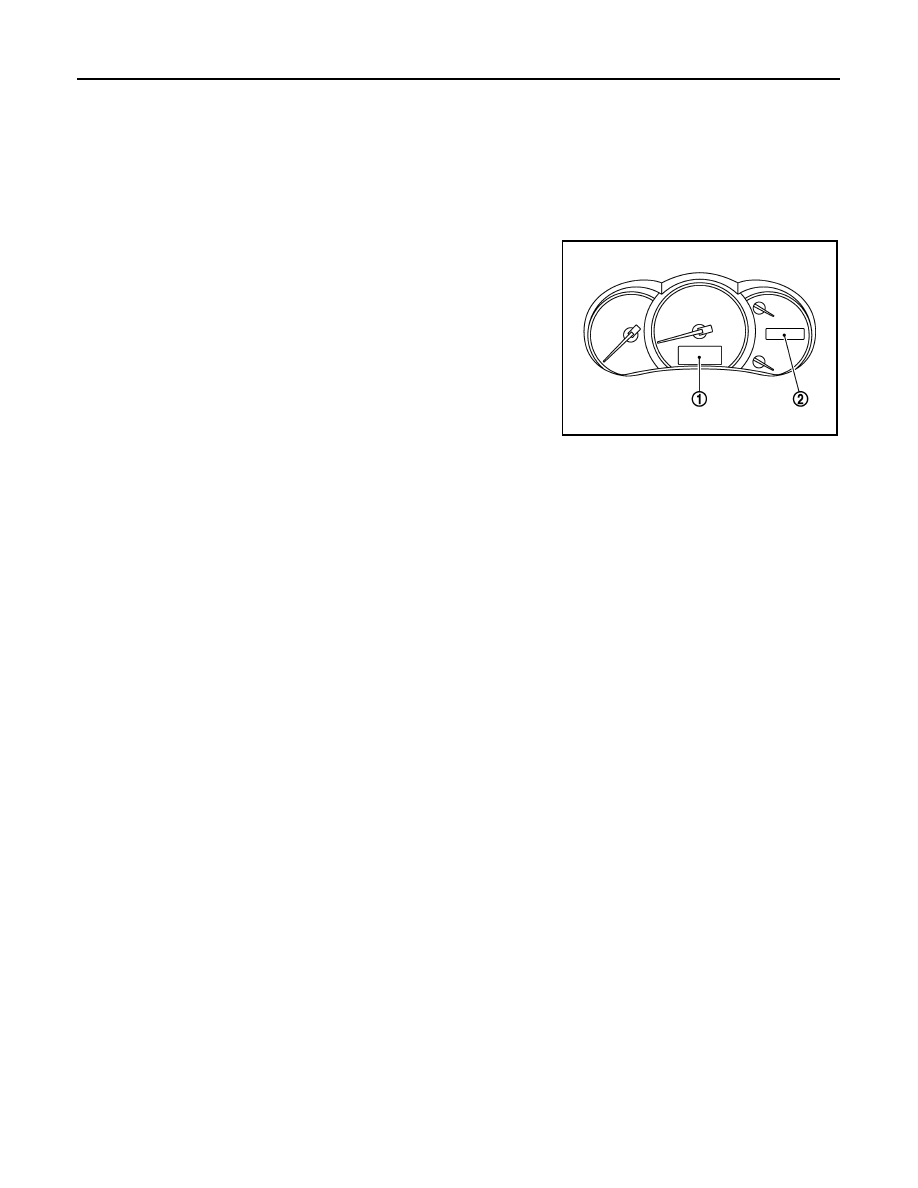

• The vehicle information display is comprised of dot matrix informa-

tion display (1) and segment information display (2). Each display
shows the items listed below.

JSNIA3395ZZ

MWI

METER SYSTEM

MWI-23

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ODO/TRIP METER

The combination meter calculates mileage, based on the following signals and displays the mileage on the
information display.

SHIFT POSITION INDICATOR

The combination meter receives the shift position signal from TCM via CAN communication, and displays the
shift position to the shift position indicator.

Display

Display item

Dot matrix information

display

Interrupt indica-
tion

Warning

Door open warning

Parking brake release warning

Low fuel warning

Low washer warning

Fuel filler cap warning

Low tire pressure warning

NO KEY warning

Alert

Travel time

ICY

Maintenance

Tire

Oil filter

Engine oil

Other

Meter illumination level

Trip computer

Current fuel consumption

Average fuel consumption

Average vehicle speed

Travel time

Travel distance

Distance to empty

Ambient temperature

Setting

Alert

Timer

ICY

Maintenance

Tire

Oil filter

Engine oil

Other

Options

Language

Unit

Effect

Segment information

display

• Shift position indicator
• Odo/trip meter

Signal name

Signal Path

Ignition signal

Vehicle speed signal

ABS actuator and electric unit (control unit)

 Combination meter

MWI-24

< SYSTEM DESCRIPTION >

METER SYSTEM

TRIP COMPUTER

Current Fuel Consumption

The combination meter calculates current fuel consumption based on the following signals, and the calculated
value is displayed on the information display.

NOTE:
• Current fuel consumption on the information display is updated approximately every 0.1 seconds.
• Current fuel consumption on the information display shows 30 l/100km (0 mpg) when vehicle speed is 0 km/

h (0 MPH).

Average Fuel Consumption

The combination meter calculates average fuel consumption based on the following signals, and the calcu-
lated value is displayed on the information display.

NOTE:
• Average fuel consumption on the information display is updated approximately every 30 seconds.
• Soon after a reset or when the ignition switch is turned ON after battery installation, “

−−−

” is displayed for 30

seconds and approximately 500 m (0.31 mile).

Distance to Empty

The combination meter calculates distance to empty based on the following signals, and the calculated value
is displayed on the information display.

NOTE:
• Distance to empty on the information display is updated approximately every 30 seconds.
• When the ignition switch is turned ON, “

−−−

” is displayed for 30 seconds because stored values are deleted

after battery installation.

• The indicated values may not match each other when refueling with the ignition switch ON.

Average Vehicle Speed

Signal name

Signal Path

Shift position signal

TCM

 Combination meter

Signal name

Signal Path

Ignition signal

Fuel consumption monitor signal

ECM

Combination

meter

Vehicle speed signal

ABS actuator and electric unit (control unit)

 Combination meter

Signal name

Signal Path

Ignition signal

Fuel consumption monitor signal

ECM

Combination

meter

Vehicle speed signal

ABS actuator and electric unit (control unit)

 Combination meter

Signal name

Signal Path

Ignition signal

Fuel level sensor signal

Fuel level sensor unit

 Combination meter

Fuel consumption monitor signal

ECM

Combination

meter

Vehicle speed signal

ABS actuator and electric unit (control unit)

 Combination meter
