Nissan Quest E52. Manual - part 902

MWI

METER SYSTEM

MWI-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

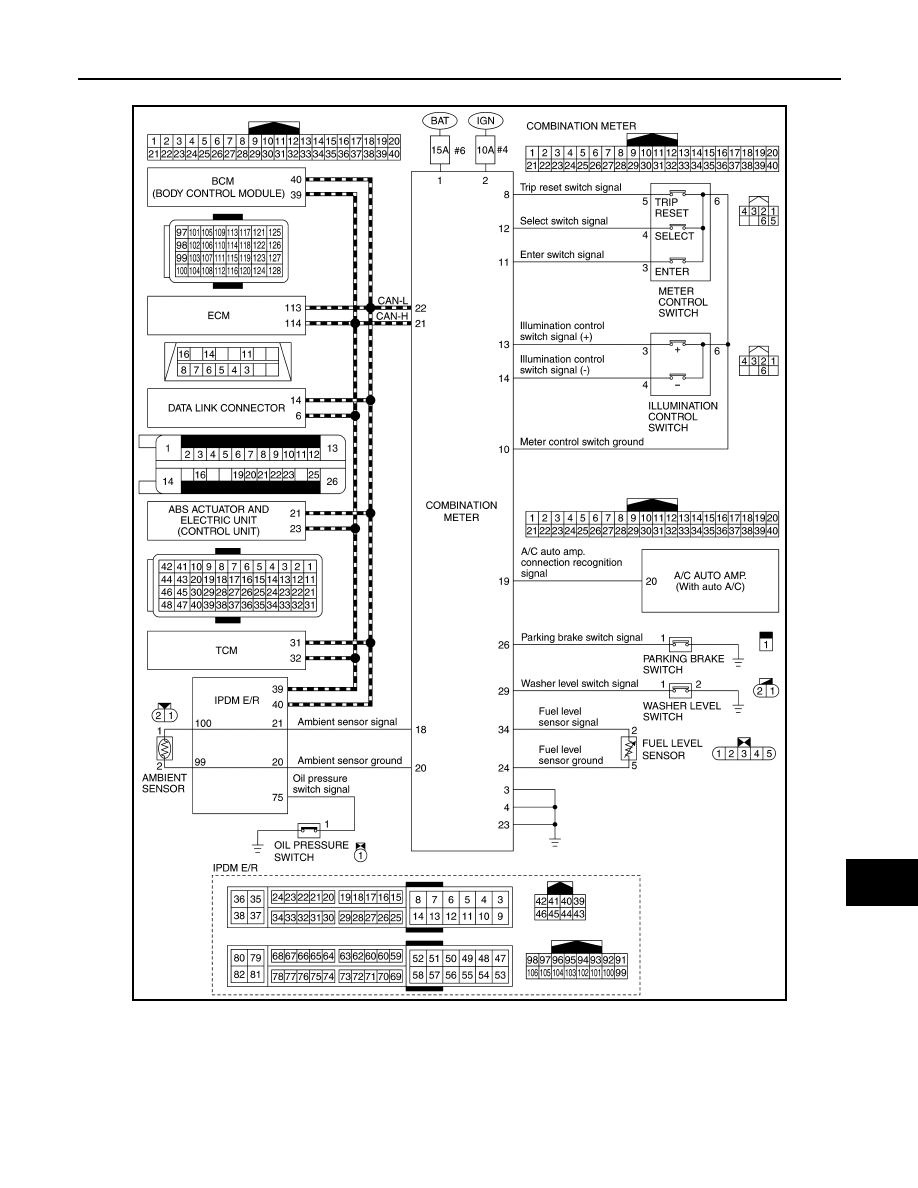

METER SYSTEM : Circuit Diagram

INFOID:0000000009651470

METER SYSTEM : Fail-Safe

INFOID:0000000009864201

FAIL-SAFE

The combination meter activates the fail-safe control if CAN communication with each unit is malfunctioning.

JSNIA6364GB

MWI-14

< SYSTEM DESCRIPTION >

METER SYSTEM

SPEEDOMETER

Function

Specifications

Speedometer

Reset to zero by suspending communication.

Tachometer

Engine coolant temperature gauge

Illumination control

When suspending communication, changes to nighttime
mode.

Information dis-
play

Odo/trip meter

An indicated value is maintained at communications blackout.

Shift position indicator

The display turns OFF by suspending communication.

Interrupt indication

Door open warning

The display turns OFF by suspending communication.

Fuel filler cap warning

Low tire pressure warn-
ing

Trip computer

Current fuel consump-
tion

• When reception time of an abnormal signal is 2 seconds or

less, the last received datum is used for calculation to indi-
cate the result.

• When reception time of an abnormal signal is more than two

seconds, the last calculation results are indicated.

Average fuel consump-
tion

Distance to empty

Average vehicle speed

Travel distance

Buzzer

The buzzer turns OFF by suspending communication.

Warning lamp/in-
dicator lamp

ABS warning lamp

The lamp turns ON by suspending communication.

VDC warning lamp

Brake warning lamp

EPS warning lamp

Malfunction indicator lamp

Low tire pressure warning lamp

The lamp blinking caused by suspending communication.

High beam indicator lamp

The lamp turns OFF by suspending communication.

Turn signal indicator lamp

VDC OFF indicator lamp

O/D OFF indicator lamp

Position lamp indicator lamp

CRUISE indicator lamp

Oil pressure warning lamp

BSW warning lamp

Key warning lamp

MWI

METER SYSTEM

MWI-15

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SPEEDOMETER : System Description

INFOID:0000000009651472

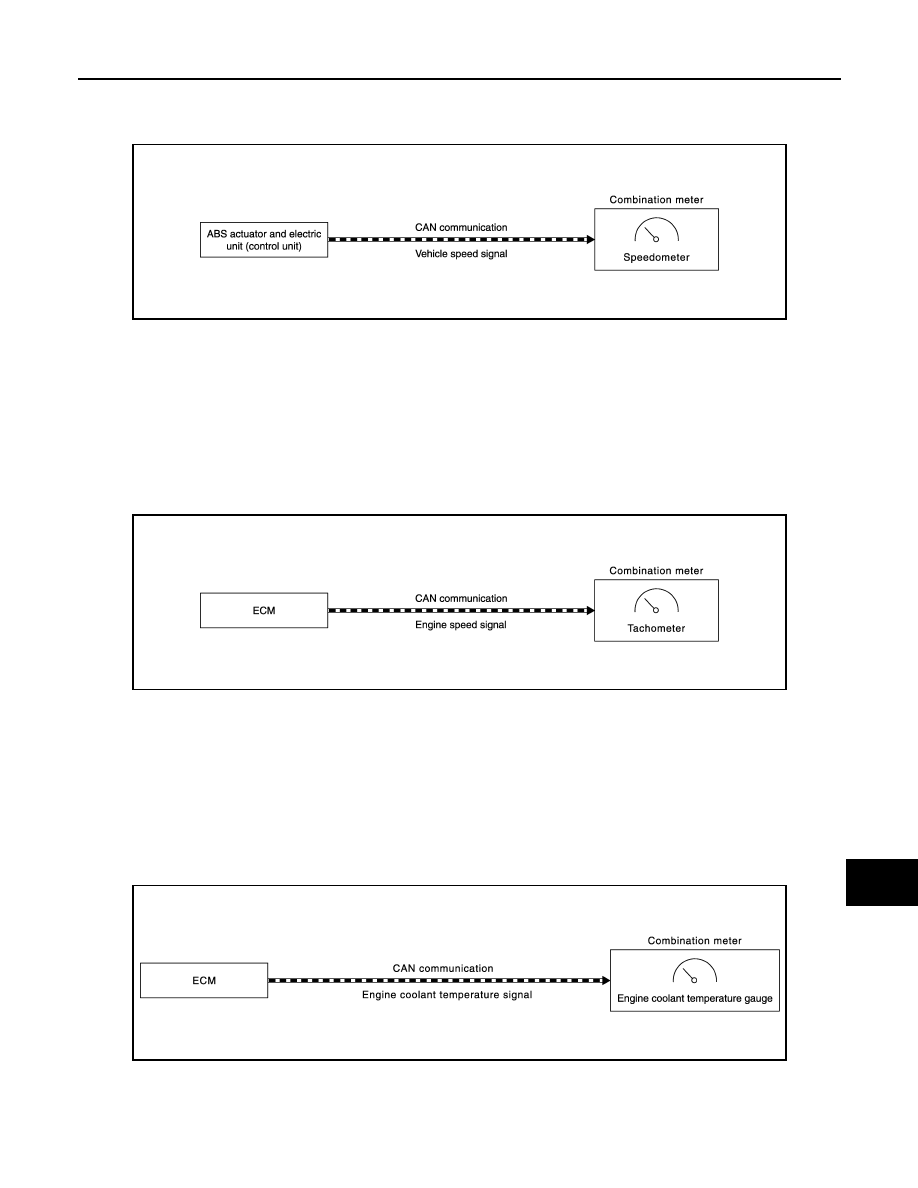

SYSTEM DIAGRAM

DESCRIPTION

• The ABS actuator and electric unit (control unit) converts the rectangular wave signal provided by the wheel

sensor to a vehicle speed signal and transmits it to the combination meter via CAN communication.

• The combination meter indicates the vehicle speed to the speedometer according to the vehicle speed sig-

nal received via CAN communication.

TACHOMETER

TACHOMETER : System Description

INFOID:0000000009651473

SYSTEM DIAGRAM

DESCRIPTION

• ECM converts the pulse signal provided by the crankshaft position sensor to an engine speed signal and

transmits it to the combination meter via CAN communication.

• The combination meter indicates the engine speed to the tachometer according to the engine speed signal

received via CAN communication.

ENGINE COOLANT TEMPERATURE GAUGE

ENGINE COOLANT TEMPERATURE GAUGE : System Description

INFOID:0000000009651474

SYSTEM DIAGRAM

DESCRIPTION

• ECM reads the engine coolant temperature signal from the engine coolant temperature sensor and transmits

the signal to the combination meter via CAN communication.

JSNIA2973GB

JSNIA2974GB

JSNIA3015GB

MWI-16

< SYSTEM DESCRIPTION >

METER SYSTEM

• The combination meter indicates the engine coolant temperature to the engine coolant temperature gauge

according to the engine coolant temperature signal received via CAN communication.

FUEL GAUGE

FUEL GAUGE : System Description

INFOID:0000000009651475

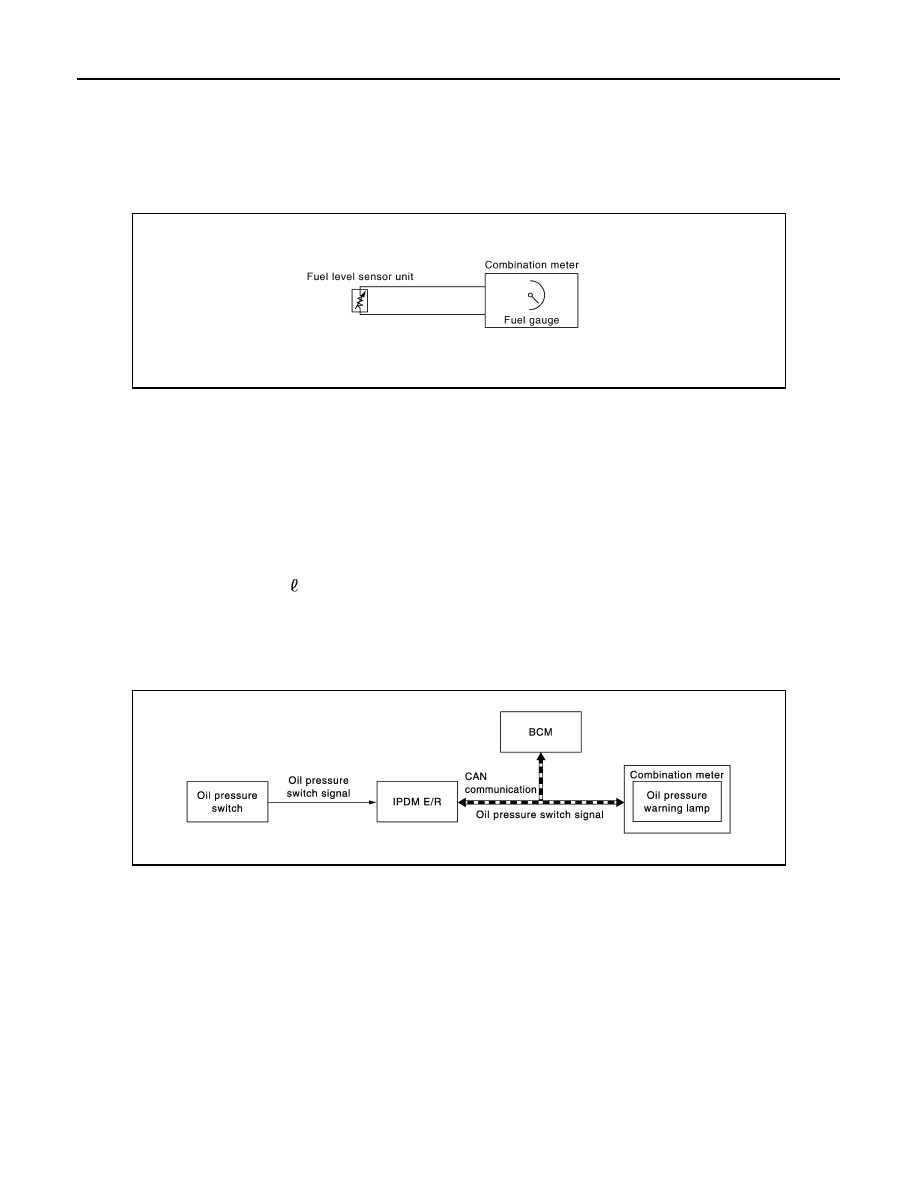

SYSTEM DIAGRAM

DESCRIPTION

Control Outline

The combination meter reads the fuel level sensor signal from the fuel level sensor unit and indicates the fuel
level to the fuel gauge.

Refuel Control

The combination meter accelerates the fuel gauge if the all conditions listed below are met, or the ignition
switch is ON from OFF.
• Ignition switch is ON position.
• The vehicle is not moving.
• The fuel level change by 15   (4 US gal, 3-1/4 Imp gal) or more.

OIL PRESSURE WARNING LAMP

OIL PRESSURE WARNING LAMP : System Description

INFOID:0000000009651476

SYSTEM DIAGRAM

DESCRIPTION

• IPDM E/R receives an oil pressure switch signal from the oil pressure switch and transmits the signal to

BCM via CAN communication.

• BCM transmits the oil pressure switch signal received from IPDM E/R to the combination meter via CAN

communication.

• The combination meter turns ON/OFF the oil pressure warning lamp, according to an oil pressure switch sig-

nal received from BCM via CAN communication.

MASTER WARNING LAMP

JPNIA0983GB
