Nissan Quest E52. Manual - part 905

MWI

METER SYSTEM

MWI-25

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

The combination meter calculates average vehicle speed based on the following signals, and the calculated
value is displayed on the information display.

NOTE:
• Average vehicle speed on the information display is updated approximately every 30 seconds.
• Soon after a reset or when the ignition switch is turned ON after battery installation, “

−−−

” is displayed for 30

seconds.

Travel Time

The combination meter measures and displays travel time (ignition switch ON time).

Travel Distance

The combination meter calculates mileage, based on the following signals and displays the mileage on the
information display.

Ambient Temperature

The combination meter calculates ambient temperature based on the following signals, and the calculated
value is displayed on the information display.

NOTE:
• The indicated temperature is corrected based on an ignition signal, ambient temperature detected by the

ambient sensor, and vehicle speed signal. The indicated temperature is not raised under vehicle speed less
than 20 km/h (12 MPH).

• The ambient sensor input value that is displayed on “Data Monitor” of CONSULT is the value before the cor-

rection. It may not match the indicated temperature on the information display.

• Depending on engine heat or heat on the road surfaces, an ambient temperature may be indicated higher

than actual one.

INTERRUPT INDICATION

• The combination meter displays an interrupt regarding a warning, alert, and maintenance on the information

display, based on signals received from each unit and switch.

• When conditions are satisfied, the normal screen switches to a warning screen to display an interrupt.

Door Open Warning

• When all the following operating conditions are satisfied, the combination meter displays a door open warn-

ing on the information display by an interrupt.

Signal name

Signal Path

Ignition signal

—

Vehicle speed signal

ABS actuator and electric unit (control unit)

 Combination meter

Signal name

Signal Path

Ignition signal

—

Vehicle speed signal

ABS actuator and electric unit (control unit)

 Combination meter

Signal name

Signal Path

Ignition signal

—

Ambient sensor signal

Ambient sensor

 IPDM E/R

 Combination meter

A/C auto amp. recognition signal (with auto A/C)

A/C auto amp.

 Combination meter

Vehicle speed signal

ABS actuator and electric unit (control unit)

 Combination meter

Operating condition

Ignition switch

ON

Door

Any door is open

MWI-26

< SYSTEM DESCRIPTION >

METER SYSTEM

• The combination meter judges showing/hiding of “door open warning”, according to the signals below:

Parking Brake Release Warning

• When all the following operating conditions are satisfied, the combination meter displays a parking brake

release warning on the information display by an interrupt.

• The combination meter judges showing/hiding of “parking brake release warning”, according to the signals

below:

Low Fuel Warning

• When all the following operating conditions are satisfied, the combination meter displays a low fuel warning

on the information display by an interrupt.

*: With the vehicle in a horizontal position

• The combination meter judges showing/hiding of “low fuel warning”, according to the signals below:

Low washer fluid warning

• When all the following operating conditions are satisfied, the combination meter displays a low washer fluid

warning on the information display by an interrupt.

Signal name

Signal Path

Ignition signal

—

Door switch signal

Door switch

 BCM

 Combination meter

Operating condition

Ignition switch

ON

Parking brake

Applied

Vehicle speed

7 km/h (4.3 MPH) or more

Signal name

Signal Path

Ignition signal

—

Parking brake switch signal

Parking brake switch

 Combination meter

Vehicle speed signal

ABS actuator and electric unit (control unit)

 Combination meter

Operating condition

Ignition switch

ON

Fuel remaining quantity

*

Approximately 11.4

 (3 US gal, 2 - 1/2 Imp

gal) or less (including fuel remained)

Signal name

Signal Path

Ignition signal

—

Fuel level sensor signal

Fuel level sensor

 Combination meter

Operating condition

Ignition switch

ON

Washer level switch

Decrease in fluid level (washer level switch
ON for 180 seconds or more)

MWI

METER SYSTEM

MWI-27

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

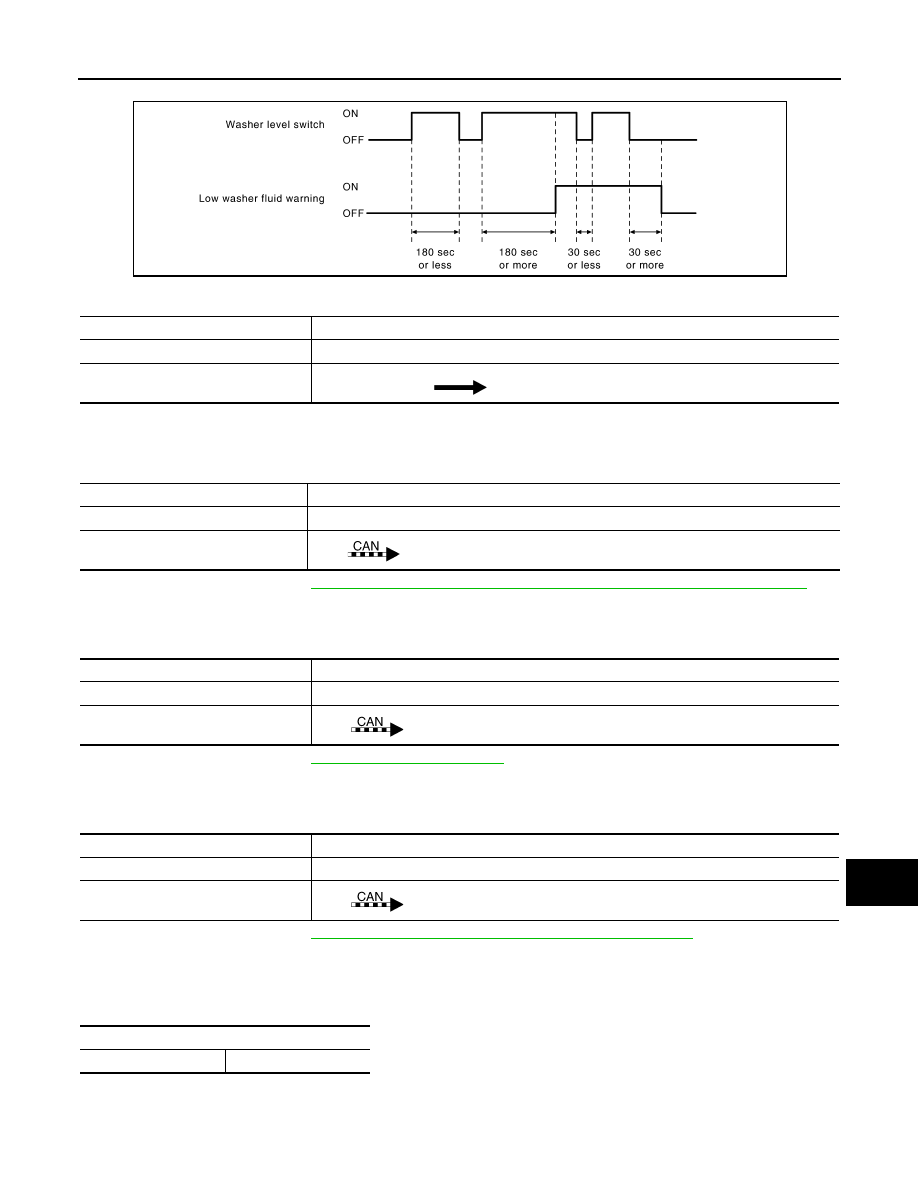

• The combination meter judges showing/hiding of “low washer fluid warning”, according to the signals below:

Fuel Filler Cap Warning

• The combination meter judges showing/hiding of “fuel filler cap warning”, according to the signals below:

• For further information, refer to

EC-51, "FUEL FILLER CAP WARNING SYSTEM : System Description"

.

Low Tire Pressure Warning

• The combination meter judges showing/hiding of “low tire pressure warning”, according to the signals below:

• For further information, refer to

WT-8, "System Description"

.

NO KEY Warning

• The combination meter judges showing/hiding of “NO KEY warning”, according to the signals below:

• For further information, refer to

DLK-47, "WARNING FUNCTION : System Description"

.

Travel Time (Alert)

• When all the following operating conditions are satisfied, the combination meter displays a travel time on the

information display by an interrupt.

• The combination meter judges showing/hiding of “travel time”, according to the signal below:

Signal name

Signal Path

Ignition signal

—

Washer level switch signal

Washer level switch

 Combination meter

JSNIA0033GB

Signal name

Signal Path

Ignition signal

—

Fuel filler cap warning display signal

ECM

 Combination meter

Signal name

Signal Path

Ignition signal

—

Low tire pressure warning lamp signal

BCM

Combination

meter

Signal name

Signal Path

Ignition signal

—

Meter display signal

BCM

Combination

meter

Operating condition

Ignition switch

Switch-ON time

MWI-28

< SYSTEM DESCRIPTION >

METER SYSTEM

Low Ambient Temperature (Alert)

• When all the following operating conditions are satisfied, the combination meter displays a low ambient tem-

perature on the information display by an interrupt.

• The combination meter judges showing/hiding of “low ambient temperature”, according to the signals below:

Tire (Maintenance)

• When all the following operating conditions are satisfied, the combination meter displays a tire warning on

the information display by an interrupt.

• The combination meter judges showing/hiding of “tire warning”, according to the signals below:

Oil Filter (Maintenance)

• When all the following operating conditions are satisfied, the combination meter displays a oil filter warning

on the information display by an interrupt.

• The combination meter judges showing/hiding of “oil filter warning”, according to the signals below:

Engine Oil (Maintenance)

• When all the following operating conditions are satisfied, the combination meter displays a engine oil warn-

ing on the information display by an interrupt.

Signal name

Signal Path

Ignition signal

—

Operating condition

Ignition switch

ON

Ambient temperature

3

°

C (37

°

F) or less

information display

“ON” is selected in “SETTING”

Signal name

Signal Path

Ignition signal

—

Ambient sensor signal

Ambient sensor

 IPDM E/R

 Combination meter

Operating condition

Ignition switch

ON

Mileage

More than value set in “SETTING”

Signal name

Signal Path

Ignition signal

—

Vehicle speed signal

ABS actuator and electric unit (control unit)

 Combination meter

Operating condition

Ignition switch

ON

Mileage

More than value set in “SETTING”

Signal name

Signal Path

Ignition signal

—

Vehicle speed signal

ABS actuator and electric unit (control unit)

 Combination meter
