Nissan Quest E52. Manual - part 907





MWI

OPERATION

MWI-33

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

OPERATION

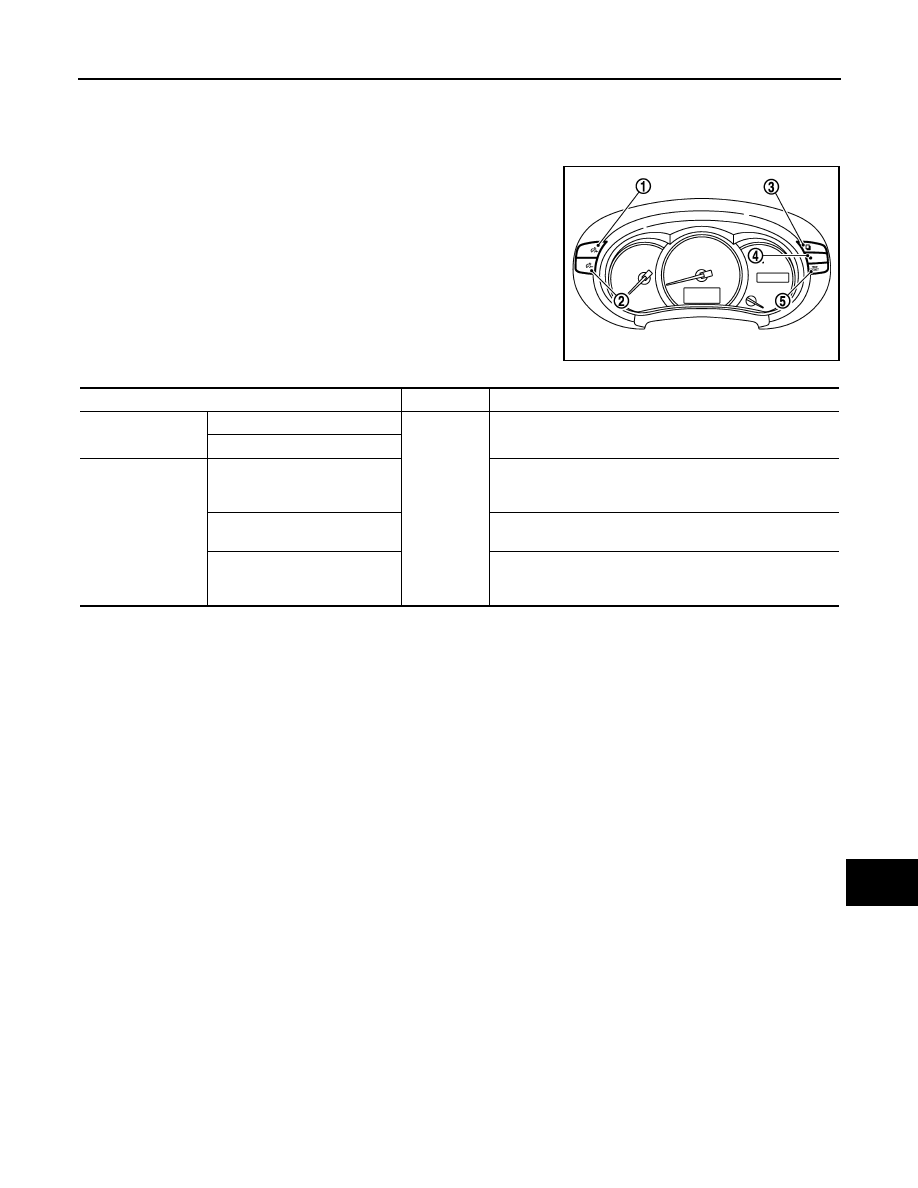

Switch Name and Function

INFOID:0000000009651482

JSNIA3342ZZ

Switch name

Operation

Description

Illumination control
switch

Illumination control switch (+) (1)

Press

An illuminance level of the back light of the combination
meter can be adjusted.

Illumination control switch (

) (2)

Meter control switch

Enter switch (3)

• The information display screen can be switched.
• The item indicated on the information display can be con-

firmed.

Select switch (4)

When plural items are shown on the information display, a
selected item can be changed to the other item.

Trip reset switch (5)

• The trip meter can be switched between A and B.
• Trip meter A/B can be reset by pressing and holding the

trip reset switch.

MWI-34

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (COMBINATION METER)

DIAGNOSIS SYSTEM (COMBINATION METER)

On Board Diagnosis Function

INFOID:0000000009651483

ON BOARD DIAGNOSIS ITEM

The combination meter allows the following diagnosis items with the on-board diagnosis function.

METHOD OF STARTING

1.

Turn ignition switch OFF.

2.

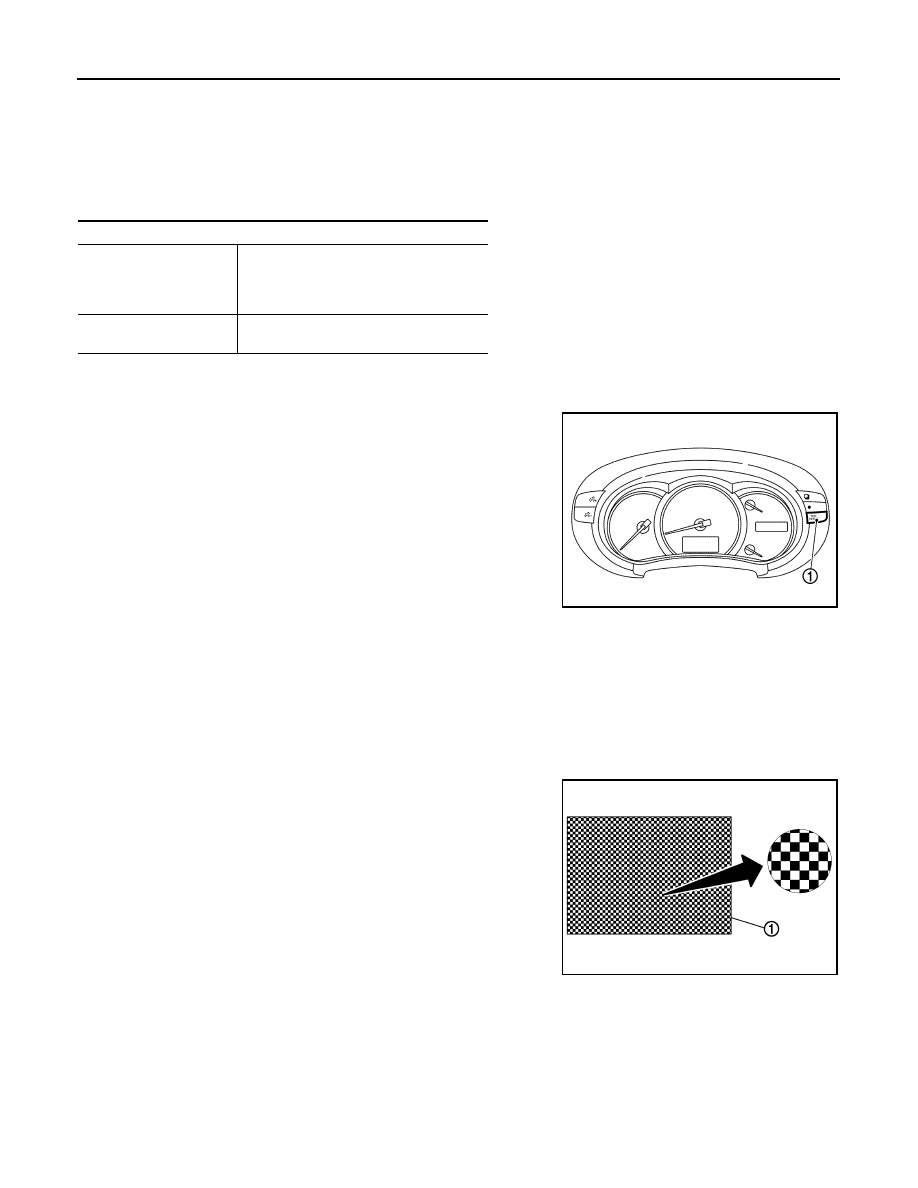

While pressing the trip reset switch (1), turn ignition switch ON.

3.

If the diagnosis function is activated with “trip A” displayed, the mileage on “trip A” is reset to “0000.0”.
(The same way for “trip B”.)

4.

Make sure that the trip meter displays “0000.0”.

5.

Press the trip reset switch at least 3 times. (Within 7 seconds after the ignition switch is turned ON.)

6.

The combination meter is turned to self-diagnosis mode.
• Speedometer, tachometer, engine coolant temperature gauge, and fuel gauge return to zero, simulta-

neously.

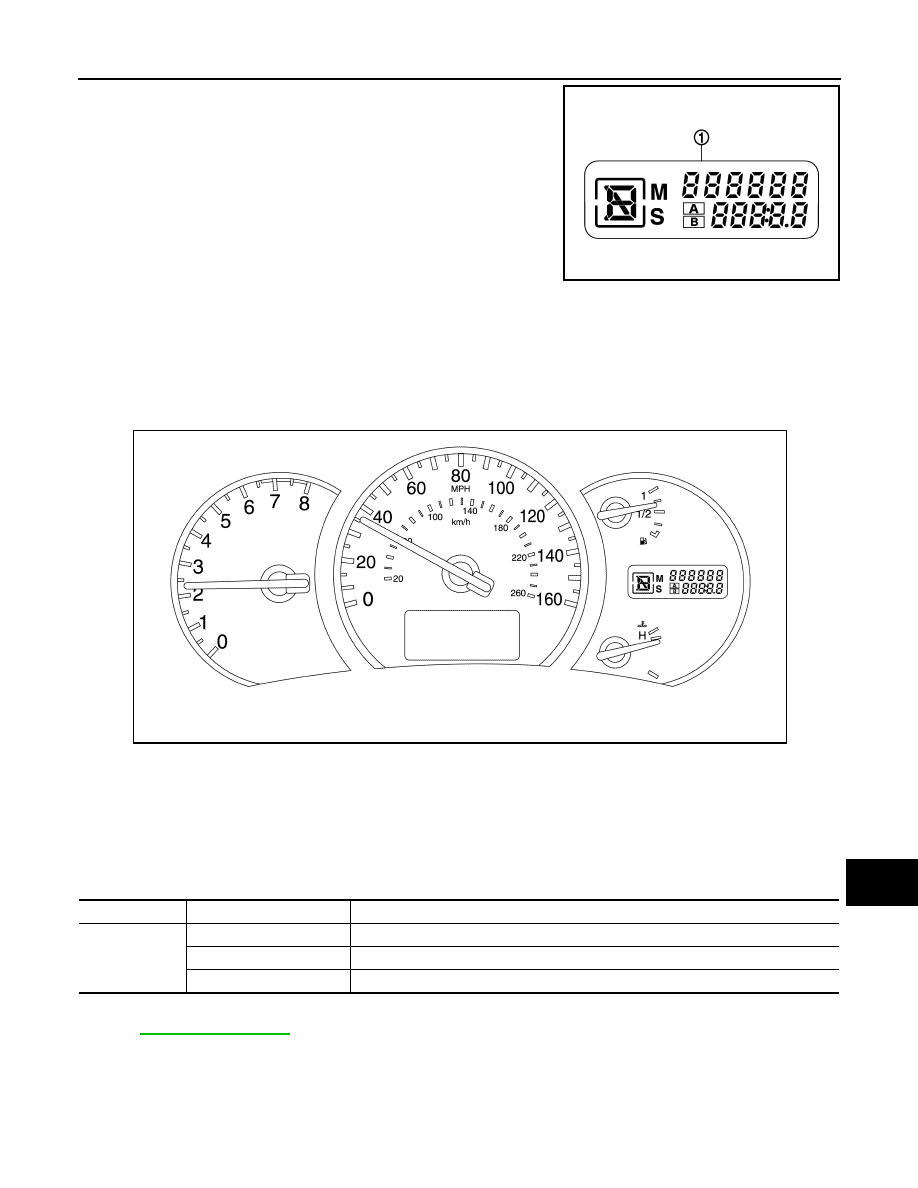

• The dot matrix dots on the information display (dot matrix

information display) (1) blink alternately.

Diagnosis item

Drive circuit check

• Speedometer
• Tachometer
• Engine coolant temperature gauge
• Fuel gauge

LCD (liquid crystal dis-
play) check

Information display (dot matrix information
display and segment information display)

JSNIA3524ZZ

JPNIA0766ZZ

MWI

DIAGNOSIS SYSTEM (COMBINATION METER)

MWI-35

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

• All segments of the information display (segment information

display) (1) are displayed.

NOTE:
• Check the following items when the self-diagnosis mode of the combination meter does not start.

Replace combination meter if the following items are normal.

- Combination meter power supply and ground circuit.
- Meter control switch signal circuit (trip reset switch signal circuit) and meter control switch.
• If any of the dots are not displayed, replace combination meter.

7.

Each meter activates by pressing the trip reset switch.

NOTE:
• If any of the meters or gauges is not activated, replace combination meter.
• The figure is reference.

CONSULT Function

INFOID:0000000009651484

CONSULT APPLICATION ITEMS

CONSULT can perform the following diagnosis modes via CAN communication and the combination meter.

SELF DIAG RESULT

Refer to

MWI-48, "DTC Index"

.

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

Display Item List

JSNIA3443ZZ

JSNIA4141ZZ

System

Diagnosis mode

Description

METER/M&A

Self Diagnostic Result

The combination meter checks the conditions and displays memorized errors.

Data Monitor

Displays the combination meter input/output data in real time.

Warning history

Lighting history of the warning lamp and indicator lamp can be checked.

MWI-36

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (COMBINATION METER)

X: Applicable

Display item [Unit]

MAIN

SIGNALS

Description

SPEED METER
[km/h]

X

Value of vehicle speed signal received from ABS actuator and electric unit (control
unit) via CAN communication.
NOTE:
655.35 is displayed when the malfunction signal is received.

SPEED OUTPUT
[km/h]

X

Vehicle speed signal value transmitted to other units via CAN communication.
NOTE:
655.35 is displayed when the malfunction signal is received.

ODO OUTPUT
[km/h or mph]

Odometer signal value transmitted to other units via CAN communication.

TACHO METER
[rpm]

X

Value of the engine speed signal received from ECM via CAN communication.
NOTE:
8191.875 is displayed when the malfunction signal is received.

FUEL METER
[L]

X

Fuel level indicated on combination meter.

W TEMP METER
[

°

C]

X

Value of engine coolant temperature signal is received from ECM via CAN com-
munication.
NOTE:
215 is displayed when the malfunction signal is input.

ABS W/L
[On/Off]

Status of ABS warning lamp detected from ABS warning lamp signal is received
from ABS actuator and electric unit (control unit) via CAN communication.

VDC/TCS IND
[On/Off]

Status of VDC OFF indicator lamp detected from VDC OFF indicator lamp signal
is received from ABS actuator and electric unit (control unit) via CAN communica-
tion.

SLIP IND
[On/Off]

Status of VDC warning lamp detected from VDC warning lamp signal received
from ABS actuator and electric unit (control unit) via CAN communication.

BRAKE W/L
[On/Off]

Status of brake warning lamp detected from brake warning lamp signal is received
from ABS actuator and electric unit (control unit) via CAN communication.
NOTE:
Displays “Off” if the brake warning lamp is illuminated when the valve check starts,
the parking brake switch is turned ON or the brake fluid level switch is turned ON.

DOOR W/L
[On/Off]

Status of door open warning detected from door switch signal received from BCM
via CAN communication.

HI-BEAM IND
[On/Off]

Status of high beam indicator lamp detected from high beam request signal is re-
ceived from BCM via CAN communication.

TURN IND
[On/Off]

Status of turn indicator lamp detected from turn indicator signal is received from
BCM via CAN communication.

LIGHT IND
[On/Off]

• Status of position lamp indicator lamp detected from dimmer signal is received

from BCM via CAN communication. (For U.S.A)

• Status of position lamp indicator lamp detected from position light request signal

is received from BCM via CAN communication. (For Canada)

OIL W/L
[On/Off]

Status of oil pressure warning lamp detected from oil pressure switch signal is re-
ceived from BCM via CAN communication.

MIL
[On/Off]

Status of malfunction indicator lamp detected from malfunctioning indicator lamp
signal is received from ECM via CAN communication.

CRUISE IND
[On/Off]

Status of CRUISE indicator detected from ASCD status signal is received from
ECM via CAN communication.

SET IND
[Off]

This item is displayed, but cannot be monitored.

CRUISE W/L
[Off]

This item is displayed, but cannot be monitored.

BA W/L
[Off]

This item is displayed, but cannot be monitored.
