CENTER CONSOLE ASSEMBLY

IP-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

2.

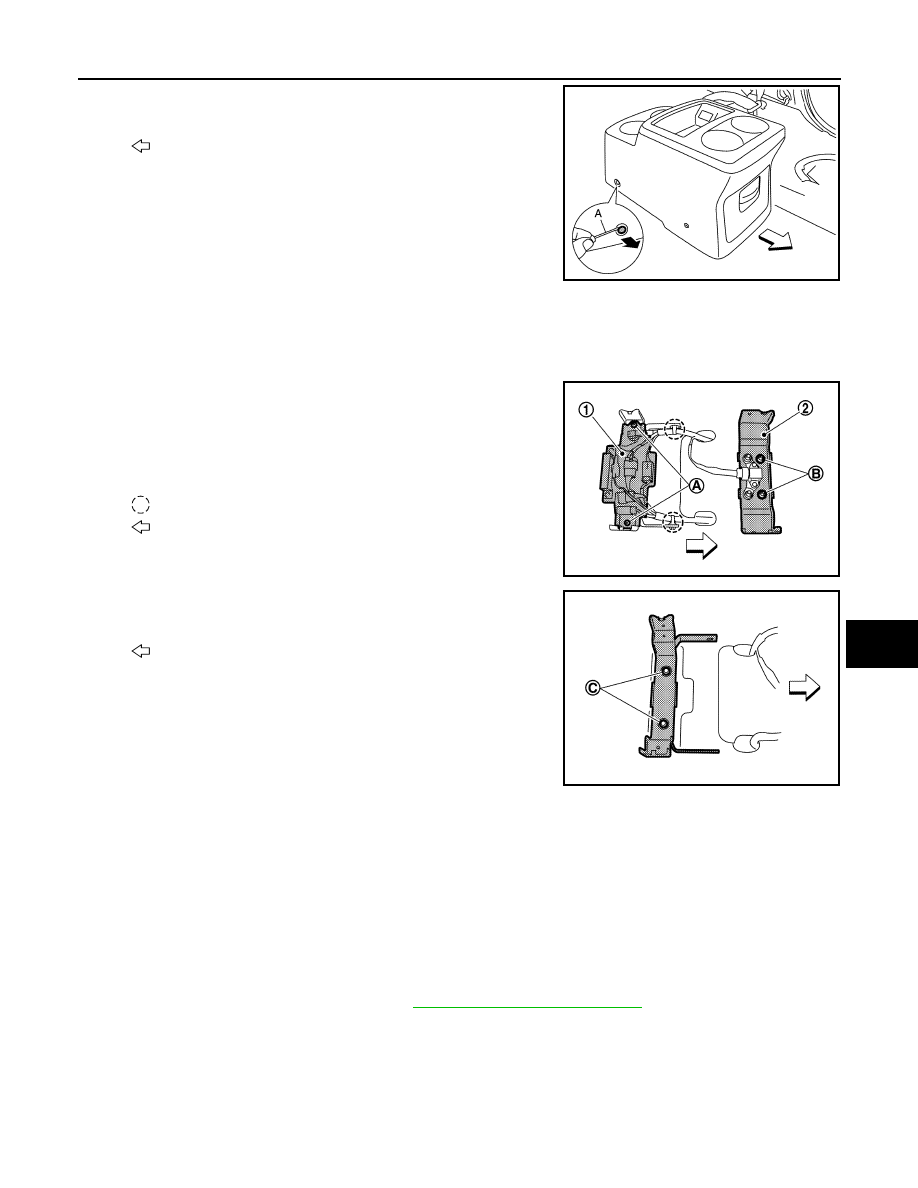

Remove center console assembly rear side screw mask with a
flat-bladed screwdriver (A).

3.

Remove center console assembly fixing screws.

4.

Lift up center console assembly, disconnect harness connectors.

5.

Remove center console assembly.

6.

Remove center console assembly brackets.

a.

Remove mounting bolts (A), and then remove center console
center bracket 1 (1).

b.

Remove mounting bolts (B), and then remove center console
front bracket (2).

c.

Remove harness clip.

d.

Remove mounting bolts (C), and then remove center console
rear bracket.

INSTALLATION

Install in the reverse order of removal.

Disassembly and Assembly

INFOID:0000000009650903

Disassembly and Assembly

CAUTION:

To prevent damage to the parts, when disassembling, always use a remover tool that is made of plas-
tic.

DISASSEMBLY

1.

Remove center console assembly. Refer to

IP-28, "Removal and Installation"

.

2.

Remove center console upper finisher.

: Vehicle front

JMJIA6164ZZ

: Clip

: Vehicle front

JMJIA4822ZZ

: Vehicle front

JMJIA4823ZZ

IP-30

< REMOVAL AND INSTALLATION >

CENTER CONSOLE ASSEMBLY

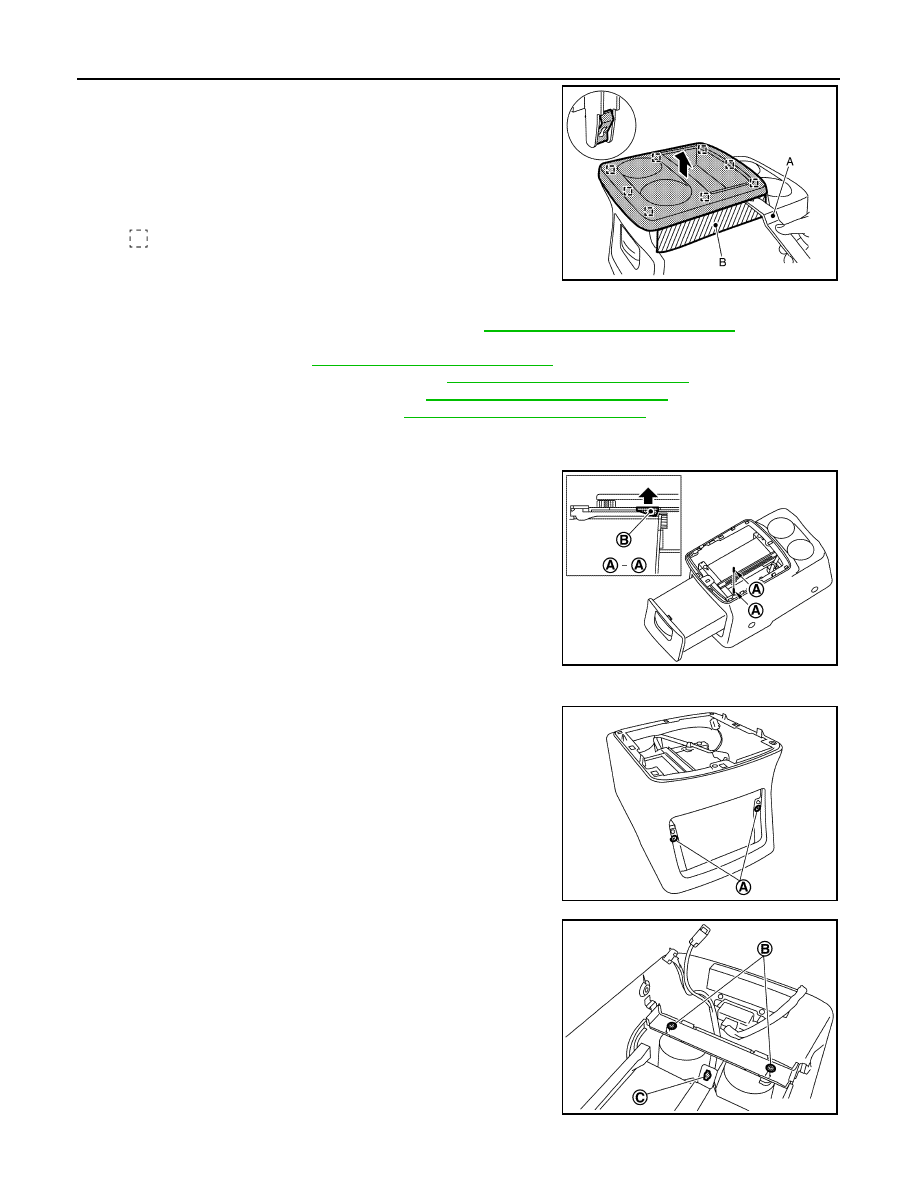

a.

Insert a remover tool (A) between center console upper finisher
and center console body assembly to disengage the metal clips
as shown in the figure.

b.

Disconnect harness connectors.

CAUTION:

Apply protective tape (B) on the part to protect it from dam-
age.

NOTE:
• For removal and installation of power outlet, refer to

PWO-36, "Removal and Installation"

.

• For removal and installation of USB connector, refer to the following.

For Display audio: Refer to

AV-117, "Removal and Installation"

.

For Base audio with separate display: Refer to

AV-260, "Removal and Installation"

.

For Bose audio without navigation: Refer to

AV-419, "Removal and Installation"

.

For Bose audio with navigation: Refer to

AV-625, "Removal and Installation"

.

3.

Remove console pocket assembly.

a.

Pull console pocket assembly.

b.

Lift up console pocket rail stopper (B), and then disengage to
pull console pocket assembly from center console assembly as
shown in the figure.

CAUTION:

Never excessively pull up console pocket rail stopper force-
fully.

4.

Remove console pocket rail.

a.

Remove fixing screws (A).

b.

Remove fixing screws (B).

c.

Remove harness clip (C) from center console center bracket 2
(With NAVI or DVD player).

: Metal clip

JMJIA6165ZZ

JMJIA4872ZZ

JMJIA4873ZZ

JMJIA4874ZZ

CENTER CONSOLE ASSEMBLY

IP-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

5.

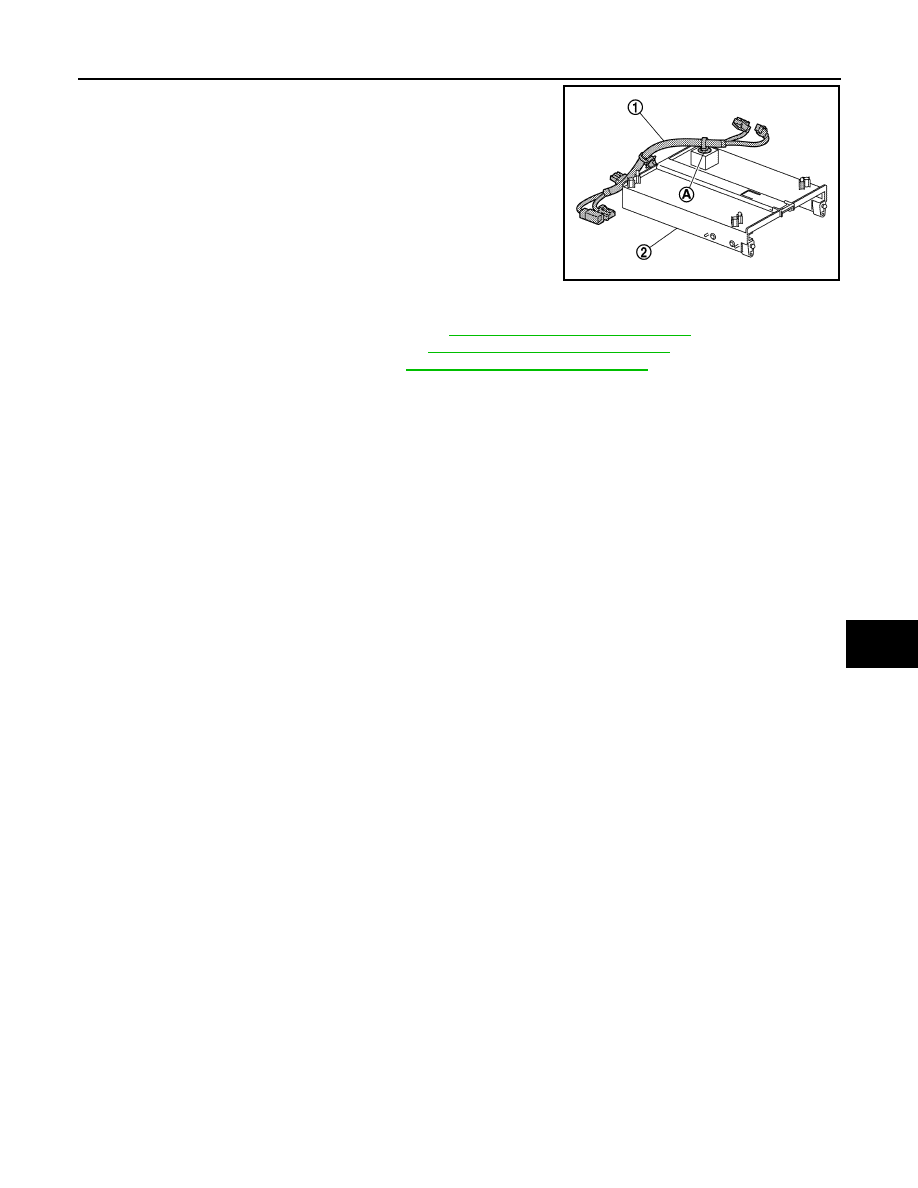

Remove console harness (1) fixing harness clip (A) from con-
sole pocket rail (2) (With NAVI or DVD player).

6.

Remove VTR jacks (if equipped), refer to the following.
• For Base audio with separate display: Refer to

AV-259, "Removal and Installation"

.

• For Bose audio without navigation: Refer to

AV-418, "Removal and Installation"

.

• For Bose audio with navigation: Refer to

AV-624, "Removal and Installation"

.

ASSEMBLY

Assemble in the reverse order of disassembly.

JMJIA4875ZZ

IP-32

< REMOVAL AND INSTALLATION >

REAR CONSOLE ASSEMBLY

REAR CONSOLE ASSEMBLY

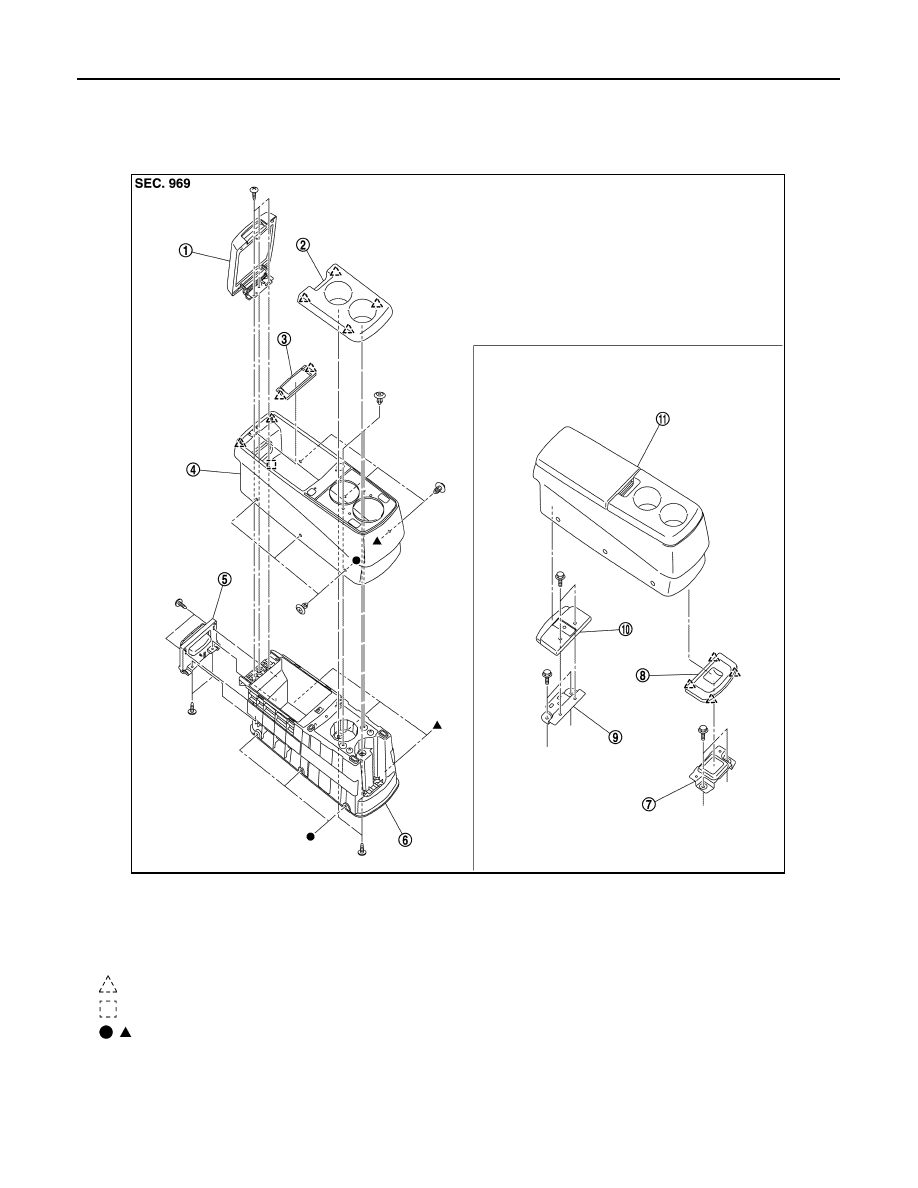

Exploded View

INFOID:0000000009650904

Removal and Installation

INFOID:0000000009650905

CAUTION:

When removing, always use a remover tool that is made of plastic.

1.

Rear console lid assembly

2.

Cup holder

3.

Console mask

4.

Rear console body

5.

Rear console latch assembly

6.

Rear console box assembly

7.

Rear console front bracket

8.

Rear console front base

9.

Rear console rear bracket

10. Rear console rear base

11.

Rear console assembly

: Pawl

: Metal clip

,

 : Indicates that the part is connected at points with same symbol in actual vehicle.

JMJIA6170ZZ
