LUGGAGE FLOOR TRIM

INT-39

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

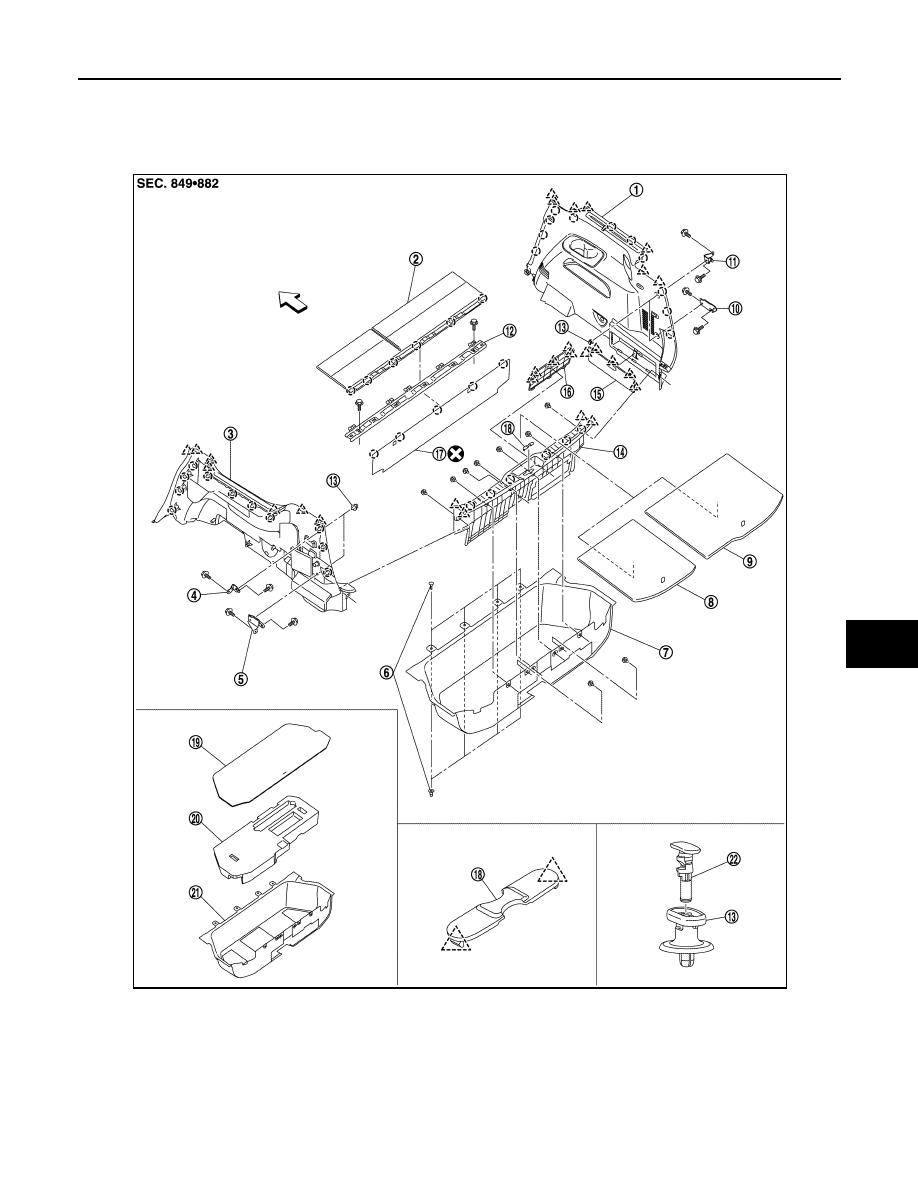

LUGGAGE FLOOR TRIM

Exploded View

INFOID:0000000009650296

1.

Luggage side lower finisher RH

2.

Luggage floor front board

3.

Luggage side lower finisher LH

4.

Luggage trim rear bracket LH

5.

Luggage side lower bracket LH

6.

Grommet

7.

Luggage floor box

8.

Luggage floor rear board LH

9.

Luggage floor rear board RH

10.

Luggage side lower bracket RH

11.

Luggage trim rear bracket RH

12.

Luggage floor front bracket

13.

Net hook

14. Tailgate kicking plate

15.

Luggage side lid

16.

Luggage floor box cover

17. Cable cover

18.

Tailgate kicking plate mask

JMJIA6912ZZ

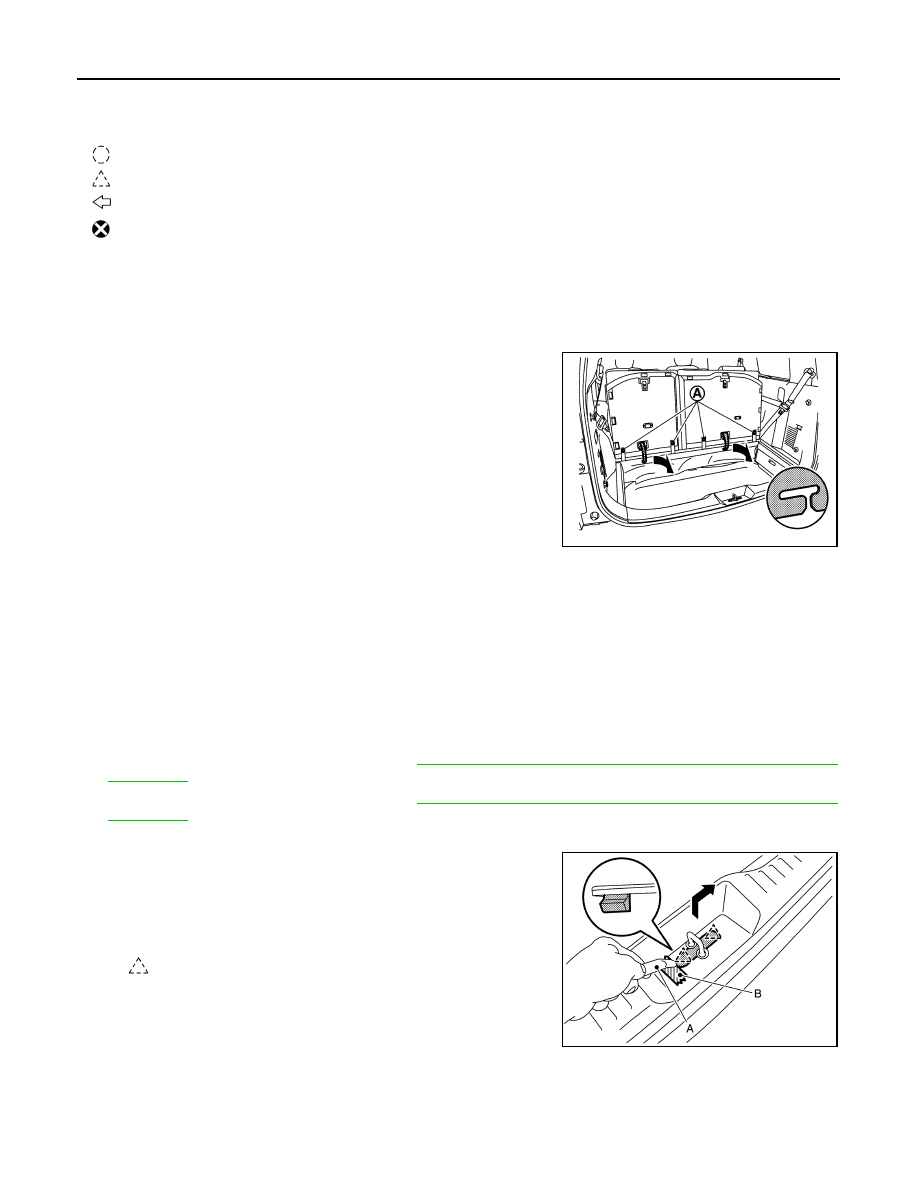

INT-40

< REMOVAL AND INSTALLATION >

LUGGAGE FLOOR TRIM

LUGGAGE FLOOR REAR BOARD

LUGGAGE FLOOR REAR BOARD : Removal and Installation

INFOID:0000000009650297

REMOVAL

1.

Disengage button (A).

2.

Remove strap, and then remove luggage floor rear board.

INSTALLATION

Install in the reverse order of removal.

TAILGATE KICKING PLATE

TAILGATE KICKING PLATE : Removal and Installation

INFOID:0000000009650298

CAUTION:

• When removing, always use a remover tool that is made of plastic to prevent damage to the parts.
• Never damage the body.

REMOVAL

1.

Remove back door weather strip. Refer to

DLK-457, "BACK DOOR WEATHER-STRIP : Removal and

Installation"

.

2.

Remove luggage floor rear board. Refer to

INT-40, "LUGGAGE FLOOR REAR BOARD : Removal and

Installation"

.

3.

Remove luggage floor center board and luggage floor front box. (with BOSE audio)

4.

Disengage tailgate kicking plate mask fixing pawls using a
remover tool (A), and then remove tailgate kicking plate mask.

CAUTION:

Apply protective tape (B) on the part to protect it from dam-
age.

5.

Remove tailgate kicking plate.

19.

Luggage floor center board
(with BOSE audio)

20. Luggage floor front box

(with BOSE audio)

21.

Luggage floor box
(with BOSE audio)

22.

Net hook pin

: Clip

: Pawl

: Vehicle front

: Always replace after every disassembly.

JMJIA6913ZZ

: Pawl

JMJIA4959ZZ

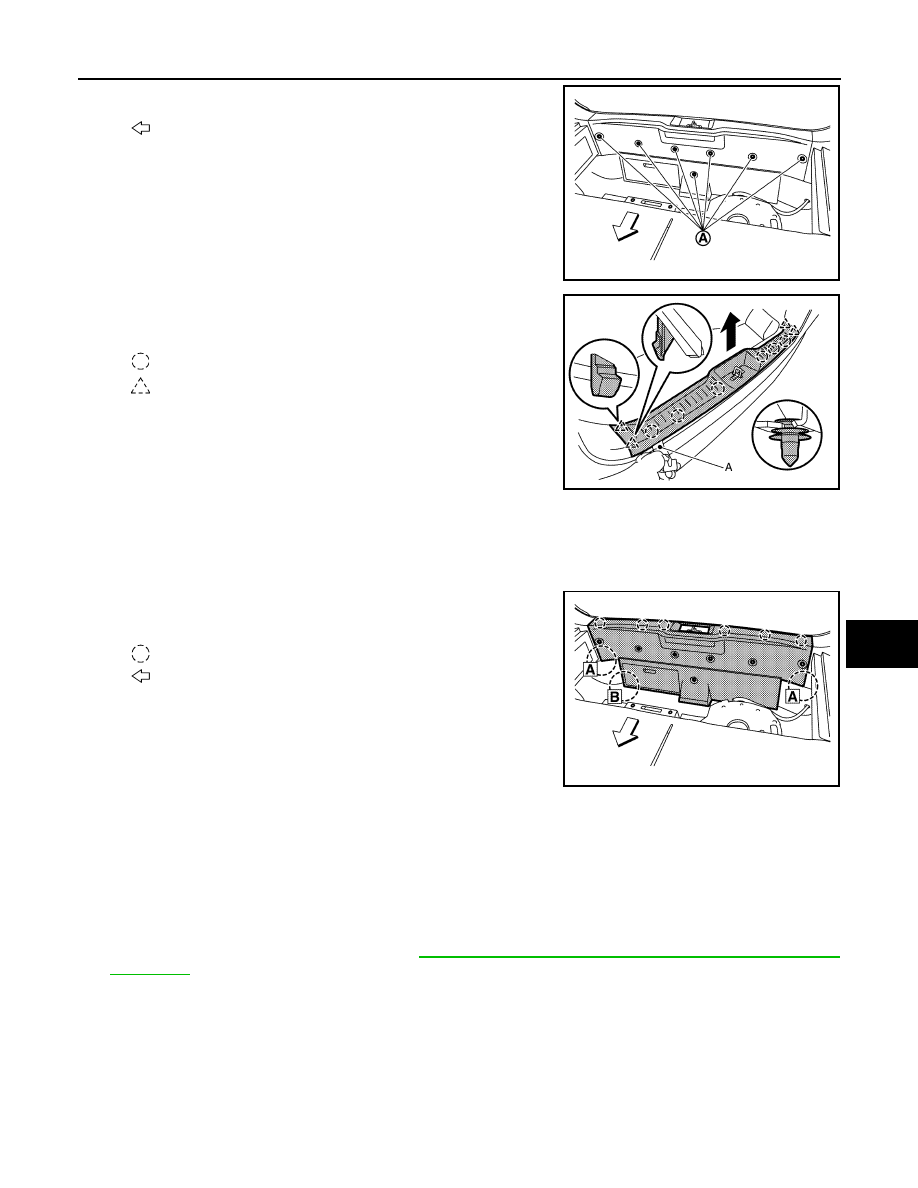

LUGGAGE FLOOR TRIM

INT-41

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

a.

Disengage tailgate kicking plate fixing clips (A).

b.

Disengage tailgate kicking plate fixing clips and pawls using a
remover tool (A), and then remove tailgate kicking plate.

INSTALLING

Note the following item, and install in the reverse order of removal.

CAUTION:

• When installing, check in advance that clips are accurately aligned with the holes on body panel

side, and then install by pressing in.

• When pressing in clips located at each end, hold each end of

portion (A) toward rear panel.

• After installation, check that protrusion on rear surface of por-

tion (B) is hooked to slit of luggage floor box.

CABLE COVER

CABLE COVER : Removal and Installation

INFOID:0000000009650299

CAUTION:

• When removing, always use a remover tool that is made of plastic to prevent damage to the parts.
• Never damage the body.

REMOVAL

1.

Remove luggage floor rear board. Refer to

INT-40, "LUGGAGE FLOOR REAR BOARD : Removal and

Installation"

.

: Vehicle front

JMJIA6233ZZ

: Clip

: Pawl

JMJIA4961ZZ

: Clip

: Vehicle front

JMJIA6914ZZ

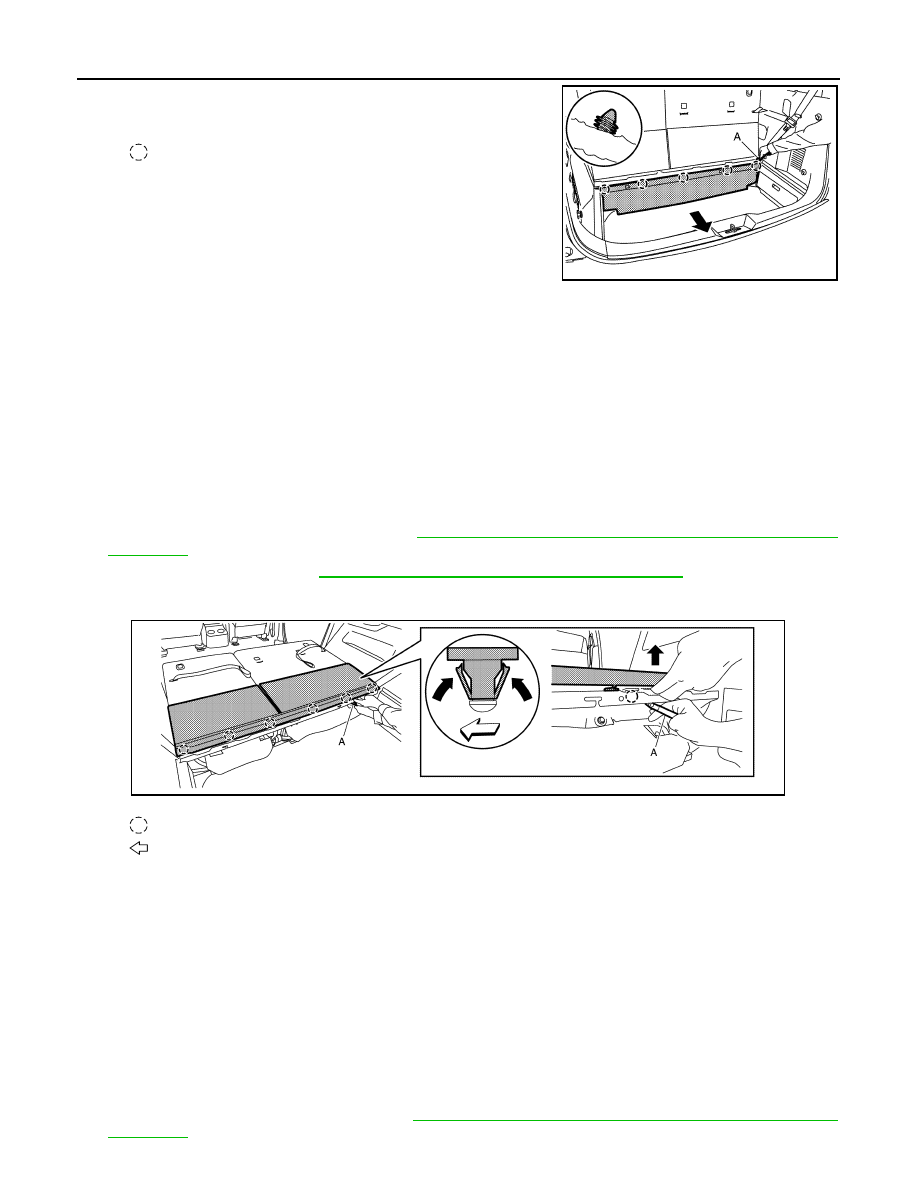

INT-42

< REMOVAL AND INSTALLATION >

LUGGAGE FLOOR TRIM

2.

Disengage cable cover fixing clips, and magic fastener using a
remover tool (A), and then remove cable cover.

INSTALLING

Note the following item, and install in the reverse order of removal.

CAUTION:

Replace cable cover with a new part after removal. Never reuse cable cover.

LUGGAGE FLOOR FRONT BOARD

LUGGAGE FLOOR FRONT BOARD : Removal and Installation

INFOID:0000000009650300

CAUTION:

Never damage the body.

REMOVAL

1.

Third seat tilt seatback forward.

2.

Remove luggage floor rear board. Refer to

INT-40, "LUGGAGE FLOOR REAR BOARD : Removal and

Installation"

.

3.

Remove cable cover. Refer to

INT-41, "CABLE COVER : Removal and Installation"

.

4.

Disengage fixing clips of luggage floor front board using long-nose pliers (A) while lifting up luggage floor
front board, and then remove luggage floor front board.

INSTALLING

Note the following item, and install in the reverse order of removal.

CAUTION:

When installing, check in advance that clips are accurately aligned with the holes on luggage floor
front bracket side, and then install by pressing in.

LUGGAGE FLOOR FRONT BRACKET

LUGGAGE FLOOR FRONT BRACKET : Removal and Installation

INFOID:0000000009650301

CAUTION:

Never damage the body.

REMOVE

1.

Remove luggage floor front board. Refer to

INT-42, "LUGGAGE FLOOR FRONT BOARD : Removal and

Installation"

.

: Clip

JMJIA6234ZZ

: Clip

: Vehicle front

JMJIA6235ZZ
