FLOOR TRIM

INT-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

1.

Remove heater & cooling unit assembly. Refer to

HA-49, "HEATER  & COOLING UNIT ASSEMBLY :

Removal and Installation"

.

2.

Remove control cable from CVT shift selector assembly. Refer to

TM-156, "Removal and Installation"

.

3.

Remove diagnosis sensor unit. Refer to

SR-29, "Removal and Installation"

.

4.

Remove yaw rate/side/decel G sensor. Refer to

BRC-125, "Removal and Installation"

.

5.

Remove front seat assembly.
• Manual seat: Refer to

SE-88, "Removal and Installation"

.

• Power seat: Refer to

SE-102, "Removal and Installation"

.

6.

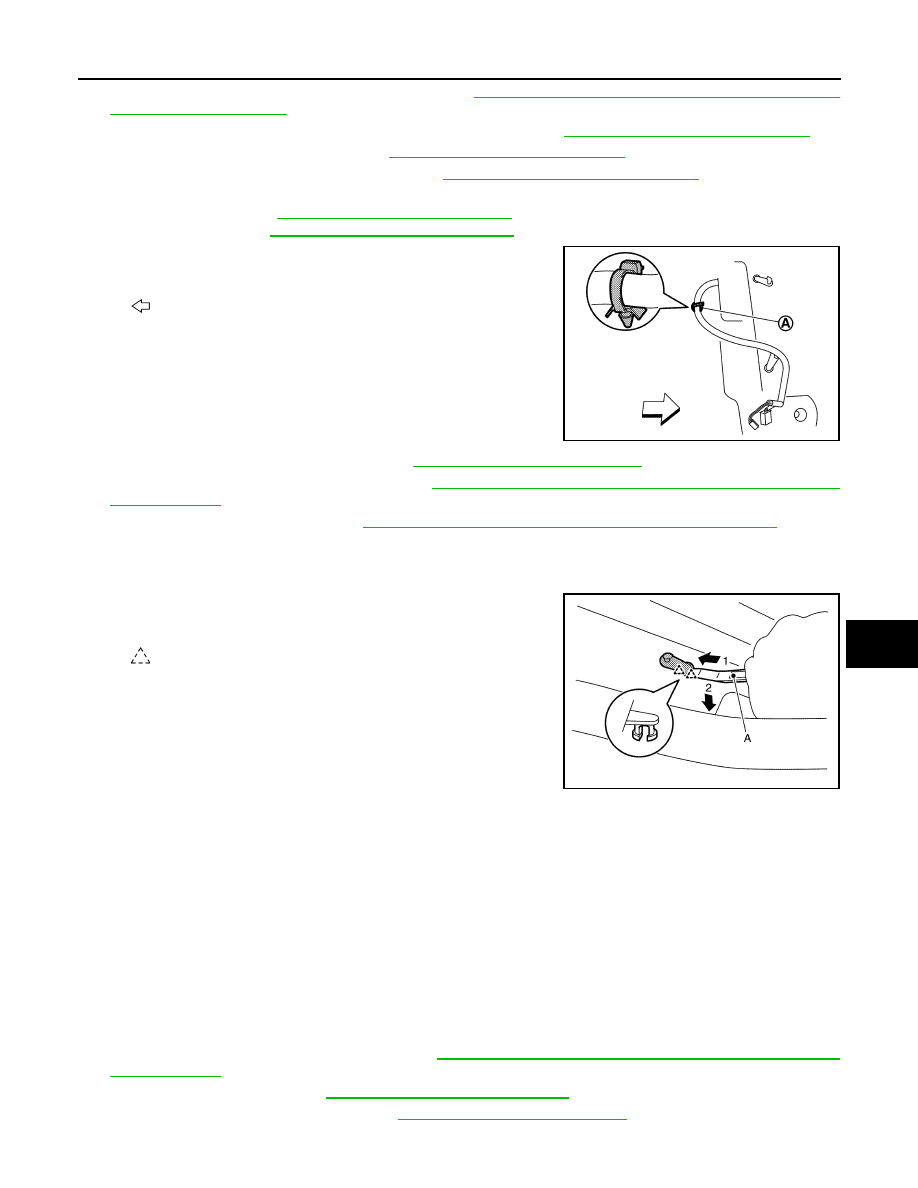

Remove harness fixing clip (A) on the underside of driver seat
assembly and passenger seat assembly.

7.

Remove center console assembly. Refer to

IP-28, "Removal and Installation"

.

8.

Remove center pillar lower garnish. Refer to

INT-25, "CENTER PILLAR LOWER GARNISH : Removal

and Installation"

.

9.

Remove dash side finisher. Refer to

INT-24, "DASH SIDE FINISHER : Removal and Installation"

.

10. Disengage magic fastener, and then remove front floor carpet.

NOTE:
Remove carpet hook.
1.

Disengage carpet hook fixing pawls using a remover tool (A).

2.

Remove carpet hook from front floor carpet.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

Replace diagnosis sensor unit fixing bolts with a new part after removal. Never reuse diagnosis sen-
sor unit fixing bolts.

REAR FLOOR CARPET

REAR FLOOR CARPET : Removal and Installation

INFOID:0000000009650293

CAUTION:

• When removing, always use a remover tool that is made of plastic to prevent damage to the parts.
• Never damage the body.

REMOVAL

1.

Remove luggage side lower finisher. Refer to

INT-43, "LUGGAGE SIDE LOWER FINISHER : Removal

and Installation"

.

2.

Remove second seat. Refer to

SE-114, "Removal and Installation"

.

3.

Remove rear console assembly. Refer to

IP-32, "Removal and Installation"

.

: Vehicle front

JMJIA4979ZZ

: Pawl

JMJIA4986ZZ

INT-32

< REMOVAL AND INSTALLATION >

FLOOR TRIM

4.

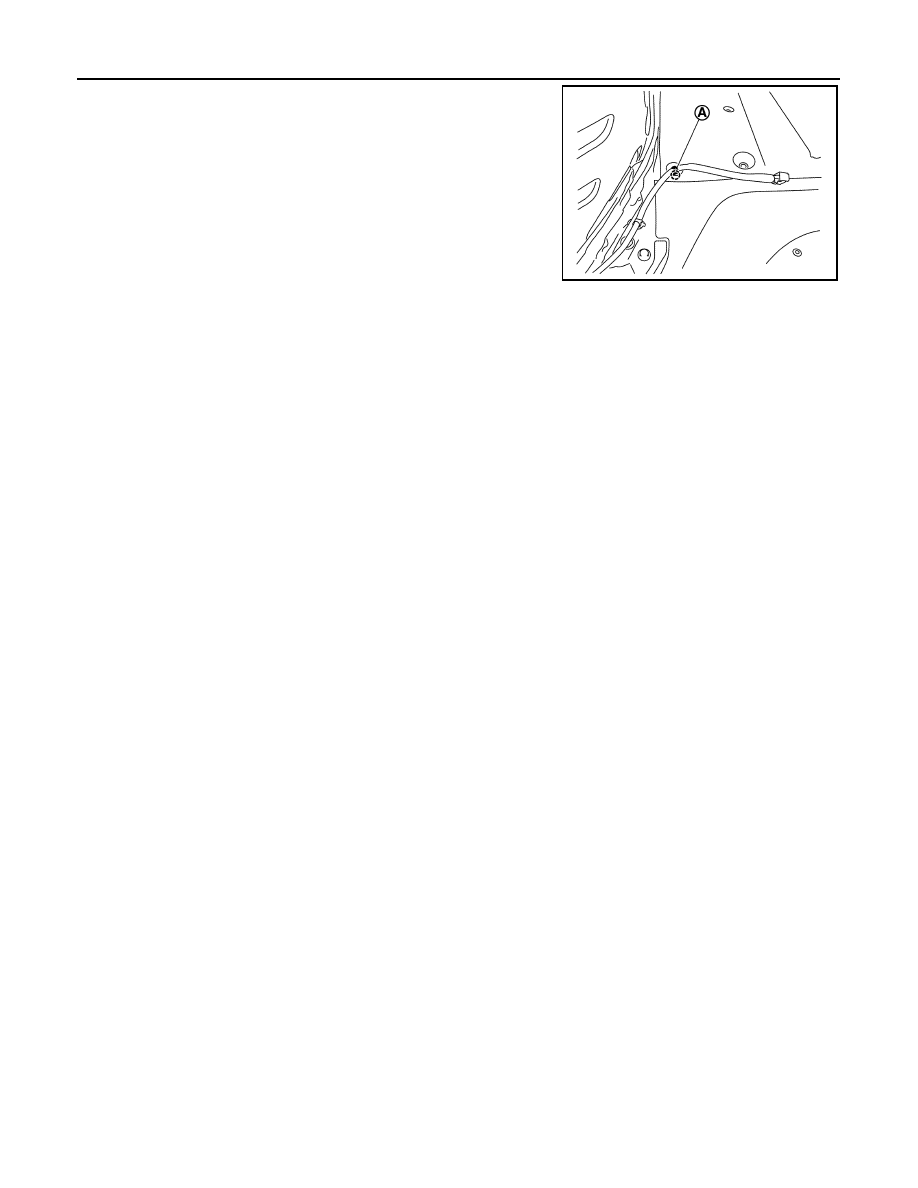

Remove harness fixing clip (A). (with third seat hold switch)

5.

Disengage magic fastener, and then remove rear floor carpet.

INSTALLATION

Install in the reverse order of removal.

JMJIA6211ZZ

HEADLINING

INT-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

HEADLINING

Exploded View

INFOID:0000000009650294

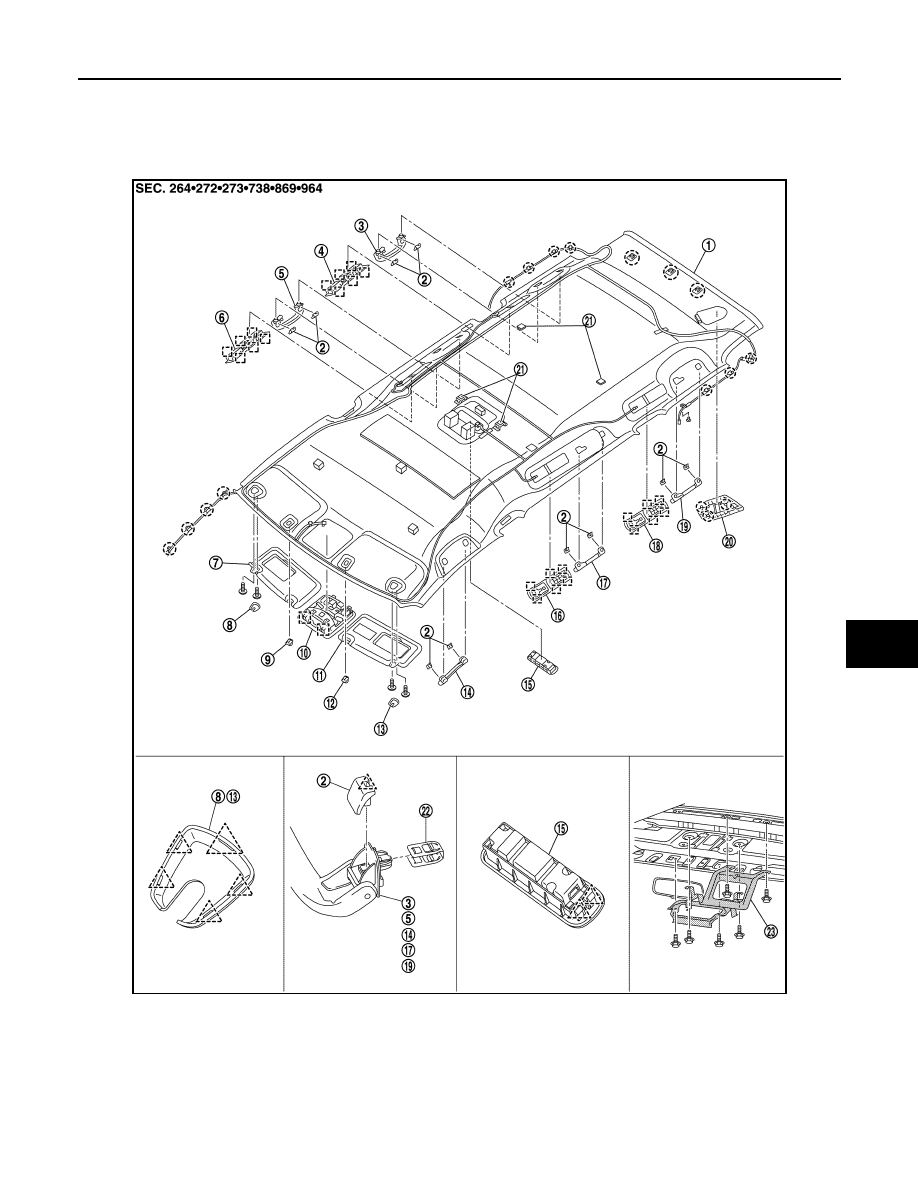

NOMAL ROOF

JMJIA4906ZZ

1.

Headlining assembly

2.

Assist grip cap

3.

Third assist grip RH

4.

Rear ventilator grille B RH

5.

Second assist grip RH

6.

Rear ventilator grille A RH

7.

Sun visor assembly RH

8.

Sun visor cover RH

9.

Sun visor holder RH

10. Map lamp assembly

11.

Sun visor assembly LH

12. Sun visor holder LH

13. Sun visor cover LH

14.

Front assist grip

15. Rear A/C control

16. Rear ventilator grille A LH

17.

Second assist grip LH

18. Rear ventilator grille B LH

INT-34

< REMOVAL AND INSTALLATION >

HEADLINING

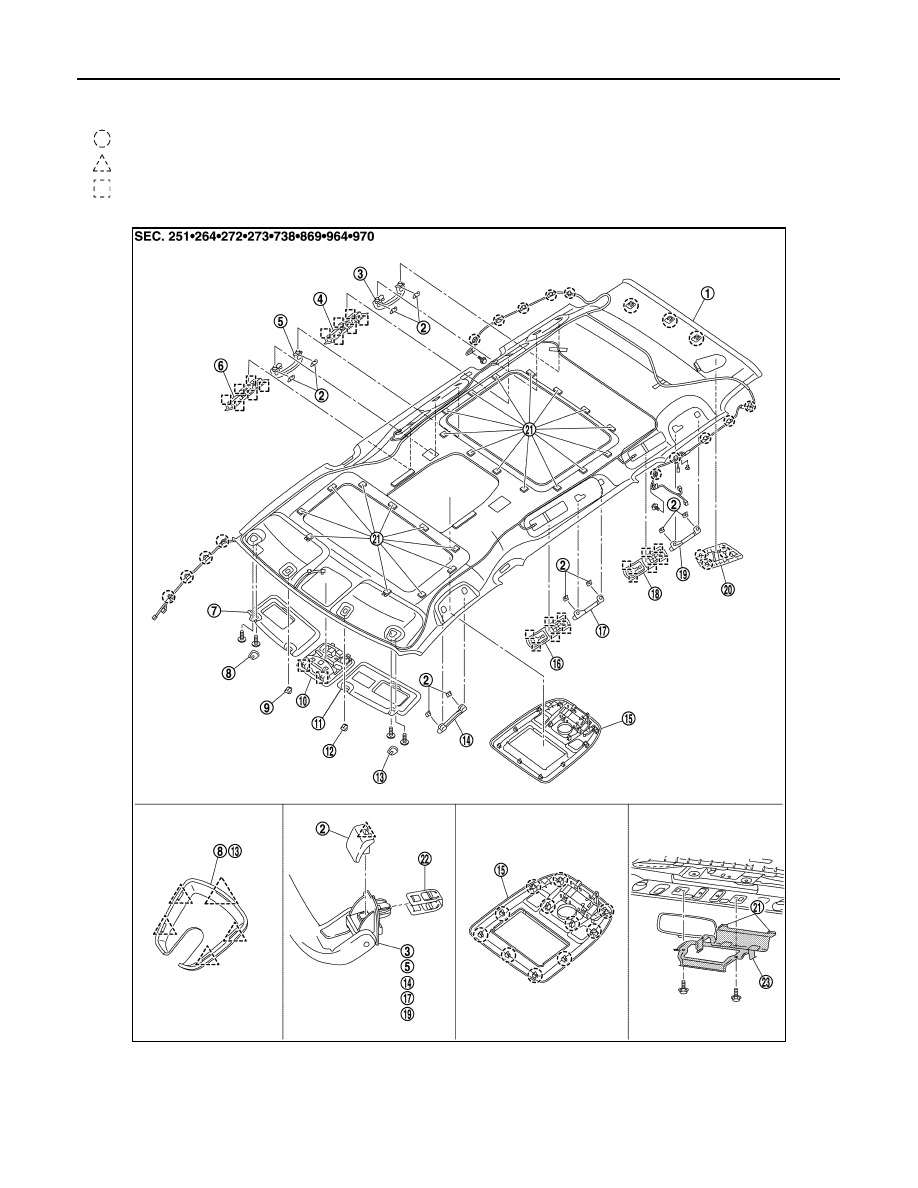

SUNROOF

19. Third assist grip LH

20.

Seat belt finisher

21. Dual lock fastener

22. Metal clip

23.

Map lamp bracket

: Clip

: Pawl

: Metal clip

JMJIA4907ZZ

1.

Headlining assembly

2.

Assist grip cap

3.

Third assist grip RH

4.

Rear ventilator grille B RH

5.

Second assist grip RH

6.

Rear ventilator grille A RH

7.

Sun visor assembly RH

8.

Sun visor cover RH

9.

Sun visor holder RH

10. Map lamp assembly

11. Sun visor assembly LH

12.

Sun visor holder LH
