REAR PILLAR GARNISH : Removal and Installation

INFOID:0000000009650288

CAUTION:

• When removing, always use a remover tool that is made of plastic to prevent damage to the parts.
• Never damage the body.
• When removing, be careful not to damage or drop fixing clips on the side window side.

REMOVAL

1.

Remove luggage side lower finisher. Refer to

INT-43, "LUGGAGE SIDE LOWER FINISHER : Removal

and Installation"

.

2.

Remove second seat belt shoulder anchor. Refer to

SB-11, "SEAT BELT RETRACTOR : Removal and

Installation"

.

3.

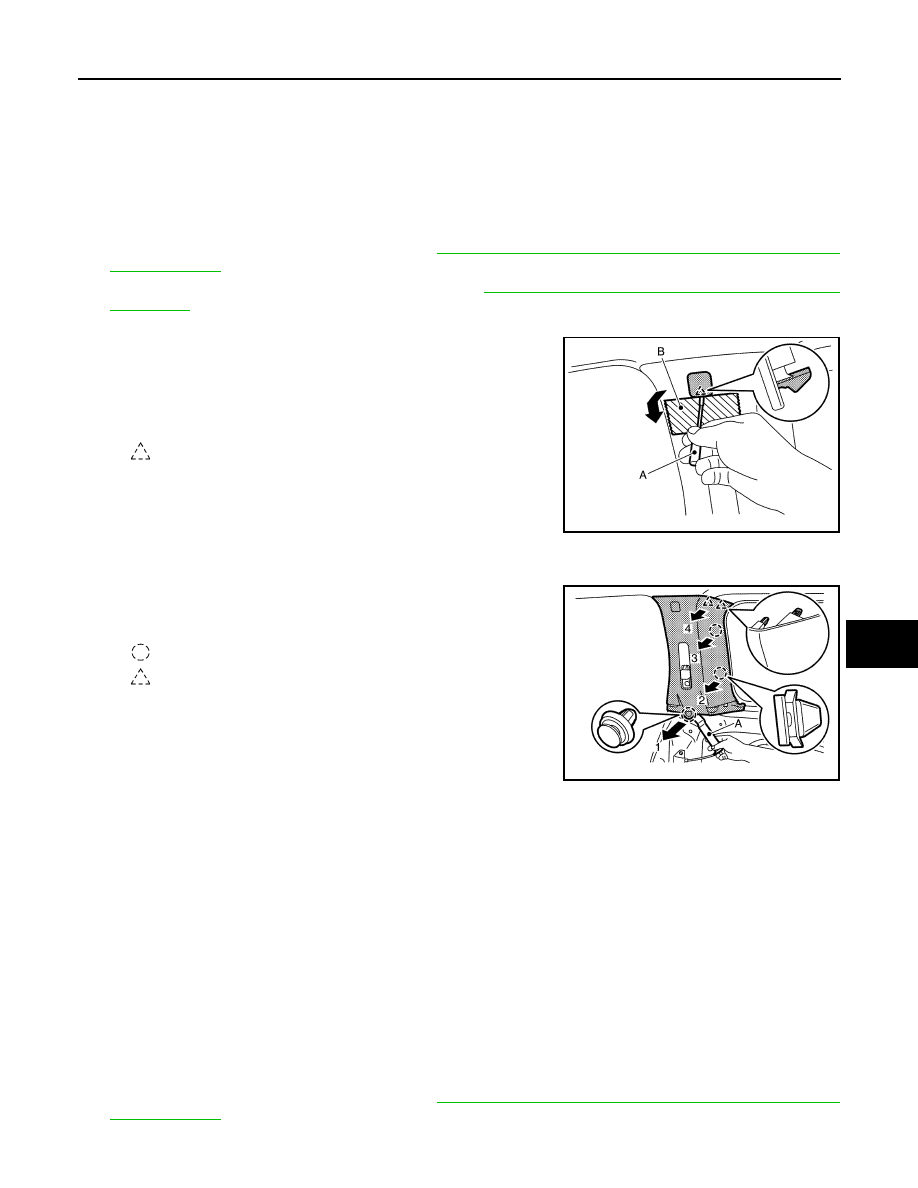

Remove rear pillar garnish cap.
disengage rear pillar garnish cap fixing pawl using a remover
tool (A), and then remove rear pillar garnish cap.

CAUTION:

Apply protective tape (B) on the part to protect it from dam-
age.

4.

Remove rear pillar garnish fixing bolt.

5.

Remove rear pillar garnish.
Disengage rear pillar garnish fixing clips and pawls using a
remover tool (A), and then remove rear pillar garnish.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• When installing, check in advance that clips are accurately aligned with the holes on body panel

side, and then install by pressing in.

• When installing, be careful not to damage or drop clips on the side window side.

BACK PILLAR GARNISH

BACK PILLAR GARNISH : Removal and Installation

INFOID:0000000009650289

CAUTION:

• When removing, always use a remover tool that is made of plastic to prevent damage to the parts.
• Never damage the body.
• Be careful not to bend headlining.
• Be careful not to damage or drop fixing clips on the side window side.

REMOVAL

1.

Remove luggage side lower finisher. Refer to

INT-43, "LUGGAGE SIDE LOWER FINISHER : Removal

and Installation"

.

: Pawl

JMJIA4859ZZ

: Clip

: Pawl

JMJIA4860ZZ

INT-28

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

2.

Remove back door support rod. (with auto back door) Refer to

DLK-477, "BACK DOOR SUPPORT ROD :

Removal and Installation"

.

3.

Remove third seat belt shoulder anchor. Refer to

SB-16, "SEAT BELT RETRACTOR : Removal and

Installation"

.

4.

Remove back pillar garnish.

a.

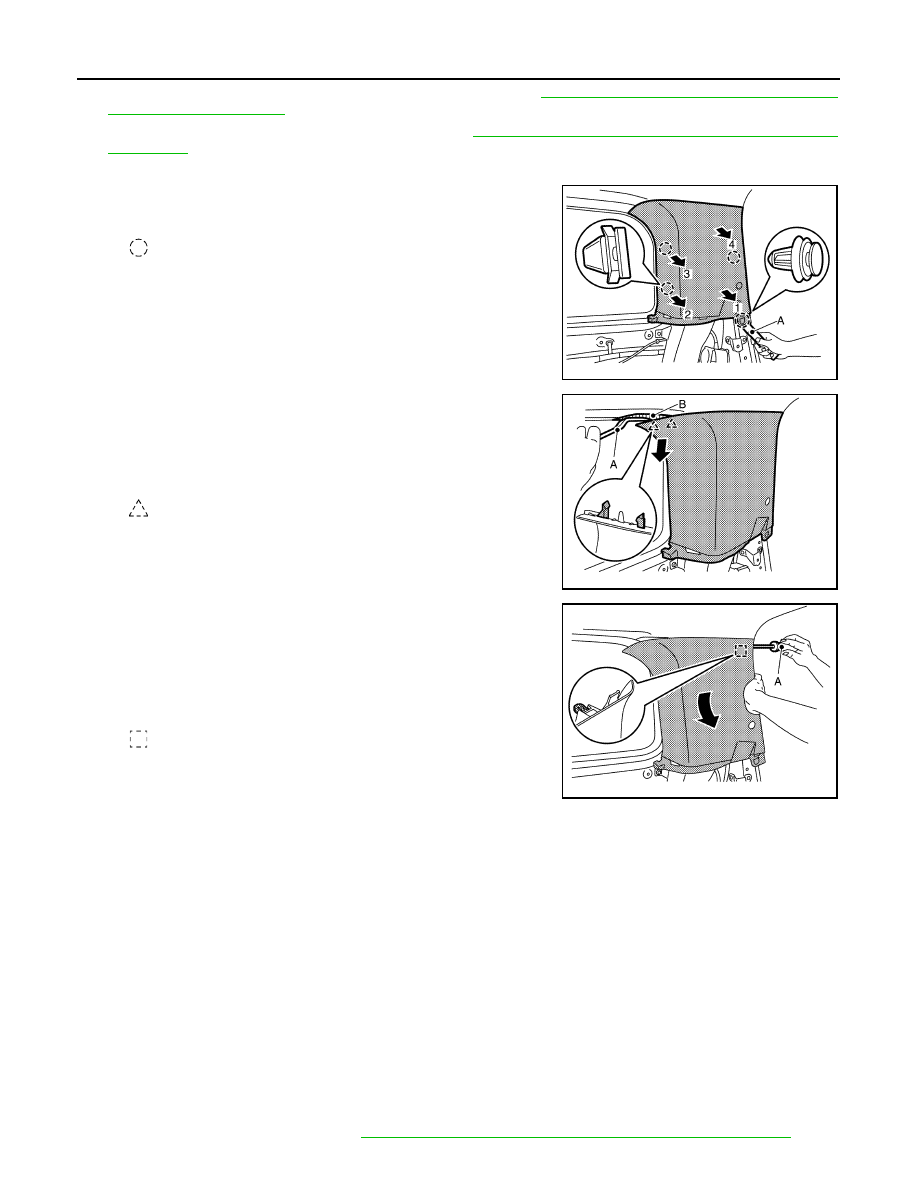

Disengage back pillar garnish fixing clips using a remover tool
(A).

b.

Disengage back pillar garnish fixing pawls using a remover tool
(A).

CAUTION:

Apply protective tape (B) on the part to protect it from dam-
age.

c.

Disengage back pillar garnish fixing metal clip using a remover
tool (A), and then remove back pillar garnish.

CAUTION:

Be careful not to deform headlining when removing
because headlining is inserted into groove of back pillar
garnish.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• When installing, check in advance that clips and metal clip are accurately aligned with the holes on

body panel side, and then install by pressing in.

• When installing, be careful not to damage or drop clips on the side window side.

ROOF SIDE GARNISH

ROOF SIDE GARNISH : Removal and Installation

INFOID:0000000009650290

CAUTION:

• When removing, always use a remover tool that is made of plastic to prevent damage to the parts.
• Never damage the body.
• Be careful not to damage roof side garnish when removing because roof side garnish is damaged

easily.

• Be careful not to bend headlining.

REMOVAL

1.

Remove rear pillar garnish. Refer to

INT-27, "REAR PILLAR GARNISH : Removal and Installation"

.

: Clip

JMJIA4861ZZ

: Pawl

JMJIA4862ZZ

: Metal clip

JMJIA4863ZZ

BODY SIDE TRIM

INT-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

2.

Remove back pillar garnish. Refer to

INT-27, "BACK PILLAR GARNISH : Removal and Installation"

.

3.

Remove shade hook. (with sunshade)

a.

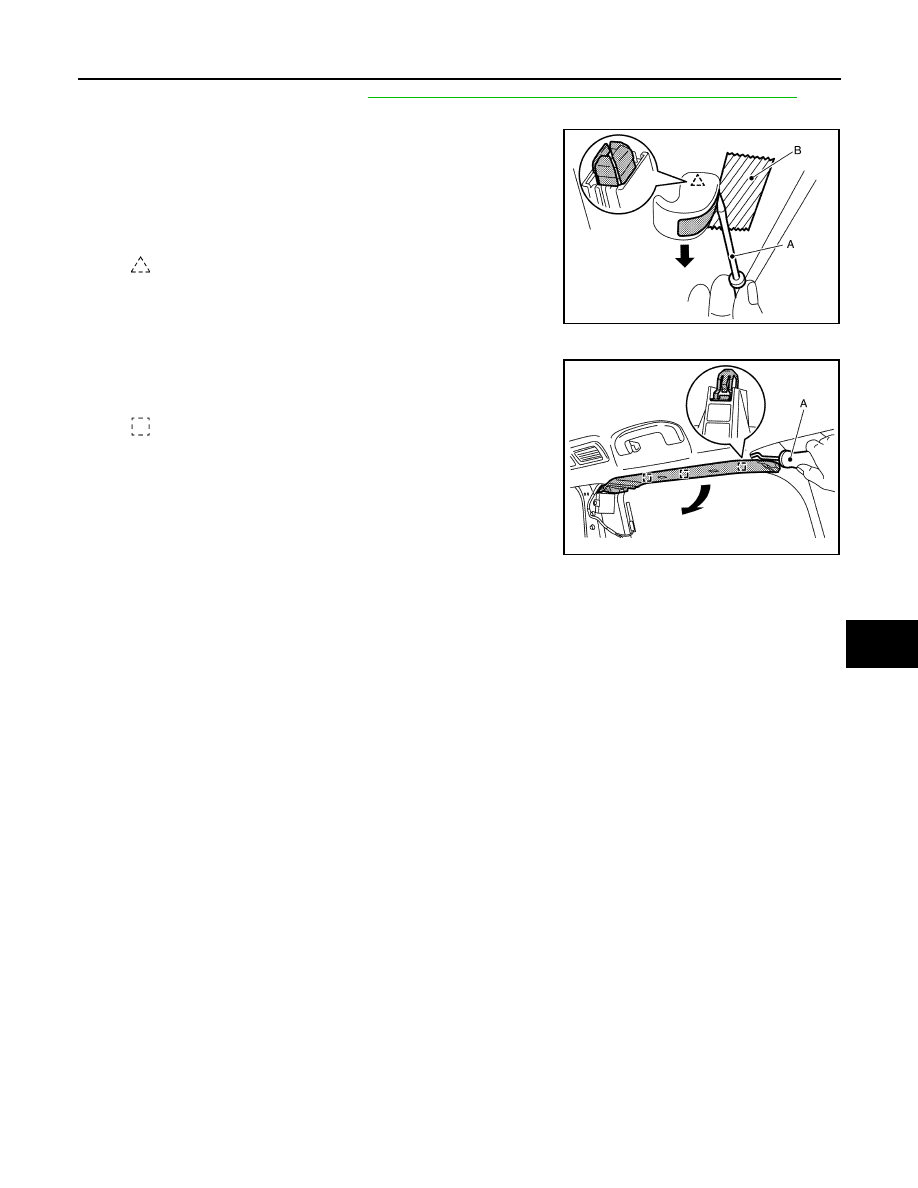

Remove hook pin using a remover tool (A).

CAUTION:

Apply protective tape (B) on the part to protect it from dam-
age.

b.

Pull toward vehicle lower, disengage shade hook fixing pawl,
and then remove.

4.

Remove roof side garnish.

a.

Disengage roof side garnish fixing metal clips using a remover
tool (A)

b.

Lower roof side garnish from the vehicle body outside to
remove.

CAUTION:

Be careful not to deform headlining when removing,
because headlining is inserted into groove of roof side gar-
nish.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

When installing, check in advance that metal clips are accurately aligned with the holes on body panel
side, and then install by pressing in.

: Pawl

JMJIA4864ZZ

: Metal clip

JMJIA4865ZZ

INT-30

< REMOVAL AND INSTALLATION >

FLOOR TRIM

FLOOR TRIM

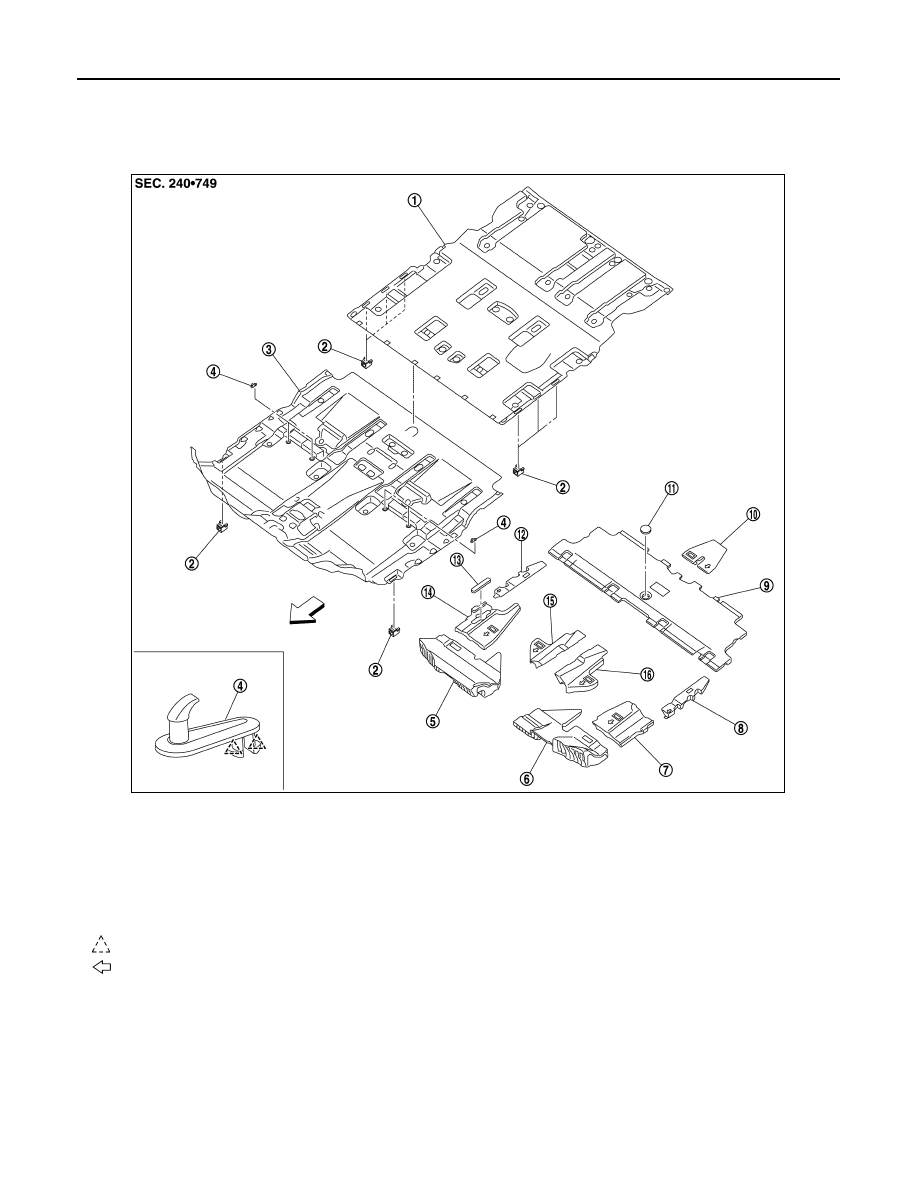

Exploded View

INFOID:0000000009650291

FRONT FLOOR CARPET

FRONT FLOOR CARPET : Removal and Installation

INFOID:0000000009650292

CAUTION:

• When removing, always use a remover tool that is made of plastic to prevent damage to the parts.
• Never damage the body.

REMOVAL

1.

Rear floor carpet

2.

Harness clip

3.

Front carpet

4.

Carpet hook

5.

Front floor pad RH

6.

Front floor pad LH

7.

Front floor spacer RH

8.

Front floor center spacer LH

9.

Center floor insulator

10.

Rear floor spacer

11.

Center floor insulator A

12.

Front floor center spacer RH

13.

Floor spacer C

14.

Front floor spacer RH

15.

Floor side spacer RH

16.

Floor side spacer LH

: Pawl

: Vehicle front

JMJIA6210ZZ
