Nissan Quest E52. Manual - part 806





BODY SIDE TRIM

INT-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

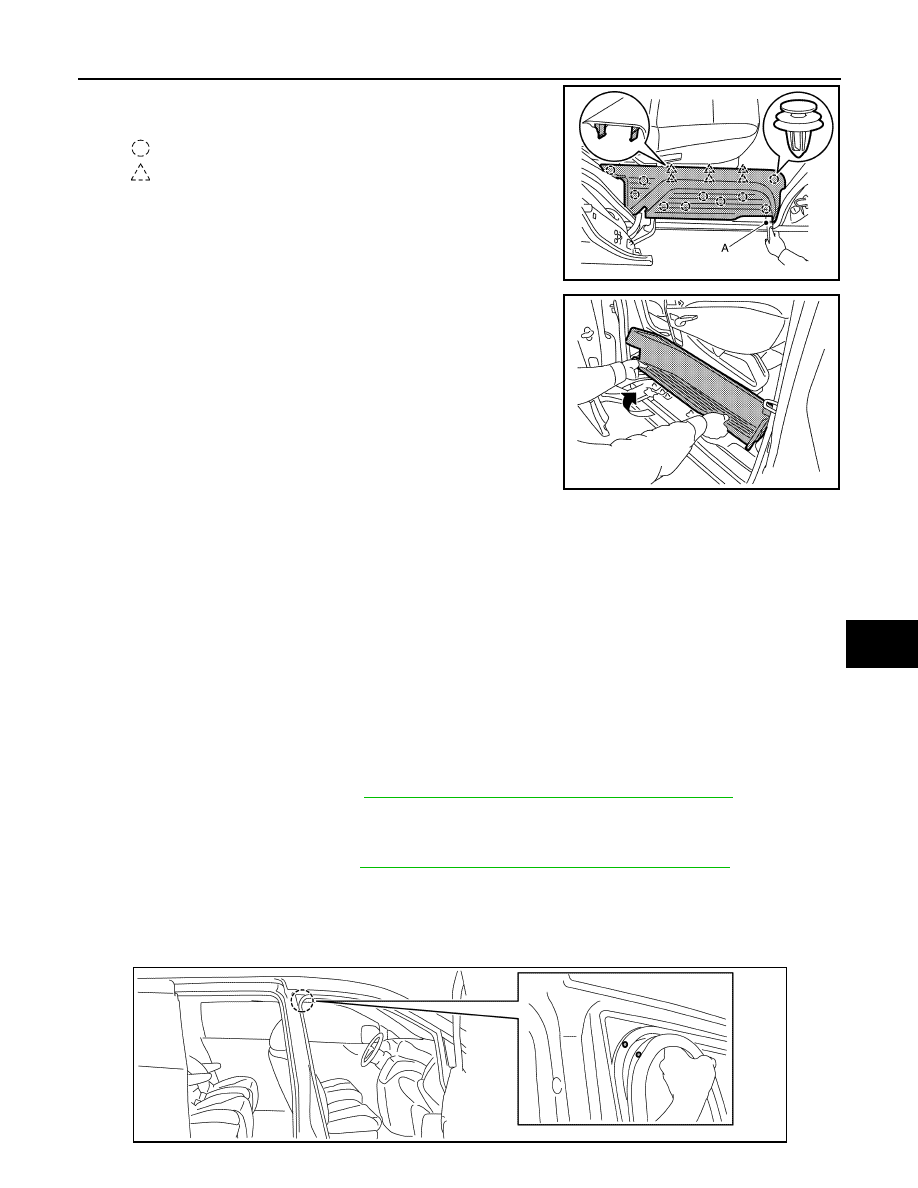

1.

Disengage rear kicking plate fixing clips and pawls using a
remover tool (A).

2.

Hold the lower edge of rear kicking plate. Remove rear kicking
plate while rotating it upward avoiding the portion overlapped
with second seat.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

When installing, check in advance that clips are accurately aligned with the holes on body panel side,
and then install by pressing in.

BODY SIDE WELT

BODY SIDE WELT : Removal and Installation

INFOID:0000000009650284

CAUTION:

• Never excessively pull body side welt.
• Never damage the body.

REMOVAL

FRONT BODY SIDE WELT

1.

Remove front kicking plate. Refer to

INT-22, "KICKING PLATE : Removal and Installation"

.

2.

Remove front body side welt.

REAR BODY SIDE WELT

1.

Remove rear kicking plate. Refer to

INT-22, "KICKING PLATE : Removal and Installation"

.

2.

Remove rear body side welt.

INSTALLATION

FRONT BODY SIDE WELT

Align body side welt identification color and vehicle position mark, and then install.

: Clip

: Pawl

JMJIA6204ZZ

JMJIA6205ZZ

JMJIA6206ZZ

INT-24

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

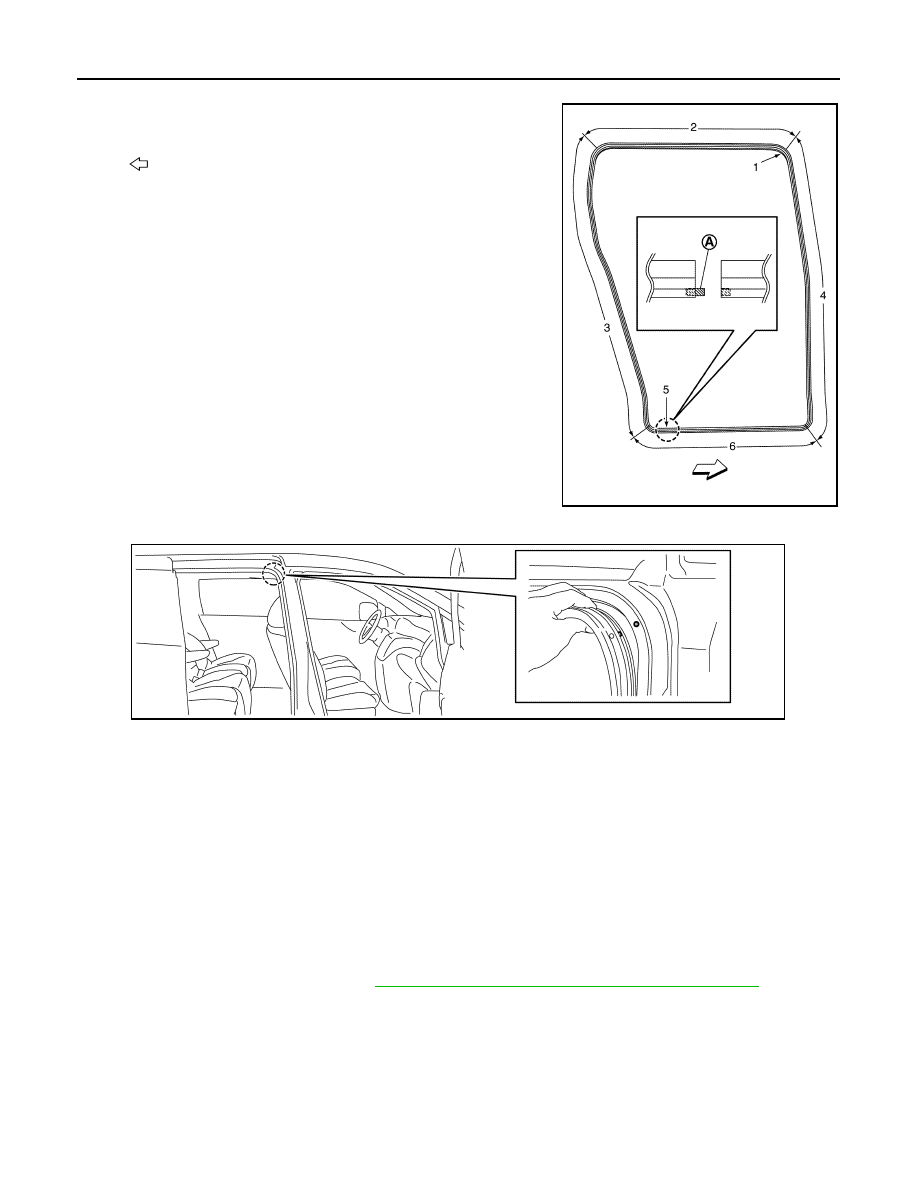

REAR BODY SIDE WELT

Install upper portion and both side surfaces in numerical order as
shown in the figure.

1.

Align body side welt identification color and vehicle position mark.

2.

Install vehicle upper.

3.

Install vehicle rear.

4.

Install vehicle front.

5.

Engage both ends using spacer (A), and then install lower portion.

6.

Install vehicle lower.

DASH SIDE FINISHER

DASH SIDE FINISHER : Removal and Installation

INFOID:0000000009650285

CAUTION:

Never damage the body.

REMOVAL

1.

Remove front body side welt. Refer to

INT-23, "BODY SIDE WELT : Removal and Installation"

.

2.

Remove dash side finisher.

: Vehicle front

JMJIA4852ZZ

JMJIA6207ZZ

BODY SIDE TRIM

INT-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

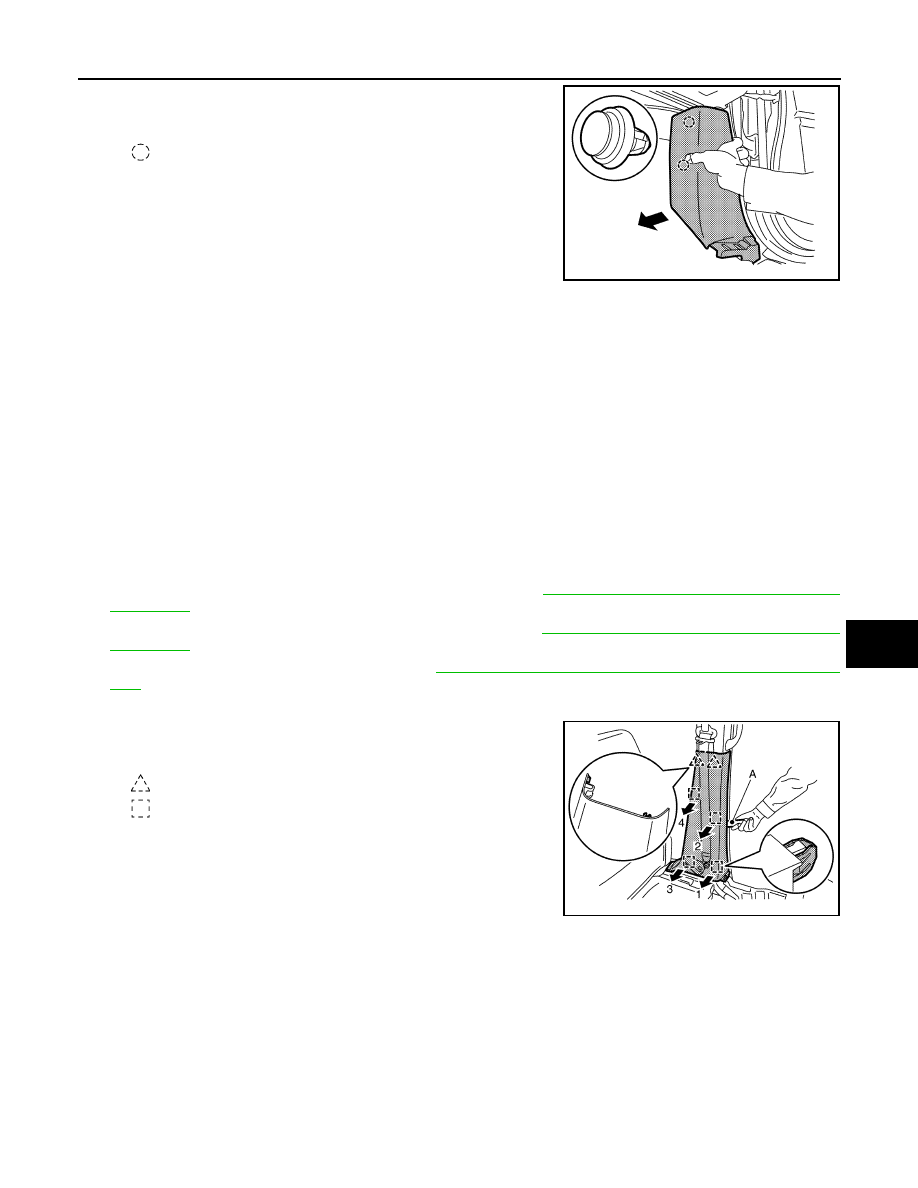

Pull dash side finisher toward vehicle inside, disengage fixing
clips, and then remove dash side finisher.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

When installing, check in advance that clips are accurately aligned with the holes on body panel side,
and then install by pressing in.

CENTER PILLAR LOWER GARNISH

CENTER PILLAR LOWER GARNISH : Removal and Installation

INFOID:0000000009650286

CAUTION:

• When removing, always use a remover tool that is made of plastic to prevent damage to the parts.
• Never damage the body.

REMOVAL

1.

Fully open front door and slide door.

2.

Slide front seat to the fully forward position. Tilt seatback forward.

3.

Remove front kicking plate and rear kicking plate. Refer to

INT-22, "KICKING PLATE : Removal and

Installation"

.

4.

Remove front body side welt and rear body side welt. Refer to

INT-23, "BODY SIDE WELT : Removal and

Installation"

.

5.

Remove front seat belt outer anchor. Refer to

SB-5, "SEAT BELT RETRACTOR : Removal and Installa-

tion"

.

6.

Remove center pillar lower garnish.

a.

Disengage center pillar lower garnish fixing pawls and metal
clips using a remover tool (A).

b.

Disconnect harness connector. (with power sliding)

c.

Remove center pillar lower garnish.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

When installing, check in advance that metal clips are accurately aligned with the holes on body panel
side, and then install by pressing in.

CENTER PILLAR UPPER GARNISH

: Clip

JMJIA6208ZZ

: Pawl

: Metal clip

JMJIA6209ZZ

INT-26

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

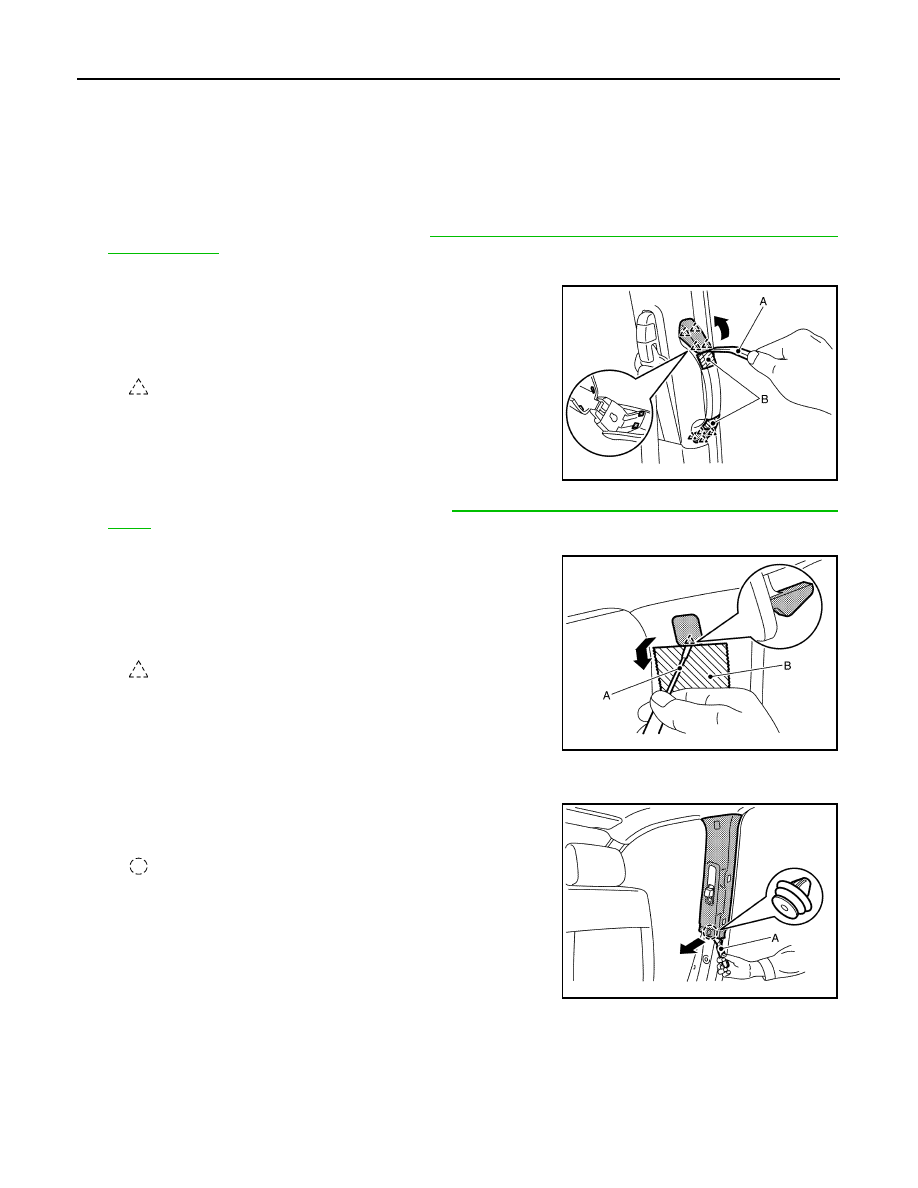

CENTER PILLAR UPPER GARNISH : Removal and Installation

INFOID:0000000009650287

CAUTION:

• When removing, always use a remover tool that is made of plastic to prevent damage to the parts.
• Never damage the body.
• Fabric upholstered parts are easily damaged. Be careful while performing work and storing parts.

REMOVAL

1.

Remove center pillar lower garnish. Refer to

INT-25, "CENTER PILLAR LOWER GARNISH : Removal

and Installation"

.

2.

Remove assist grip.

a.

Disengage assist grip cap fixing pawls using a remover tool (A).

CAUTION:

Apply protective tape (B) on the part to protect it from dam-
age.

b.

Remove assist grip fixing bolts, and then remove assist grip.

3.

Remove front seat belt shoulder anchor. Refer to

SB-5, "SEAT BELT RETRACTOR : Removal and Instal-

lation"

.

4.

Remove center pillar upper garnish cap.
Disengage center pillar upper garnish cap fixing pawl using a
remover tool (A).

CAUTION:

Apply protective tape (B) on the part to protect it from dam-
age.

5.

Remove center pillar upper garnish fixing bolt.

6.

Remove center pillar upper garnish.
Disengage center pillar upper garnish fixing clip using a remover
tool (A), and then remove center pillar upper garnish.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

When installing, check in advance that clips are accurately aligned with the holes on body panel side,
and then install by pressing in.

REAR PILLAR GARNISH

: Pawl

JMJIA4857ZZ

: Pawl

JMJIA4856ZZ

: Clip

JMJIA4858ZZ
