Nissan Quest E52. Manual - part 662





FENDER PROTECTOR

EXT-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

FENDER PROTECTOR

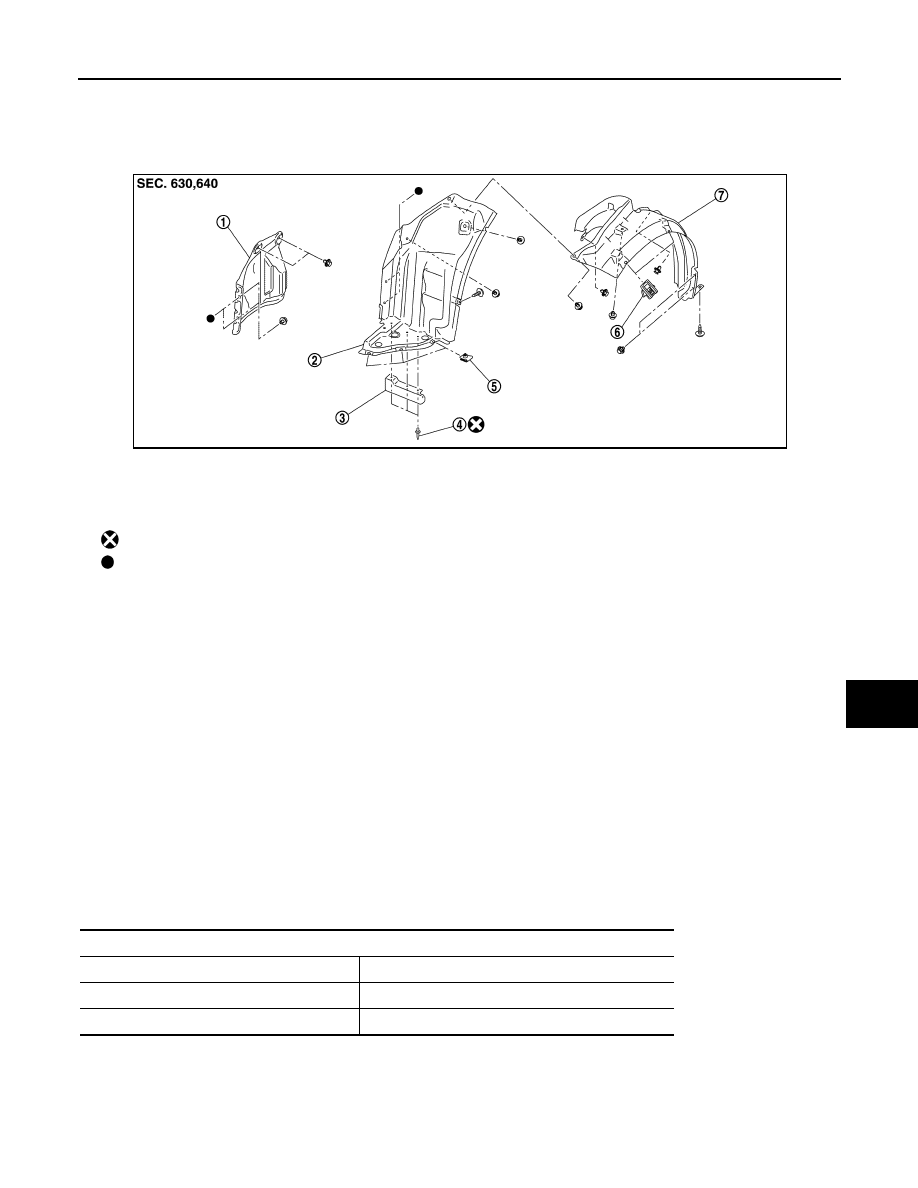

Exploded View

INFOID:0000000009650497

Removal and Installation

INFOID:0000000009650498

REMOVAL

1.

Remove splash guard fixing clips, and then remove splash guard.

2.

Remove fender protector (rear) fixing clips, screw, and fender clips, and then remove fender protector
(rear).

3.

Remove fender protector (front) fixing clips and screws, and then remove fender protector (front).

4.

Remove air guide from fender protector (front).

CAUTION:

Removal of rivet.
Grind the head of rivet with a drill [bit of

φ

4.5 – 5.0 mm (

φ

0.177 – 0.197 in)] and then remove the bumper

brace.

INSTALLATION

Note the following item, and then install in the reverse order of removal.
NOTE:
Securely crimp the bumper brace with the bumper fascia assembly with a hand riveter.

1.

Splash guard

2.

Fender protector (front)

3.

Air guide

4.

Rivet

5.

U-nut

6.

Fender clip

7.

Fender protector (rear)

: Always replace after every disassembly.

: Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIA6122ZZ

Size of rivet

Prepared hole diameter

φ

5.1 – 5.3 mm (

φ

0.201 – 0.209 in)

Used rivet head diameter

φ

16.0 mm (

φ

0.630 in)

Crimping thickness

0.5 – 6.4 mm (0.020 – 0.252 in)

EXT-24

< REMOVAL AND INSTALLATION >

SIDE PROTECT MOLDING

SIDE PROTECT MOLDING

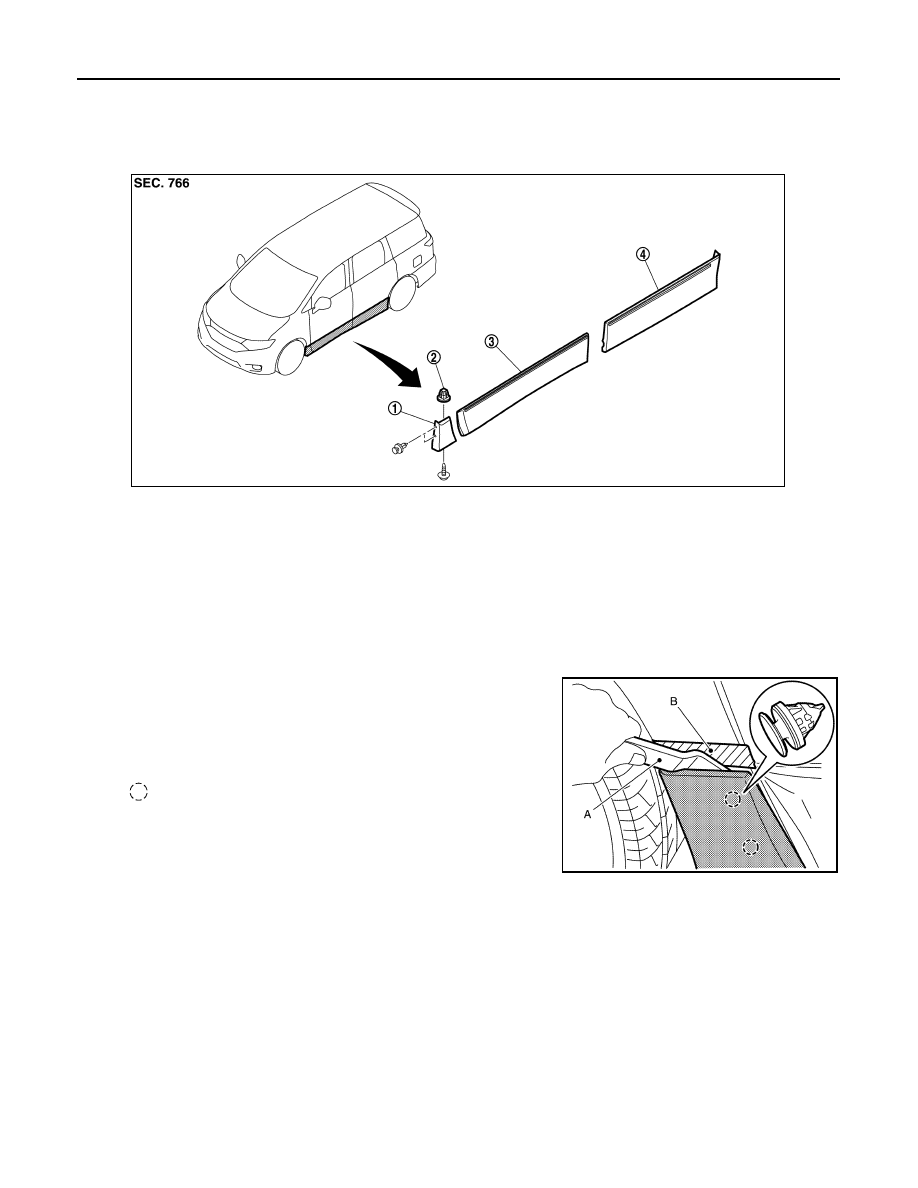

Exploded View

INFOID:0000000009650499

FENDER PROTECT MOLDING

FENDER PROTECT MOLDING : Removal and Installation

INFOID:0000000009650500

REMOVAL

1.

Remove fender protect molding fixing clips and screw.

2.

Remove clips from fender protect molding back side with a
remover tool (A).

CAUTION:

Apply protective tape (B) on the part to protect it from dam-
age.

3.

Remove fender protect molding.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Degrease mounting surface of fender protect molding.

1.

Fender protect molding

2.

Screw grommet

3.

Front door protect molding

4.

Slide door protect molding

JMKIA8229ZZ

: Clip

JMKIA6246ZZ

SIDE PROTECT MOLDING

EXT-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

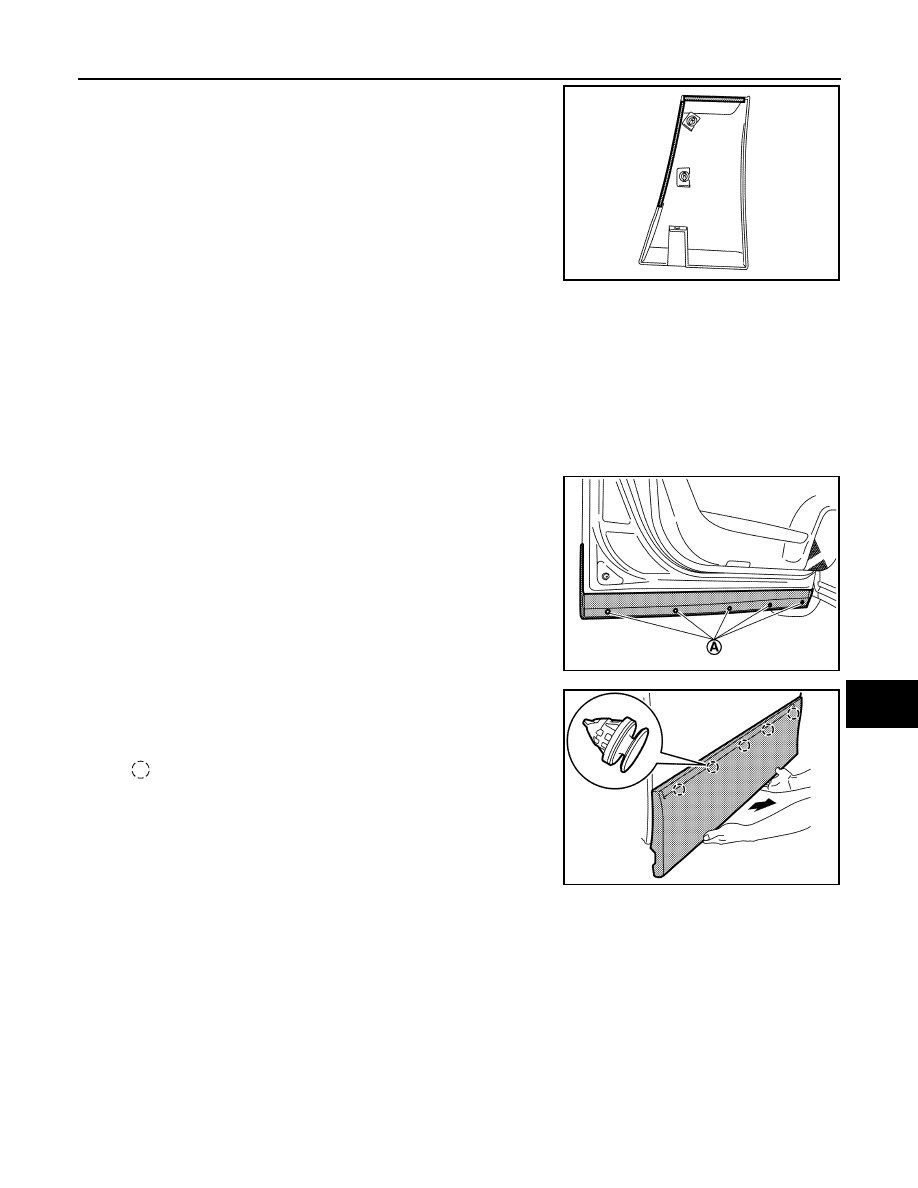

• Apply new double-sided tape as shown in the figure.

• Never wash the vehicle within 24 hours so as to keep adhesive.

FRONT DOOR PROTECT MOLDING

FRONT DOOR PROTECT MOLDING : Removal and Installation

INFOID:0000000009650501

REMOVAL

CAUTION:

When removing front door protect molding, remove molding and bracket separately.

1.

Fully open front door.

2.

Remove front door protect molding fixing screws (A).

3.

Pull lower portion of front door protect molding toward vehicle
outer, disengage clips while peeling double-sided tape, and then
remove front door protect molding.

4.

Remove front door protect molding bracket.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Degrease mounting surface of front door protect molding.

Double-sided tape [t: 1.2 mm (0.047 in)]

JMKIA6247ZZ

JMKIA6248ZZ

: Clip

JMKIA6249ZZ

EXT-26

< REMOVAL AND INSTALLATION >

SIDE PROTECT MOLDING

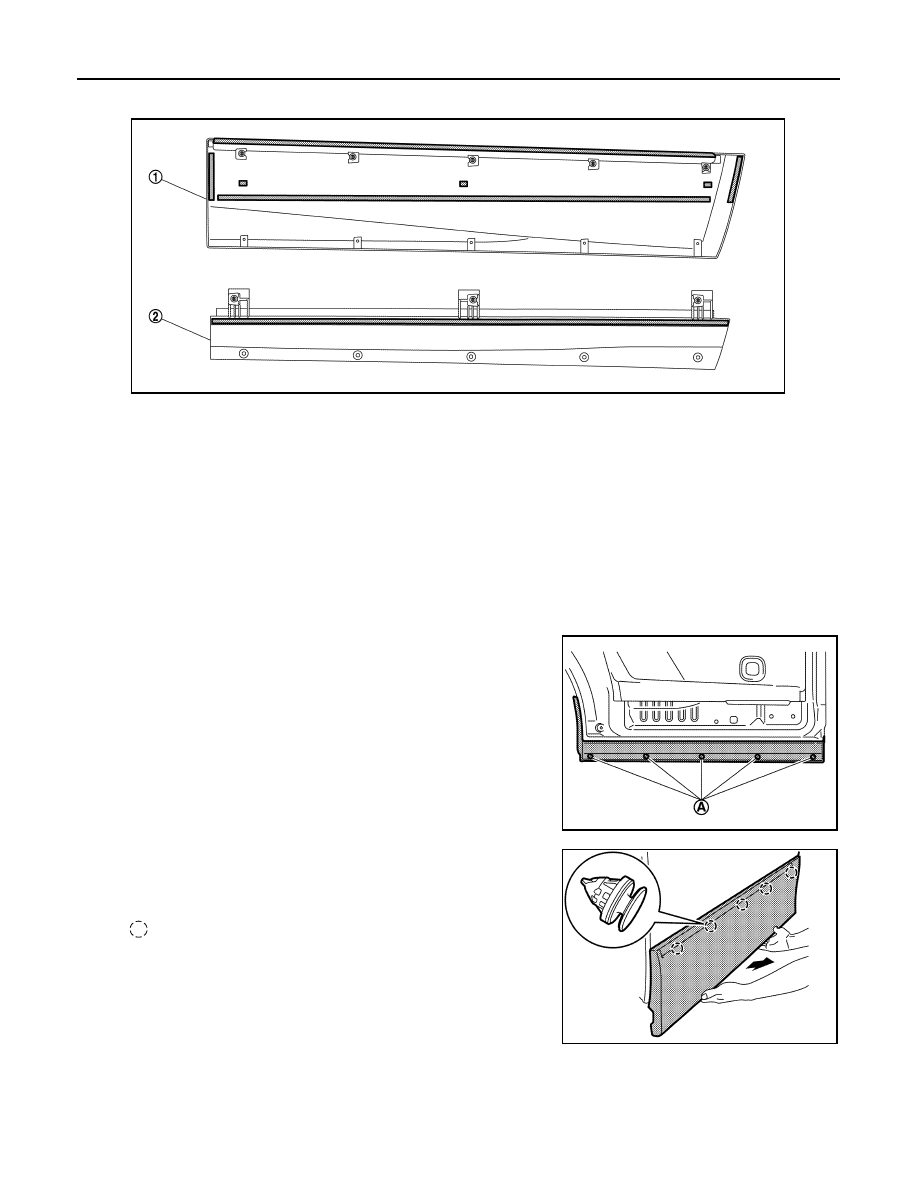

• When reusing removed protect molding, apply new double-sided tape as shown in the figure, assem-

ble molding (1) and bracket (2), and then install.

• Never wash the vehicle within 24 hours so as to keep adhesive.

SLIDE DOOR PROTECT MOLDING

SLIDE DOOR PROTECT MOLDING : Removal and Installation

INFOID:0000000009650502

REMOVAL

CAUTION:

When removing slide door protect molding, remove molding and bracket separately.
1.

Fully open slide door.

2.

Remove slide door protect molding fixing screws (A).

3.

Pull lower portion of slide door protect molding toward vehicle
outer, disengage clips while peeling double-sided tape, and then
remove slide door protect molding.

4.

Remove slide door protect molding bracket.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

1.

Front door protect molding

2.

Front door protect molding bracket

Double-sided tape [t: 1.2 mm (0.047 in)]

JMKIA6250ZZ

JMKIA6251ZZ

: Clip

JMKIA6249ZZ
