FRONT GRILLE

EXT-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

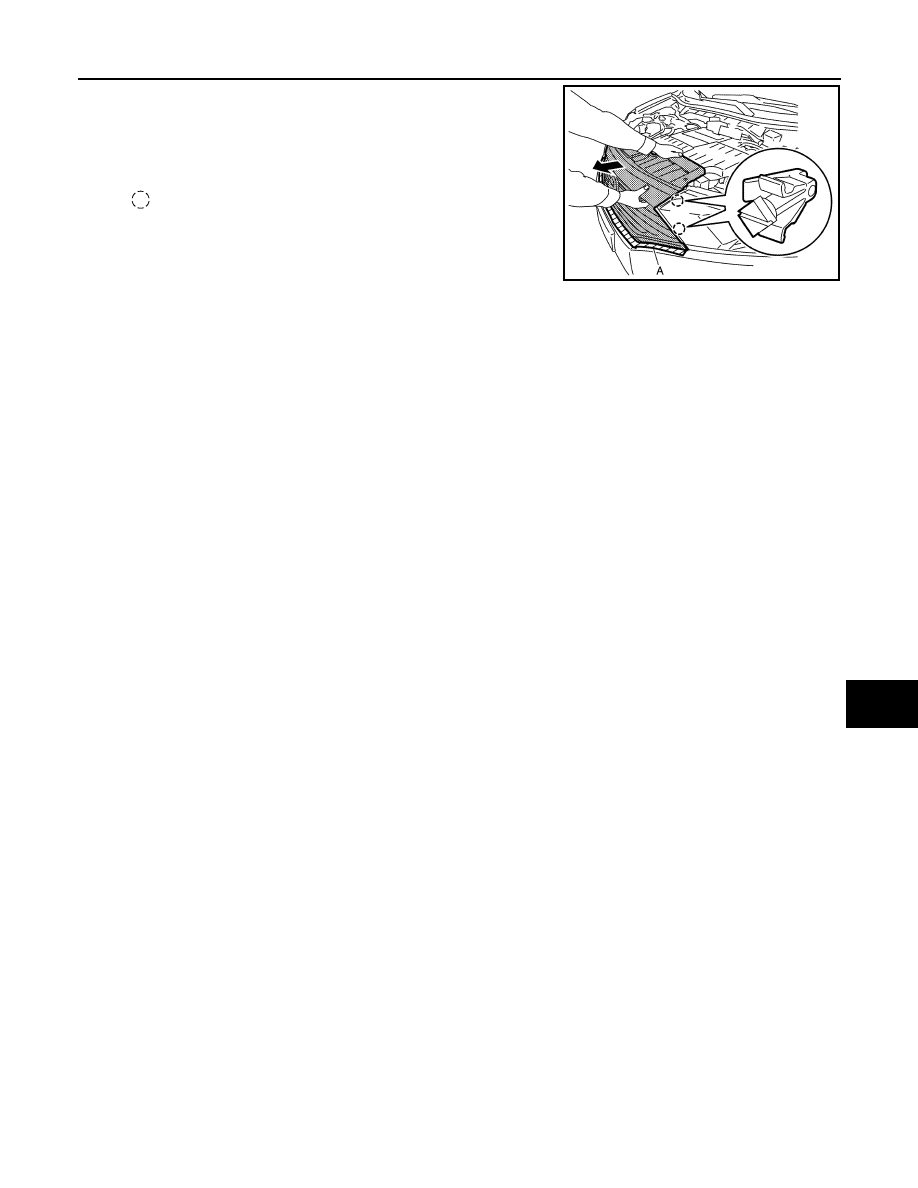

4.

Pull front grille toward the direction shown in the figure, and then
disengage front grille fixing clips.

CAUTION:

Apply a protective tape (A) on bumper fascia to protect the
painted surface from damage.

5.

Disengage front grille fixing pawls from back side of front grille while pull front grille horizontally toward
vehicle front, and then remove front grille.

6.

Remove emblem after removing front grille.

INSTALLATION

Install in the reverse order of removal.

: Clip

JMKIA8246ZZ

EXT-20

< REMOVAL AND INSTALLATION >

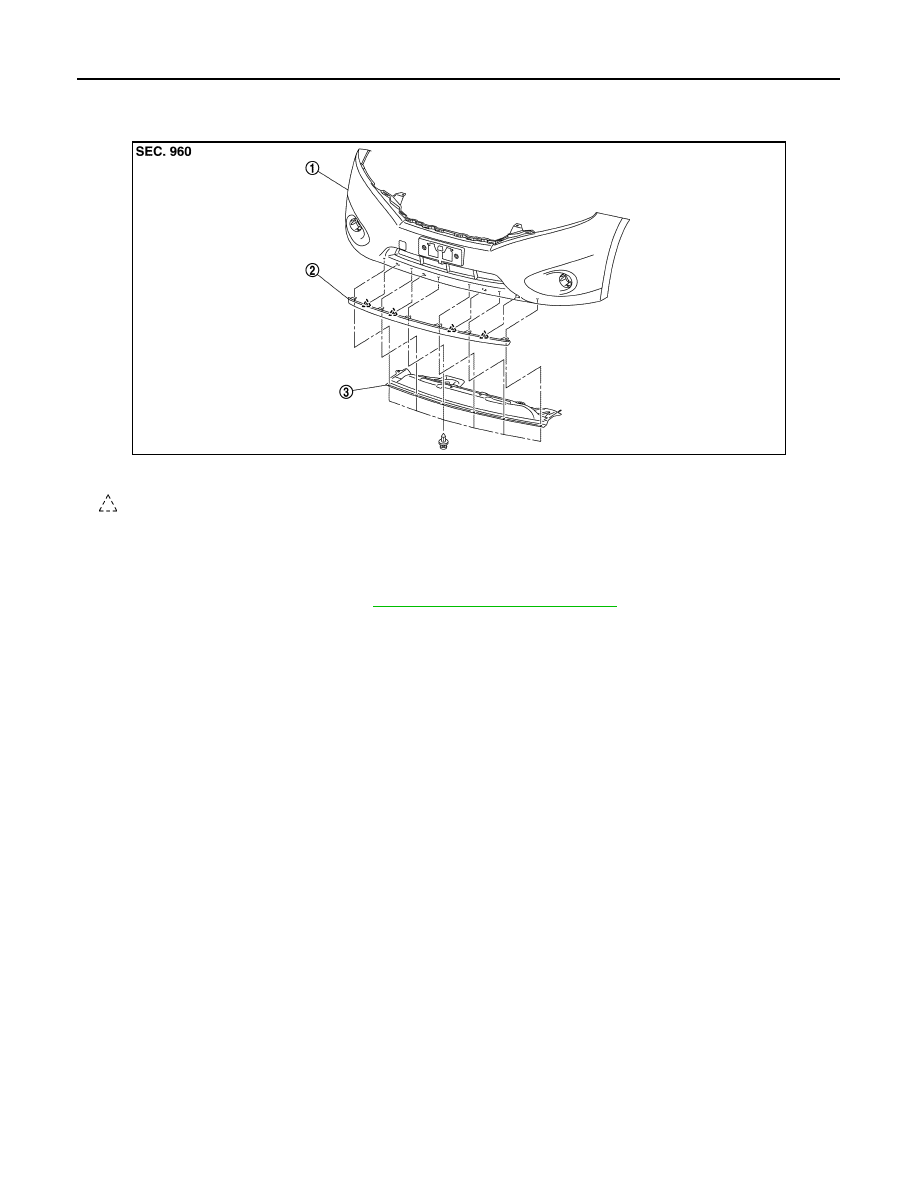

FRONT SPOILER

FRONT SPOILER

Exploded View

INFOID:0000000009650493

Removal and Installation

INFOID:0000000009650494

REMOVAL

1.

Remove engine under cover. Refer to

EXT-28, "Removal and Installation"

.

2.

Disengage fixing pawls, and then remove front spoiler.

INSTALLATION

Install in the reverse order of removal.

JMKIA8216ZZ

1.

Front bumper fascia assembly

2.

Front spoiler assembly

3.

Engine under cover

: Pawl

COWL TOP

EXT-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

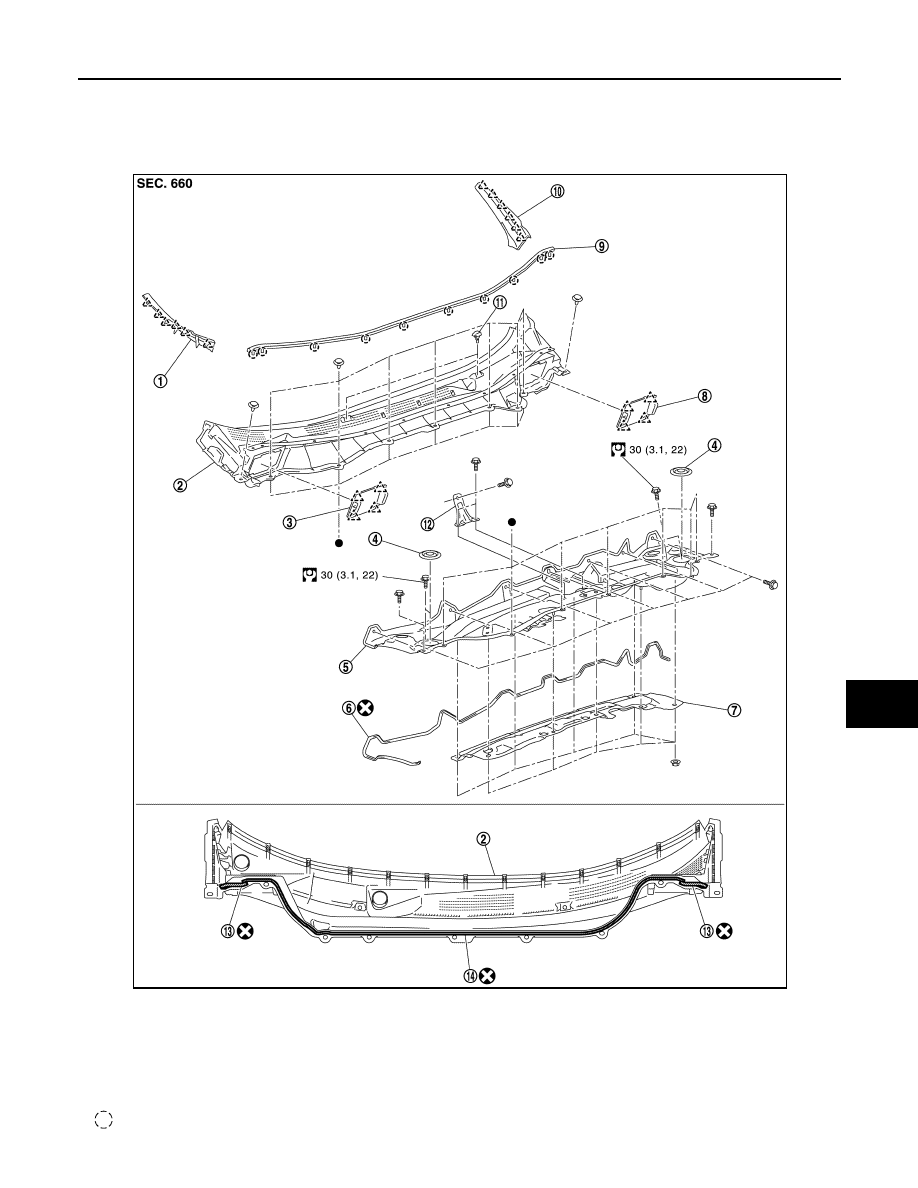

COWL TOP

Exploded View

INFOID:0000000009650495

1.

Front fender cover RH

2.

Cowl top cover

3.

Cowl top cover lid RH

4.

Blind plug

5.

Cowl top extension

6.

EPT seal [t: 5.0 mm (0.197 in)]

7.

Cowl top insulator

8.

Cowl top cover lid LH

9.

Cowl top cover seal

10.

Front fender cover LH

11.

Washer nozzle

12.

Cowl top center stay

13.

EPT seal [t: 15.0 mm (0.591 in)]

14.

EPT seal [t: 3.0 mm (0.118 in)]

: Clip

JMKIA8215ZZ

EXT-22

< REMOVAL AND INSTALLATION >

COWL TOP

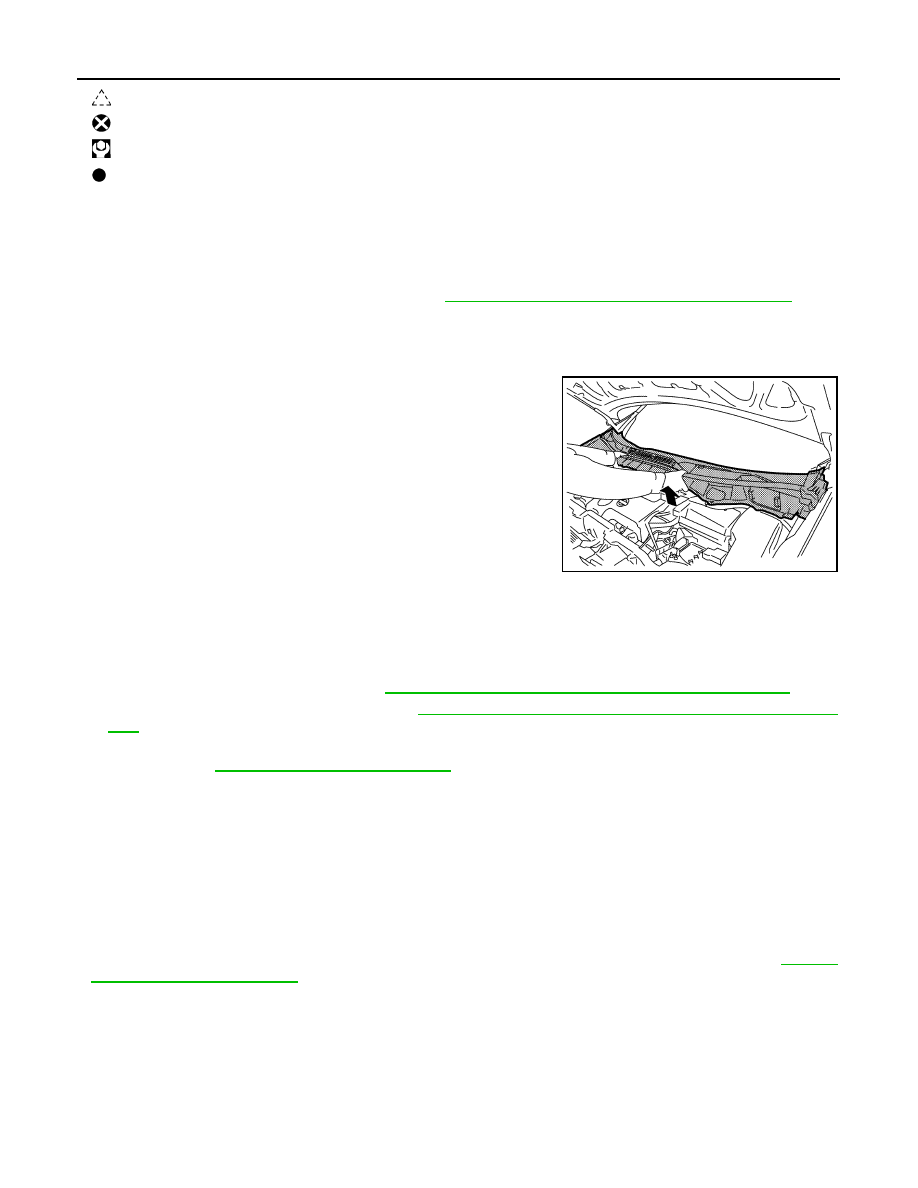

Removal and Installation

INFOID:0000000009650496

REMOVAL

1.

Fully open hood assembly.

2.

Remove front wiper arms (LH and RH). Refer to

WW-51, "WIPER ARM : Removal and Installation"

.

3.

Disconnect front washer tube connector.

4.

Remove front fender covers (LH and RH).

5.

Remove cowl top cover fixing clips.

6.

Pull forward to release cowl top cover from windshield glass.

CAUTION:

When performing the procedure after removing cowl top-
cover, cover the lower end of windshield glass with ure-
thaneetc.

7.

Remove cowl top cover.

8.

Remove the following parts after removing cowl top cover.
• EPT sealer
• Cowl top cover seal
• Washer tube
• Washer nozzle (LH and RH). Refer to

WW-66, "WASHER NOZZLE : Inspection and Adjustment"

.

9.

Remove front wiper drive assembly. Refer to

WW-53, "WIPER DRIVE ASSEMBLY : Removal and Installa-

tion"

.

10. Remove brake master cylinder reservoir tank mounting nuts, and then remove brake master cylinder res-

ervoir. Refer to

BR-27, "Removal and Installation"

.

11. Remove relay boxs fixing pawl, and then remove relay boxs.

12. Remove cowl top extension mounting bolts, and then remove cowl top extension.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Clean the joint between the cowl top cover and the windshield, and then install them.
• Replace the EPT sealer on the back surface with new EPT sealer when reusing the cowl top cover.
• Remove the EPT sealer remaining on the cowl top cover using a double-sided tape remove.
• To maintain adhesion, never wash the vehicle within 24 hours after installation.
• Perform the stop position adjustment at the installation of the front wiper arms. Refer to

WW-52,

"WIPER ARM : Adjustment"

.

: Pawl

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIA8189ZZ
