Nissan Quest E52. Manual - part 659

SQUEAK AND RATTLE TROUBLE DIAGNOSES

EXT-11

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

PIIB8742E

EXT-12

< REMOVAL AND INSTALLATION >

FRONT BUMPER

REMOVAL AND INSTALLATION

FRONT BUMPER

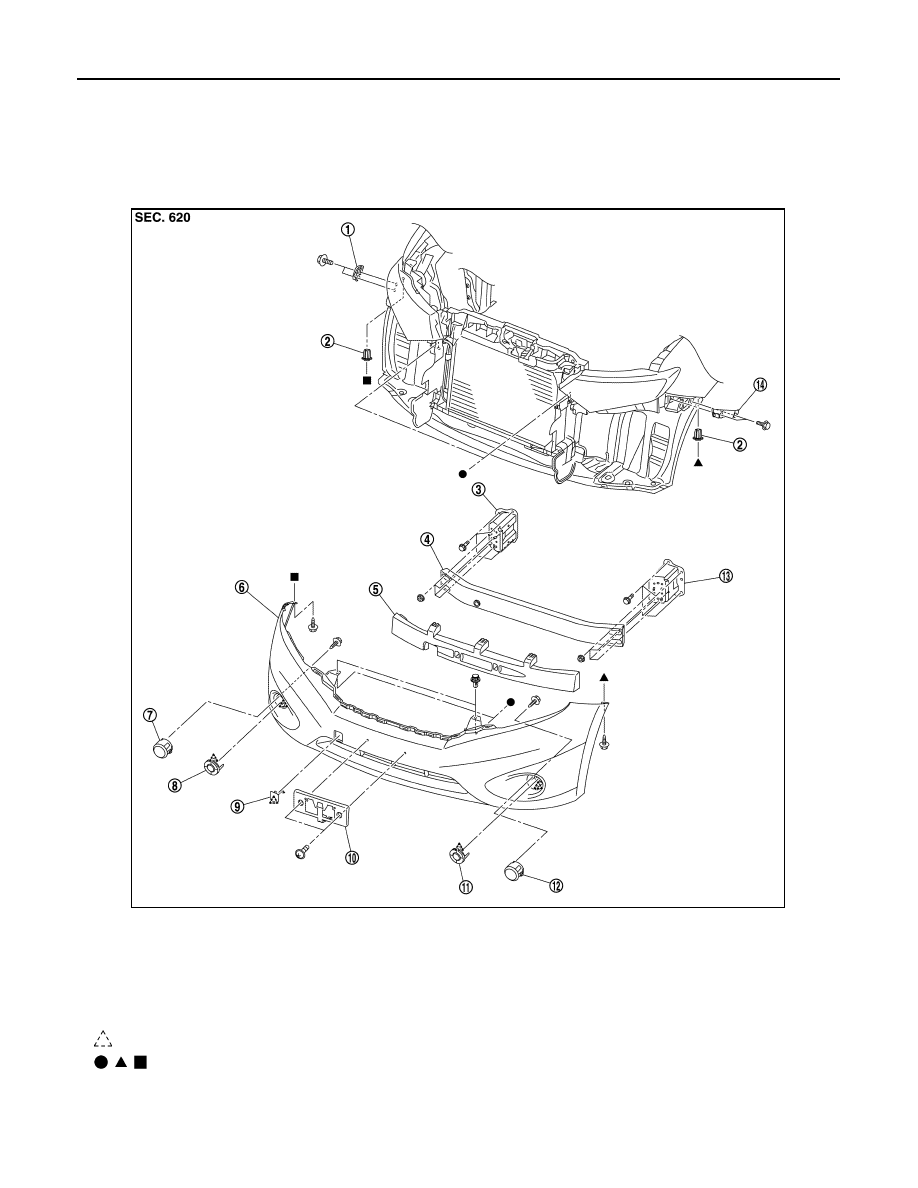

Exploded View

INFOID:0000000009650486

Removal and Installation

INFOID:0000000009650487

CAUTION:

1.

Bumper side bracket RH

2.

Screw grommet

3.

Bumper stay RH

4.

Bumper reinforcement

5.

Bumper energy absorber

6.

Bumper fascia

7.

Front fog lamp RH

8.

Bumper finisher RH

9.

Bumper bracket cover

10.

License plate bracket

11.

Bumper finisher LH

12.

Front fog lamp LH

13.

Bumper stay LH

14.

Bumper side bracket LH

: Pawl

,

,

 : Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIA8213ZZ

FRONT BUMPER

EXT-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

Bumper fascia is made of resin. Never apply strong force to it, and be careful to prevent contact with
oil.

REMOVAL

1.

Fully open hood assembly.

2.

Remove front grille. Refer to

EXT-18, "Removal and Installation"

.

3.

Remove fender protector (front) fixing clips and screws to access bumper fascia assembly fixing screw.
Refer to

EXT-23, "Removal and Installation"

.

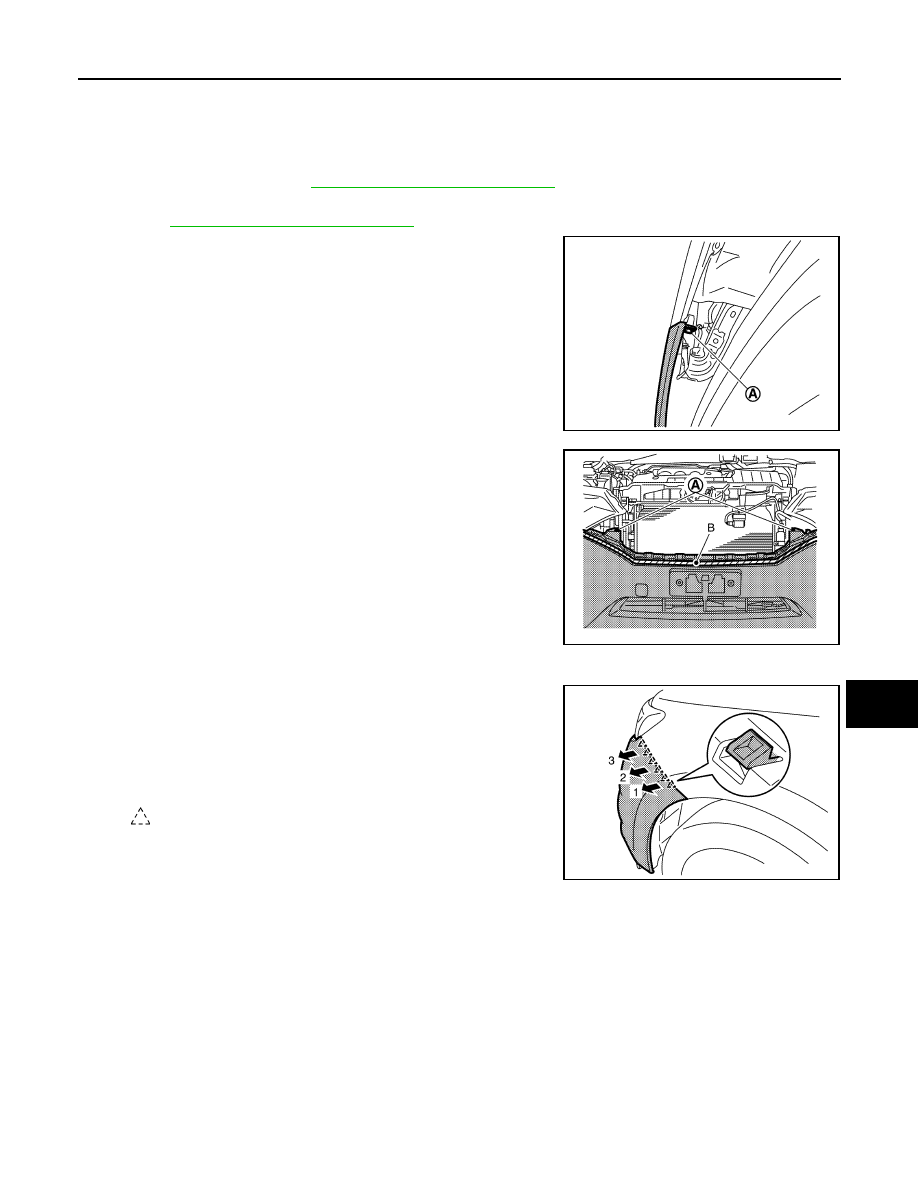

4.

Remove bumper fascia both ends fixing screws (A).

5.

Remove bumper fascia assembly upper side fixing clips (A).

CAUTION:

Apply protective tape (B) around bumper fascia.

6.

Remove bumper fascia assembly lower side fixing clips.

7.

Pull bumper fascia assembly toward the vehicle out side as
shown by the arrows in the figure, and then disengage bumper
fascia assembly from bumper side brackets (LH and RH).

CAUTION:

When removing bumper fascia, 2 workers are required so
as to prevent it from dropping.

8.

Disconnect front fog lamp harness connectors (LH and RH).

9.

Remove bumper fascia assembly.

CAUTION:

When removing bumper fascia, 2 workers are required so as to prevent it from dropping.

10. Remove the following parts after removing bumper fascia.

• Front fog lamp assembly (LH and RH). (with fog lamp)
• Front fog lamp finishers (LH and RH). (without fog lamp)
• Bumper bracket cover
• Front spoiler
• License plate bracket

11. Remove bumper energy absorber.
12. Remove bumper reinforcement mounting nuts, and then remove bumper reinforcement.

13. Remove bumper side bracket mounting screws, and then remove bumper side bracket.

JMKIA8182ZZ

JMKIA8181ZZ

: Pawl

JMKIA8183ZZ

EXT-14

< REMOVAL AND INSTALLATION >

FRONT BUMPER

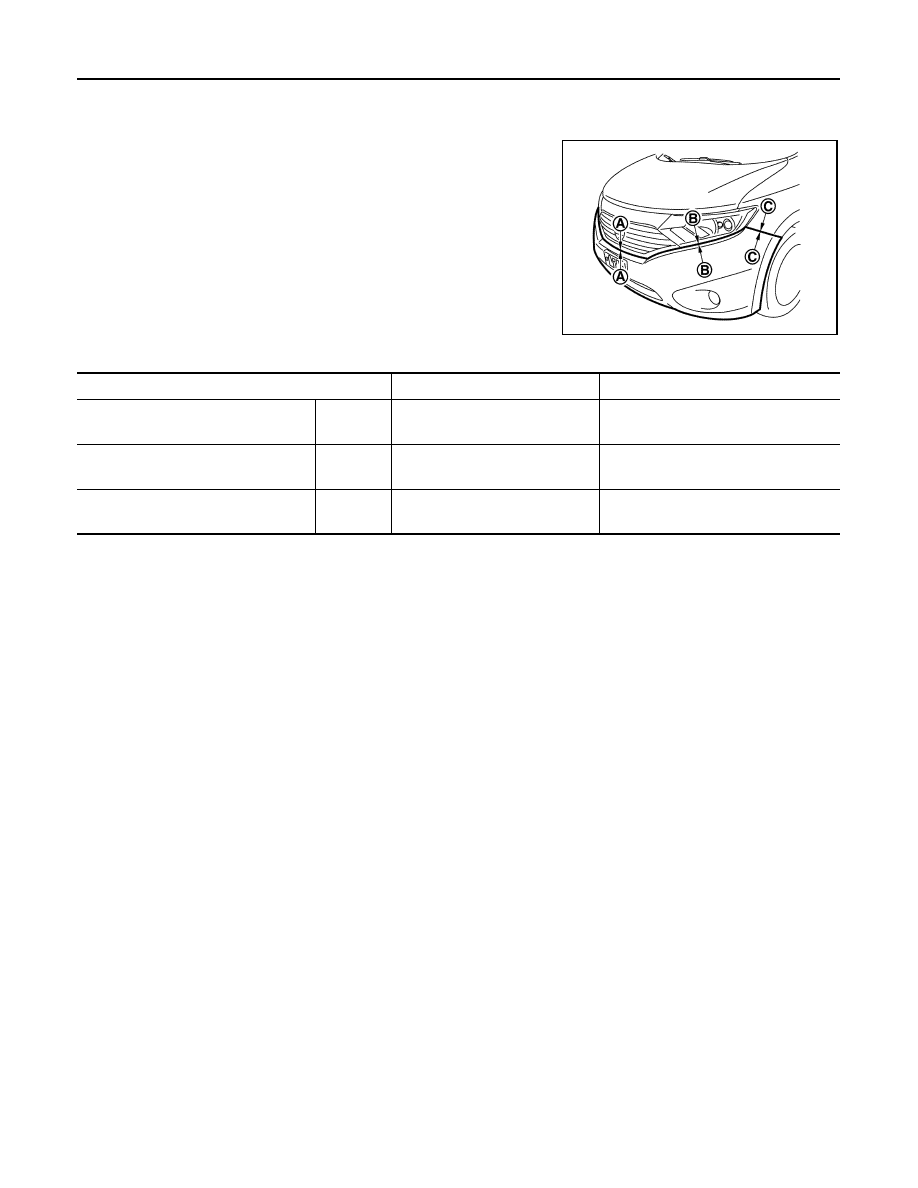

INSTALLATION

Note the following items, and then install in the reverse order of removal.
NOTE:
• The following table shows the specified values for checking normal

installation status.

• Fitting adjustment cannot be performed.

JMKIA8184ZZ

Portion

Clearance

Surface height difference

Bumper fascia assembly –
Front grille

A – A

0.0 – 3.0 mm

(0.000 – 0.118 in)

—

Bumper fascia assembly –
Front combination lamp

B – B

0.1 – 2.9 mm

(0.004 – 0.114 in)

—

Bumper fascia assembly –
Front fender

C – C

0.0 – 0.8 mm

(0.000 – 0.031 in)

(

−

0.3) – (+1.7) mm

[(

−

0.012) – (+0.067) in]
