Nissan Quest E52. Manual - part 441





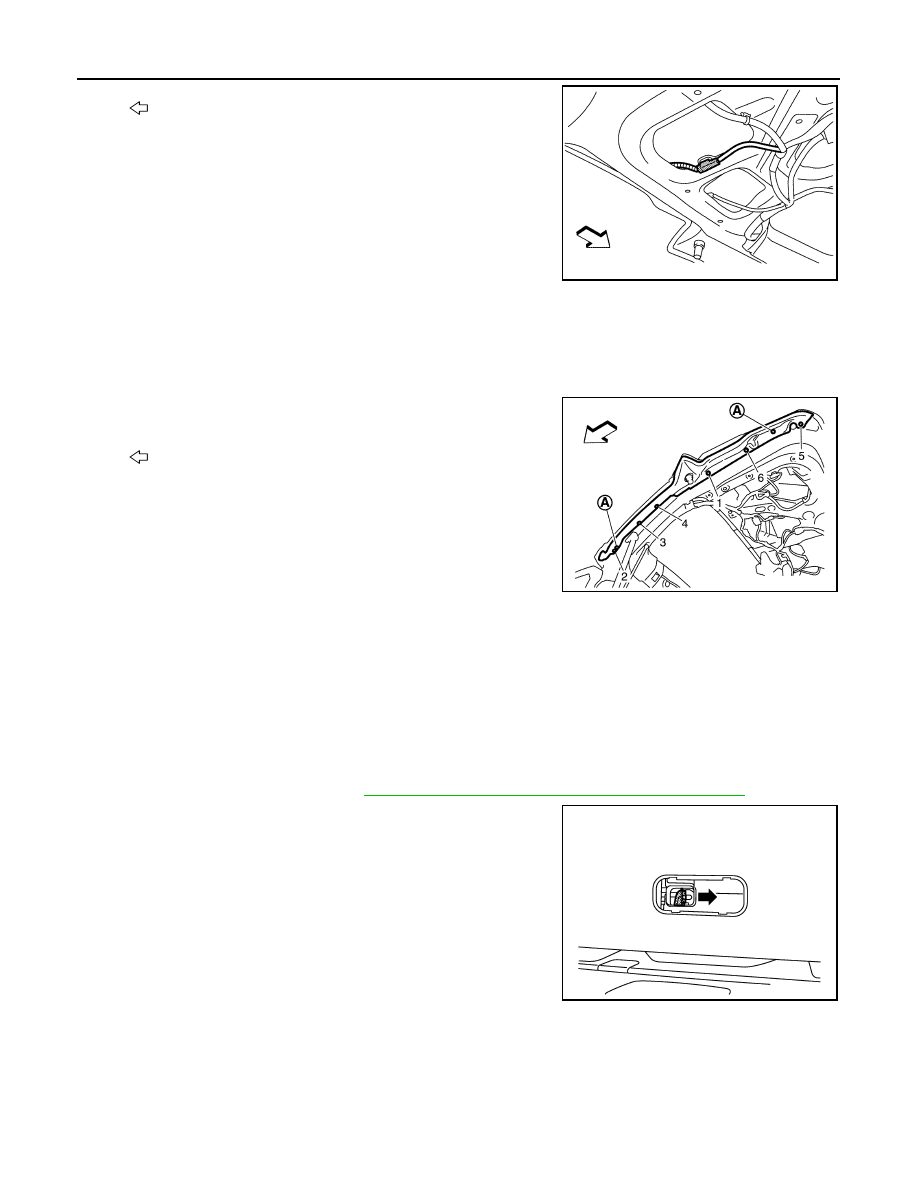

DLK-478

< REMOVAL AND INSTALLATION >

BACK DOOR LOCK

3.

Remove fixing clips and screws of touch sensor.

4.

Pull harness of touch sensor out of back door and remove touch sensor.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• After installing touch sensor using fixing clips (A), tighten fix-

ing screws in numerical order as shown in the figure.

• Check back door open/close operation after installation.

EMERGENCY LEVER

EMERGENCY LEVER : Unlock procedures

INFOID:0000000009649485

UNLOCK PROCEDURES

NOTE:
If back door lock cannot be unlocked due to a malfunction or battery discharge, follow the procedures to
unlock back door.

1.

Remove the emergency lid. Refer to

INT-50, "EMERGENCY LID : Removal and Installation"

.

2.

From inside the vehicle, rotate emergency lever toward lower
direction and unlock.

: Vehicle front

JMKIA6282ZZ

: Vehicle front

JMKIA8267ZZ

JMKIA5264ZZ

FUEL FILLER LID OPENER

DLK-479

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

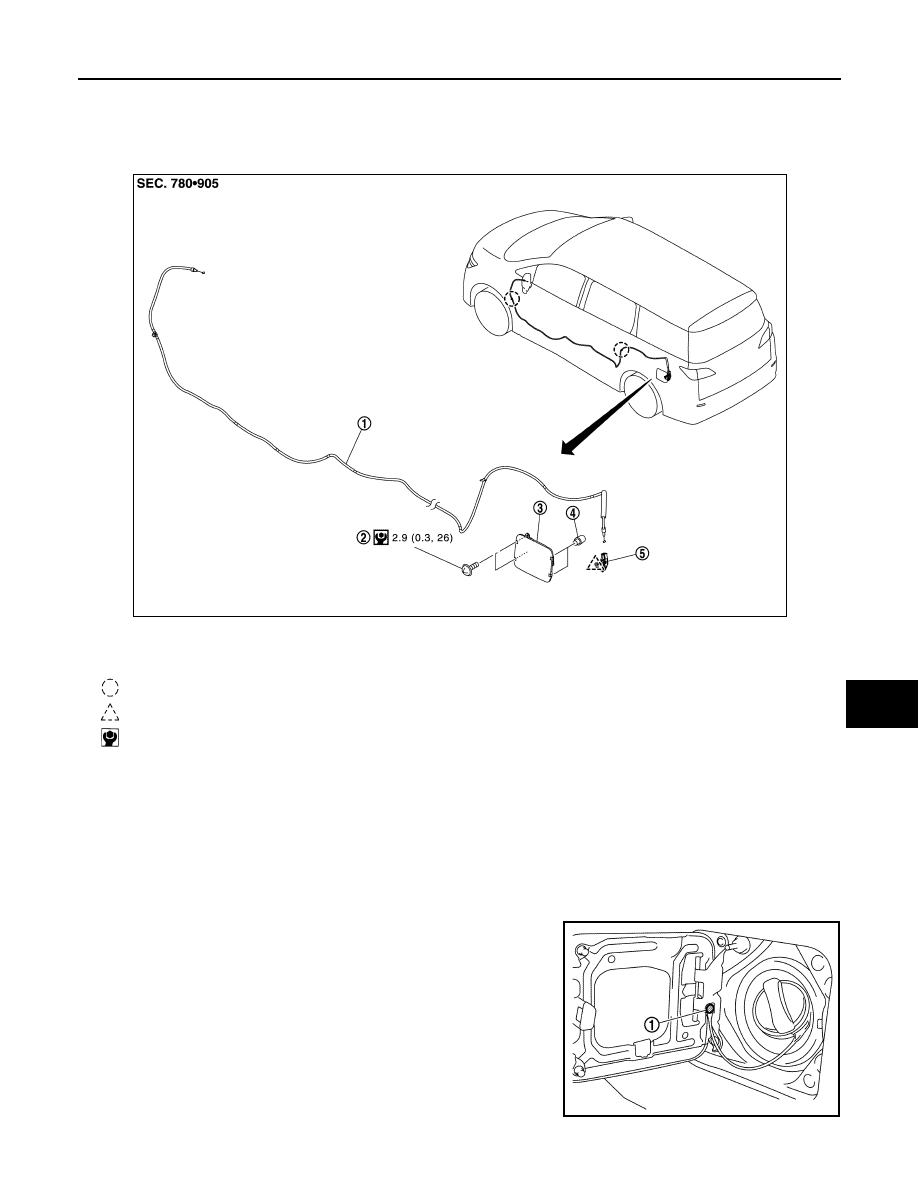

FUEL FILLER LID OPENER

Exploded View

INFOID:0000000009649486

CAUTION:

After installation, check fuel filler lid assembly open/close, lock/unlock operation.

FUEL FILLER LID

FUEL FILLER LID : Removal and Installation

INFOID:0000000009649487

REMOVAL

1.

Fully open fuel filler lid.

2.

Remove fuel mounting pin (1).

1.

Fuel filler lid opener cable

2.

TORX bolt

3.

Fuel filler lid assembly

4.

Bumper rubber

5.

Fuel filler lid lock assembly

: Clip

: Pawl

: N·m (kg-m, in-lb)

JMKIA8268GB

JMKIA8269ZZ

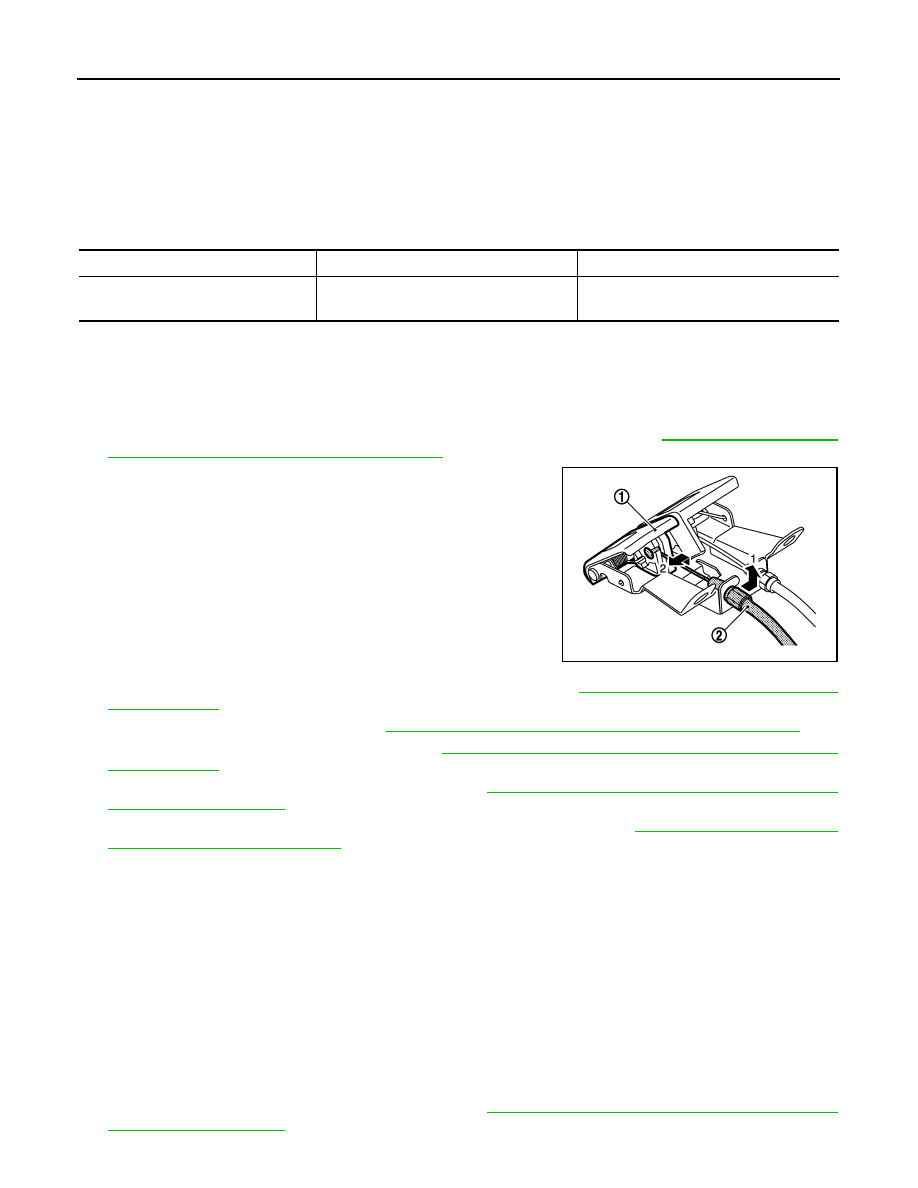

DLK-480

< REMOVAL AND INSTALLATION >

FUEL FILLER LID OPENER

3.

Remove mounting screws, and then remove fuel filler lid.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

After installation, check fuel filler lid assembly open/close, lock/unlock operation.
NOTE:
• The following table shows the specified values for checking normal installation status.
• Fitting adjustment cannot be performed.

FUEL FILLER OPENER CABLE

FUEL FILLER OPENER CABLE : Removal and Installation

INFOID:0000000009649488

REMOVAL

1.

Remove hood lock control handle from instrument lower panel LH. Refer to

DLK-461, "HOOD LOCK

CONTROL HANDLE : Removal and Installation"

.

2.

Remove fuel filler lid opener cable (2) from fuel filler lid opener
lever (1).

3.

Remove front kicking plate LH and rear kicking plate LH. Refer to

INT-22, "KICKING PLATE : Removal

and Installation"

.

4.

Remove dash side finisher LH. Refer to

INT-24, "DASH SIDE FINISHER : Removal and Installation"

.

5.

Remove center pillar lower garnish LH. Refer to

INT-25, "CENTER PILLAR LOWER GARNISH : Removal

and Installation"

.

6.

Remove luggage side lower finisher LH. Refer to

INT-43, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

7.

Remove fuel filler lid opener cable from fuel filler lid lock assembly. Refer to

DLK-480, "FUEL FILLER LID

LOCK : Removal and Installation"

.

8.

Remove fuel filler lid opener cable from each harness clamp of body harness.

9.

Remove fuel filler lid opener cable fixing clips, and then remove fuel filler lid opener cable.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

After installation, check fuel filler lid assembly open/close, lock/unlock operation.

FUEL FILLER LID LOCK

FUEL FILLER LID LOCK : Removal and Installation

INFOID:0000000009649489

REMOVAL

1.

Fully open fuel filler lid.

2.

Remove luggage side lower finisher LH. Refer to

INT-43, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

Clearance

Evenness

Fuel filler lid – Body side outer

2.0 – 4.0 mm (0.079 – 0.157 in)

(-1.0) – (+1.0) mm [(-0.039) –

(+0.039) in]

JMKIA5901ZZ

FUEL FILLER LID OPENER

DLK-481

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

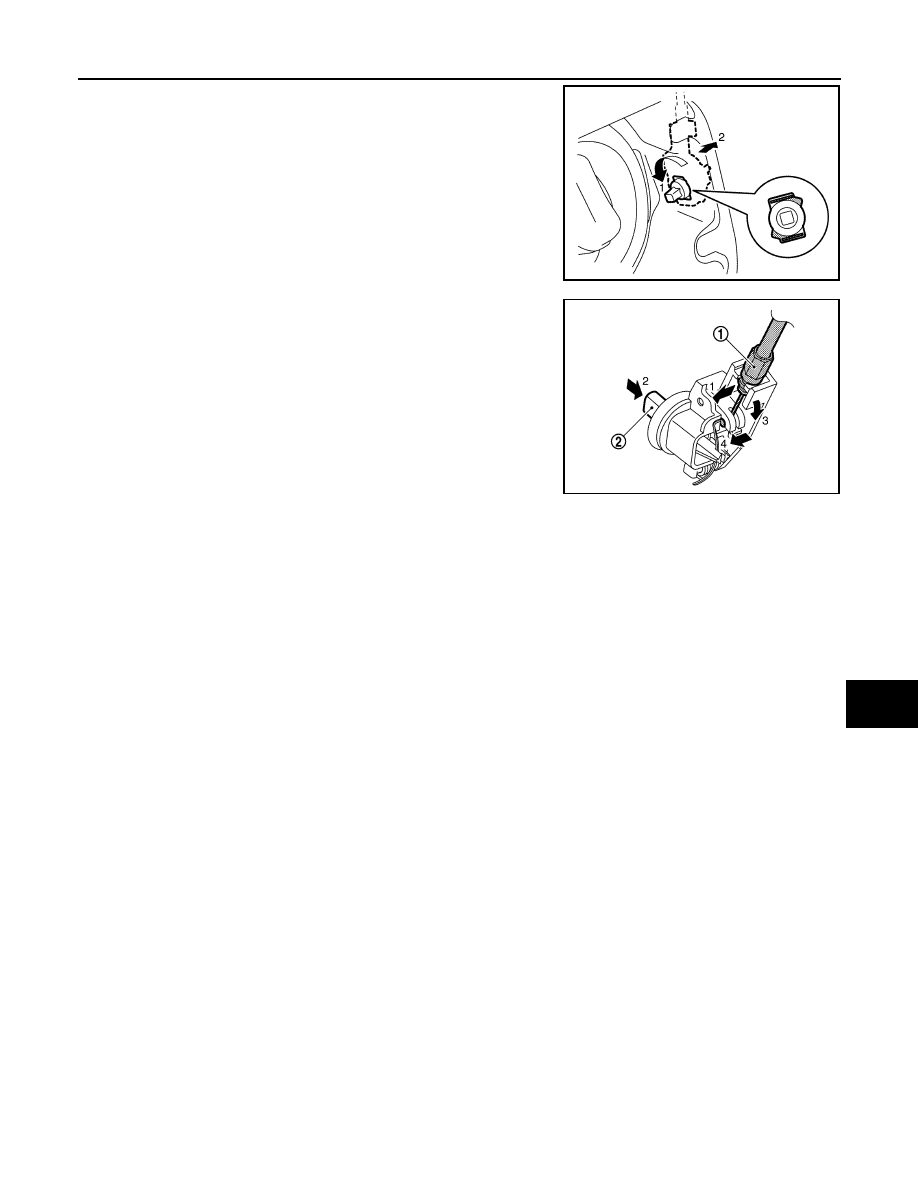

3.

Rotate and disengage fuel filler lid lock assembly, and then
remove fuel filler lid lock assembly.
NOTE:
Operation is performed easily when rotating fuel filler lid lock
from passenger room side.

4.

Disengage fuel filler lid opener cable (1). Remove fuel filler lid
opener cable while pressing stopper pin (2).

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

After installation, check fuel filler lid assembly open/close, lock/unlock operation.

JMKIA8270ZZ

JMKIA8271ZZ
