SLIDE DOOR LOCK

LOCK RELEASE ACTUATOR : Removal and Installation

INFOID:0000000009649479

REMOVAL

1.

Remove slide door finisher. Refer to

INT-17, "Removal and Installation"

.

2.

Disconnect cable of lock release actuator from remote control assembly. Refer to

DLK-473, "REMOTE

CONTROL ASSEMBLY : Removal and Installation"

.

3.

Disengage lock release actuator cable (1) from cable clip (A).

4.

Disconnect harness connector (A) from lock release actuator
(1).

5.

Remove mounting bolts (B), and then remove lock release actu-
ator

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, check door open/close, lock/unlock operation.

AUTOMATIC SLIDING DOOR UNIT

AUTOMATIC SLIDING DOOR UNIT : Removal and Installation

INFOID:0000000009649480

REMOVAL

1.

Remove luggage side lower finisher. Refer to

INT-43, "LUGGAGE SIDE LOWER FINISHER : Removal

and Installation"

.

2.

Remove rear ventilator pillar duct. Refer to

VTL-8, "Exploded View"

. (automatic sliding door unit RH only)

3.

Separate rear roller from slide door assembly. Refer to

DLK-442, "REAR ROLLER : Removal and Installa-

tion"

.

4.

Disconnect cable holder of automatic sliding door unit from rear roller.

a.

Disengage pawl (A) of cable holder (1), and then remove cable
holder from rear roller (2).

: Vehicle front

JMKIA6324ZZ

JMKIA6325ZZ

JMKIA8265ZZ

SLIDE DOOR LOCK

DLK-475

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

b.

Remove cable holder (2) from cable (1) of automatic sliding door
unit

5.

Remove mounting nut (A) of front pulley (1), and then pull front
side cable of automatic sliding door unit into the vehicle.

CAUTION:

Be careful not to damage body paint surface when pulling
cable into the vehicle.

6.

Remove mounting nut (A) of rear pulley (1), and then pull front
side cable of automatic sliding door unit into the vehicle.

CAUTION:

Be careful not to damage body paint surface when pulling
cable into the vehicle.

7.

Disconnect harness connector (1) from automatic sliding door
unit (2).

8.

Remove mounting nuts (A), and then remove automatic sliding
door unit.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, check door open/close, lock/unlock operation.

JMKIA6326ZZ

: Vehicle front

JMKIA6327ZZ

: Vehicle front

JMKIA6328ZZ

: Vehicle front

JMKIA6329ZZ

DLK-476

< REMOVAL AND INSTALLATION >

BACK DOOR LOCK

BACK DOOR LOCK

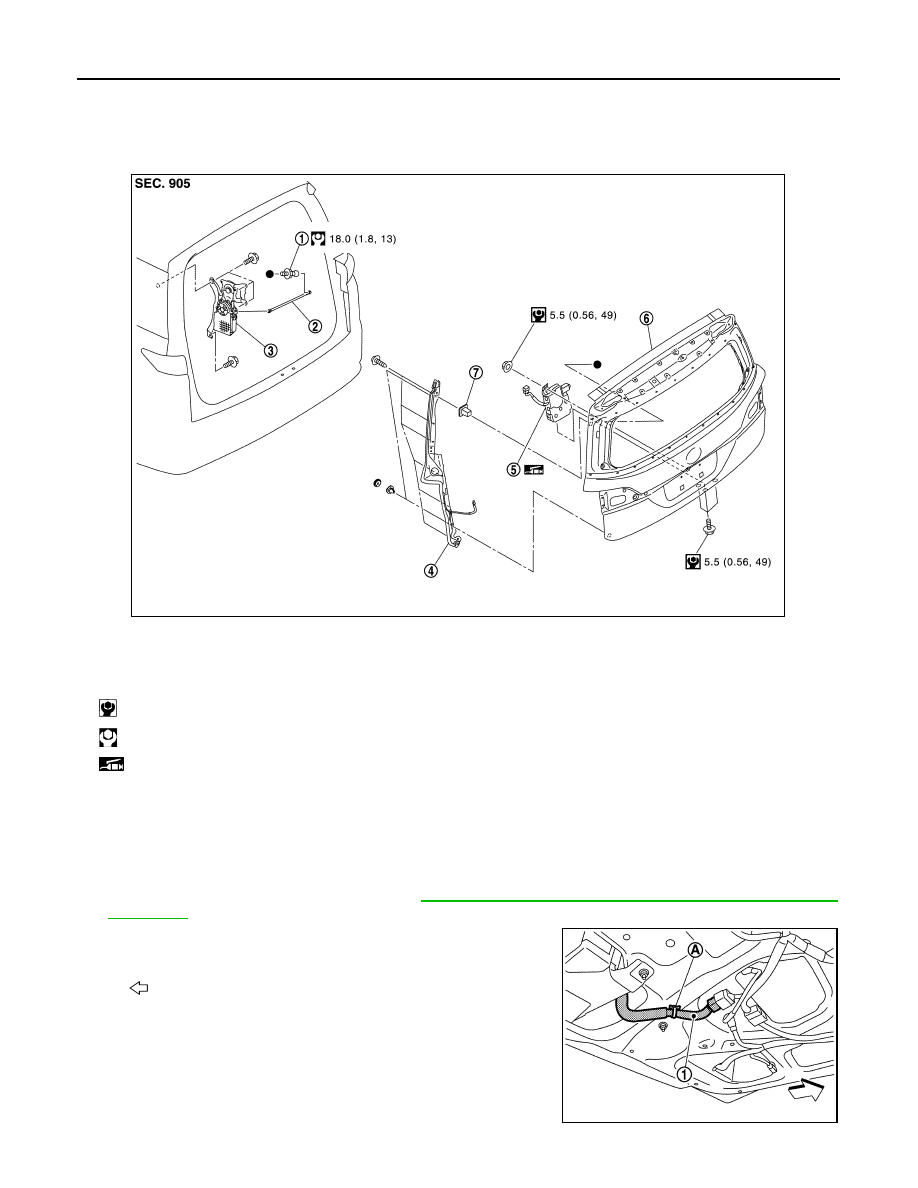

Exploded View

INFOID:0000000009649481

DOOR LOCK

DOOR LOCK : Removal and Installation

INFOID:0000000009649482

REMOVAL

1.

Remove back door lower finisher. Refer to

INT-48, "BACK DOOR LOWER FINISHER : Removal and

Installation"

.

2.

Disconnect harness connector (1), and then remove harness fix-
ing clip (A) and harness connector fixing clip.

1.

Stud ball

2.

Back door support rod

3.

Automatic back door control module

4.

Touch sensor

5.

Back door lock assembly

6.

Back door assembly

7.

Screw grommet

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: Body grease

JMKIA8290GB

: Vehicle front

JMKIA6280ZZ

BACK DOOR LOCK

DLK-477

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

3.

Remove back door lock mounting bolts and nut, and then remove back door lock assembly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Check back door open/close, lock/unlock operation after installation.
• Check door lock assembly for poor lubrication. Apply body

grease to door lock if necessary.

BACK DOOR SUPPORT ROD

BACK DOOR SUPPORT ROD : Removal and Installation

INFOID:0000000009649483

REMOVAL

1.

Remove stud ball (3) of back door support rod (2) from back
door assembly (1).

CAUTION:

Apply protective tape (A) on the door panel to protect the
painted surface from damage.

2.

Remove automatic back door control module. Refer to

DLK-495, "Removal and Installation"

.

NOTE:
When replacing back door support rod, replace stud ball and automatic back door control module as a set,
since back door support rod is engaged and connected to stud ball and automatic back door control mod-
ule.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• When reusing stud ball, always apply locking sealant before installing stud ball to back door.
• Check back door open/close operation after installation.

TOUCH SENSOR

TOUCH SENSOR : Removal and Installation

INFOID:0000000009649484

CAUTION:

Take care not to bend touch sensor.

REMOVAL

1.

Remove back door lower finisher. Refer to

INT-48, "BACK DOOR LOWER FINISHER : Removal and

Installation"

.

2.

Disconnect touch sensor harness connector.

JMKIA5715ZZ

: Vehicle front
