Nissan Quest E52. Manual - part 439





DLK-470

< REMOVAL AND INSTALLATION >

SLIDE DOOR LOCK

4.

After the adjustment, close cable mounting clip (A) of slide door
lock assembly (front) (1) and fix inner cable (2).

CAUTION:

Check the following items after assembling slide door lock assembly (front) to slide door panel.
• Check that there is no slack in remote control assembly and inner cable.
• Check that no pulling tension by inner cable is applied to lever of remote control assembly.

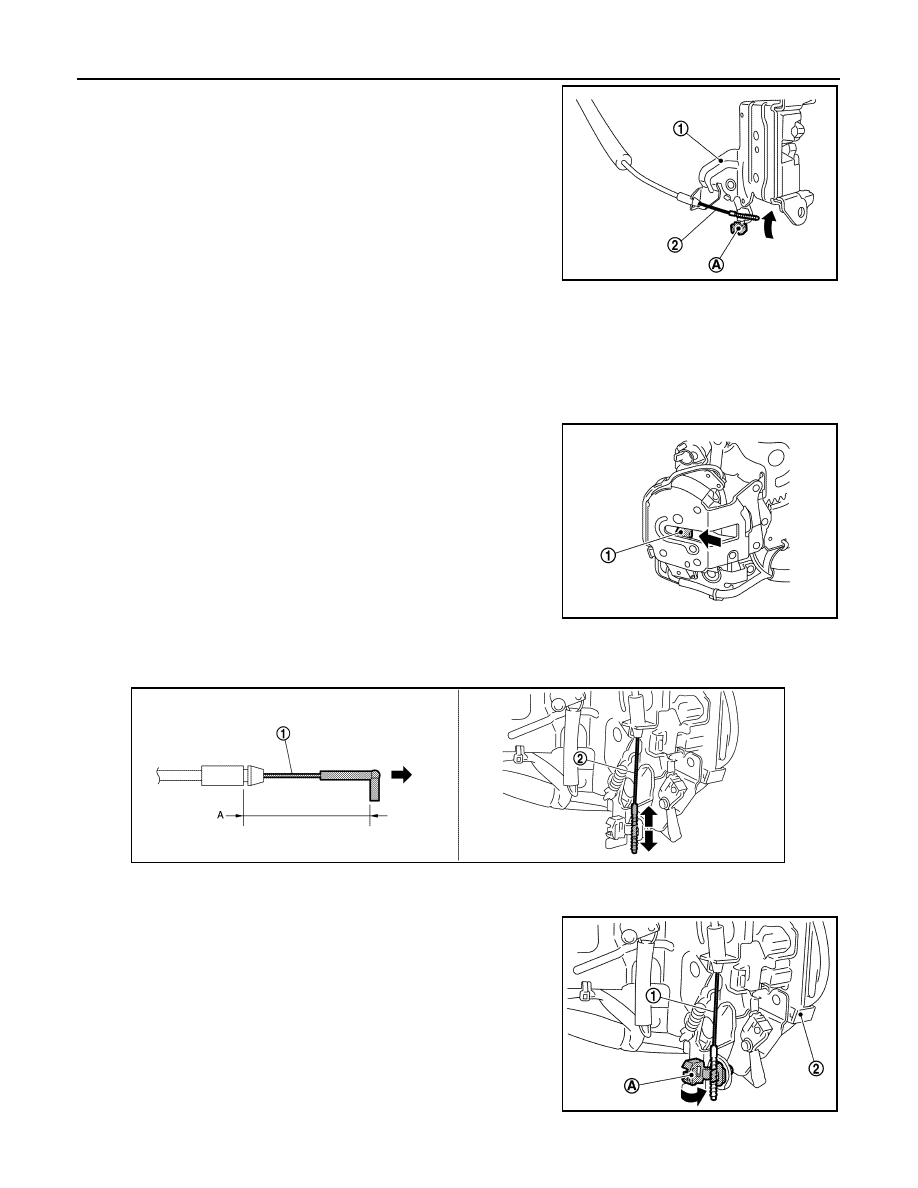

ADJUSTMENT OF SLIDE DOOR LOCK CABLE (REAR)

1.

Temporarily install slide door lock cable (rear) to slide door lock assembly (rear).

2.

Set claw (1) of slide door lock assembly (front) to full latch sta-
tus. (Press until it clicks.)

3.

Pull lightly inner cable (1) of remote control assembly side in the direction indicated by arrow as shown in
the figure so that play is eliminated. With play eliminated, adjust projection (A) by moving inner cable (2) of
slide door lock assembly (rear) side.

4.

After the adjustment, close cable mounting clip (A) of slide door
lock assembly (front) (2) and fix inner cable (1).

CAUTION:

JMKIA6305ZZ

JMKIA6306ZZ

A

: 49.5 – 50.9 mm (1.949 – 2.004 in)

JMKIA6307ZZ

JMKIA6308ZZ

SLIDE DOOR LOCK

DLK-471

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Check the following items after assembling slide door lock assembly (rear) to slide door panel.
• Check that there is no slack in remote control assembly and inner cable.
• Check that no pulling tension by inner cable is applied to lever of remote control assembly.

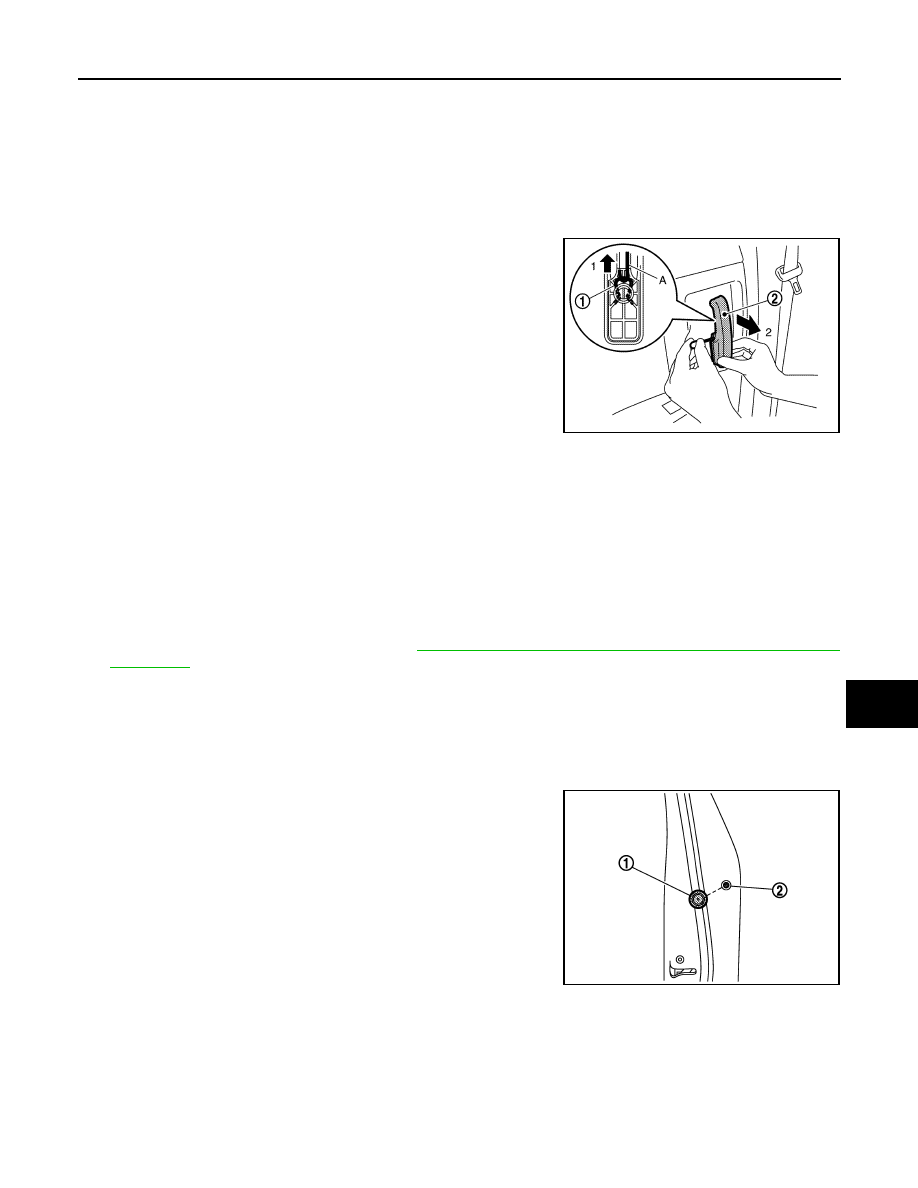

INSIDE HANDLE

INSIDE HANDLE : Removal and Installation

INFOID:0000000009649476

REMOVAL

1.

Hang snap pin (1) on hook and pick tool (A) and pull it up to
remove.

2.

Remove inside handle (2)

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, check door open/close, lock/unlock operation.

OUTSIDE HANDLE

OUTSIDE HANDLE : Removal and Installation

INFOID:0000000009649477

REMOVAL

1.

Fully close slide door glass.

2.

Remove remote control assembly. Refer to

DLK-473, "REMOTE CONTROL ASSEMBLY : Removal and

Installation"

.

3.

Remove upper side of sealing screen.
NOTE:
Cut the butyl-tape so that some parts of the butyl-tape do not remain on the sealing screen, if the sealing
screen is reused.

4.

Remove fixing clip of sliding door one-touch open/close switch harness connector, and then disconnect
sliding door one-touch open/close switch harness connector.

5.

Remove grommet (1) door side. Loosen, through grommet hole,
TORX bolt (2) that fixes outside handle escutcheon.

6.

Remove outside handle escutcheon.

JMKIA6309ZZ

JMKIA5691ZZ

DLK-472

< REMOVAL AND INSTALLATION >

SLIDE DOOR LOCK

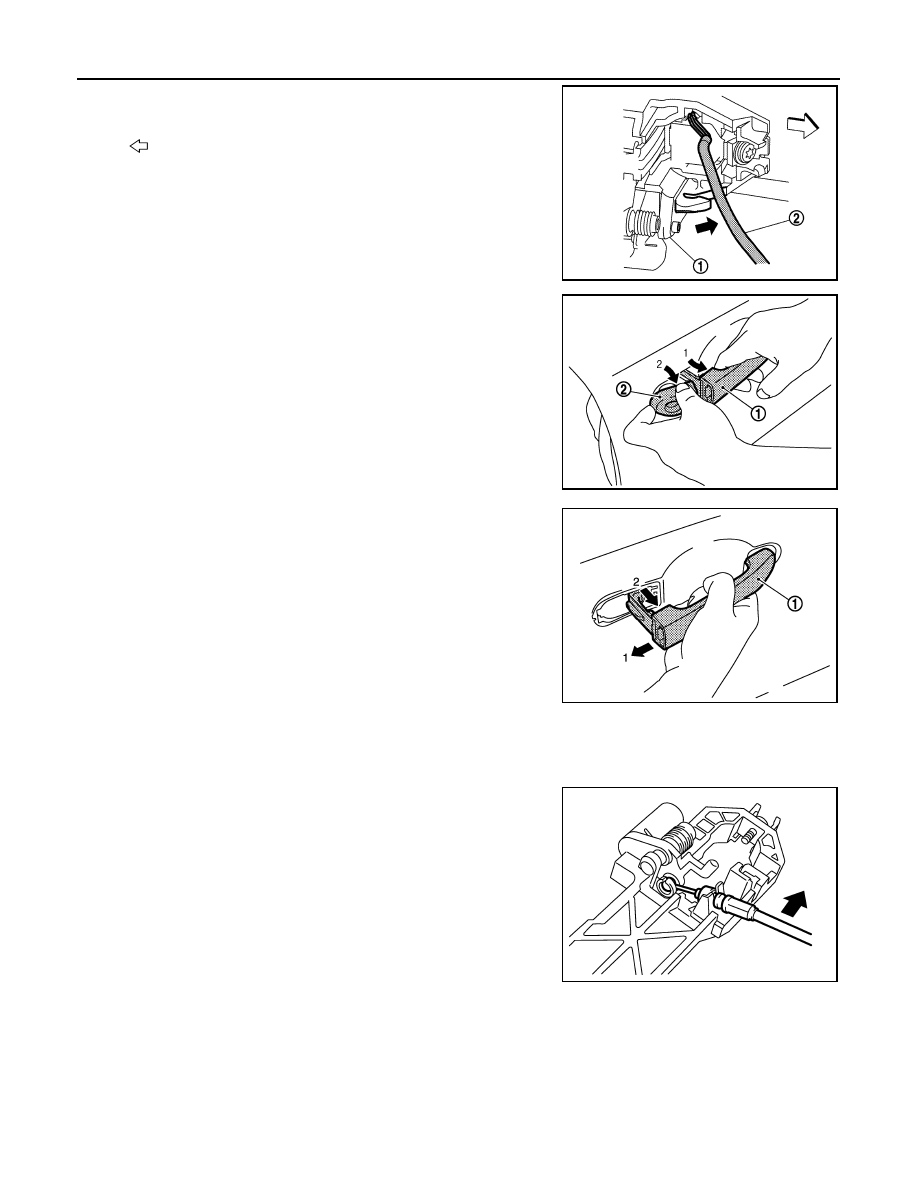

a.

Disconnect sliding door one-touch open/close switch harness
connector (2) from outside handle bracket (1).

b.

While pulling outside handle (1), remove outside handle
escutcheon (2).

7.

While pulling outside handle (1), slide toward front of vehicle to
remove outside handle.

8.

Remove front gasket and rear gasket.

9.

Through the hole, remove TORX bolt that is fixing outside handle bracket.

10. Slide outside handle bracket toward rear of vehicle to remove.

11. Disconnect outside handle cable from outside handle bracket.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, check door open/close, lock/unlock operation.

REMOTE CONTROL ASSEMBLY

: Vehicle front

JMKIA6335ZZ

JMKIA0441ZZ

JMKIA2948ZZ

PIIB2878J

SLIDE DOOR LOCK

DLK-473

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

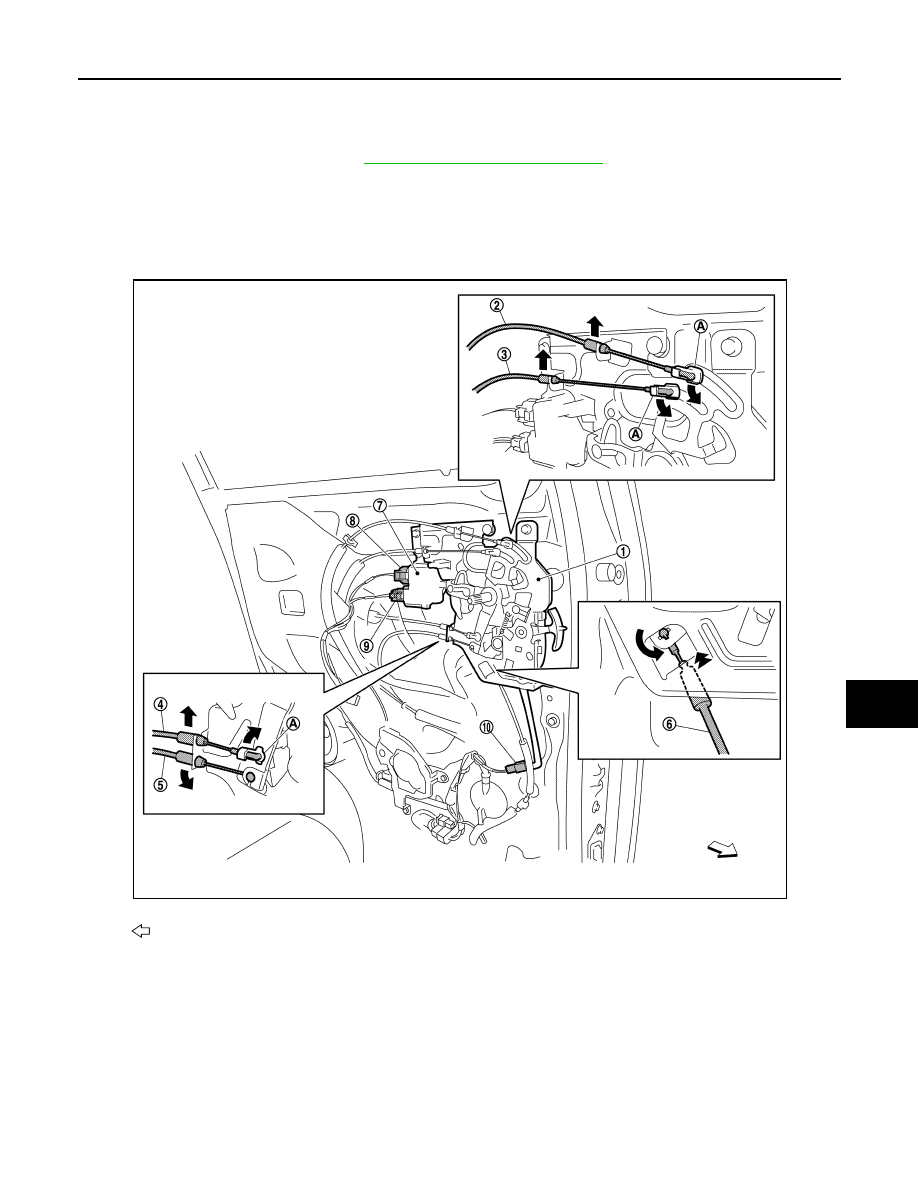

REMOTE CONTROL ASSEMBLY : Removal and Installation

INFOID:0000000009649478

REMOVAL

1.

Remove slide door finisher. Refer to

INT-17, "Removal and Installation"

.

2.

Pull lock knob toward passenger room side and remove.

3.

Disengage cable holder (A), and then separate lock release actuator cable (2), outside handle cable (3),
slide door lock cable (rear) (4), slide door lock cable (front) (5) and lower latch cable (6) from remote con-
trol assembly (1).

CAUTION:

Be careful not to bend cable end.

4.

Disconnect harness connector (8) and (9) (automatic sliding door models) of slide door lock actuator (7).

5.

Disconnect remote control assembly harness connector (10) (automatic sliding door models).

6.

Remove mounting bolts and mounting clips. Remove remote control assembly and slide door lock actua-
tor as a set.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, check door open/close, lock/unlock operation.

LOCK RELEASE ACTUATOR

: Vehicle front

JMKIA6336ZZ
