INTERLOCK

INTERLOCK

Exploded View

INFOID:0000000009649490

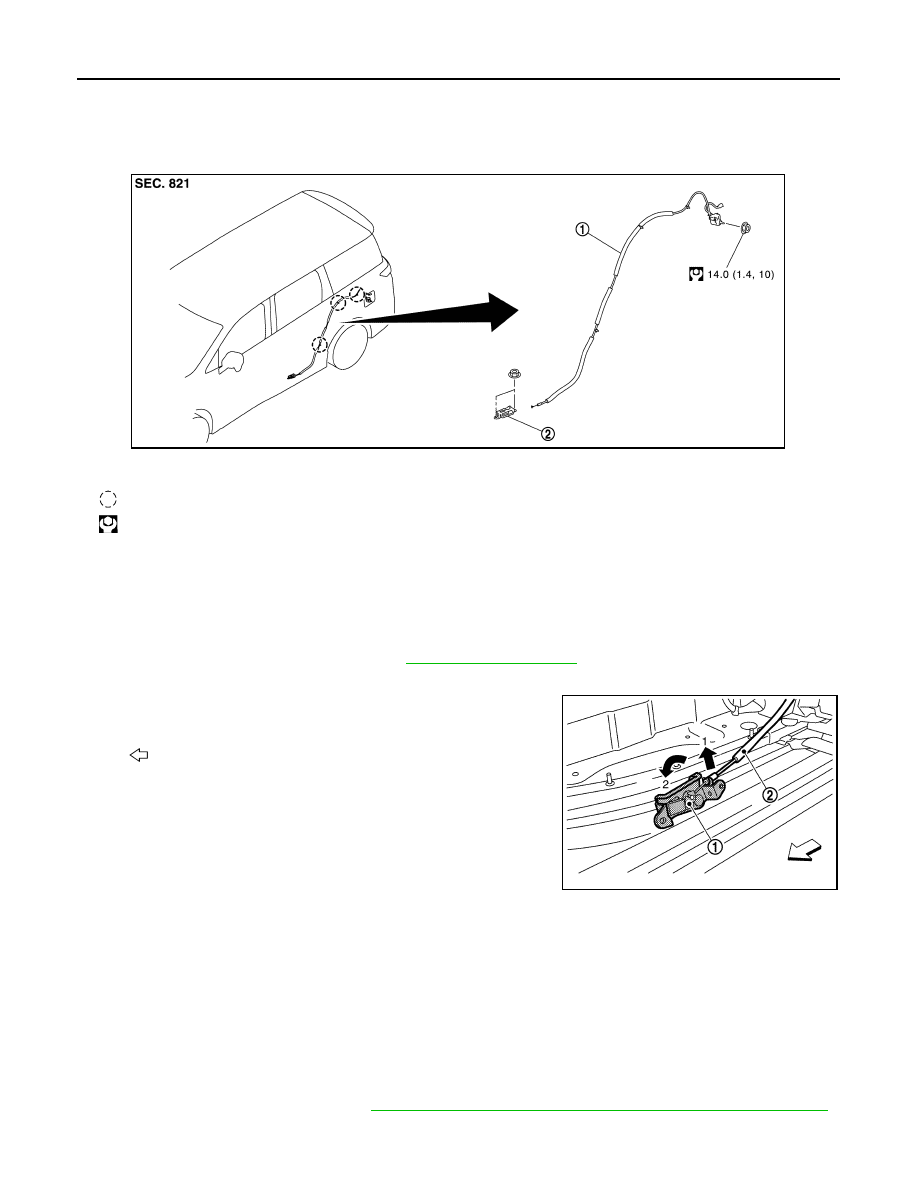

SLIDE DOOR INTERLOCK

SLIDE DOOR INTERLOCK : Removal and Installation

INFOID:0000000009649491

REMOVAL

1.

Remove rear floor step assembly. Refer to

INT-20, "Exploded View"

.

2.

Remove slide door interlock mounting nuts.

3.

Disconnect cable (2) of fuel filler interlock assembly from slide
door interlock (1).

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• After installation, check slide door open/close operation.
• After installation, check fuel filler lid lock/unlock operation.

FUEL FILLER INTERLOCK

FUEL FILLER INTERLOCK : Removal and Installation

INFOID:0000000009649492

REMOVAL

1.

Remove slide door interlock. Refer to

DLK-482, "SLIDE DOOR INTERLOCK : Removal and Installation"

.

1.

Fuel filler inter lock assembly

2.

Slide door inter lock

: Clip

: N·m (kg-m, ft-lb)

JMKIA6263GB

: Vehicle front

JMKIA6284ZZ

INTERLOCK

DLK-483

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

2.

Remove luggage side lower finisher. Refer to

INT-43, "LUGGAGE SIDE LOWER FINISHER : Removal

and Installation"

.

3.

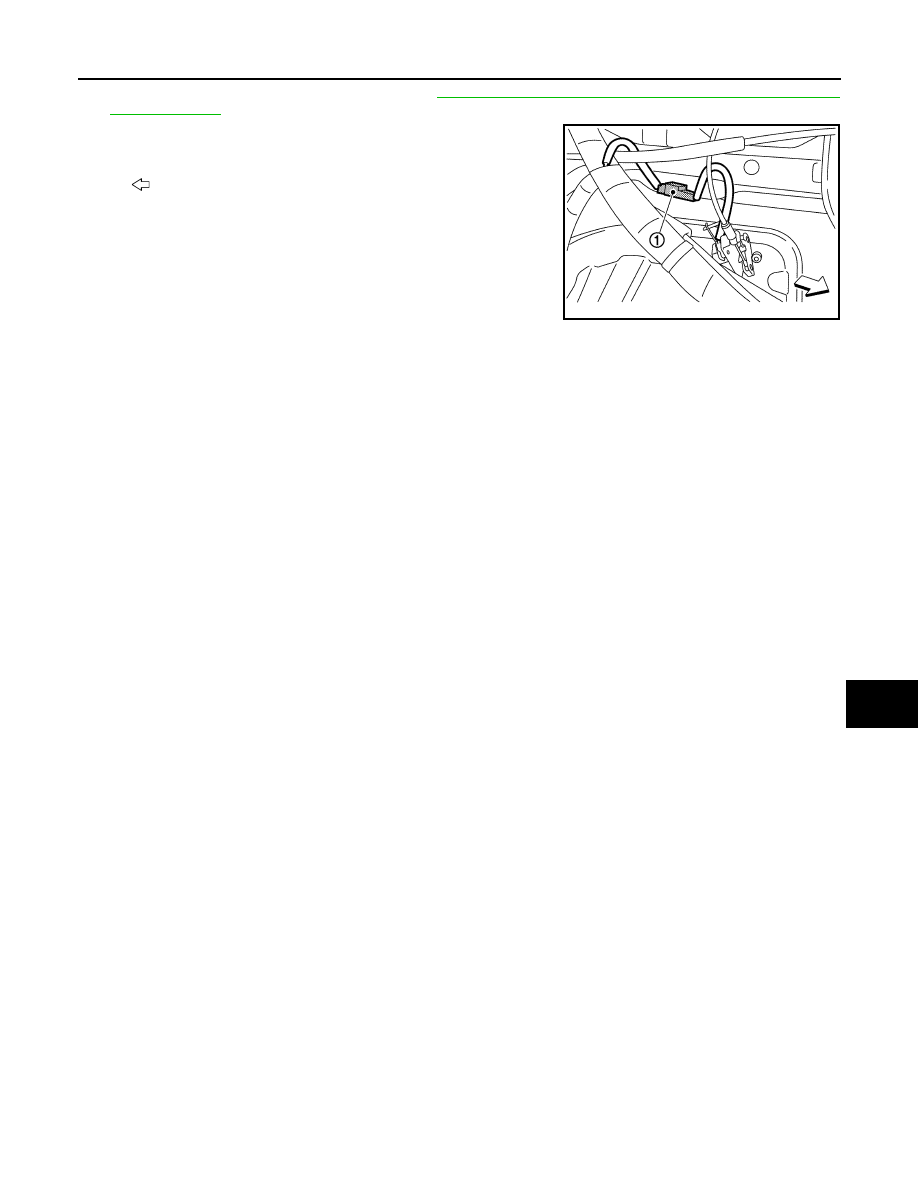

Disconnect fuel filler lid status switch connector (1), and then
remove harness connector fixing clip.

4.

Fully open fuel filler lid.

CAUTION:

Check in advance that fuel filler lid does not interfere with slide door.

5.

Remove fuel filler interlock assembly mounting nut.

6.

Remove cable fixing clips of fuel filler inter lock, and then remove fuel filler inter lock assembly.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• After installation, check slide door open/close operation.
• After installation, check fuel filler lid lock/unlock operation.

: Vehicle front

JMKIA6285ZZ

DLK-484

< REMOVAL AND INSTALLATION >

KEY CYLINDER

KEY CYLINDER

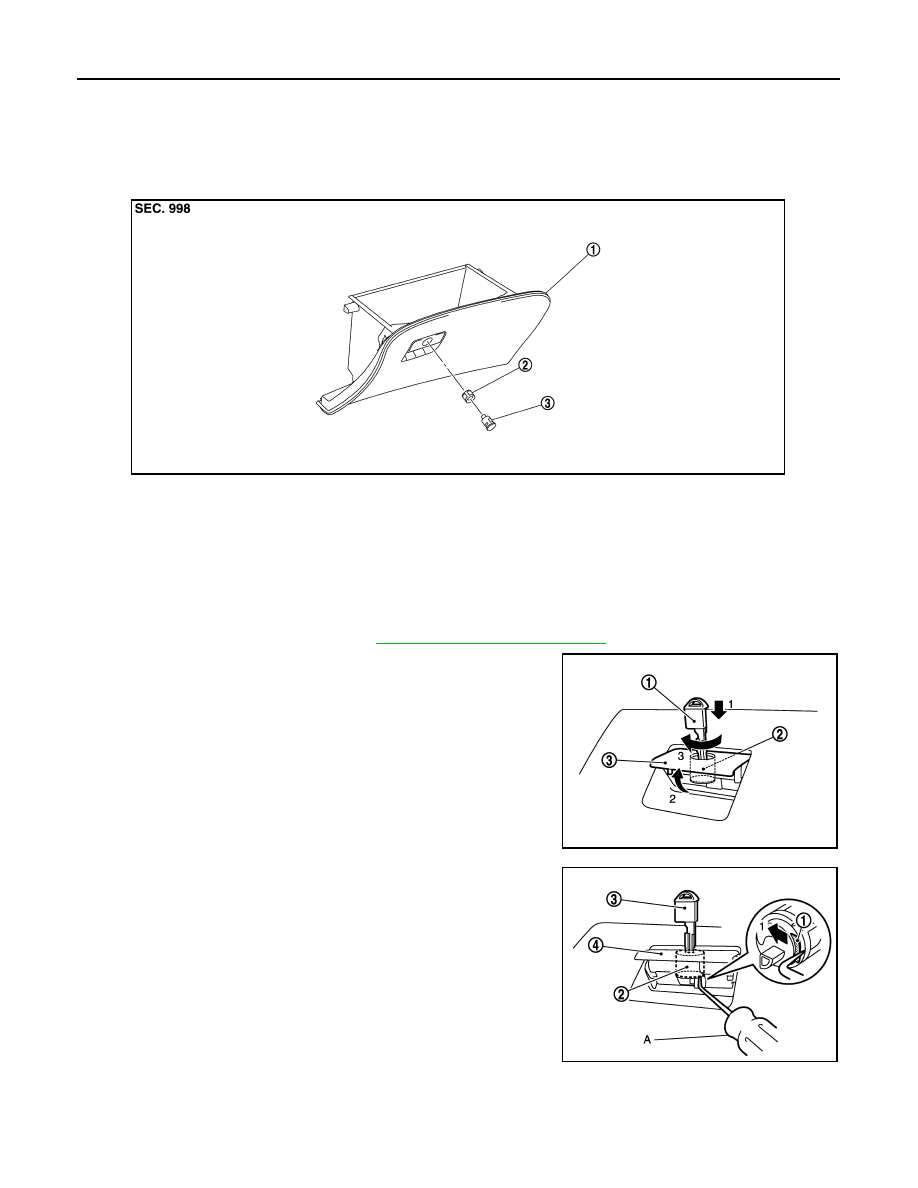

GLOVE BOX LID KEY CYLINDER

GLOVE BOX LID KEY CYLINDER : Exploded View

INFOID:0000000009649493

CAUTION:

After installation, check glove box assembly open/close, lock/unlock operation.

GLOVE BOX LID KEY CYLINDER : Removal and Installation

INFOID:0000000009649494

REMOVAL

1.

Remove glove box assembly. Refer to

IP-14, "Removal and Installation"

.

2.

Insert mechanical key (1) into glove box lid lock cylinder (2).

3.

Set glove box lid release handle (3) to the pulled-up status.

4.

Rotate mechanical key and turn glove box lid key cylinder to the
lock position.

5.

Press tumbler stopper (1) into glove box lid lock cylinder (2)
using a hook and pick tool (A), and then remove mechanical key
(3) and glove box lid lock cylinder together from glove box lid
release handle (4).
NOTE:
When removing glove box lid lock cylinder, write a short note
describing its position against glove box lid release handle.

1.

Glove box assembly

2.

Sleeve

3.

Glove box lid lock cylinder

JMKIA8272ZZ

JMKIA5490ZZ

JMKIA5491ZZ

KEY CYLINDER

DLK-485

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

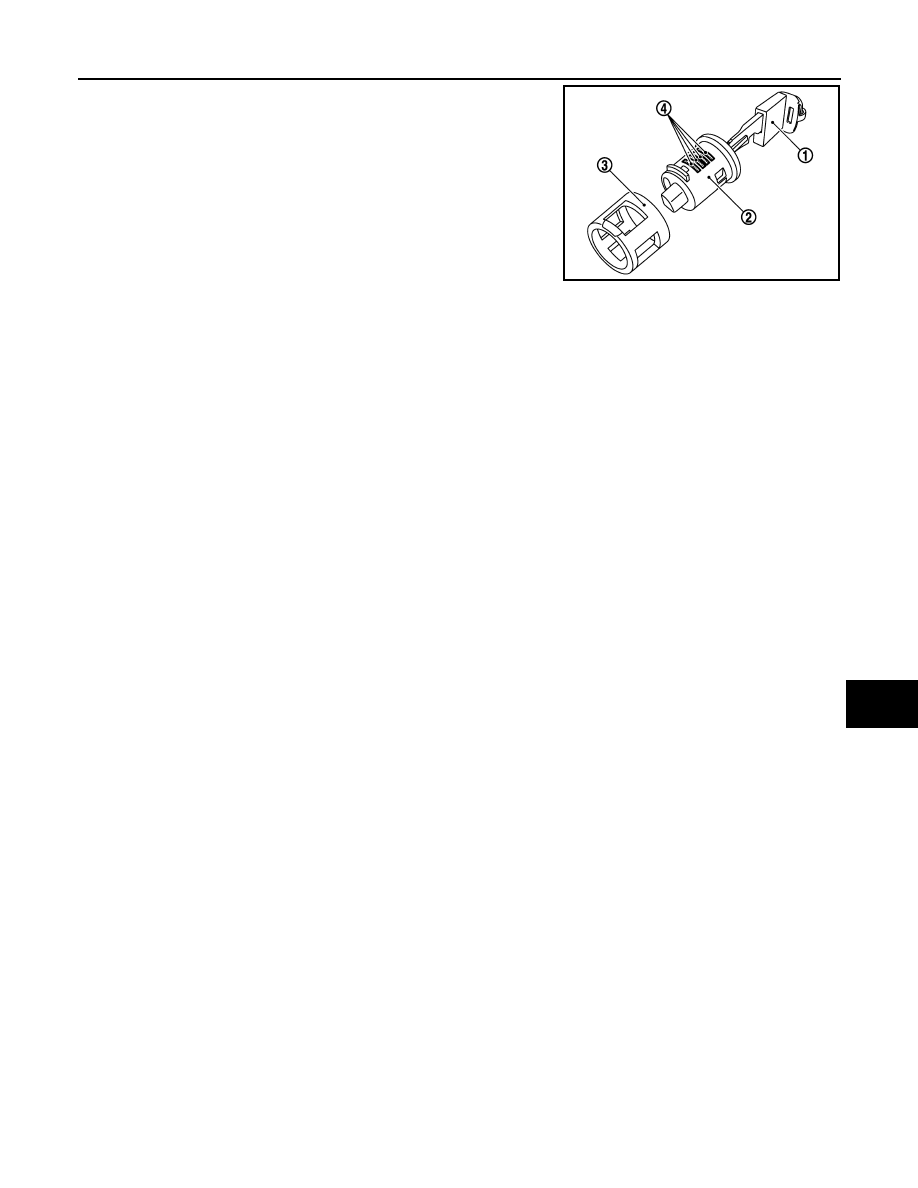

6.

Remove sleeve (3) from glove box lid release handle, and then
install sleeve to glove box lid lock cylinder.
NOTE:
When removing sleeve, write a short note describing its position
against glove box lid release handle.

CAUTION:

Never pull out mechanical key (1) from glove box lid lock
cylinder (2) while sleeve is uninstalled. Otherwise, tumbler
(4) pops out of glove box lid lock cylinder.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, check glove box assembly open/close, lock/unlock operation.

JMKIA5819ZZ
