DLK-442

< REMOVAL AND INSTALLATION >

SLIDE DOOR

• Perform work with 2 workers, because of its heavy weight.
• When removing and installing slide door assembly, support door with a jack and shop cloth to pro-

tect door and body.

REMOVAL

1.

Remove slide door upper stopper. Refer to

DLK-447, "SLIDE DOOR UPPER STOPPER : Removal and

Installation"

.

2.

Support the front of slide door with the proper material to prevent it from falling.

WARNING:

Bodily injury may occur if no supporting jack is holding slide door open when removing upper
roller assembly.

3.

Remove upper roller assembly mounting bolts.

4.

Remove upper roller assembly and sub roller as a set.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent onto the mounting surface.
• Check slide door open/close operation after installation.
• When removing and installing slide door assembly, perform the fitting adjustment. Refer to

DLK-440,

"DOOR ASSEMBLY : Adjustment"

.

• After installing, apply the touch-up paint (the body color) onto the head of upper roller mounting

bolts.

REAR ROLLER

REAR ROLLER : Removal and Installation

INFOID:0000000009649441

CAUTION:

• Perform work with 2 workers, because of its heavy weight.
• When removing and installing slide door assembly, support door with a jack and shop cloth to pro-

tect door and body.

REMOVAL

1.

Remove slide door rail cover. Refer to

EXT-43, "Removal and Installation"

.

2.

Support the end of slide door with the proper material to prevent it from falling.

WARNING:

Bodily injury may occur if no supporting jack is holding slide door open when removing rear
roller.

3.

Remove rear roller mounting bolts.

4.

Disconnect cable holder of automatic sliding door unit (automatic sliding door models). Refer to

DLK-474,

"AUTOMATIC SLIDING DOOR UNIT : Removal and Installation"

.

5.

Remove rear roller.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent onto the mounting surface.
• Check slide door open/close operation after installation.
• When removing and installing slide door assembly, perform the fitting adjustment. Refer to

DLK-440,

"DOOR ASSEMBLY : Adjustment"

.

• After installing, apply the touch-up paint (the body color) onto the head of rear roller mounting bolts.

LOWER ROLLER

LOWER ROLLER : Removal and Installation

INFOID:0000000009649442

CAUTION:

• Perform work with 2 workers, because of its heavy weight.
• When removing and installing slide door assembly, support door with a jack and shop cloth to pro-

tect door and body.

SLIDE DOOR

DLK-443

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REMOVAL

1.

Remove slide door finisher. Refer to

INT-17, "Removal and Installation"

.

2.

Remove lower latch. Refer to

DLK-443, "LOWER LATCH : Removal and Installation"

.

3.

Remove slide door lower striker. Refer to

DLK-446, "SLIDE DOOR LOWER STRIKER : Removal and

Installation"

.

4.

Support the front of slide door with the proper material to prevent it from falling.

WARNING:

Bodily injury may occur if no supporting jack is holding slide door open when removing lower
roller.

5.

Remove the mounting bolts, and then remove the lower roller.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent onto the mounting surface.
• Check slide door open/close operation after installation.
• When removing and installing slide door assembly, perform the fitting adjustment. Refer to

DLK-440,

"DOOR ASSEMBLY : Adjustment"

.

• After installing, apply the touch-up paint (the body color) onto the head of lower roller mounting

bolts.

LOWER LATCH

LOWER LATCH : Removal and Installation

INFOID:0000000009649443

REMOVAL

1.

Remove rear kicking plate. Refer to

INT-22, "KICKING PLATE : Removal and Installation"

.

2.

Remove lower latch mounting bolts.

3.

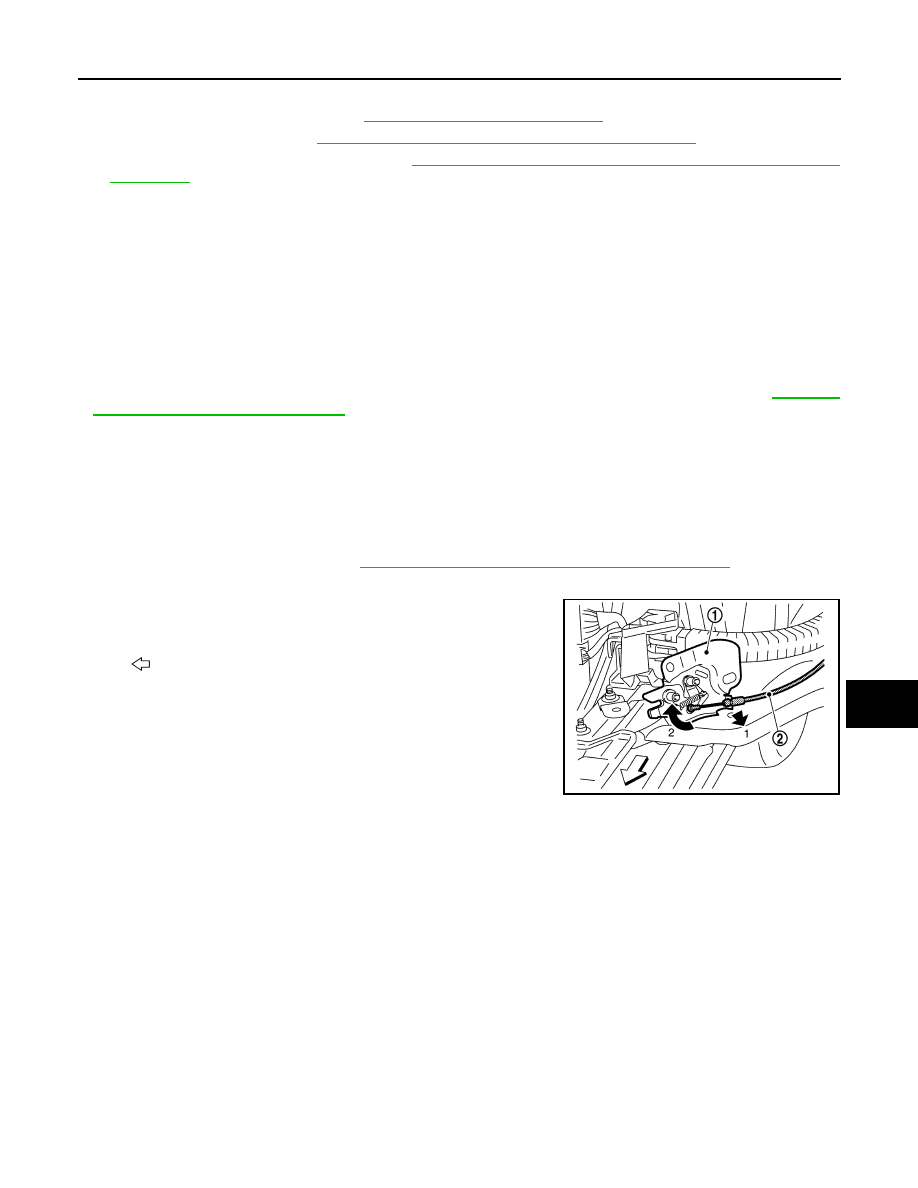

Disconnect remote control door lock cable (2) from lower latch
(1).

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, check door open/close, lock/unlock operation.

DOVETAIL

DOVETAIL : Removal and Installation

INFOID:0000000009649444

REMOVAL

Remove the mounting bolts, and then remove the dovetail (male/female).

INSTALLATION

Install in the reverse order of removal.
1.

Install dovetail (male).

2.

Temporarily tighten dovetail (female) mounting bolts.

3.

Perform the fitting adjustment.

a.

Open and close two or three times slide doors.

b.

Open the slide door, and then tighten the dovetail (female) mounting bolts.

: Vehicle front

JMKIA6323ZZ

DLK-444

< REMOVAL AND INSTALLATION >

SLIDE DOOR

CAUTION:

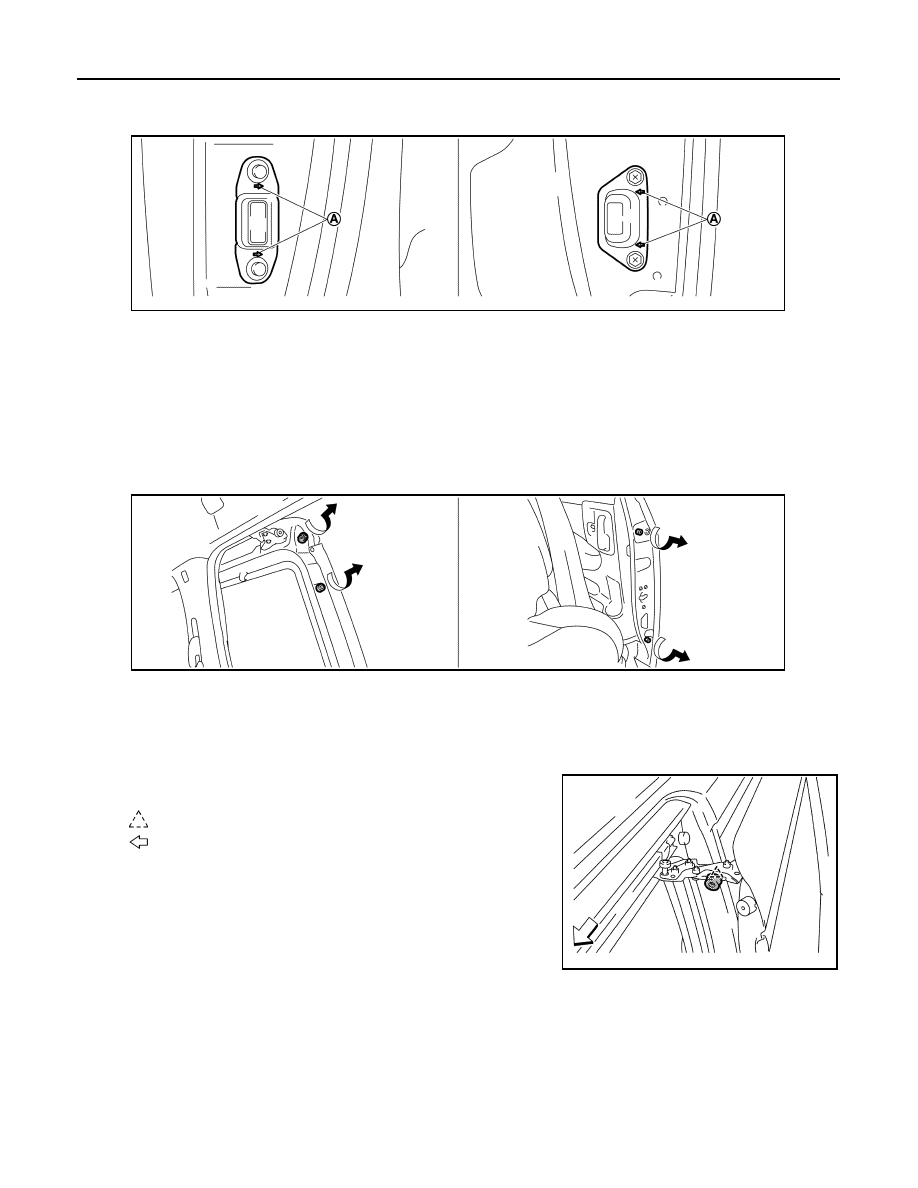

After installation, check that the direction of arrows (A), as shown in the figure, faces toward passen-
ger room.

BUMPER RUBBER

BUMPER RUBBER : Removal and Installation

INFOID:0000000009649445

BUMPER RUBBER

Removal

Pull out bumper rubber forward while rotating it counterclockwise to remove.

Installation

Install in the reverse order of removal.

STOPPER RUBBER

Removal

Disengage pawl of stopper rubber to remove.

Installation

Install in the reverse order of removal.

BUMPER RUBBER (BODY UPPER PORTION AND SLIDE DOOR REAR LOWER PORTION)

Removal

Dovetail (female)

Dovetail (male)

JMKIA6290ZZ

JMKIA6291ZZ

: Pawl

: Vehicle front

JMKIA6292ZZ

SLIDE DOOR

DLK-445

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

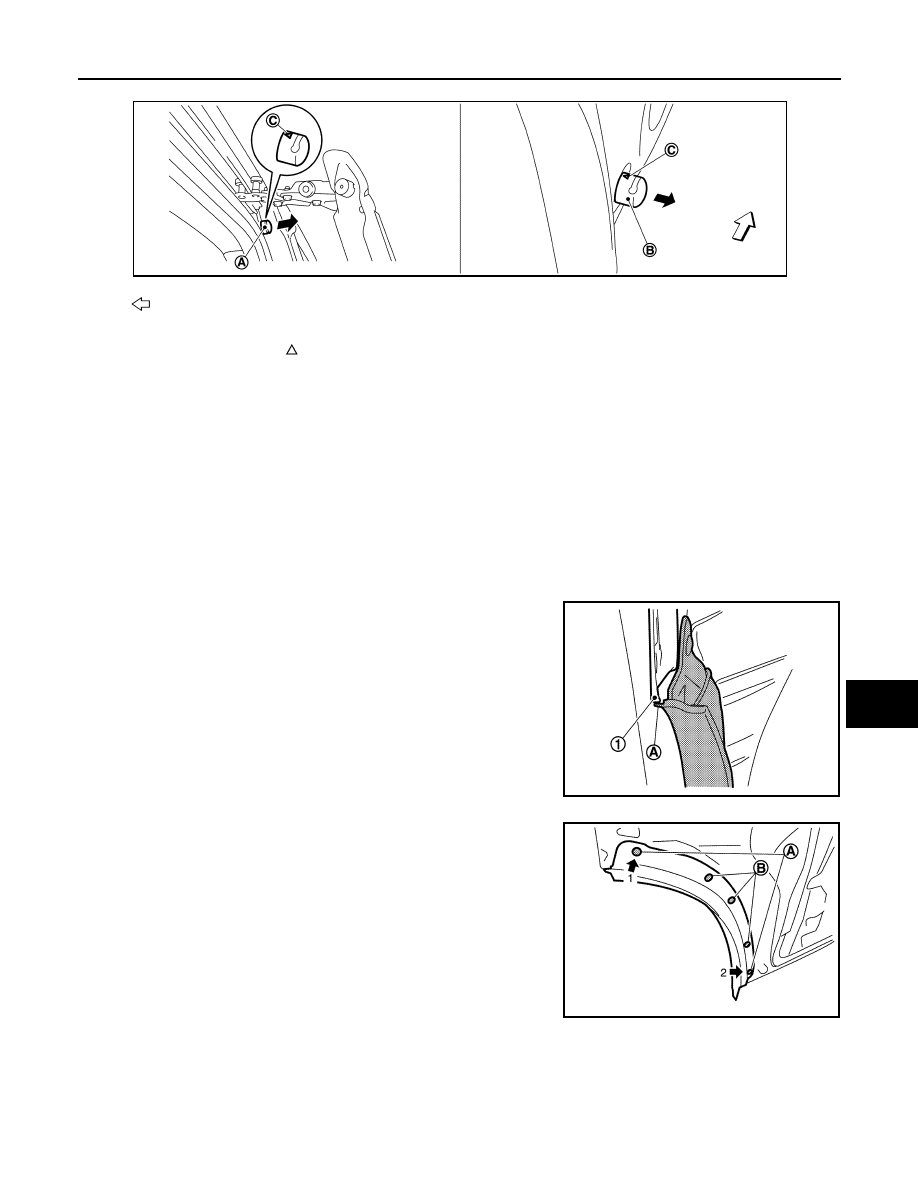

Pull out and disengage bumper rubber to remove.

CAUTION:

When installing, check that   mark (C) on bumper rubber of body upper portion (A) and slide door rear
lower portion (B) are visible to vehicle upper side.

Installation

Install in the reverse order of removal.

SLIDE DOOR LOWER WEATHER-STRIP

SLIDE DOOR LOWER WEATHER-STRIP : Removal and Installation

INFOID:0000000009649446

REMOVAL

Remove fixing screws and clips, and then remove slide door lower weather-strip.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• When installing, check that lip portion (A) of slide door lower

weather-strip overlaps end of slide door panel (1).

• When installing, install mounting clips (A) and mounting

screws (B) in numerical order as shown in the figure.

SLIDE DOOR OUTSIDE PROTECTOR

SLIDE DOOR OUTSIDE PROTECTOR : Removal and Installation

INFOID:0000000009649447

REMOVAL

Remove slide door outside protector while peeling double-sided adhesive tape.

: Vehicle front

JMKIA6293ZZ

JMKIA6310ZZ

JMKIA6311ZZ
