DLK-434

< REMOVAL AND INSTALLATION >

FRONT DOOR

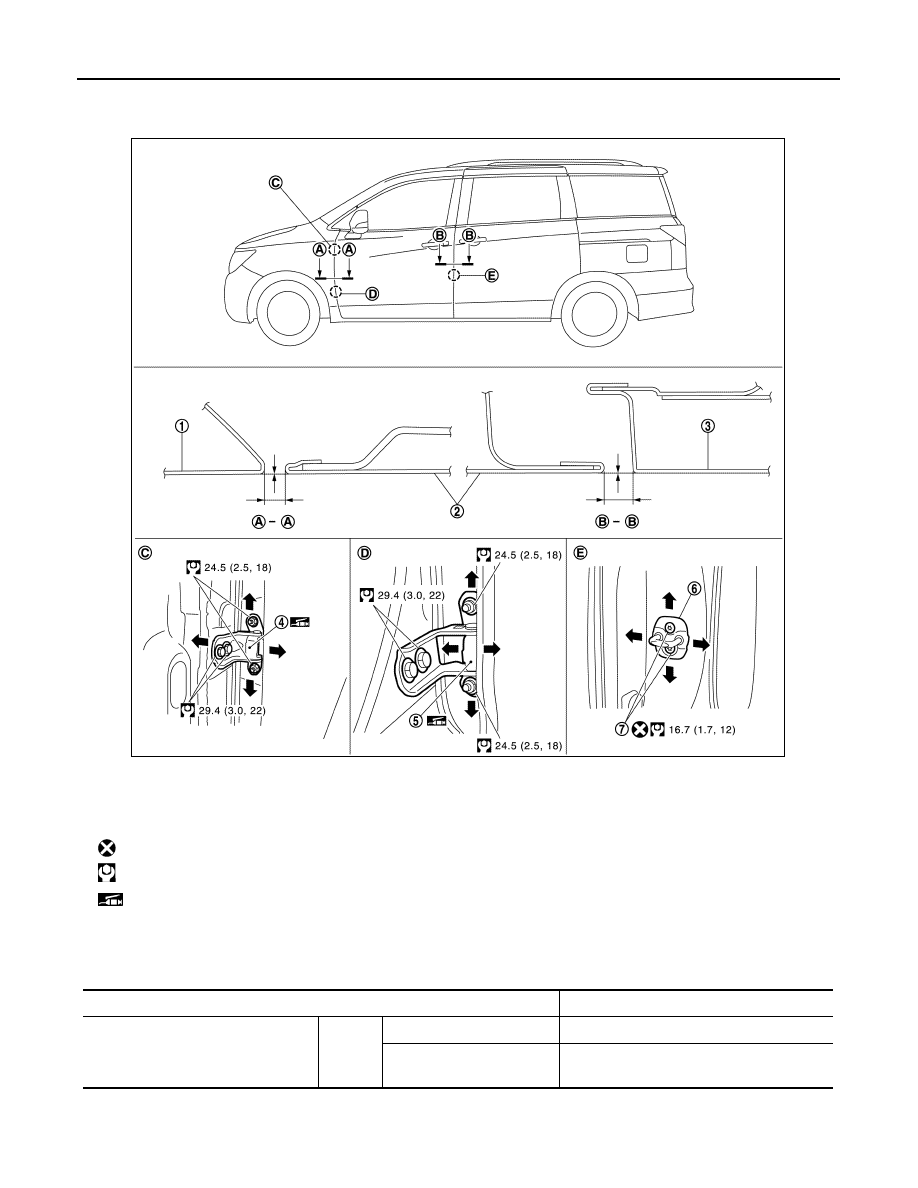

DOOR ASSEMBLY : Adjustment

INFOID:0000000009649432

Check the clearance and the surface height between front door and each part by visually and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures
shown below.

1.

Front fender

2.

Front door

3.

Slide door

4.

Front door hinge (upper)

5.

Front door hinge (lower)

6.

Door striker

7.

TORX bolt

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: Body grease

Portion

Standard

Front fender – Front door

A – A

Clearance

3.5 – 5.5 mm (0.138 – 0.217 in)

Surface height

(

−

1.0) – (+1.0) mm [(

−

0.039) –

(+0.039) in]

JMKIA8257GB

FRONT DOOR

DLK-435

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

FITTING ADJUSTMENT PROCEDURE

1.

Remove front fender. Refer to

DLK-430, "FRONT FENDER : Removal and Installation"

.

2.

Loosen door hinge mounting nuts on door side.

3.

Adjust the surface height of front door according to the fitting standard dimension.

4.

Temporarily tighten door hinge mounting nuts on door side.

5.

Loosen door hinge mounting bolts on body side.

6.

Raise front door at rear end to adjust clearance of the front door according to the fitting standard dimen-
sion.

7.

After adjustment tighten bolts and nuts to the specified torque.

CAUTION:

• After installation, apply touch-up paint (the body color) onto the head of hinge mounting bolts

and nuts.

• Check door hinge rotating part for poor lubrication. If necessary, apply body grease.

8.

Install front fender. Refer to refer to

DLK-430, "FRONT FENDER : Removal and Installation"

.

DOOR STRIKER ADJUSTMENT

Adjust door striker so that it becomes parallel with door lock insertion direction.

DOOR STRIKER

DOOR STRIKER : Removal and Installation

INFOID:0000000009649433

REMOVAL

Remove TORX bolts, and then remove door striker.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Check front door open/close, operation after installation.
• After installation, be sure to perform the fitting adjustment. Refer to

DLK-434, "DOOR ASSEMBLY :

Adjustment"

.

DOOR HINGE

DOOR HINGE : Removal and Installation

INFOID:0000000009649434

REMOVAL

WARNING:

Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes or
more.

CAUTION:

• Perform work with 2 workers, because of its heavy weight.
• When removing and installing front door assembly, support door with a jack and shop cloth to pro-

tect door and body.

1.

Remove front fender. Refer to

DLK-430, "FRONT FENDER : Removal and Installation"

.

2.

Remove front door assembly. Refer to

DLK-432, "DOOR ASSEMBLY : Removal and Installation"

.

3.

Remove front door hinge mounting bolts (body side), and then remove front door hinge.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent onto the mounting surface.
• Check front door open/close, lock/unlock operation after installation.

Front door – Slide door

B – B

Clearance

3.5 – 5.5 mm (0.138 – 0.217 in)

Surface height

(

−

1.0) – (+1.0) mm [(

−

0.039) –

(+0.039) in]

Portion

Standard

DLK-436

< REMOVAL AND INSTALLATION >

FRONT DOOR

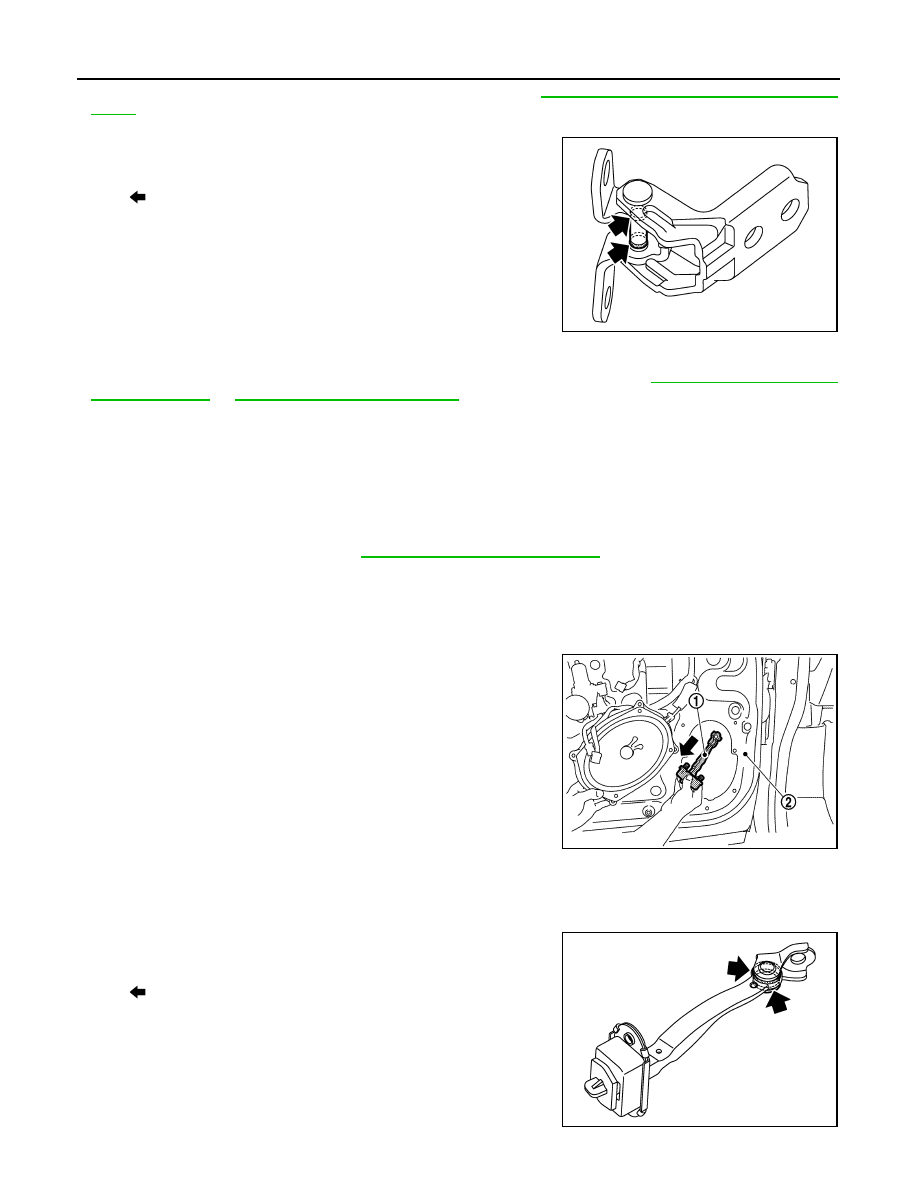

• After installation, perform the fitting adjustment. Refer to

DLK-434, "DOOR ASSEMBLY : Adjust-

ment"

.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.
• Check door hinge rotating part for poor lubrication. If neces-

sary, apply body grease.

• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-15, "On Board Diag-

nosis Function"

 or

SRC-19, "CONSULT Function"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

DOOR CHECK LINK

DOOR CHECK LINK : Removal and Installation

INFOID:0000000009649435

REMOVAL

1.

Fully close the front door window.

2.

Remove front door finisher. Refer to

INT-14, "Removal and Installation"

.

3.

Remove bracket mounting bolts of front door speaker.

4.

Remove front door speaker and bracket as a set, and move them aside.

5.

Remove mounting bolt of door check link on the vehicle.

6.

Remove mounting nuts of door check link on door panel.

7.

Take door check link (1) out from the hole of door panel (2).

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Check front door open/close operation after installation.
• Check door check link rotating part for poor lubrication. If

necessary, apply grease.

: Grease up point

JMKIA5641ZZ

JMKIA8258ZZ

: Grease up point

JMKIA5642ZZ

SLIDE DOOR

DLK-437

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

SLIDE DOOR

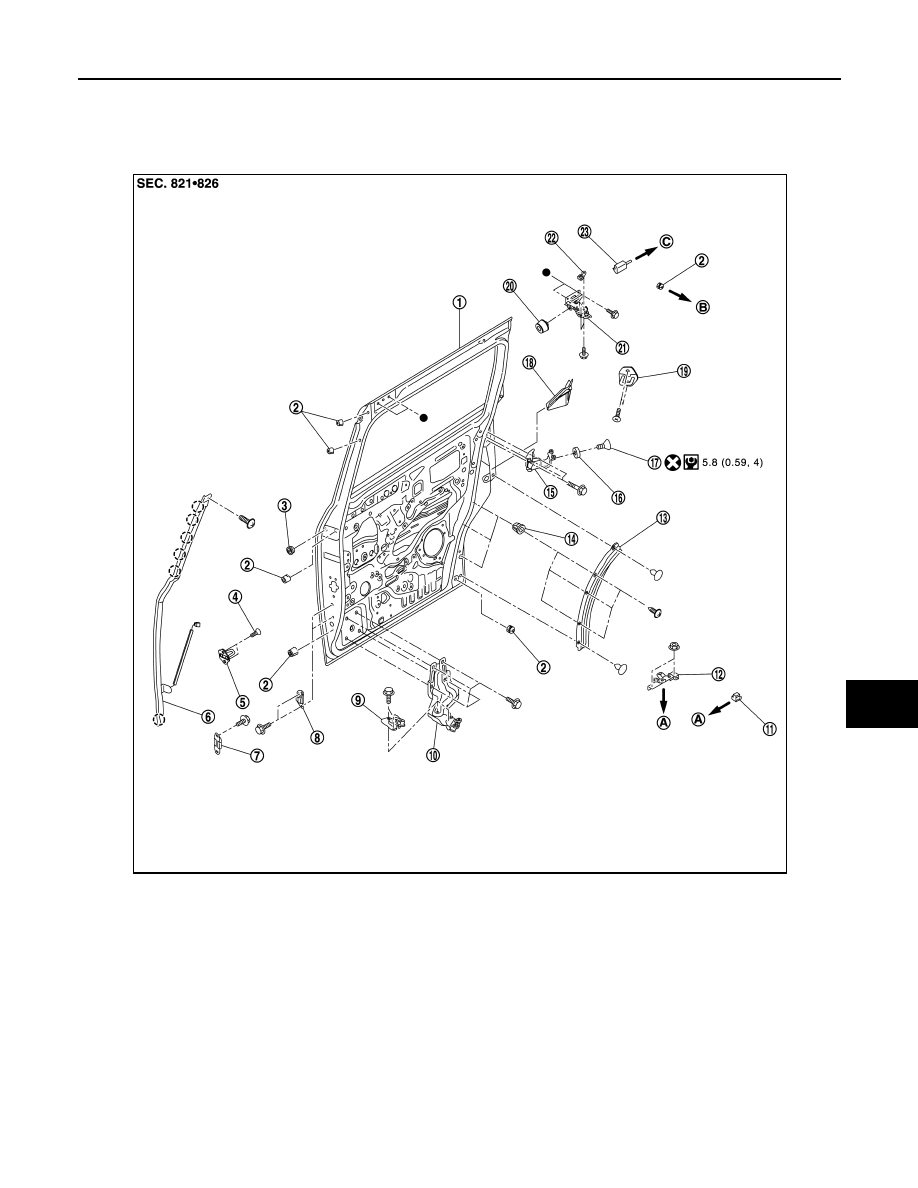

Exploded View

INFOID:0000000009649436

1.

Slide door panel

2.

Bumper rubber

3.

Grommet

4.

TORX bolt

5.

Door striker (front)

6.

Touch sensor (automatic sliding door
models)

7.

Dovetail (female)

8.

Dovetail (male)

9.

Lower latch

10. Lower roller

11. Slide door lower stopper

12. Slide door lower striker

13. Slide door lower weather-strip

14. Screw grommet

15. Rear roller

16. Roller

17. TORX bolt

18. Slide door outside protector

19. Door striker (rear)

20. Stopper rubber

21. Upper roller assembly

22. Sub roller

23. Slide door upper stopper

A

: To slide door lower rail

B

: To body outer panel

C

: Slide door upper rail

JMKIA6197GB
