SLIDE DOOR

DOOR ASSEMBLY

DOOR ASSEMBLY : Removal and Installation

INFOID:0000000009649437

CAUTION:

• Perform work with 2 workers, because of its heavy weight.
• When removing and installing slide door assembly, support door with a jack and shop cloth to pro-

tect door and body.

REMOVAL

1.

Remove slide door protect molding. Refer to

EXT-26, "SLIDE DOOR PROTECT MOLDING : Removal

and Installation"

.

2.

Remove slide door finisher. Refer to

INT-17, "Removal and Installation"

.

3.

Remove lower latch. Refer to

DLK-443, "LOWER LATCH : Removal and Installation"

.

4.

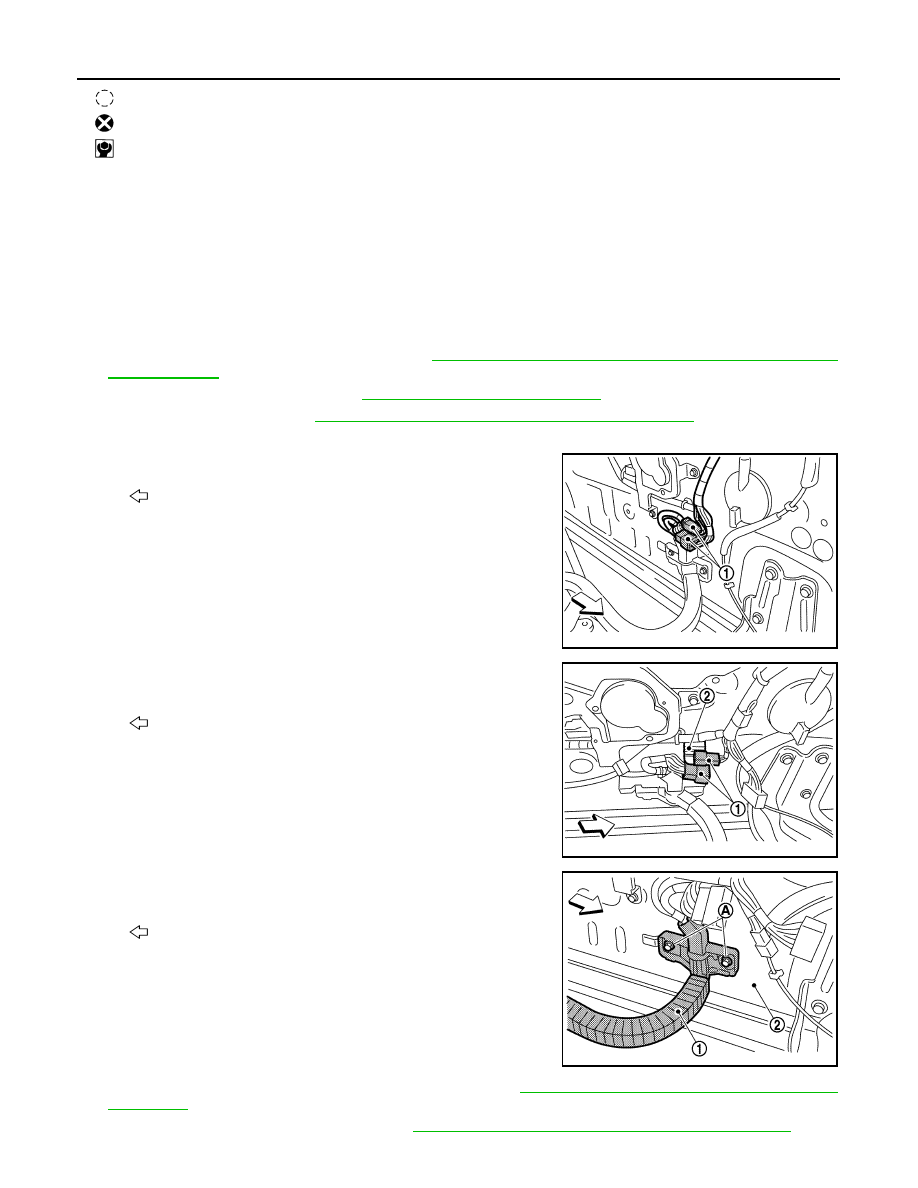

Disconnect uninterruptible power supply harness from slide door panel.

a.

Disconnect harness connector (1).

b.

Remove harness connectors (1) from harness connector
bracket (2).

c.

Remove mounting bolts (A), and then remove uninterruptible
power supply harness (1) from slide door panel (2).

5.

Remove upper roller assembly mounting bolts. Refer to

DLK-441, "UPPER ROLLER : Removal and

Installation"

.

6.

Remove rear roller mounting bolts. Refer to

DLK-442, "REAR ROLLER : Removal and Installation"

.

: Clip

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Vehicle front

JMKIA6286ZZ

: Vehicle front

JMKIA6287ZZ

: Vehicle front

JMKIA6288ZZ

SLIDE DOOR

DLK-439

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

7.

Remove lower roller mounting bolts. Refer to

DLK-442, "LOWER ROLLER : Removal and Installation"

.

8.

Remove slide door assembly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent onto the mounting surface.
• Check slide door open/close, lock/unlock operation after installation.
• After installation, perform the fitting adjustment. Refer to

DLK-440, "DOOR ASSEMBLY : Adjust-

ment"

.

• After installation, apply touch-up paint (the body color) onto the head of slide door roller mounting

bolts.

DLK-440

< REMOVAL AND INSTALLATION >

SLIDE DOOR

DOOR ASSEMBLY : Adjustment

INFOID:0000000009649438

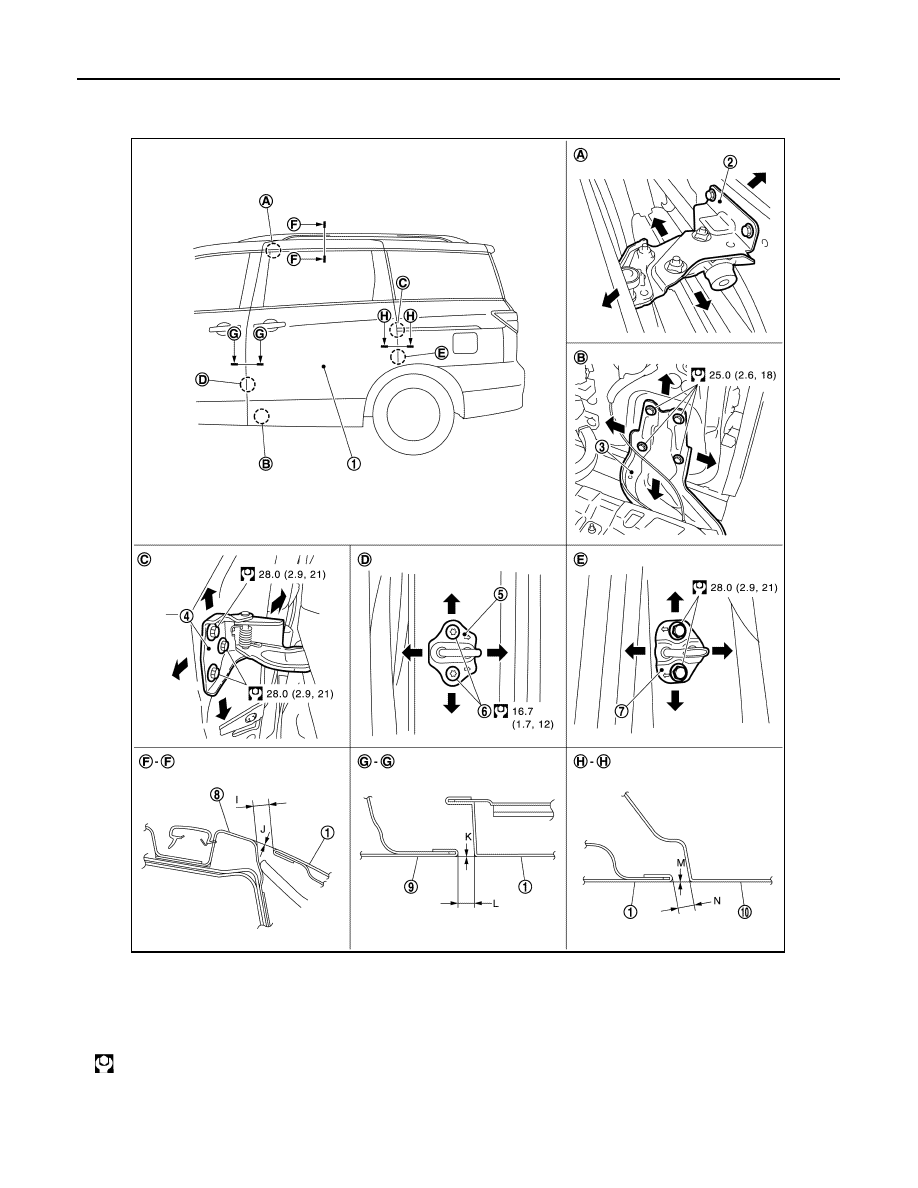

Check the clearance and the surface height between slide door each part by visually and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures
shown below.

1.

Slide door

2.

Upper roller assembly

3.

Lower roller

4.

Rear roller

5.

Door striker (front)

6.

TORX bolt

7.

Door striker (rear)

8.

Body side outer

9.

Front door

10. Body side outer

: N·m (kg-m, ft-lb)

JMKIA8264GB

SLIDE DOOR

DLK-441

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

FITTING ADJUSTMENT PROCEDURE

Loosen the upper roller assembly, lower roller and rear roller mounting bolts, adjust the surface of slide door
according to the fitting standard dimension.

DOOR STRIKER ADJUSTMENT

Adjust door striker so that it becomes parallel with door lock insertion direction.

CAUTION:

After installation, apply touch-up paint (the body color) onto the head of slide door roller mounting
bolts.

DOOR STRIKER

DOOR STRIKER : Removal and Installation

INFOID:0000000009649439

REMOVAL

Door striker (front)

Remove mounting TORX bolts, and then remove door striker (front).

Door striker (rear)

Remove mounting bolts, and then remove door striker (rear).

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent onto the mounting surface.
• After installation, be sure to perform the fitting adjustment. Refer to

DLK-440, "DOOR ASSEMBLY :

Adjustment"

.

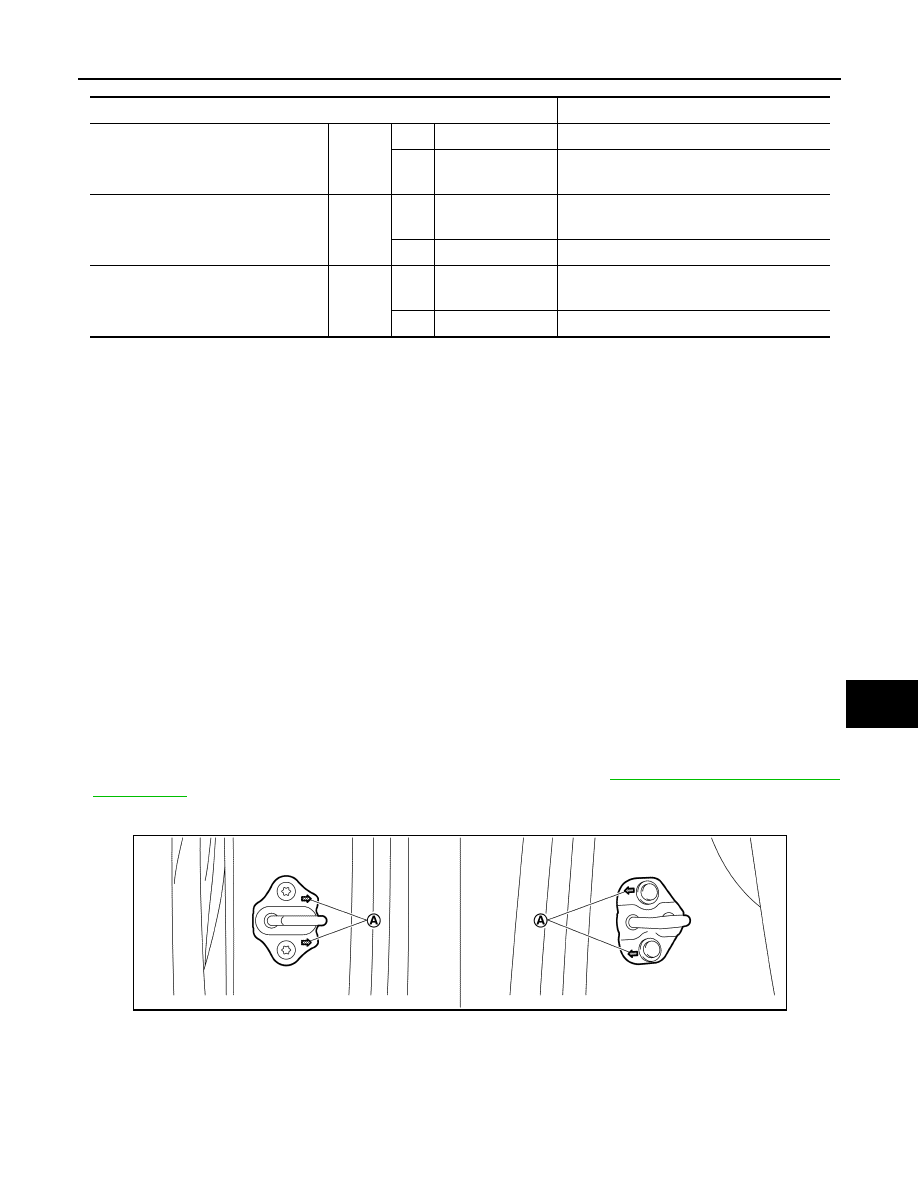

• After installation, check that the direction of arrows (A), as shown in the figure, faces toward passen-

ger room.

UPPER ROLLER

UPPER ROLLER : Removal and Installation

INFOID:0000000009649440

CAUTION:

Portion

Standard

Slide door – Body side outer

F – F

I

Clearance

5.1 – 7.1 mm (0.201 – 0.280 in)

J

Surface height

(

−

1.0) – (+1.0) mm [(

−

0.039) –

(+0.039) in]

Front door – Slide door

G – G

K

Surface height

(

−

1.0) – (+1.0) mm [(

−

0.039) –

(+0.039) in]

L

Clearance

3.5 – 6.5 mm (0.138 – 0.256 in)

Slide door – Body side outer

H – H

M

Surface height

(

−

1.0) – (+1.0) mm [(

−

0.039) –

(+0.039) in]

N

Clearance

3.3 – 6.3 mm (0.130 – 0.248 in)

Door striker (front)

Door striker (rear)

JMKIA6289ZZ
