SLIDE DOOR

INSTALLATION

Install slide door panel (2) while checking the installation position of
slide door outside protector (1).
• Align to vehicle vertical position mark (A).
• Align to vehicle longitudinal position mark (B).
• Align lower end of slide door outside protector to be parallel to lock

opening portion.

NOTE:
When reusing slide door outside protector, remove double-sided
adhesive tape from protector and slide door panel sides, clean the
applied area of double-sided adhesive tape, and then install slide
door outside protector to slide door panel using new double-sided
adhesive tape.

SLIDE DOOR LOWER STRIKER

SLIDE DOOR LOWER STRIKER : Removal and Installation

INFOID:0000000009649448

REMOVAL

1.

Remove rear kicking plate and rear floor step assembly. Refer to

INT-22, "KICKING PLATE : Removal and

Installation"

 and

INT-20, "Exploded View"

.

2.

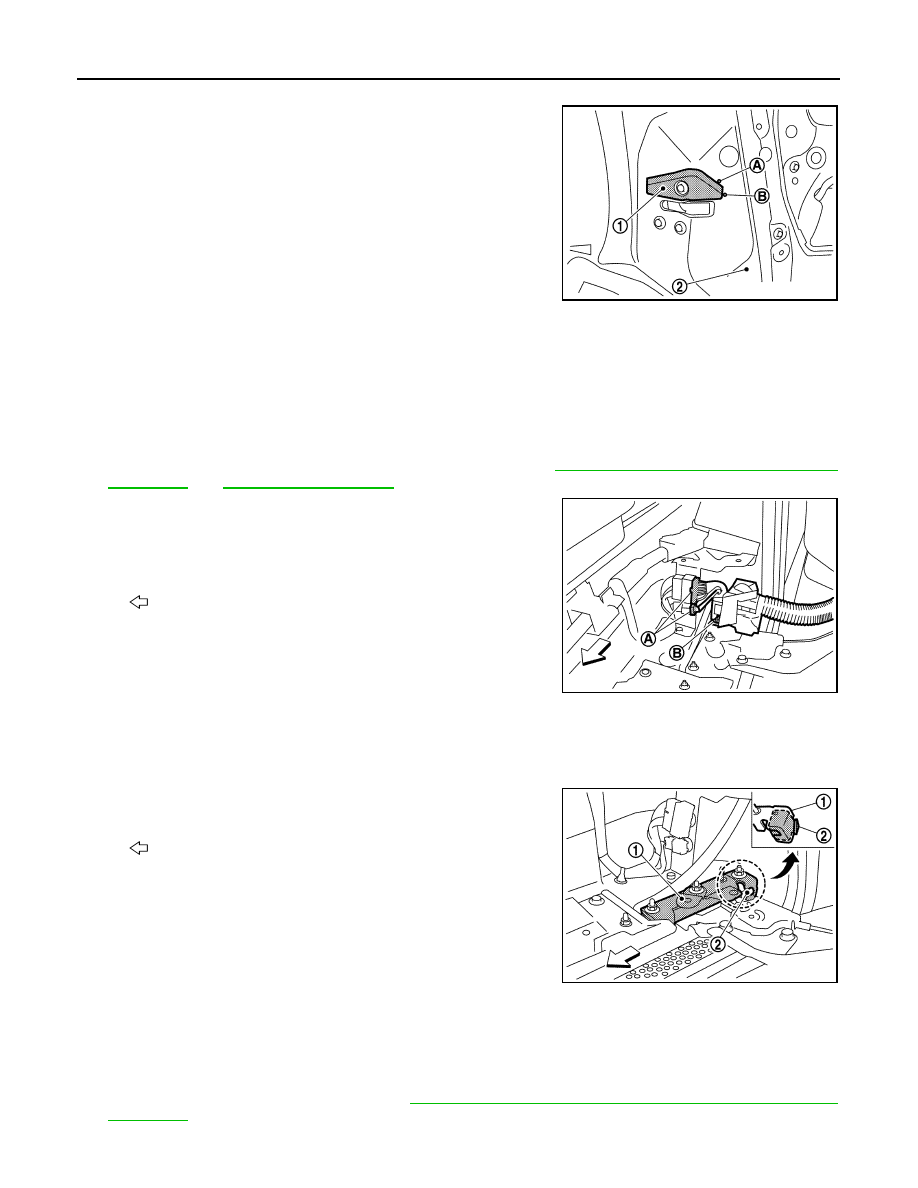

Disconnect uninterruptible power supply harness from slide door
lower striker.

a.

Disconnect harness connector (A).

b.

Remove uninterruptible power supply harness mounting nut (B).

3.

Remove mounting nuts, and then remove slide door lower striker.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

Fix rear end of slide door lower striker (1) to rear portion of slide
door lower stopper (2).

SLIDE DOOR LOWER STOPPER

SLIDE DOOR LOWER STOPPER : Removal and Installation

INFOID:0000000009649449

REMOVAL

1.

Remove slide door lower striker. Refer to

DLK-446, "SLIDE DOOR LOWER STRIKER : Removal and

Installation"

.

Double-sided tape

t: 1.2 mm (0.047 in)

JMKIA6312ZZ

: Vehicle front

JMKIA6313ZZ

: Vehicle front

JMKIA6320ZZ

SLIDE DOOR

DLK-447

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

2.

Remove slide door lower stopper.

INSTALLATION

Install in the reverse order of removal.

SLIDE DOOR UPPER STOPPER

SLIDE DOOR UPPER STOPPER : Removal and Installation

INFOID:0000000009649450

REMOVAL

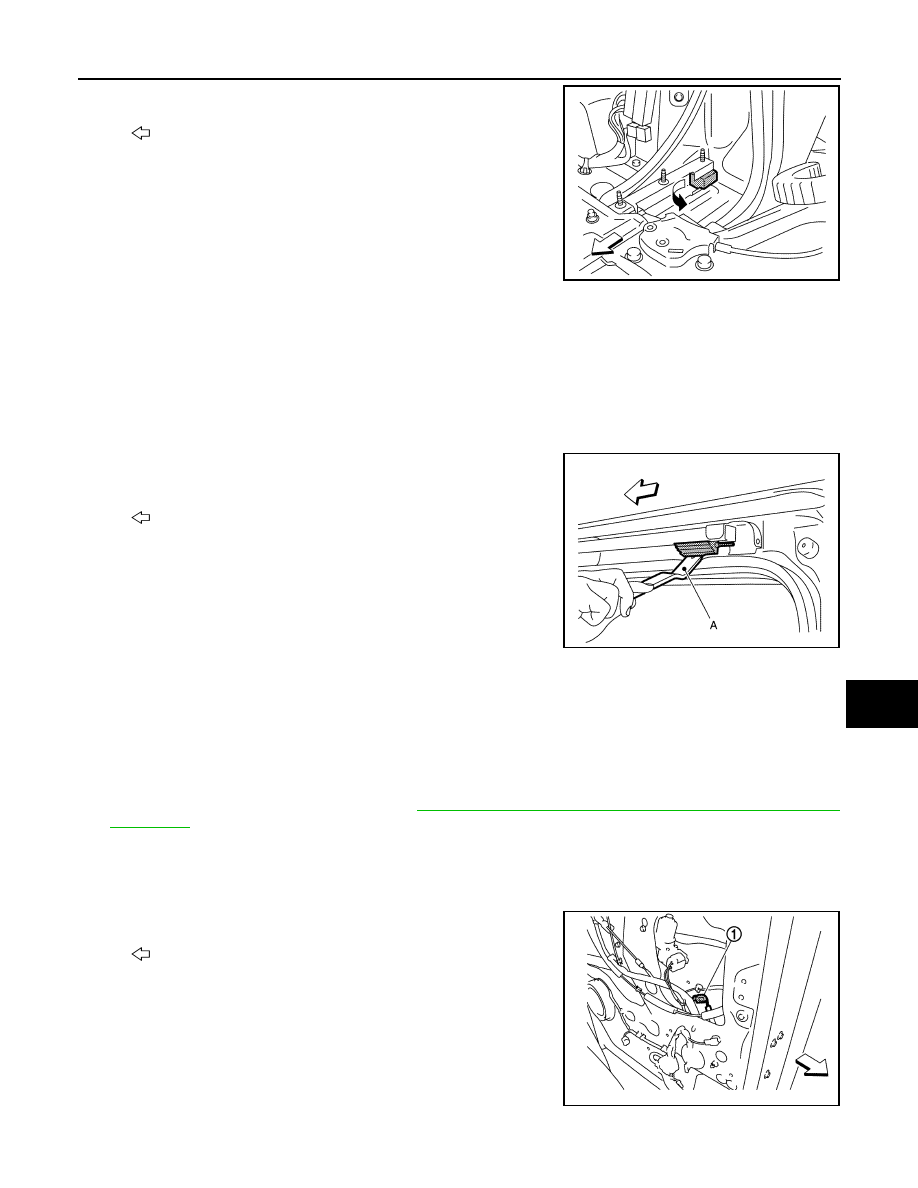

1.

Slide the slide door upper stopper toward vehicle front.

2.

Use a remover tool (A), and then remove slide door upper stop-
per.

INSTALLATION

Install in the reverse order of removal.

TOUCH SENSOR

TOUCH SENSOR : Removal and Installation

INFOID:0000000009649451

REMOVAL

1.

Remove remote control assembly. Refer to

DLK-473, "REMOTE CONTROL ASSEMBLY : Removal and

Installation"

.

2.

Remove front side of sealing screen.
NOTE:
Cut the butyl-tape so that some parts of the butyl-tape do not remain on the sealing screen, if the sealing
screen is reused.

3.

Disconnect touch sensor harness connector (1).

: Vehicle front

JMKIA6321ZZ

: Vehicle front

JMKIA6322ZZ

: Vehicle front

JMKIA6294ZZ

DLK-448

< REMOVAL AND INSTALLATION >

SLIDE DOOR

4.

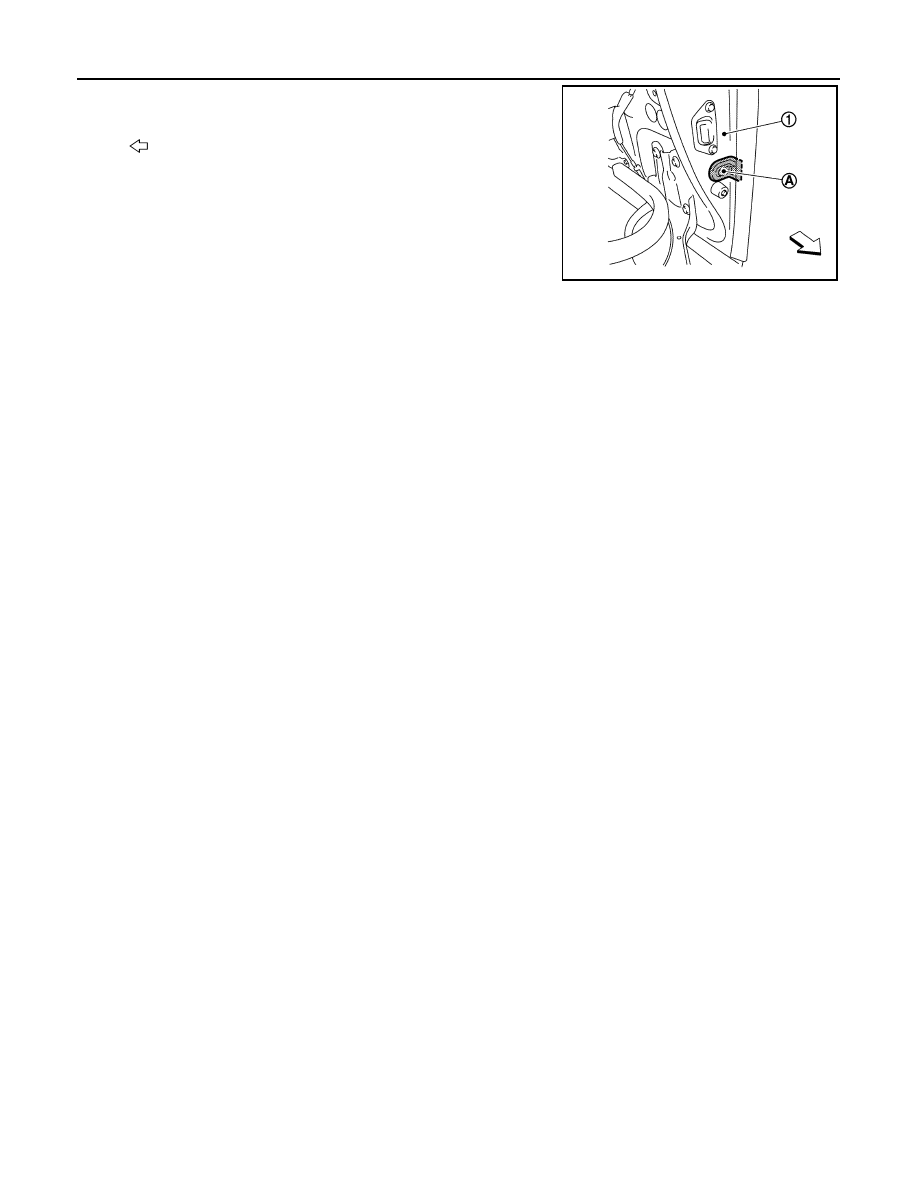

Remove grommet (A), and then pull out harness from slide door
panel (1).

5.

Remove mounting screws and mounting clips, and then pull touch sensor toward vehicle front to remove.

CAUTION:

Never hit or bend touch sensor strongly.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

After installation, check that slide door is reversed normally.

: Vehicle front

JMKIA6295ZZ

SLIDE DOOR GUIDE RAIL

DLK-449

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

SLIDE DOOR GUIDE RAIL

Exploded View

INFOID:0000000009649452

SLIDE DOOR UPPER GUIDE RAIL

SLIDE DOOR UPPER GUIDE RAIL : Removal and Installation

INFOID:0000000009649453

CAUTION:

• Perform work with 2 workers, because of its heavy weight.
• When removing and installing slide door assembly, support door with a jack and shop cloth to pro-

tect door and body.

• Perform the following procedures after replacing guide rail.
- Paint rail the same color as the vehicle body.
- Apply grease to the roller rotating portion.
- Apply anti-corrosion treatment to installation surface between body panel and rail.
- Adjust fitting of slide door after installation. Refer to

DLK-440, "DOOR ASSEMBLY : Adjustment"

.

REMOVAL

1.

Remove headlining. Refer to

INT-35, "Removal and Installation"

.

2.

Remove slide door assembly. Refer to

DLK-438, "DOOR ASSEMBLY : Removal and Installation"

.

3.

Remove slide door upper stopper. Refer to

DLK-447, "SLIDE DOOR UPPER STOPPER : Removal and

Installation"

.

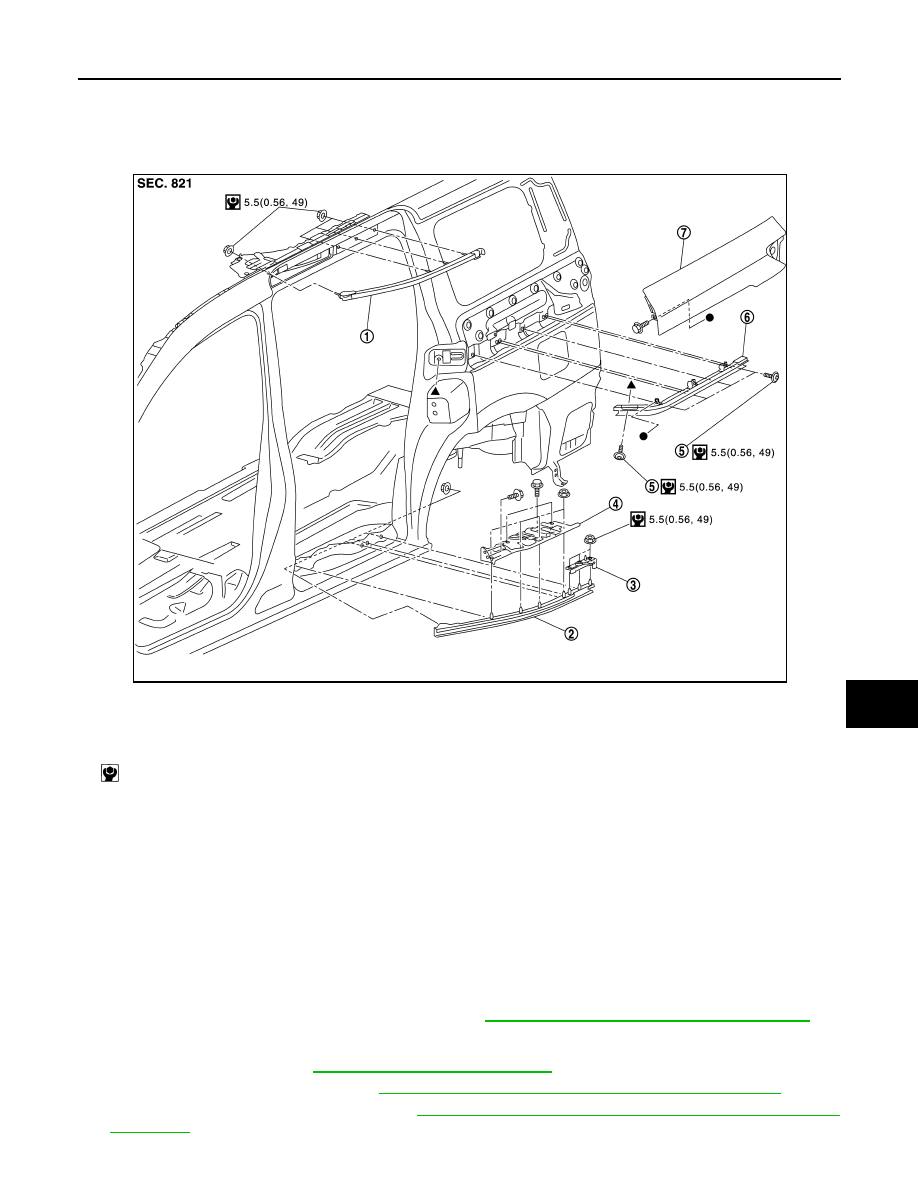

1.

Slide door upper guide rail

2.

Slide door lower guide rail

3.

Slide door lower striker

4.

Rear floor step assembly

5.

TORX bolt

6.

Slide door rear guide rail

7.

Slide door rail cover

: N·m (kg-m, in-lb)

JMKIA6279GB
