BRM-46

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

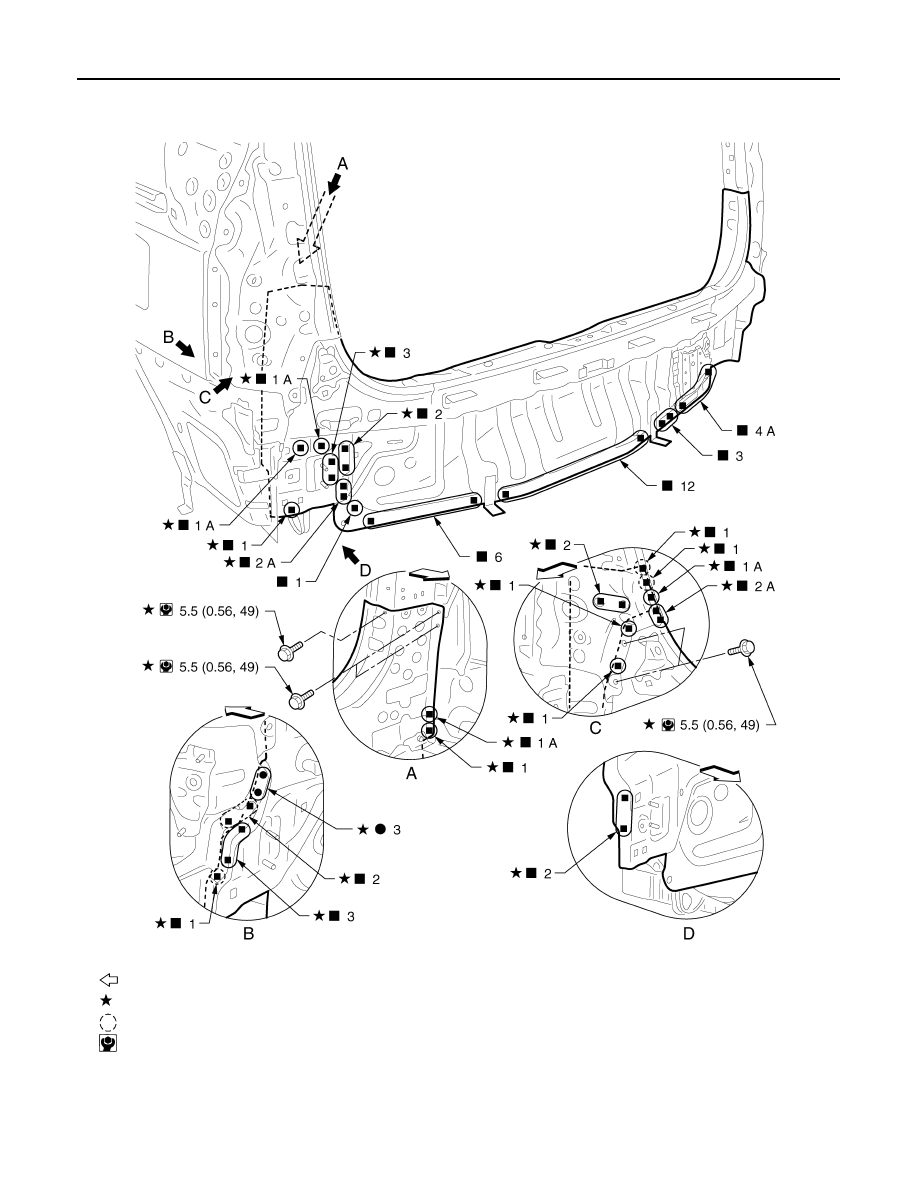

Rear Panel

INFOID:0000000009648885

: Vehicle front

: Welding method and the number of welding points apply to both side of the vehicle.

: Weld the parts onto the back of the component part.

: N·m (kg-m, in-lb)

Replacement parts

z

Upper rear panel

JSKIA3718GB

REPLACEMENT OPERATIONS

BRM-47

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

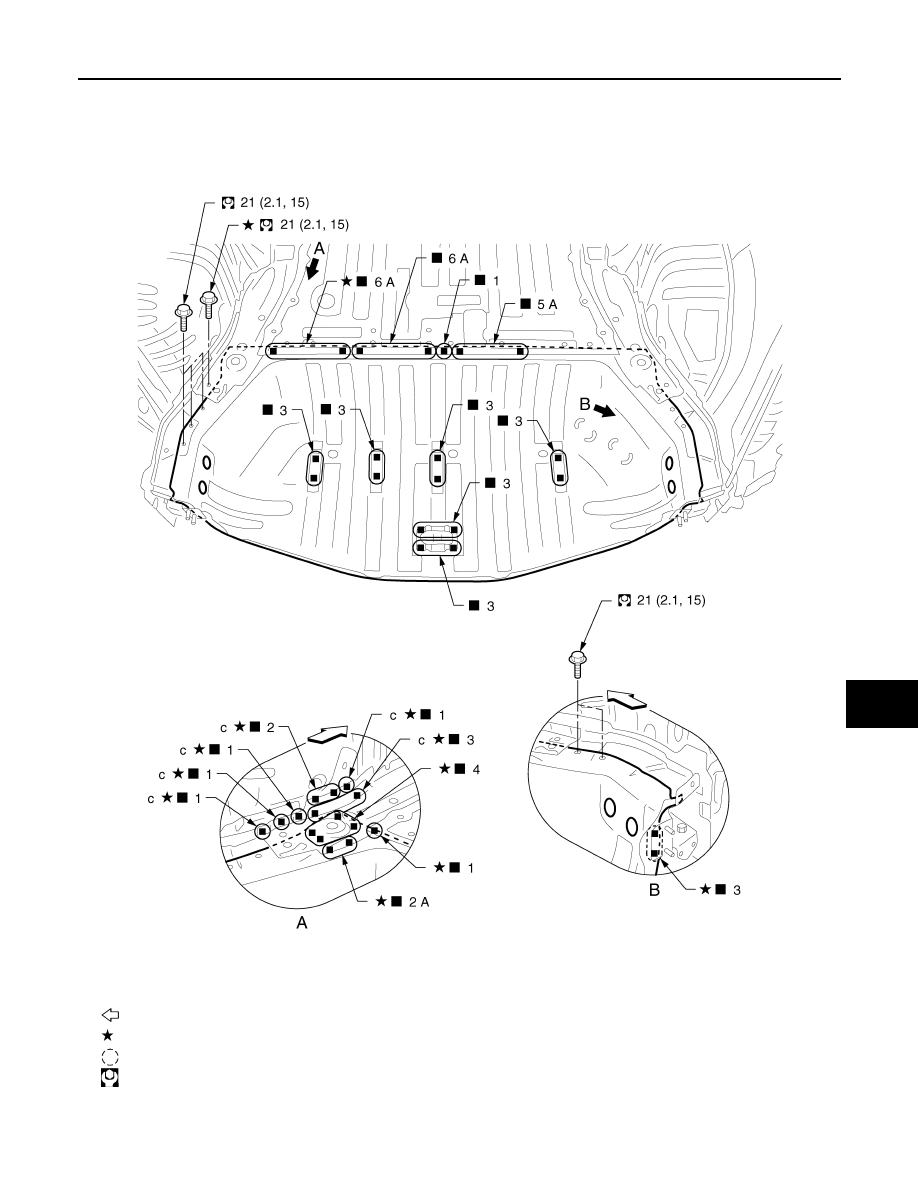

Rear Floor Rear

INFOID:0000000009648886

Work after rear panel is removed.
Remove the welding points

″

c

″

 for easier installation.

: Vehicle front

: Welding method and the number of welding points apply to both side of the vehicle.

: Weld the parts onto the back of the component part.

: N·m (kg-m, ft-lb)

Replacement parts

z

Rear floor rear

z

Woofer bracket assembly

z

Jack mounting bracket

JSKIA2471GB

BRM-48

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

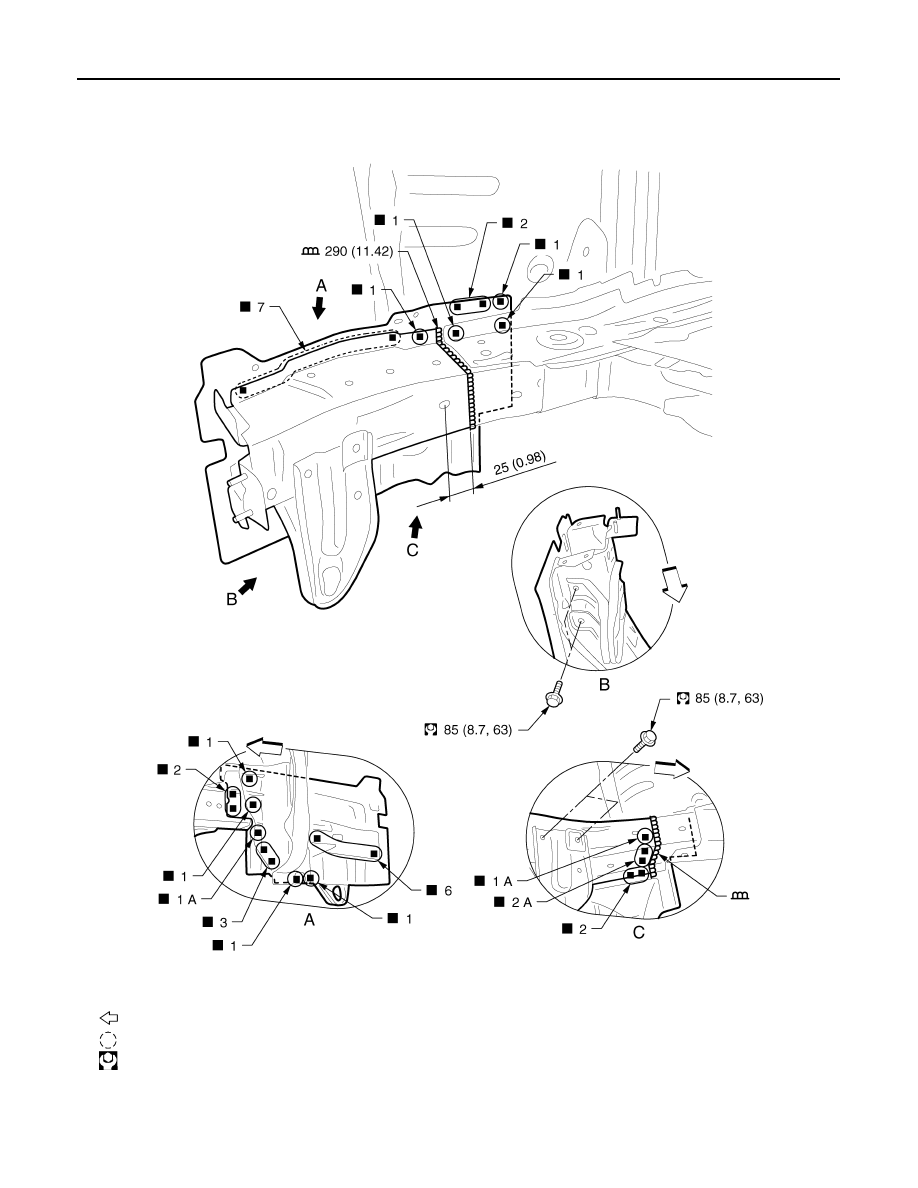

Rear Side Member Extension

INFOID:0000000009648887

Work after rear fender extension, rear panel, and rear floor rear are removed.

Unit: mm (in)

: Vehicle front

: Weld the parts onto the back of the component part.

: N·m (kg-m, ft-lb)

Replacement parts

z

Rear side member extension

z

Rear floor rear side

JSKIA2472GB

BODY ALIGNMENT

BRM-49

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

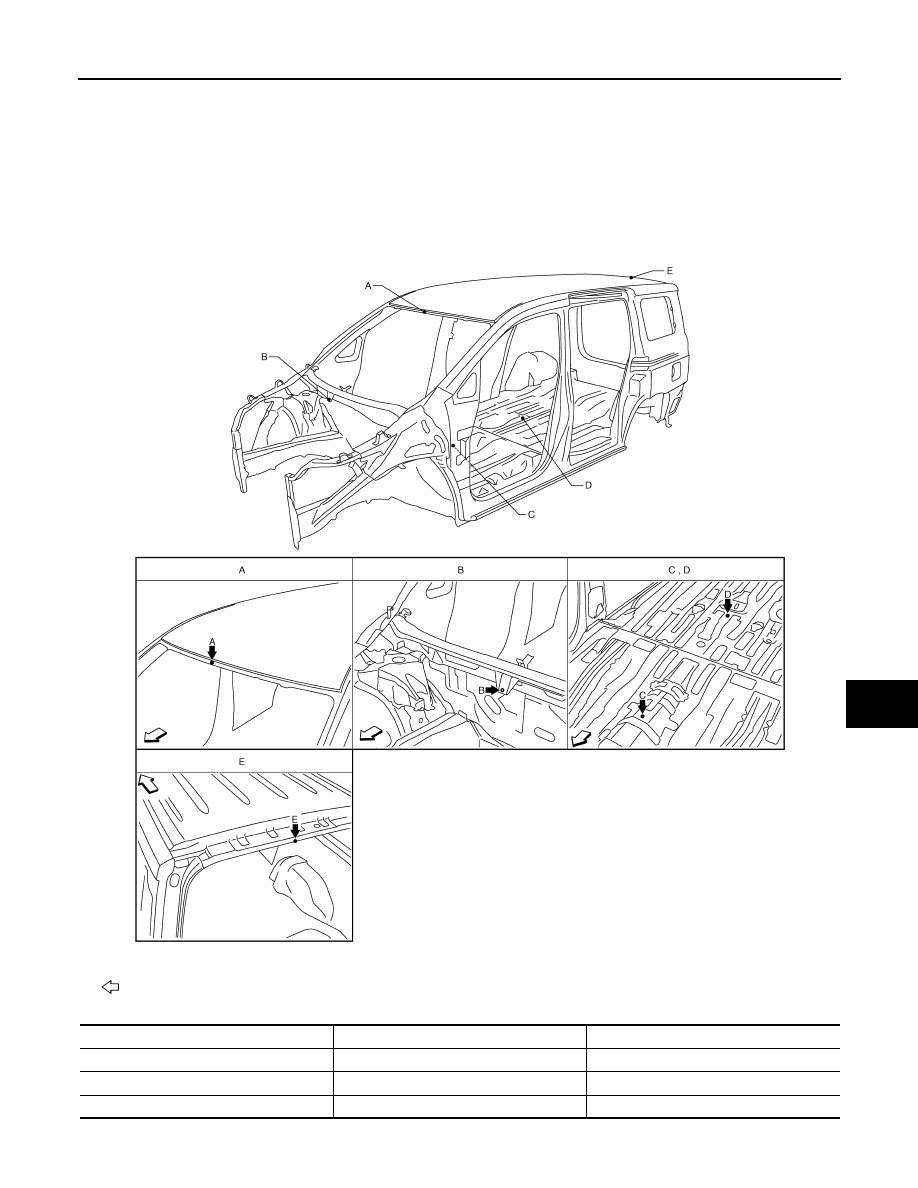

Body Center Marks

INFOID:0000000009648888

A mark is placed on each part of the body to indicate the vehicle center. When repairing the vehicle frame
(members, pillars, etc.) damaged by an accident which it enables more accurate and effective repair by using
these marks together with body alignment specifications.

Unit: mm (in)

: Vehicle front

Points

Portion

Marks

A

Front roof

Embossment

B

Center cowl top

Hole

φ

7 (0.28)

C

Front floor

Embossment

JSKIA2483ZZ
