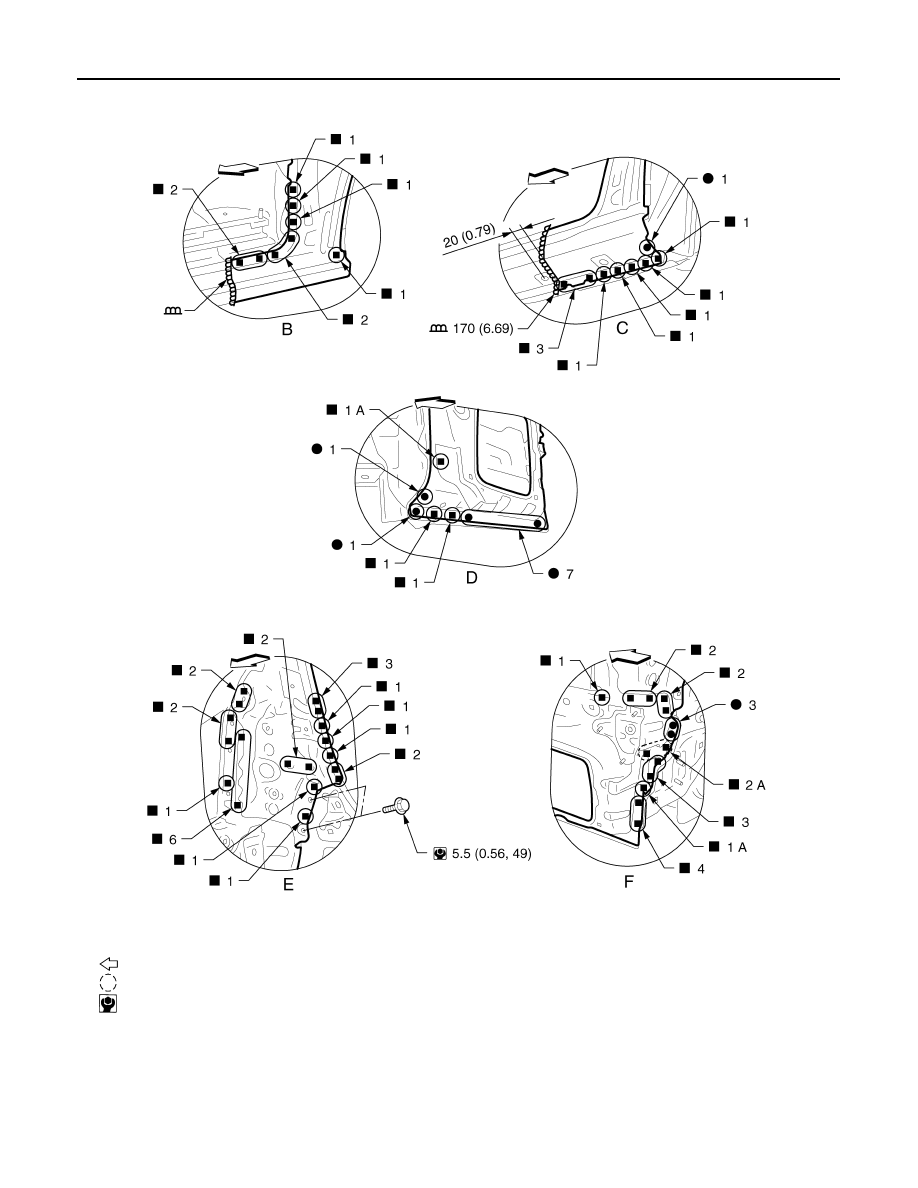

BRM-42

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

Unit: mm (in)

: Vehicle front

: Weld the parts onto the back of the component part.

: N·m (kg-m, in-lb)

JSKIA2467GB

REPLACEMENT OPERATIONS

BRM-43

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

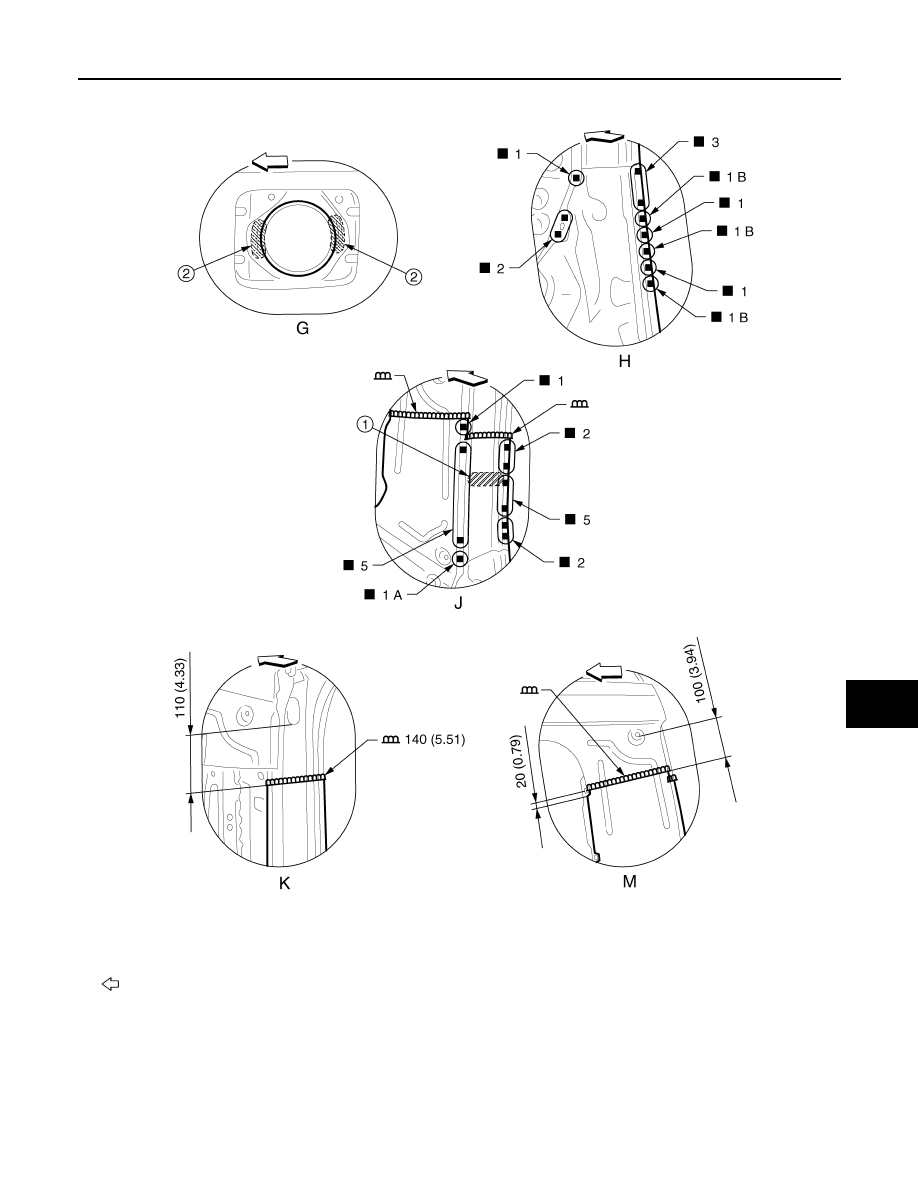

View K: Before installing rear fender

1.

Urethane foam

2.

Adhesive

Unit: mm (in)

: Vehicle front

JSKIA2114GB

BRM-44

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

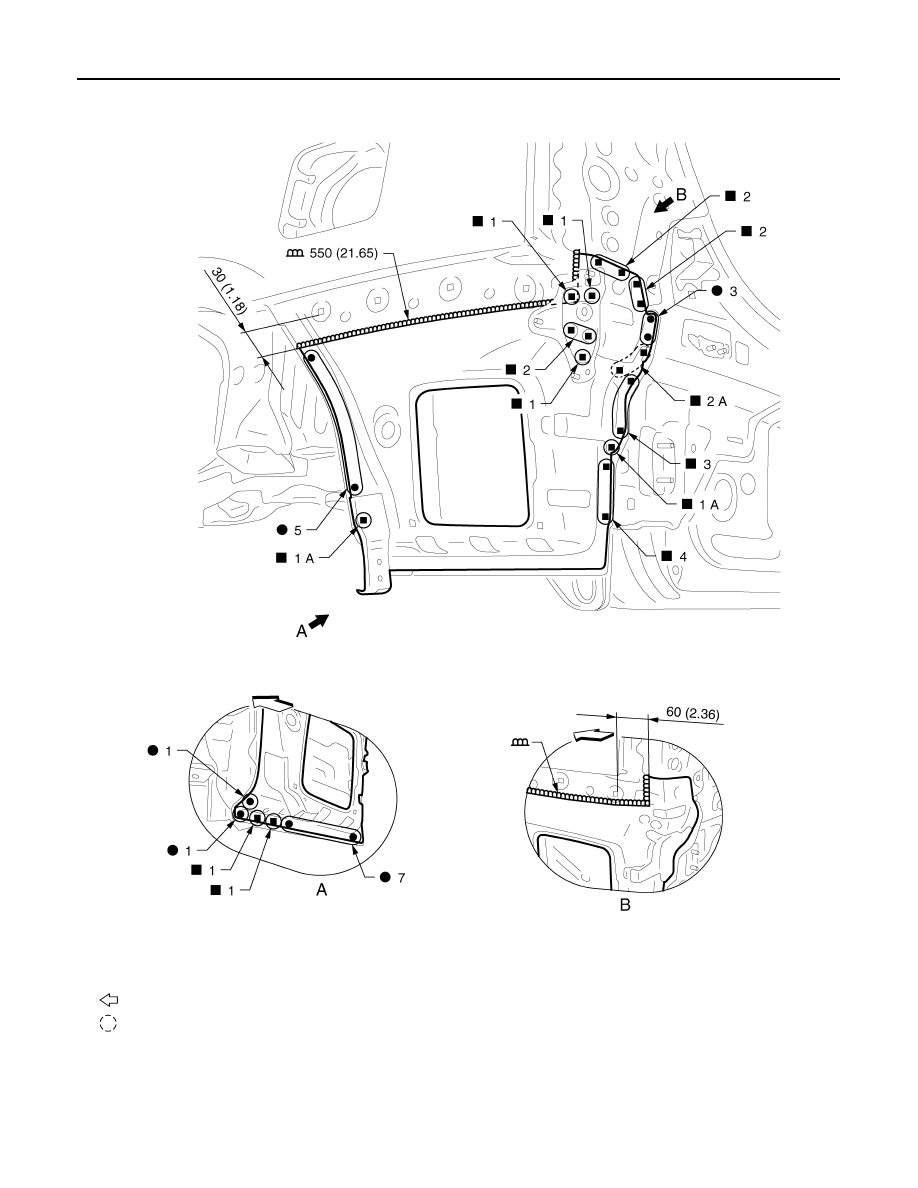

Rear Fender Extension

INFOID:0000000009648883

View B: Before installing rear fender extension (Bracket)

Unit: mm (in)

: Vehicle front

: Weld the parts onto the back of the component part.

Replacement parts

z

Rear fender extension

z

Rear fender extension (Bracket)

JSKIA2468GB

REPLACEMENT OPERATIONS

BRM-45

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

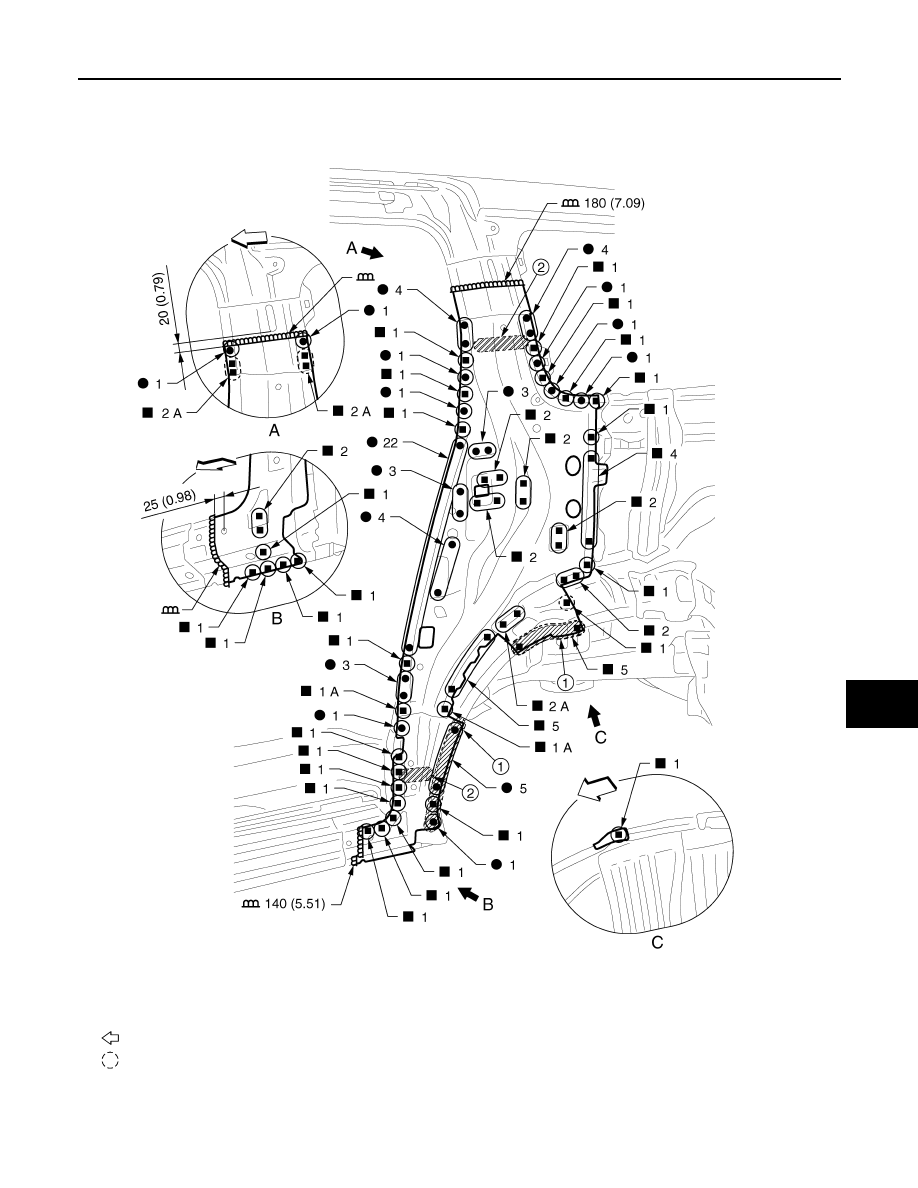

Rear Pillar Reinforcement

INFOID:0000000009648884

Work after rear fender is removed.

1.

Body sealing

2.

Urethane foam

Unit: mm (in)

: Vehicle front

: Weld the parts onto the back of the component part.

Replacement parts

z

Inner rear pillar reinforcement

JSKIA2469GB
