REPLACEMENT OPERATIONS

Outer Sill (Partial Replacement)

INFOID:0000000009648880

Unit: mm (in)

: Vehicle front

Replacement parts

z

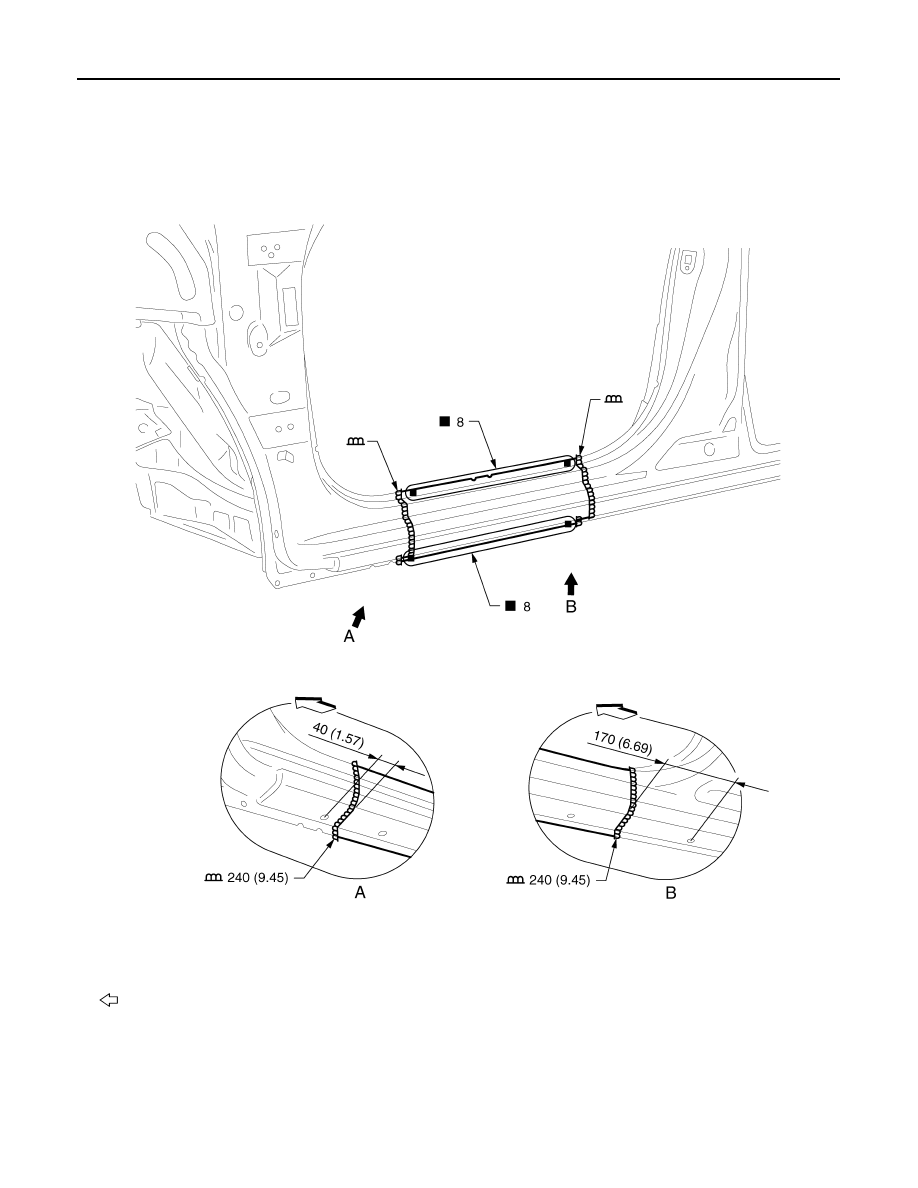

Outer sill

JSKIA2109GB

REPLACEMENT OPERATIONS

BRM-39

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Outer Sill

INFOID:0000000009648881

1.

Body sealing

2.

Urethane foam

3.

Adhesive

Unit: mm (in)

: Vehicle front

Replacement parts

z

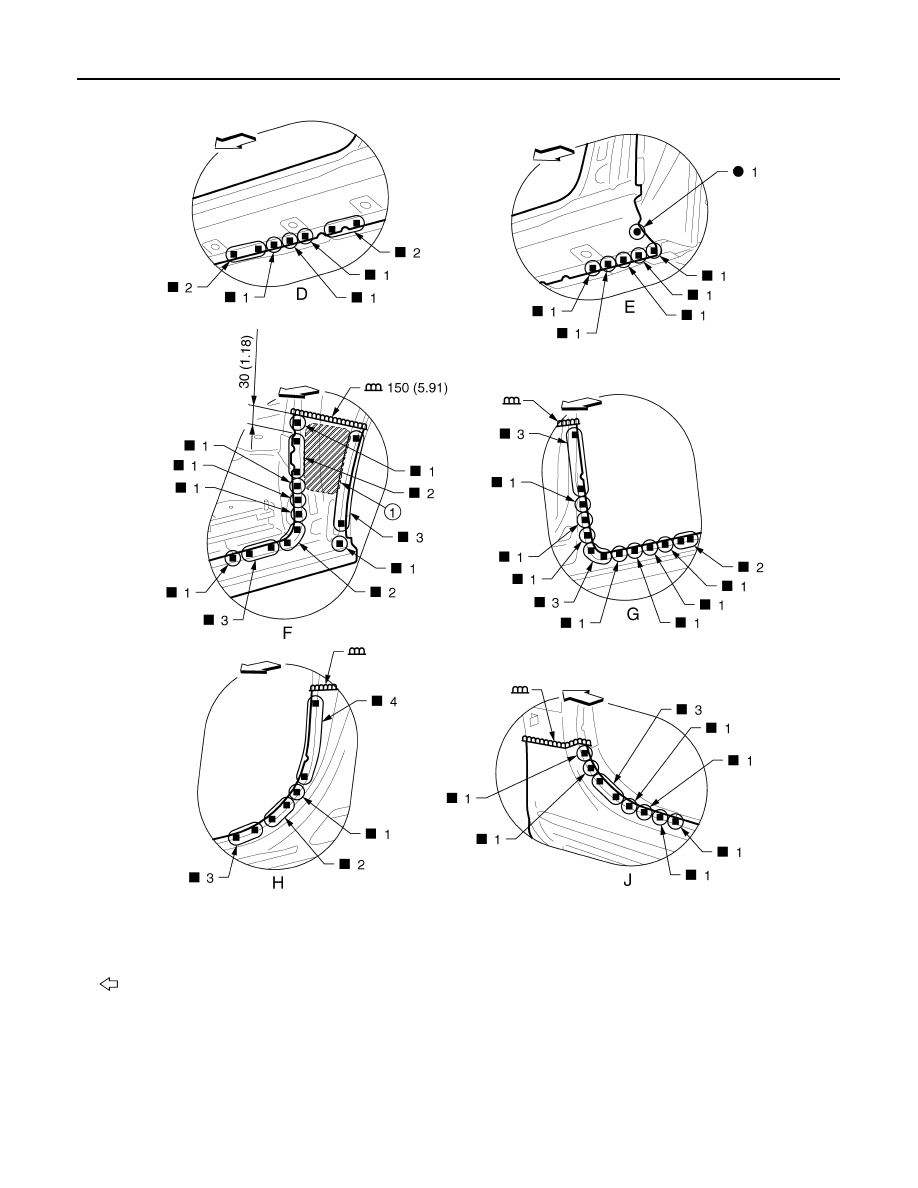

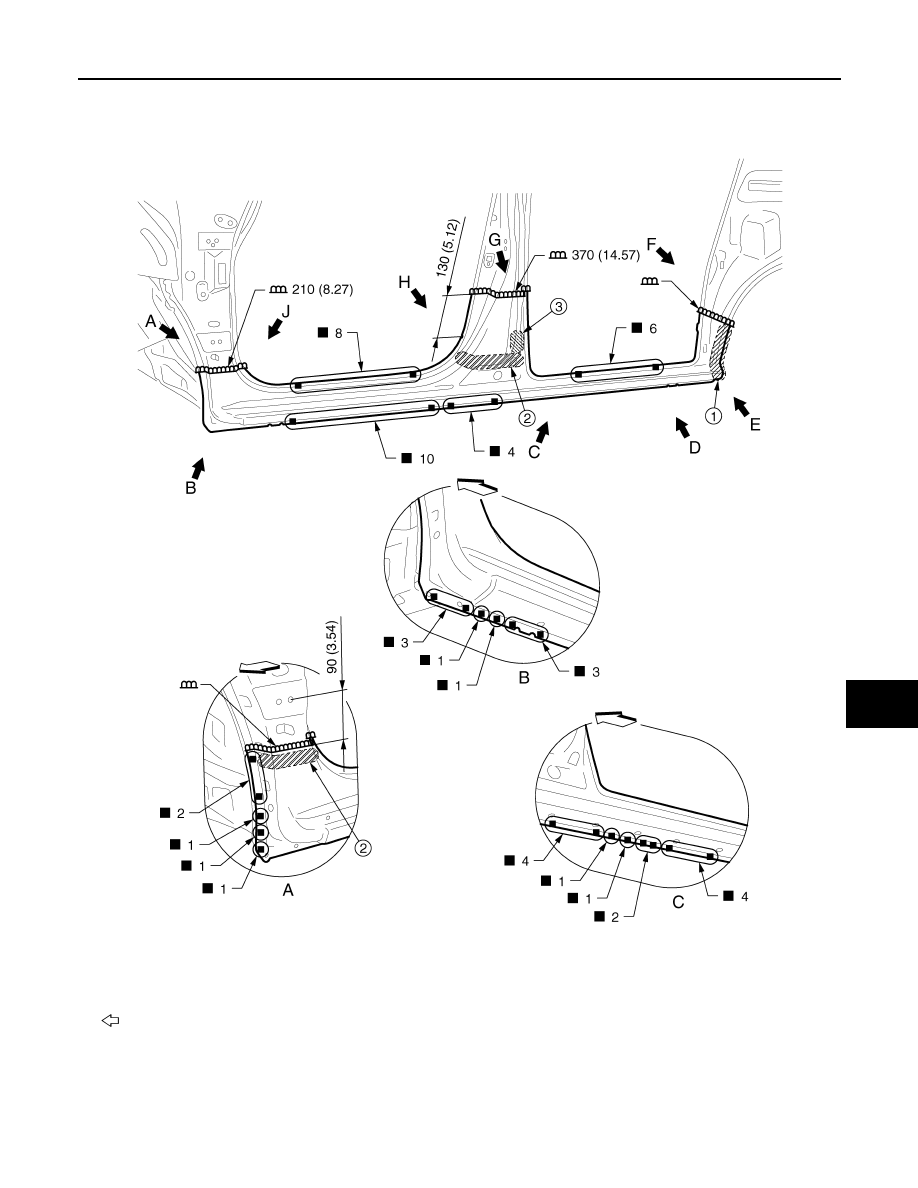

Outer sill

JSKIA2464GB

BRM-40

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

1.

Urethane foam

Unit: mm (in)

: Vehicle front

JSKIA2465GB

REPLACEMENT OPERATIONS

BRM-41

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Rear Fender

INFOID:0000000009648882

1.

Urethane foam

2.

Body sealing

Unit: mm (in)

: Vehicle front

Replacement parts

z

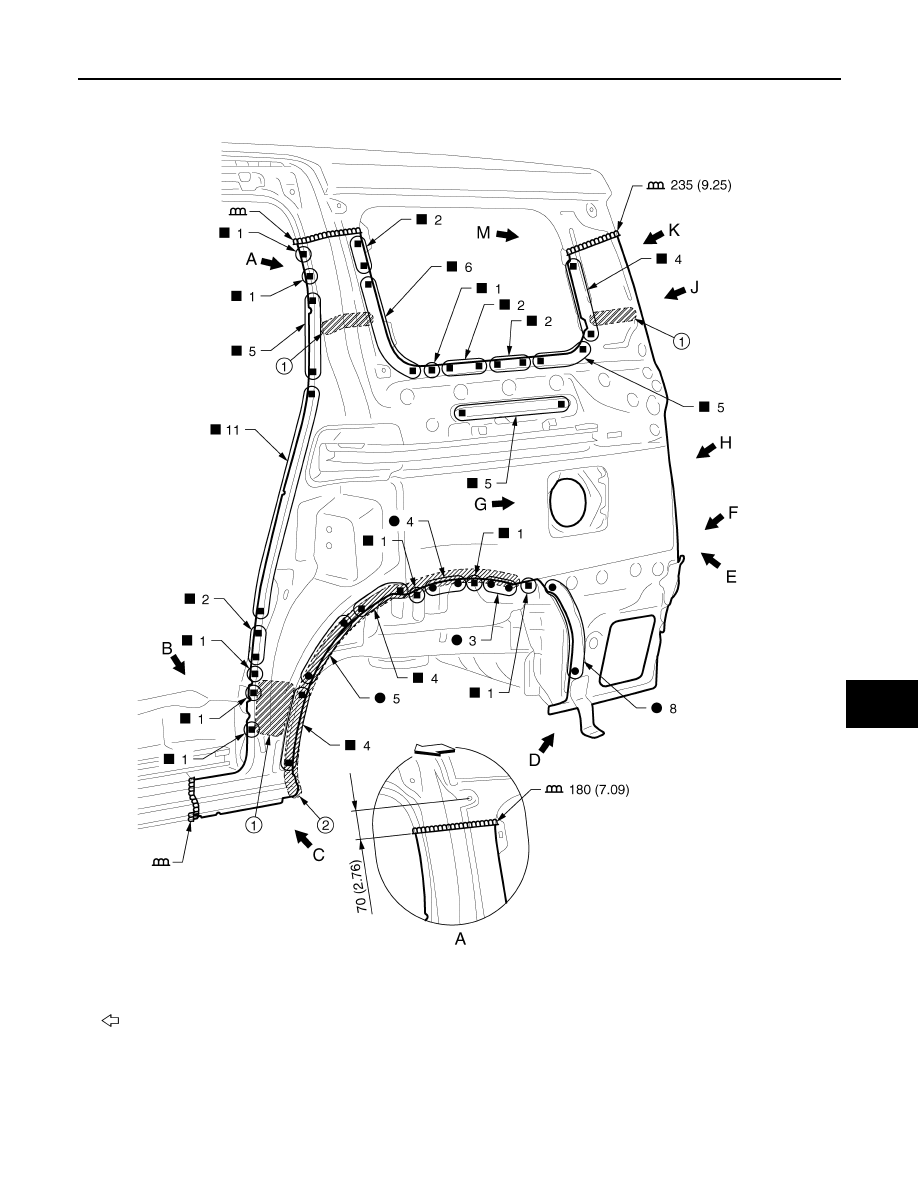

Rear fender

JSKIA2466GB
