BRM-30

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

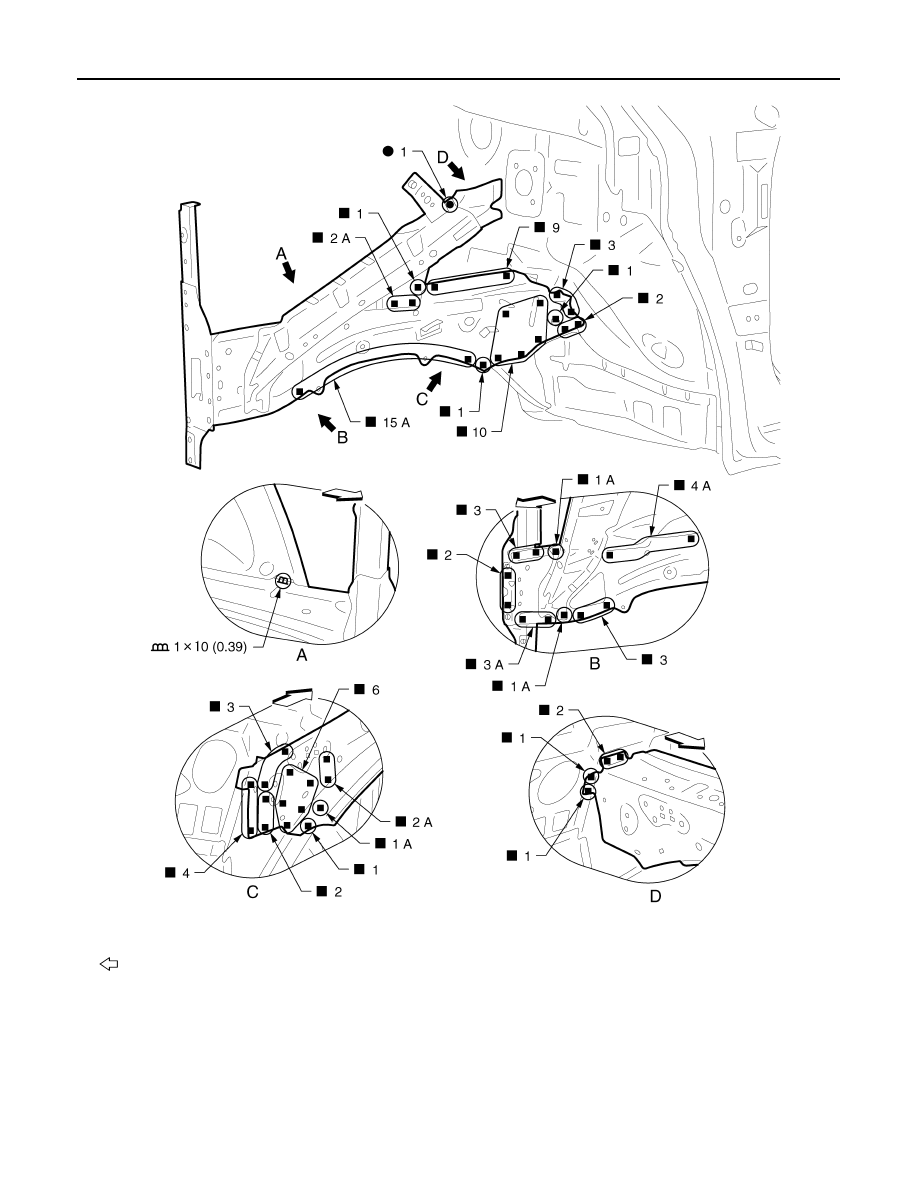

Front Side Member (Partial Replacement)

INFOID:0000000009648877

Work after radiator core support and lower front hoodledge are removed.

Unit: mm (in)

: Vehicle front

Replacement parts

z

Front side member assembly

z

Front side member closing plate as-
sembly

JSKIA2456GB

REPLACEMENT OPERATIONS

BRM-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

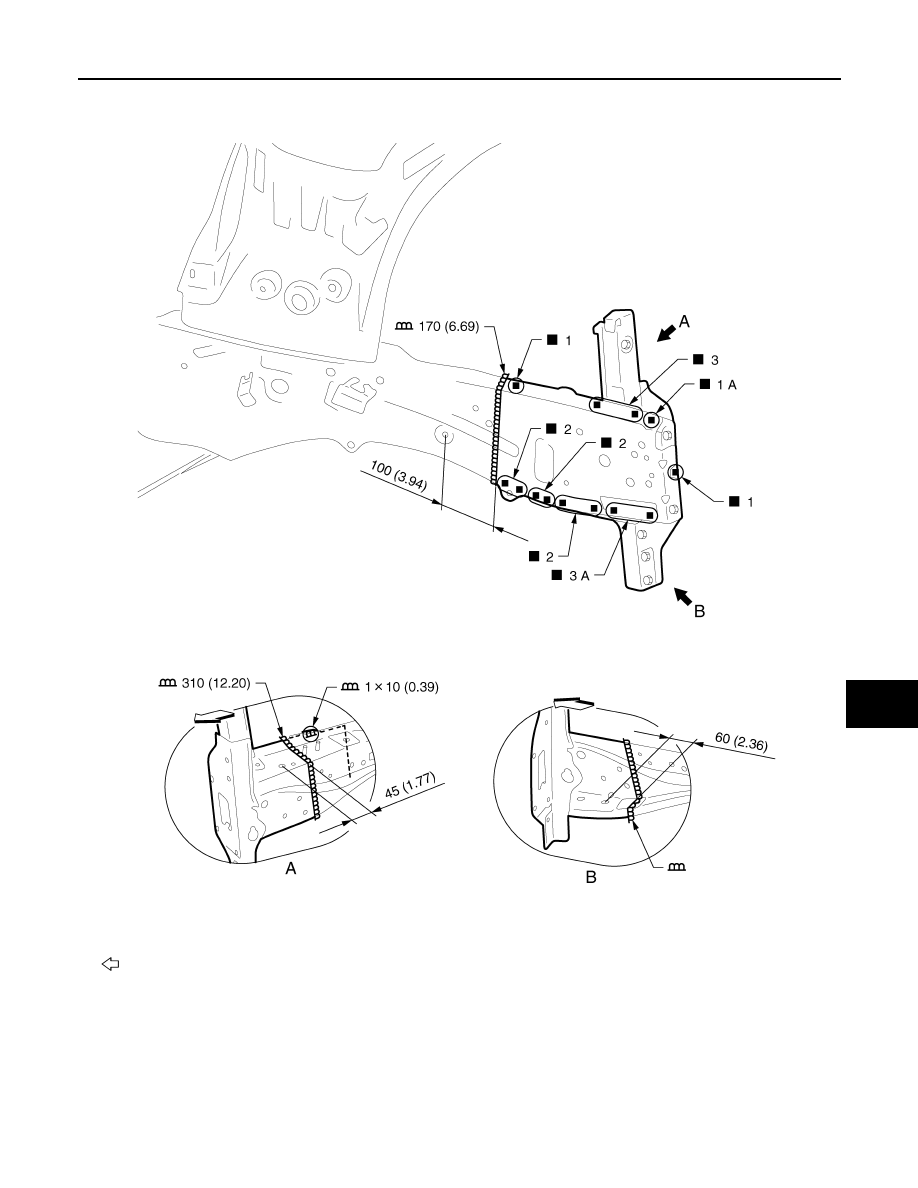

POINT

The front side member on the left can also be replaced partially by cutting at the position shown in the figure.

Unit: mm (in)

: Vehicle front

Replacement parts

z

Front side member assembly (RH)

z

Front side member closing plate as-
sembly (RH)

JSKIA2457GB

BRM-32

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

NOTE:

For welding method and the number of welding points, refer to the front side member on the right.

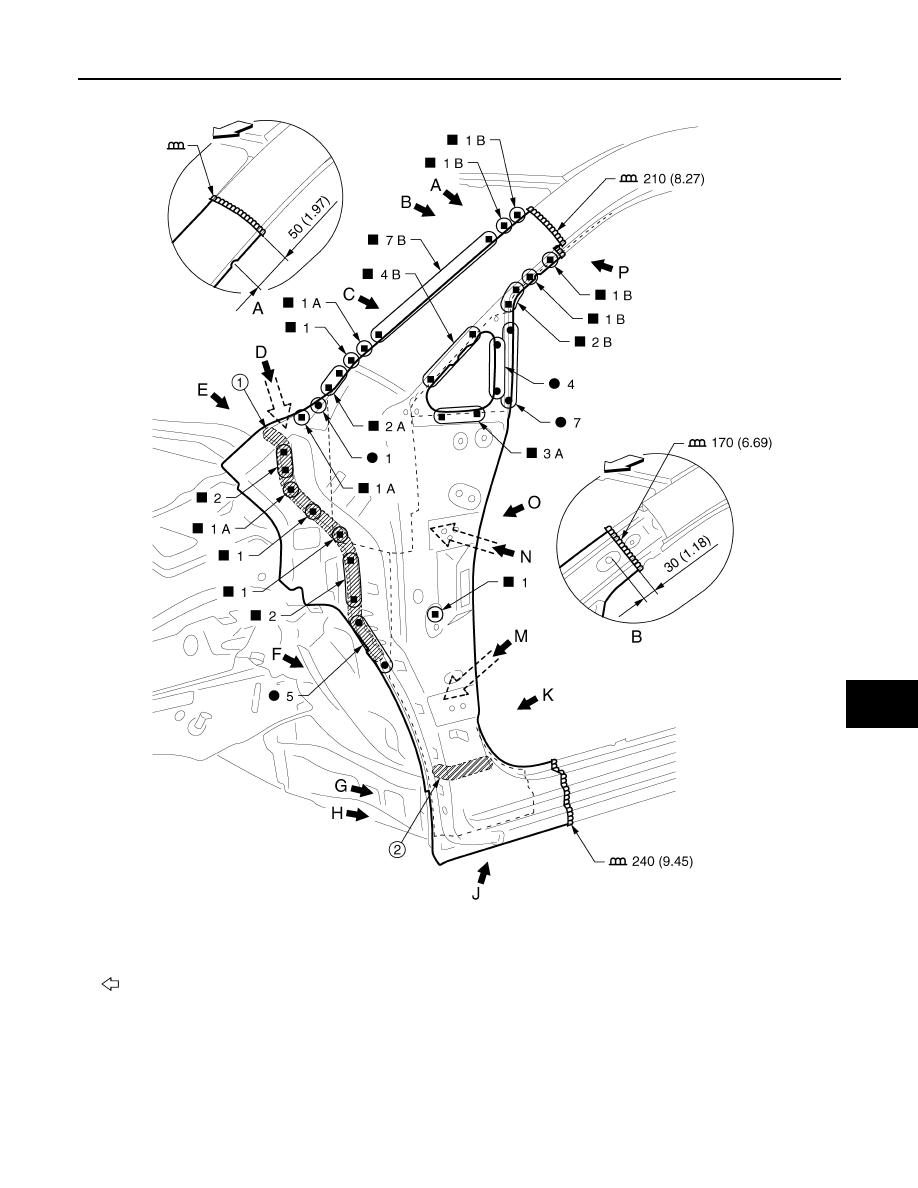

Front Pillar

INFOID:0000000009648878

Work after hoodledge reinforcement is removed.

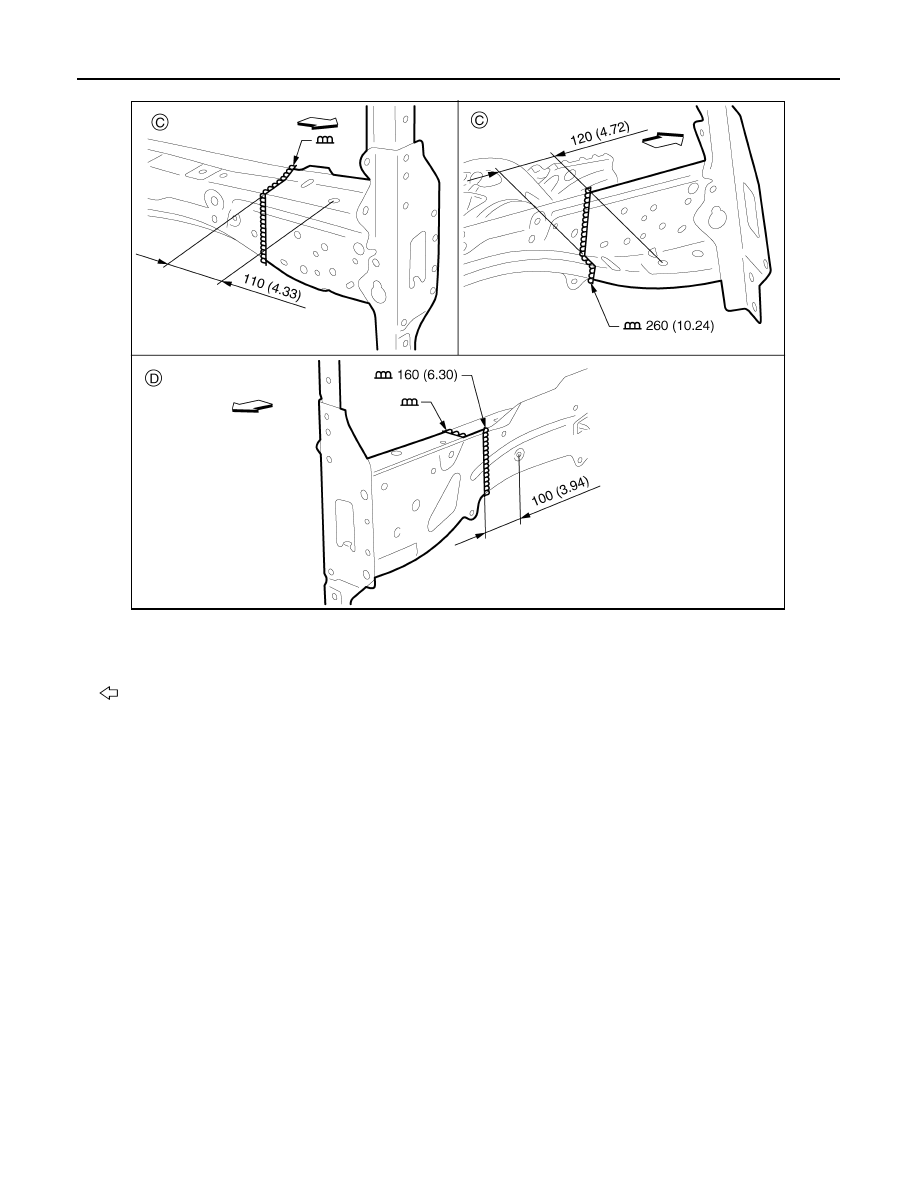

C.

Front side member assembly cutting
position (LH)

D.

Front side member closing plate as-
sembly cutting position (LH)

Unit: mm (in)

: Vehicle front

Replacement parts

z

Front side member assembly (LH)

z

Front side member closing plate as-
sembly (LH)

JSKIA2458GB

REPLACEMENT OPERATIONS

BRM-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

View B: Before installing outer front side body and front fender bracket assembly

1.

Body sealing

2.

Urethane foam

Unit: mm (in)

: Vehicle front

Replacement parts

z

Outer front side body

z

Upper front pillar reinforcement

z

Front pillar brace

z

Upper inner front pillar

z

Side dash

z

Front fender bracket assembly

JSKIA2459GB
