BRM-26

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

Radiator Core Support

INFOID:0000000009648873

Unit: mm (in)

: Vehicle front

: Weld the parts onto the back of the component part.

: N·m (kg-m, ft-lb)

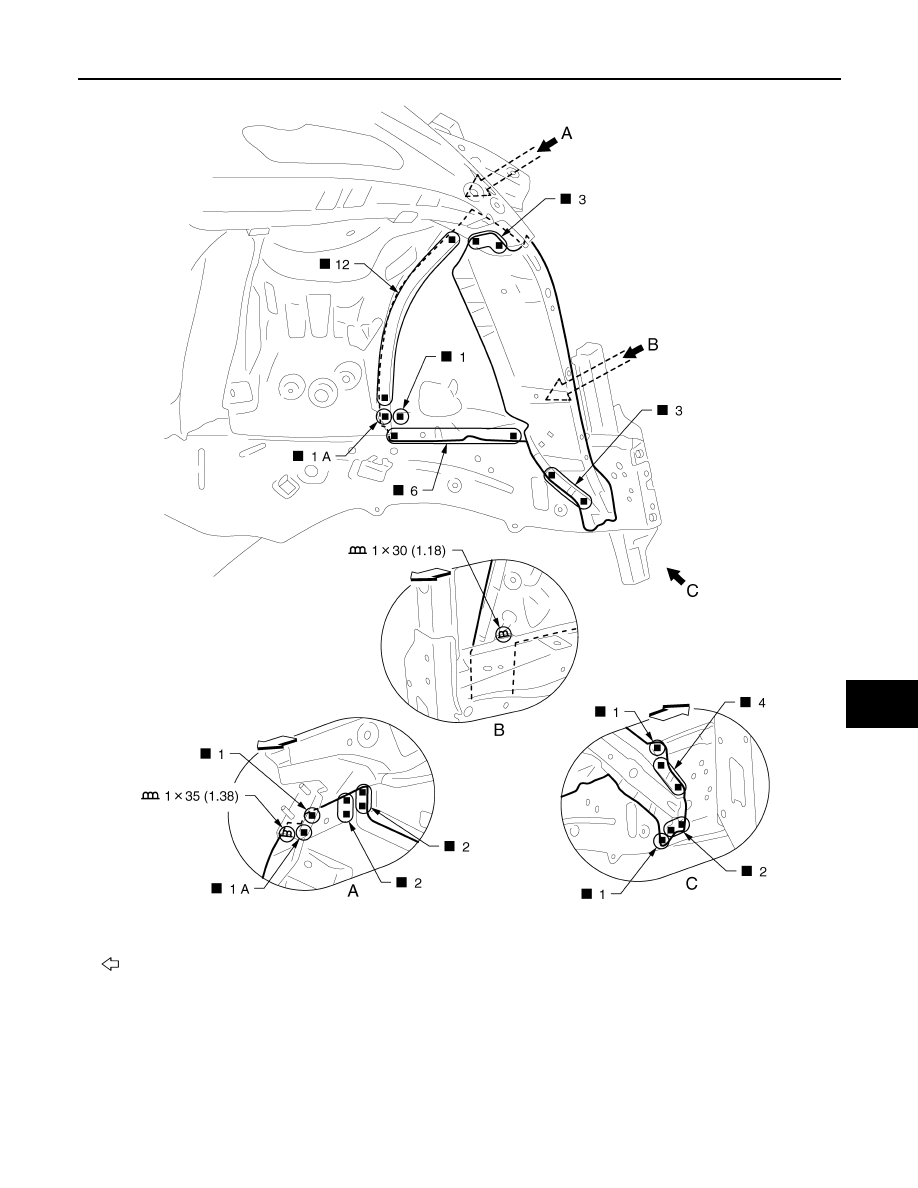

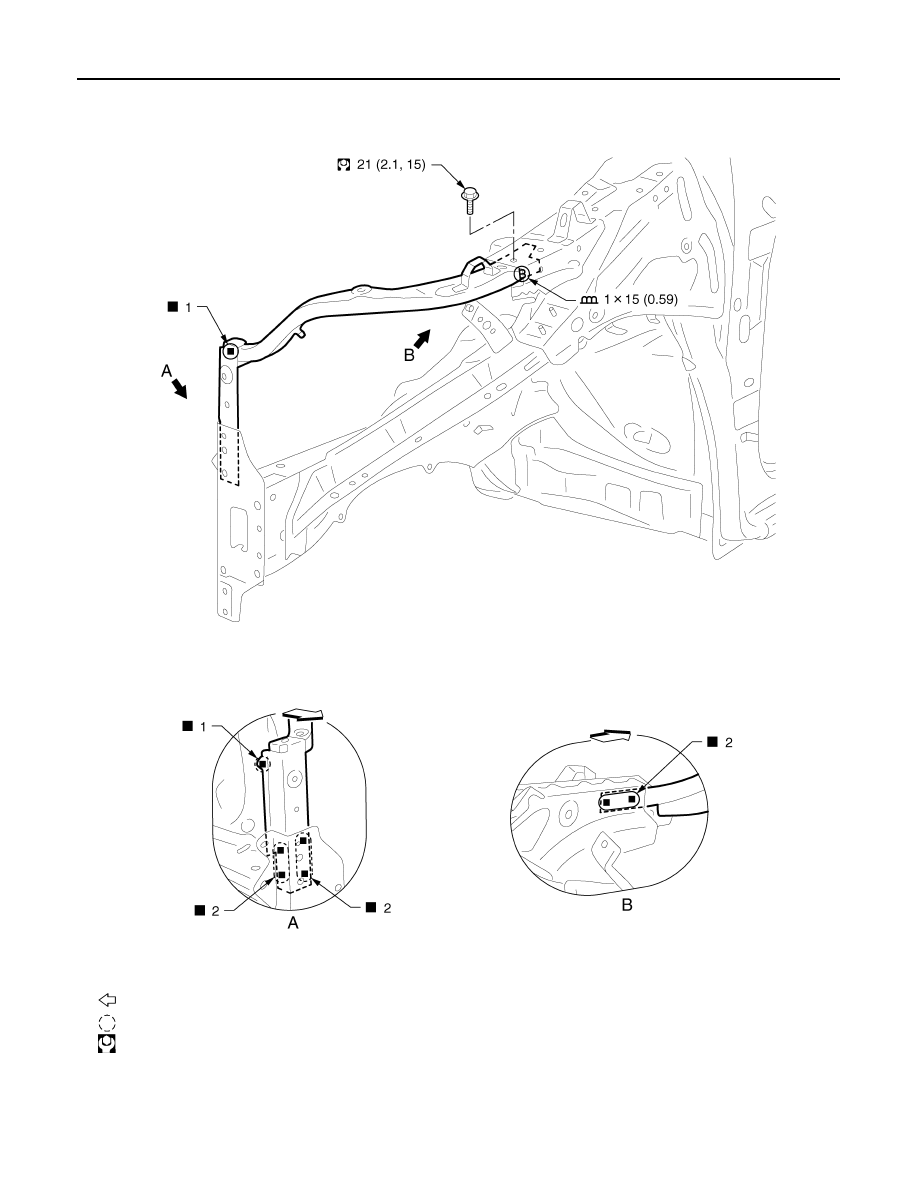

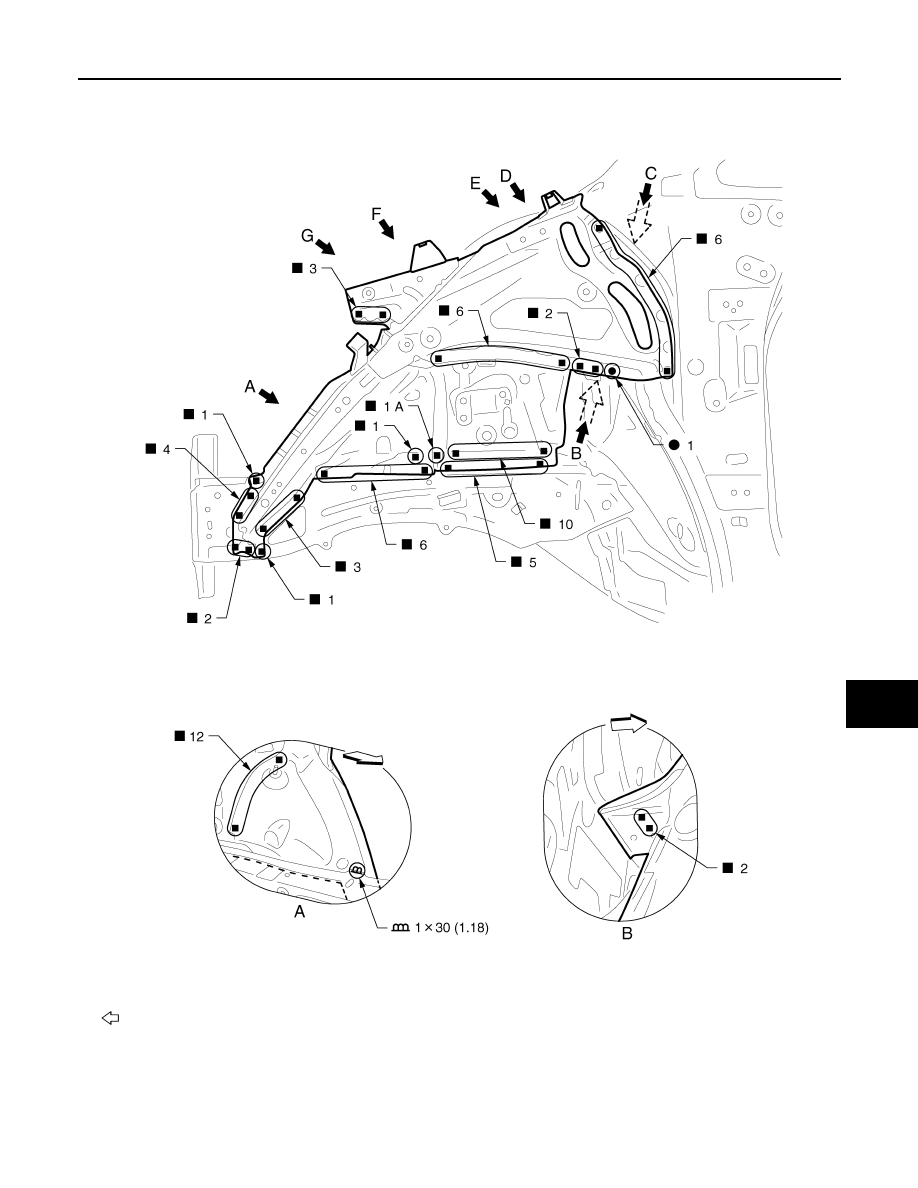

Replacement parts

z

Upper radiator core support

z

Side radiator core support

JSKIA2452GB

REPLACEMENT OPERATIONS

BRM-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Hoodledge

INFOID:0000000009648874

Work after radiator core support is removed.

Unit: mm (in)

: Vehicle front

Replacement parts

z

Hoodledge assembly

z

Hoodledge reinforcement

z

Lower front hoodledge

JSKIA2453GB

BRM-28

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

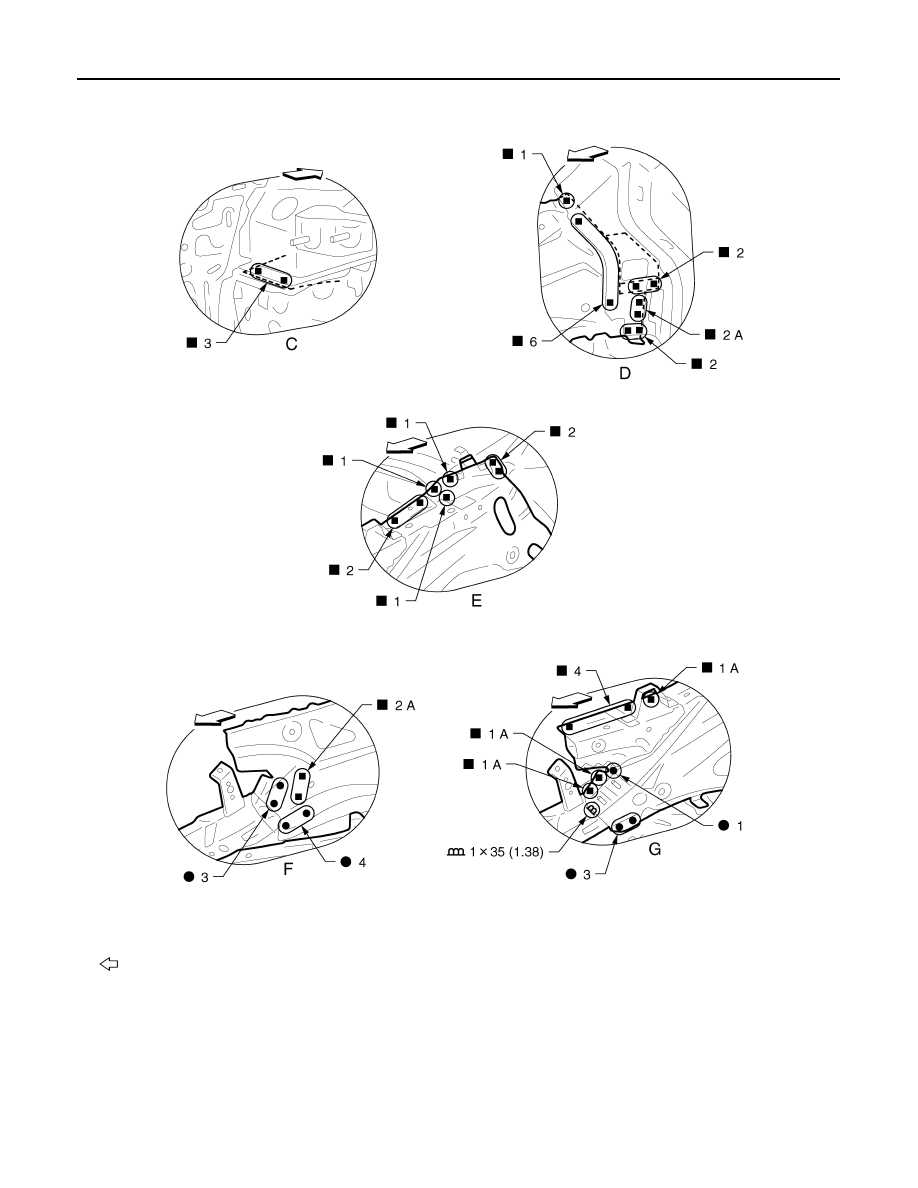

View D and F: Before installing hoodledge reinforcement

Hoodledge (Partial Replacement)

INFOID:0000000009648875

Work after radiator core support is removed.

Unit: mm (in)

: Vehicle front

JSKIA2454GB

REPLACEMENT OPERATIONS

BRM-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Front Side Member

INFOID:0000000009648876

Work after radiator core support and hoodledge are removed.

Unit: mm (in)

: Vehicle front

Replacement parts

z

Lower front hoodledge

JSKIA2455GB
