Nissan Quest E52. Manual - part 271





BRM-50

< SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

Description

INFOID:0000000009648889

• All dimensions indicated in the figures are actual.
• When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself

to make sure there is no free play.

• When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
• Measurements should be taken at the center of the mounting holes.
• An asterisk (*) following the value at the measuring point indicates that the measuring point on the other side

is symmetrically the same value.

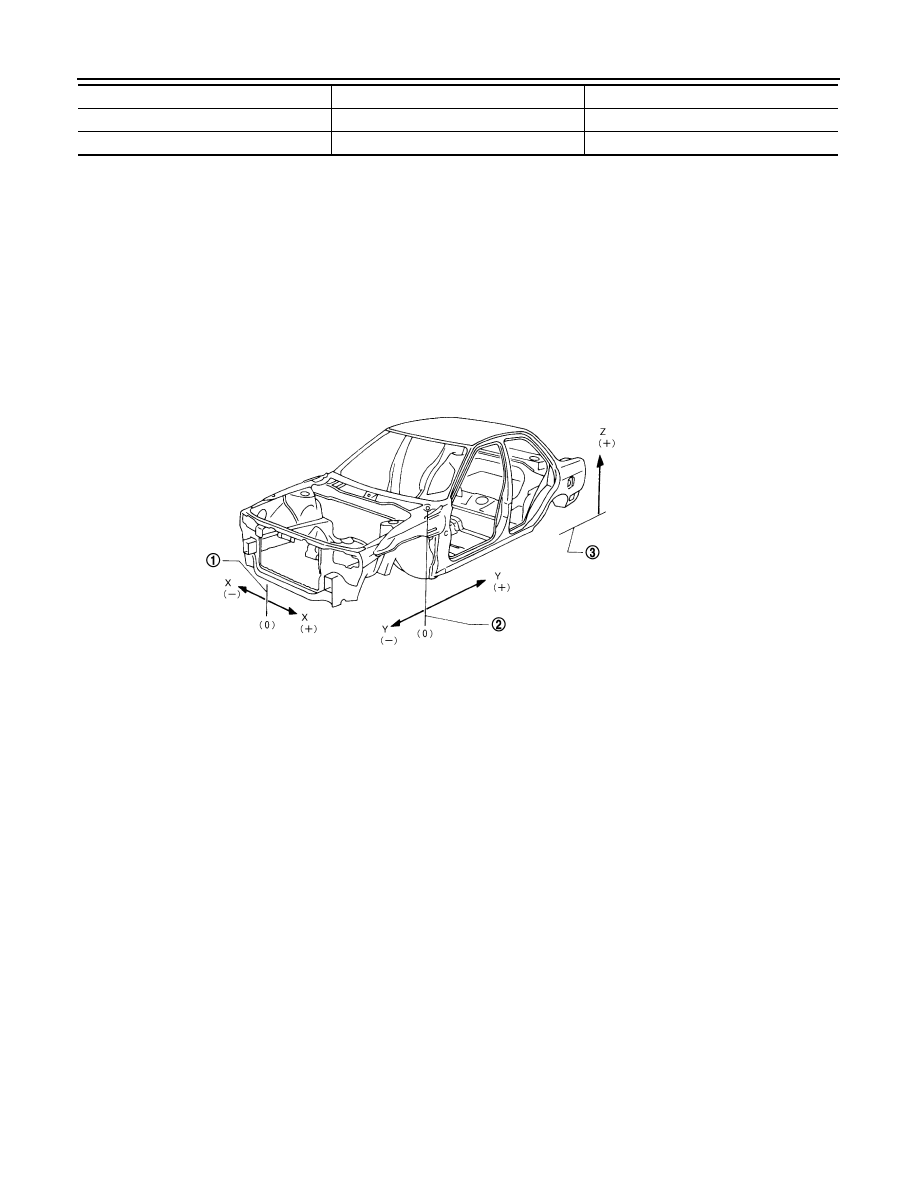

• The coordinates of the measurement points are the distances measured from the standard line of

X

Y

and

Z

.

Z

: Imaginary base line [200 mm (7.87 in) below datum line (

0Z

 at design plan)]

Engine Compartment

INFOID:0000000009648890

MEASUREMENT

Dimensions marked with

*

 indicate symmetrically identical dimensions on both the right and left hand of the

vehicle.

D

Rear floor front

Embossment

E

Rear roof

Embossment

Points

Portion

Marks

1.

Vehicle center

2.

Front axle center

3.

Imaginary base line

JSKIA0073GB

BODY ALIGNMENT

BRM-51

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

«The others»

Unit: mm (in)

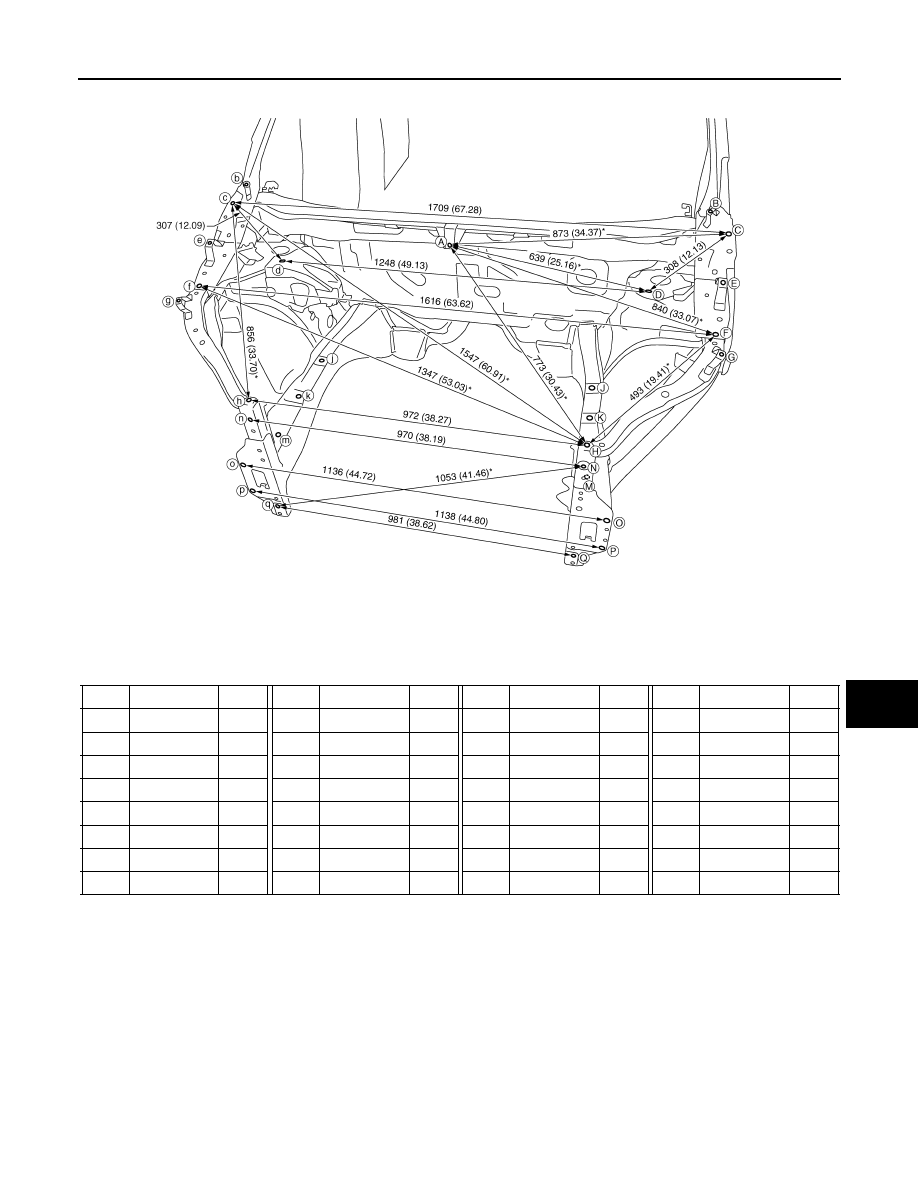

MEASUREMENT POINTS

Unit: mm (in)

JSKIA2484GB

Point

Dimension

Memo

Point

Dimension

Memo

Point

Dimension

Memo

Point

Dimension

Memo

A - B

818 (32.20)*

A - m

825 (32.48)

J - k

1002 (39.45)

N - o

1074 (42.28)*

A - E

826 (32.52)*

B - b

1581 (62.24)

J - m

1055 (41.54)

N - p

1107 (43.58)*

A - G

875 (34.45)*

C - d

1493 (58.78)*

j - K

985 (38.78)

O - p

1144 (45.04)*

A - J

681 (26.81)

C - F

403 (15.87)*

j - M

1056 (41.57)

O - q

1075 (42.32)*

A - j

688 (27.09)

C - f

1710 (67.32)*

K - k

986 (38.82)

P - q

1061 (41.77)*

A - K

712 (28.03)

E - e

1646 (64.80)

K - m

1015 (39.96)

A - k

738 (29.06)

G - g

1625 (63.98)

k - M

1007 (39.65)

A - M

828 (32.60)

J - j

973 (38.31)

M - m

990 (38.98)

BRM-52

< SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

Unit: mm (in)

: Vehicle front

JSKIA2485ZZ

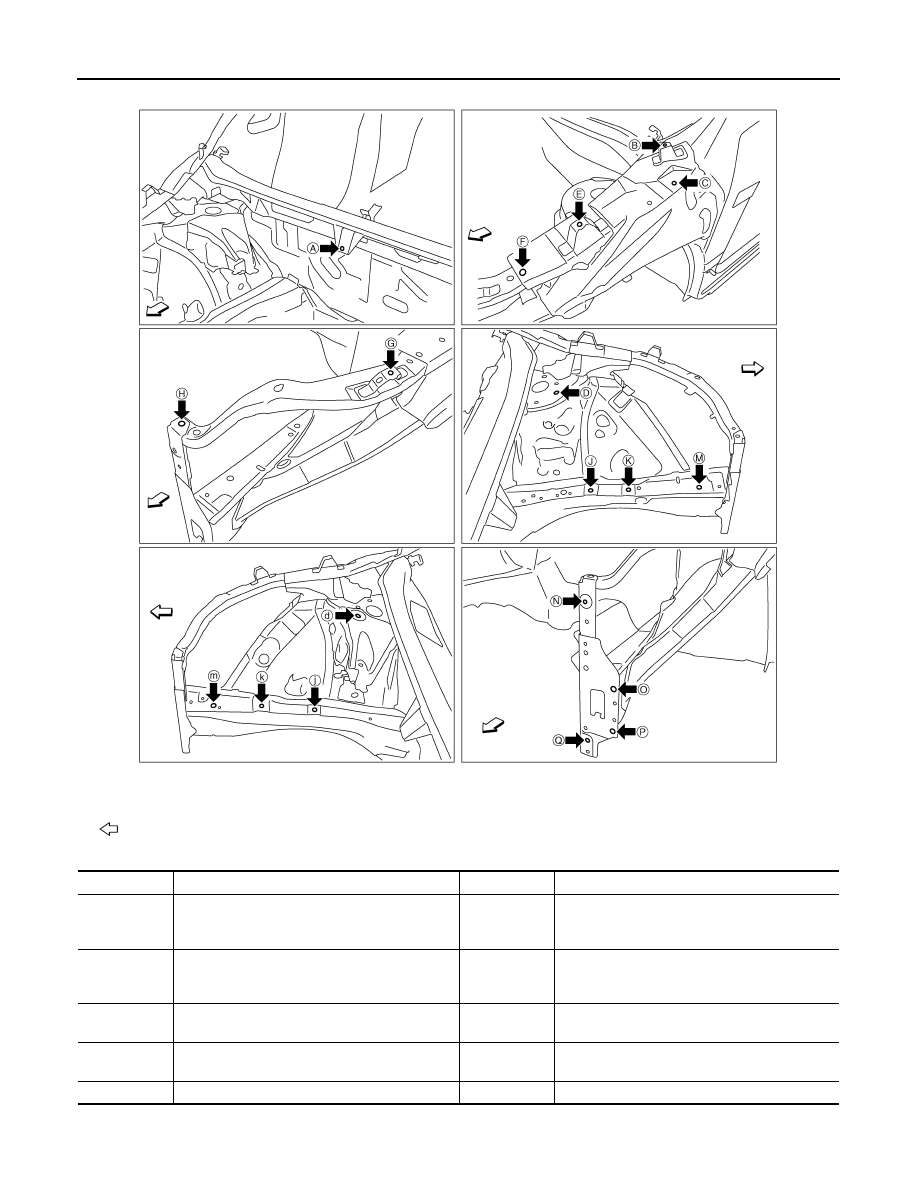

Point

Material

Point

Material

A

Center cowl top hole center of center positioning
mark

φ

7 (0.28)

H, h, N, n

Side radiator core support hole center
H, h:

φ

13 (0.51)

N, n:

φ

9 (0.35)

B, b, E, e, G, g

Front fender installing hole center

φ

7 (0.28)

J, j, K, k, M, m

Front side member hole center
J, j, K, k:

φ

14 (0.55)

M, m:

φ

16 (0.63)

C, c

Hood hinge installing hole center

φ

11 (0.43)

O, o, P, p

Front bumper stay installing hole center

φ

11

(0.43)

D, d

Front strut installing hole center 16

×

10

(0.63

×

0.39)

Q, q

Front side member connector hole center

φ

(0.35)

F, f

Hoodledge extension hole center

φ

13 (0.51)

BODY ALIGNMENT

BRM-53

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Underbody

INFOID:0000000009648891

MEASUREMENT

Dimensions marked with

*

 indicate symmetrically identical dimensions on both the right and left hand of the

vehicle.

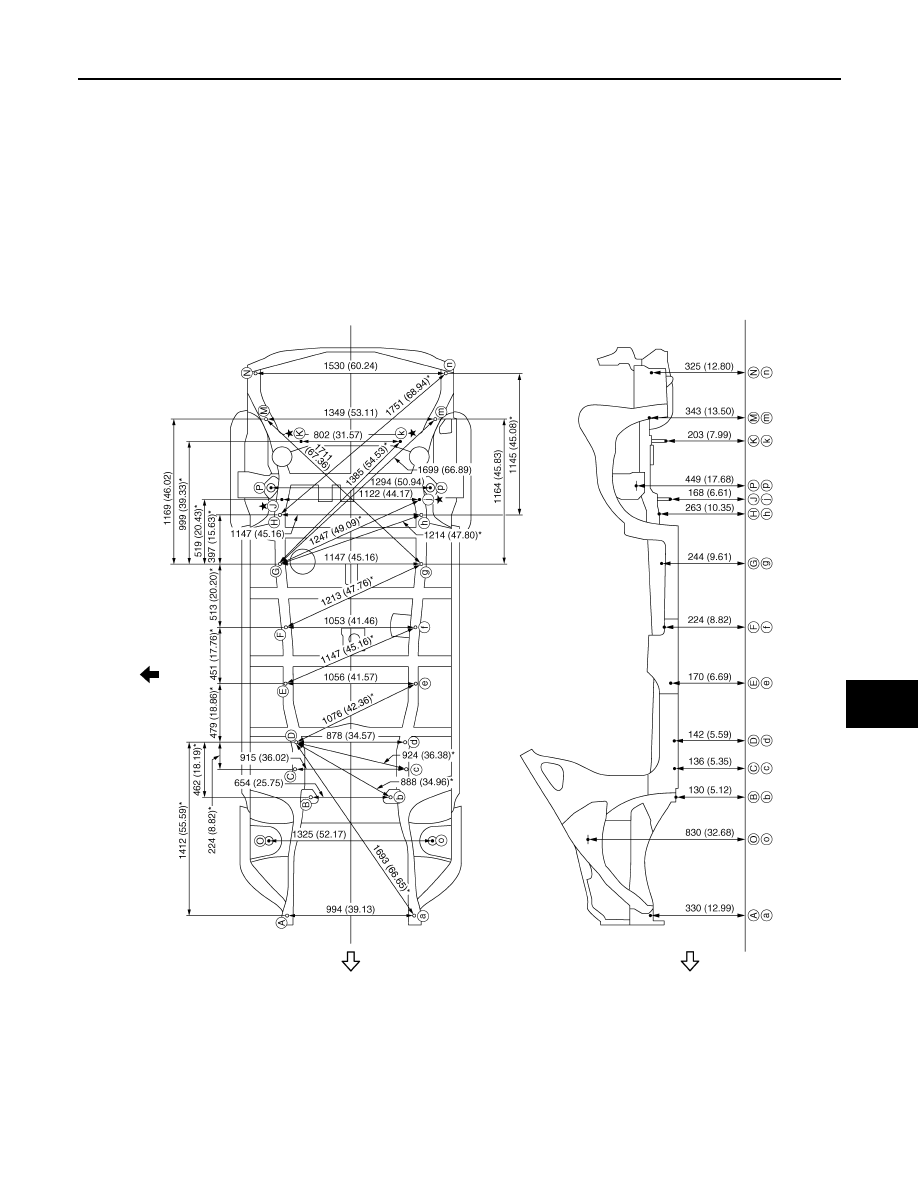

The following figure shows a bottom view and a side view of the vehicle.

JSKIA2486GB
