BRM-6

< PREPARATION >

REPAIRING MATERIAL

PREPARATION

REPAIRING MATERIAL

Foam Repair

INFOID:0000000009648862

During factory body assembly, foam insulators are installed in certain body panels and locations around the
vehicle. Use the following procedure(s) to replace any factory-installed foam insulators.

URETHANE FOAM APPLICATIONS

Use commercially available Urethane foam for sealant (foam material) repair of material used on vehicle.

Read instructions on product for fill procedures.

Example of foaming agent filling operation procedure

1.

Fill procedures after installation of service part.

a.

Eliminate foam material remaining on vehicle side.

b.

Clean area after eliminating form insulator and foam material.

c.

Install service part.

d.

Insert nozzle into hole near fill area and fill foam material or fill enough to close gap with the service part.

2.

Fill procedures before installation of service part.

a.

Eliminate foam material remaining on vehicle side.

b.

Clean area after eliminating foam insulator and foam material.

c.

Fill foam material on wheelhouse outer side.

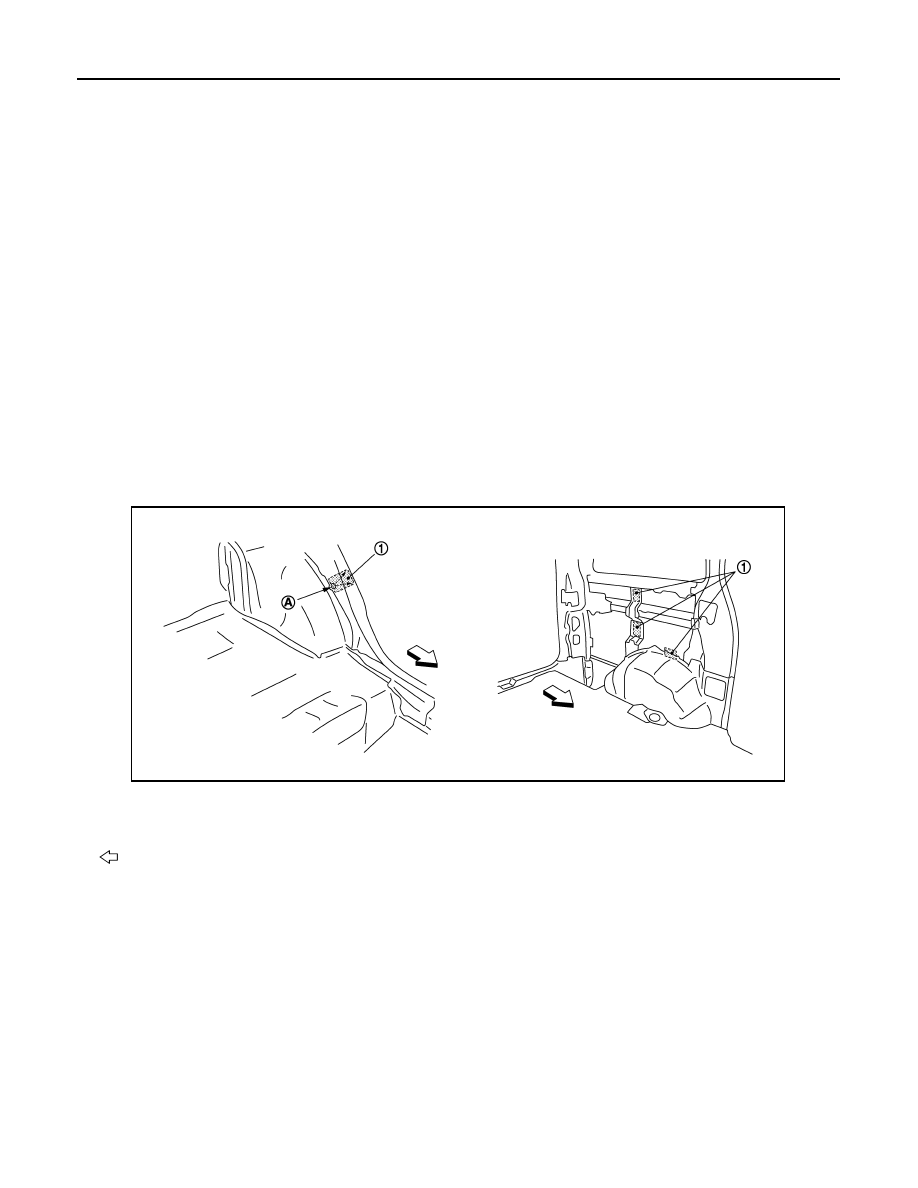

<Urethane foam for foaming agent>

3M™ Automix™ Flexible Foam 08463 or equiva-
lent

1.

Urethane foam

A.

Nozzle insert hole

: Vehicle front

JSKIA0129GB

REPAIRING MATERIAL

BRM-7

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

NOTE:
Fill enough to close gap with service part while avoiding flange
area.

d.

Install service part.
NOTE:
Refer to label for information on working times.

1.

Urethane foam

A.

Fill while avoiding flange area

: Vehicle front

JSKIA0130GB

BRM-8

< PREPARATION >

BODY COMPONENT PARTS

BODY COMPONENT PARTS

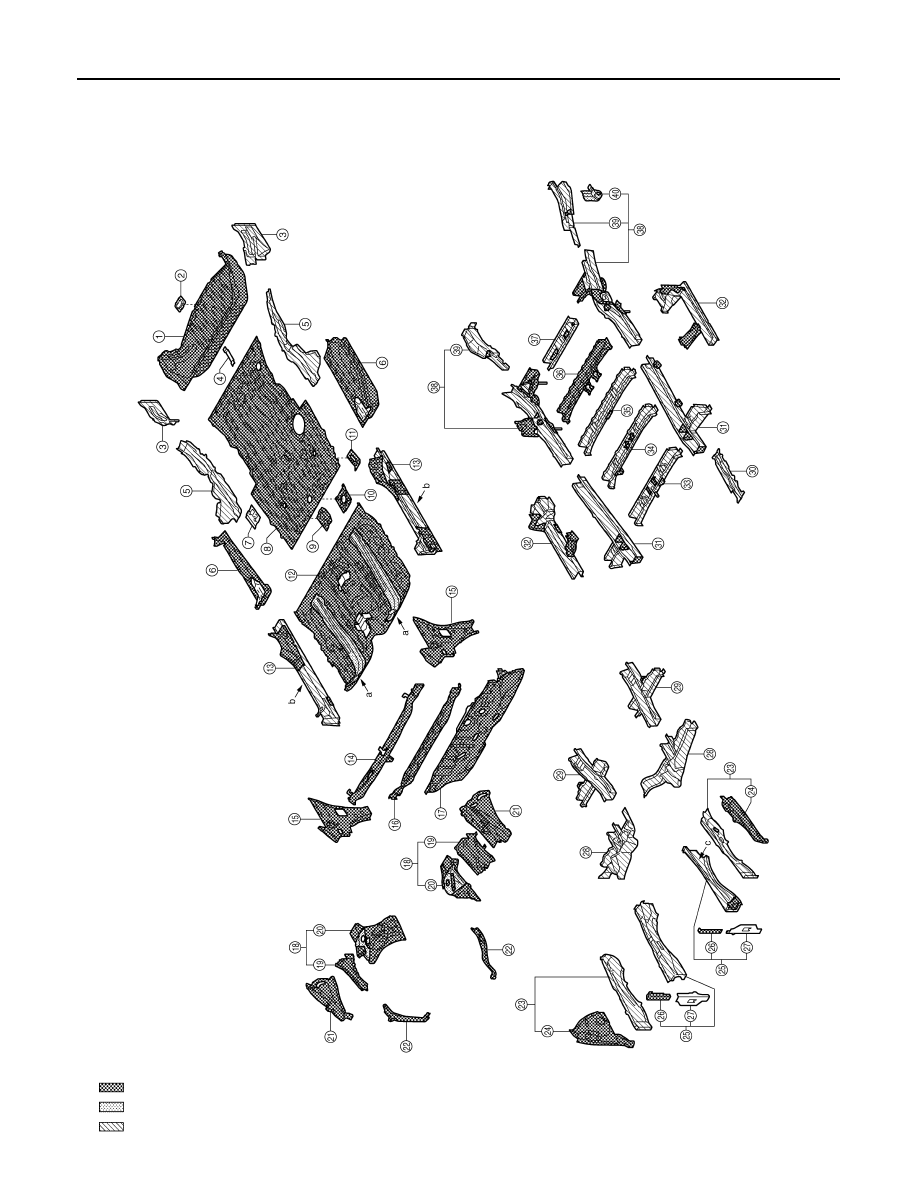

Underbody Component Parts

INFOID:0000000009648863

: Both sided anti-corrosive precoated steel sections

: High strength steel (HSS) sections

: Both sided anti-corrosive steel and HSS sections

JSKIA2474ZZ

BODY COMPONENT PARTS

BRM-9

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

No.

Parts name

Tensile strength

(MPa)

Both sided

anti-corrosive

precoated

steel sections

1.

Rear floor rear

Under 440

×

2.

Jack mounting bracket

Under 440

—

3.

Rear floor rear side (RH & LH)

590

×

4.

Woofer bracket assembly

Under 440

—

5.

Rear floor extension front (RH & LH)

590

×

6.

Inner sill step extension assembly (RH & LH)

Under 440

×

7.

Rear floor side reinforcement

Under 440

—

8.

Rear floor front

Under 440

×

9.

Spare tire mounting bracket (Right)

Under 440

×

10.

Spare tire mounting bracket (Center)

Under 440

×

11.

Parking brake reinforcement

Under 440

×

12.

Front floor

a.

T=2.0mm
(0.079 in)

1350 MPa

caution

780

×

13.

Inner sill (RH & LH)

b.

T=1.4mm
(0.055 in)

980 MPa

caution

590

×

14.

Center cowl top

Under 440

×

15.

Side dash (RH & LH)

Under 440

×

16.

Upper dash

Under 440

×

17.

Lower dash

590

×

18.

Hoodledge assembly (RH & LH)

Refer to No.19–20

19.

Upper hoodledge (RH & LH)

Under 440

×

20.

Lower rear hoodledge (RH & LH)

440

×

21.

Hoodledge reinforcement (RH & LH)

Under 440

×

22.

Upper radiator core support (RH & LH)

Under 440

×

23.

Front side member closing plate assembly (RH & LH)

780

×

24.

Lower front hoodledge (RH & LH)

Under 440

×

25.

Front side member assembly (RH & LH)

c.

T=2.0mm
(0.079 in)

980 MPa

caution

780

×

26.

Side radiator core support (RH & LH)

Under 440

×

27.

Front side member connector assembly (RH & LH)

Under 440

—

28.

Front side member extension front (RH & LH)

780

×

29.

Front side member extension center (RH & LH)

780

×

30.

Rear floor front stiffener

780

×

31.

Front side member extension rear (RH & LH)

780

×

32.

Rear sill assembly (RH & LH)

590

×

33.

3rd crossmember

590

×

34.

4th crossmember

440

×

35.

5th crossmember

590

×

36.

6th crossmember

590

×

37.

7th crossmember

590

×
