Nissan Quest E52. Manual - part 258





YAW RATE/SIDE/DECEL G SENSOR

BRC-125

< REMOVAL AND INSTALLATION >

[WITH VDC]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

YAW RATE/SIDE/DECEL G SENSOR

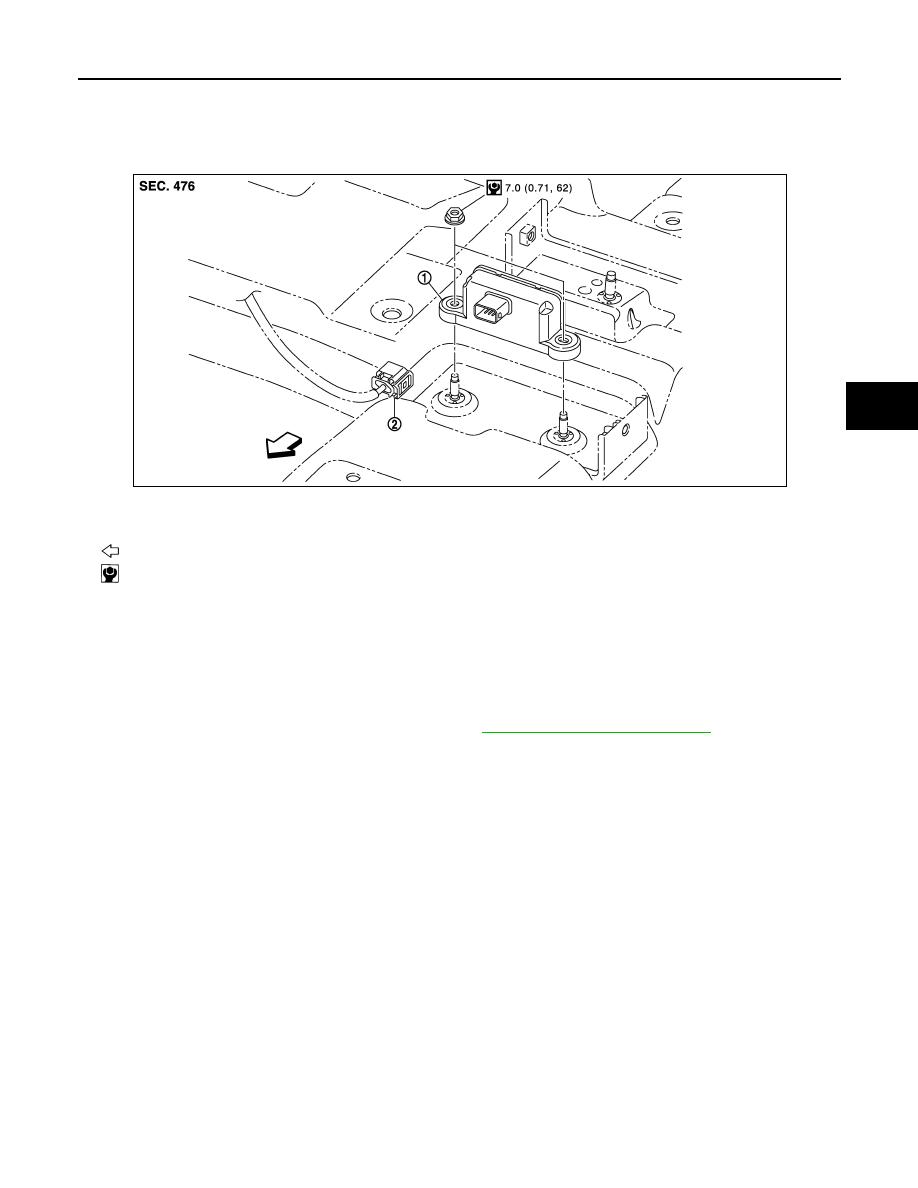

Exploded View

INFOID:0000000009651460

Removal and Installation

INFOID:0000000009651461

REMOVAL

CAUTION:

Never drop or strike yaw rate/side G sensor, because it has little endurance to impact. Never use a
pneumatic tool.

1.

Remove instrument lower cover LH and RH. Refer to

IP-14, "Removal and Installation"

.

2.

Disconnect yaw rate/side G sensor harness connector.

3.

Remove yaw rate/side G sensor.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Never drop or strike yaw rate/transverse G sensor, because it has little endurance to impact. Never use a

power tool.

1.

Yaw rate/side G sensor

2.

Yaw rate/side G sensor harness con-
nector

: Vehicle front

: N·m (kg-m, in-lb)

JPFIC0113GB

BRC-126

< REMOVAL AND INSTALLATION >

[WITH VDC]

STEERING ANGLE SENSOR

STEERING ANGLE SENSOR

Removal and Installation

INFOID:0000000009651462

REMOVAL

1.

Remove spiral cable assembly. Refer to

SR-15, "Removal and Installation"

.

2.

Remove steering angle sensor.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Perform steering angle sensor neutral position adjustment when steering angle sensor is removed and

installed, or replaced. Refer to

BRC-49, "Work Procedure"

.

VDC OFF SWITCH

BRC-127

< REMOVAL AND INSTALLATION >

[WITH VDC]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

VDC OFF SWITCH

Removal and Installation

INFOID:0000000009651463

REMOVAL

1.

Remove lower instrument panel. Refer to

IP-14, "Removal and Installation"

.

2.

Remove VDC OFF switch.

INSTALLATION

Installation is the reverse order of removal.

BRM-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

BRM

A

B

BRM

N

O

P

CONTENTS

BODY REPAIR

VEHICLE INFORMATION .............................

2

BODY EXTERIOR PAINT COLOR  .....................

2

Body Exterior Paint Color  ..........................................

2

PRECAUTION ...............................................

3

REPAIRING HIGH STRENGTH STEEL ..............

3

High Strength Steel (HSS) ......................................

3

Handling of Ultra High Strength Steel Plate Parts

......

5

PREPARATION ............................................

6

REPAIRING MATERIAL  .....................................

6

Foam Repair  .............................................................

6

BODY COMPONENT PARTS  .............................

8

Underbody Component Parts ....................................

8

Body Component Parts  ...........................................

11

REMOVAL AND INSTALLATION ...............

14

CORROSION PROTECTION  .............................

14

Description ..............................................................

14

Anti-corrosive Wax  ..................................................

14

Undercoating ...........................................................

15

Stone Guard Coat  ...................................................

16

Body Sealing  ...........................................................

17

BODY CONSTRUCTION ....................................

21

Body Construction ...................................................

21

Rear Fender Hemming Process ..............................

22

REPLACEMENT OPERATIONS .......................

24

Description ...............................................................

24

Radiator Core Support .............................................

26

Hoodledge ...............................................................

27

Hoodledge (Partial Replacement)  ...........................

28

Front Side Member ..................................................

29

Front Side Member (Partial Replacement)  ..............

30

Front Pillar  ...............................................................

32

Center Pillar .............................................................

36

Outer Sill (Partial Replacement)  ..............................

38

Outer Sill ..................................................................

39

Rear Fender  ............................................................

41

Rear Fender Extension ............................................

44

Rear Pillar Reinforcement  .......................................

45

Rear Panel ...............................................................

46

Rear Floor Rear .......................................................

47

Rear Side Member Extension ..................................

48

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

49

BODY ALIGNMENT  ..........................................

49

Body Center Marks ..................................................

49

Description ...............................................................

50

Engine Compartment ...............................................

50

Underbody ...............................................................

53

Passenger Compartment .........................................

55

Rear Body ...............................................................

57

LOCATION OF PLASTIC PARTS  ....................

59

Precautions for Plastics  ...........................................

59

Location of Plastic Parts  ..........................................

60
