VEHICLE JERKS DURING

Description

INFOID:0000000009651449

The vehicle jerks when VDC function, TCS function, ABS function, EBD function or brake limited slip differen-
tial (BLSD) function operates.

Diagnosis Procedure

INFOID:0000000009651450

1.

CHECK SYMPTOM

Check that the vehicle jerks when VDC function, TCS function, ABS function, EBD function or brake limited
slip differential (BLSD) function operates.

Is the inspection result normal?

YES

>> Normal

NO

>> GO TO 2.

2.

PERFORM SELF-DIAGNOSIS

With CONSULT

Perform self-diagnosis for “ABS”.
Is any DTC detected?

YES

>> Check the DTC. Refer to

BRC-38, "DTC Index"

.

NO

>> GO TO 3.

3.

CHECK CONNECTOR

With CONSULT

1.

Turn the ignition switch OFF.

2.

Disconnect ABS actuator and electric unit (control unit) harness connector.

3.

Check connector terminal for deformation, disconnection and looseness.

4.

Connect harness connector and perform self-diagnosis for “ABS” again.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Poor connection of connector terminal. Repair or replace connector terminal.

4.

CHECK ECM AND TCM SELF-DIAGNOSIS RESULTS

With CONSULT

Perform self-diagnosis for “ENGINE” and “TRANSMISSION”.

Is any DTC detected?

YES

>> Check the DTC.

NO

>> Replace ABS actuator and electric unit (control unit). Refer to

BRC-123, "Removal and Installa-

tion"

.

BRC-118

< SYMPTOM DIAGNOSIS >

[WITH VDC]

NORMAL OPERATING CONDITION

NORMAL OPERATING CONDITION

Description

INFOID:0000000009651451

Symptom

Result

Brake pedal slightly vibrates and operation sound (motor sound and sound from suspen-
sion) occurs when VDC function, TCS function, ABS function, EBD function or brake limited
differential (BLSD) function operates.

This is not a malfunction, The symptom
occurs VDC function, TCS function, ABS
function, EBD function and brake limited
differential (BLSD) function that are nor-
mally operated.

Brake stopping distance may become longer than models without ABS function depending
on the road conditions, when ABS function is operated on slippery road like rough road,
gravel road or snowy road.

Brake pedal vibrates and operation sound occurs during sudden acceleration and corner-
ing, when VDC function, TCS function or brake limited slip differential (BLSD) function is
operated.

Brake pedal vibrates and motor sound from the engine room occurs, when the engine starts
or the vehicle starts just after starting the engine.

This is not a malfunction, because it is
caused by operation check of ABS actua-
tor and electric unit (control unit).

Acceleration may be felt insufficient depending on the road conditions.

This is not a malfunction, because it is
caused by TCS function that puts the
highest priority to obtain the optimum
traction (stability).

TCS function may operate momentarily, while driving on a road where friction coefficient
varies, or when downshifting, or fully depressing accelerator pedal.

VDC warning lamp may turn ON, when the vehicle is on a rotating turntable or is given a
strong shaking or large vibrations on a ship while the engine is running.

In this case, restart the engine on a nor-
mal road. If the normal condition is re-
stored, there is no malfunction. In that
case, erase “ABS” self-diagnosis result
memory with CONSULT.

VDC warning lamp may turn ON and VDC function, TCS function and brake limited slip dif-
ferential (BLSD) function may not normally operate, when driving on a special road the is
extremely slanted (bank in a circuit course).

A malfunction in yaw rate/side G sensor system may be detected when the vehicle sharply
turns during a spin turn, acceleration turn or drift driving while VDC function, TCS function
and brake limited slip differential (BLSD) function are OFF (VDC OFF switch is pressed and
VDC OFF indicator lamp is in ON status).

The vehicle speed does not increase, when the accelerator pedal is depressed while the
vehicle is on a 2-wheel chassis dynamometer for speedometer check.

This is not a malfunction. (When checking
the vehicle on a chassis dynamometer,
operate VDC OFF switch so that TCS
function is OFF.)

WHEEL SENSOR

BRC-119

< REMOVAL AND INSTALLATION >

[WITH VDC]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

REMOVAL AND INSTALLATION

WHEEL SENSOR

FRONT WHEEL SENSOR

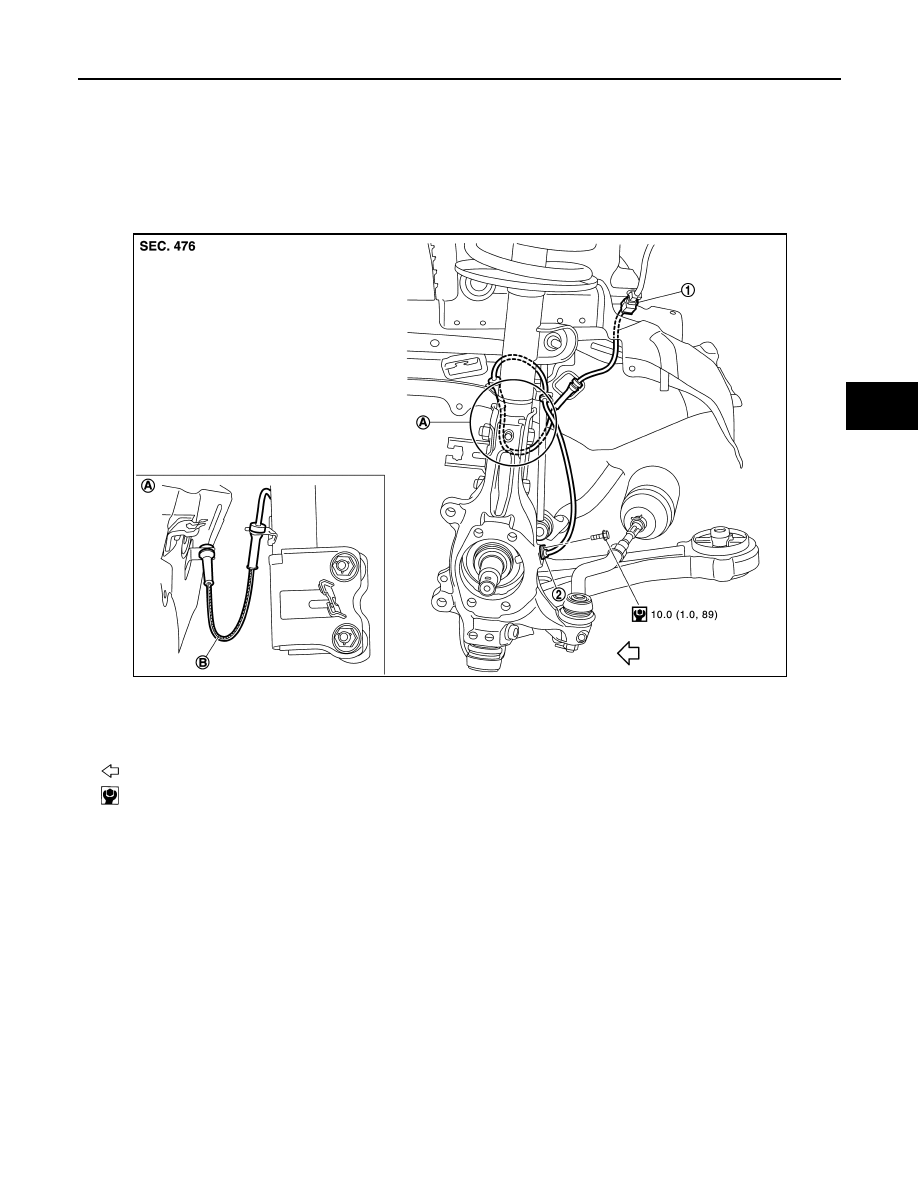

FRONT WHEEL SENSOR : Exploded View

INFOID:0000000009651452

NOTE:
Front RH wheel sensor is symmetrically opposite of LH.

FRONT WHEEL SENSOR : Removal and Installation

INFOID:0000000009651453

REMOVAL

1.

Remove tires with power tool.

2.

Remove front wheel sensor from steering knuckle.

CAUTION:

Never rotate and never pull front wheel sensor as much as possible, when pulling out.

3.

Remove front wheel sensor harness from the vehicle.

CAUTION:

Never twist or pull front wheel sensor harness, when removing.

INSTALLATION

Note the following, and install in the reverse order of the removal.

1.

Front LH wheel sensor harness con-
nector

2.

Front LH wheel sensor

B.

Identification line

: Vehicle front

: N·m (kg-m, in-lb)

JSFIA0598GB

BRC-120

< REMOVAL AND INSTALLATION >

[WITH VDC]

WHEEL SENSOR

• Check that there is no foreign material like iron powder or damage on inner surface of front wheel sensor

mounting hole of steering knuckle and sensor rotor. Install after cleaning when there are foreign material like
iron powder, or replace when there is a malfunction.

• Never twist front wheel sensor harness when installing front wheel

sensor. Check that grommet (2) is fully inserted to bracket (1).
Check that front wheel sensor harness is not twisted after installa-
tion.

CAUTION:

Check that the identification line of the front wheel sensor is
faced vehicle front.

REAR WHEEL SENSOR

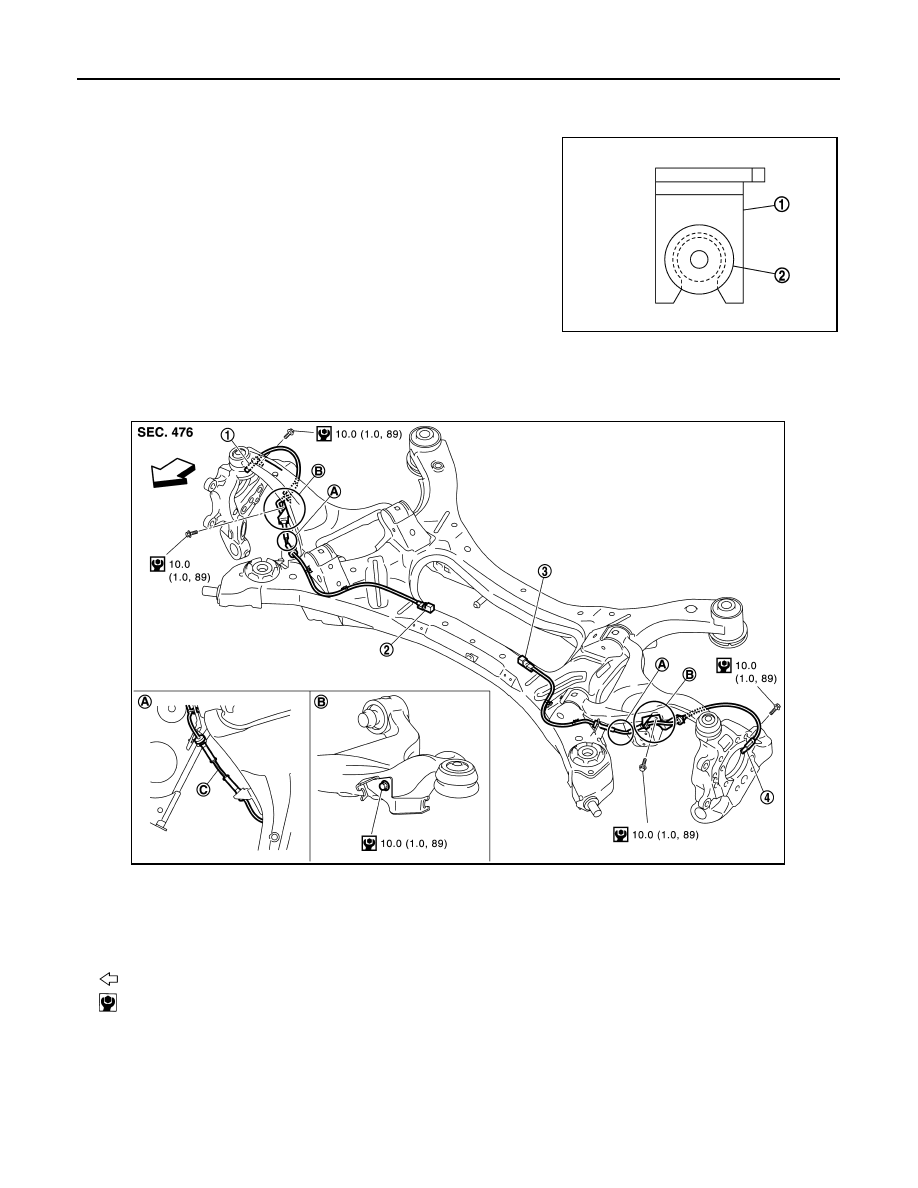

REAR WHEEL SENSOR : Exploded View

INFOID:0000000009651454

REAR WHEEL SENSOR : Removal and Installation

INFOID:0000000009651455

REMOVAL

1.

Remove rear wheel sensor from rear axle housing.

CAUTION:

JPFIC0209ZZ

1.

Rear RH wheel sensor

2.

Rear RH wheel sensor harness con-
nector

3.

Rear LH wheel sensor harness con-
nector

4.

Rear LH wheel sensor

C.

Identification line

: Vehicle front

: N·m (kg-m, in-lb)

JSFIA0599GB
