BODY COMPONENT PARTS

NOTE:

• For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.

• In the above table, Tensile strength (MPa) column shows the highest tensile strength of the part excluding the area using ultra high

strength steel.

CAUTION:

If the high strength steel (ultra high strength steel) of this is broken, replace by assembly for the supply part.

38.

Rear side member (RH & LH)

590

×

39.

Rear side member extension (RH & LH)

590

×

40.

Rear tie down hook

440

—

No.

Parts name

Tensile strength

(MPa)

Both sided

anti-corrosive

precoated

steel sections

BODY COMPONENT PARTS

BRM-11

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

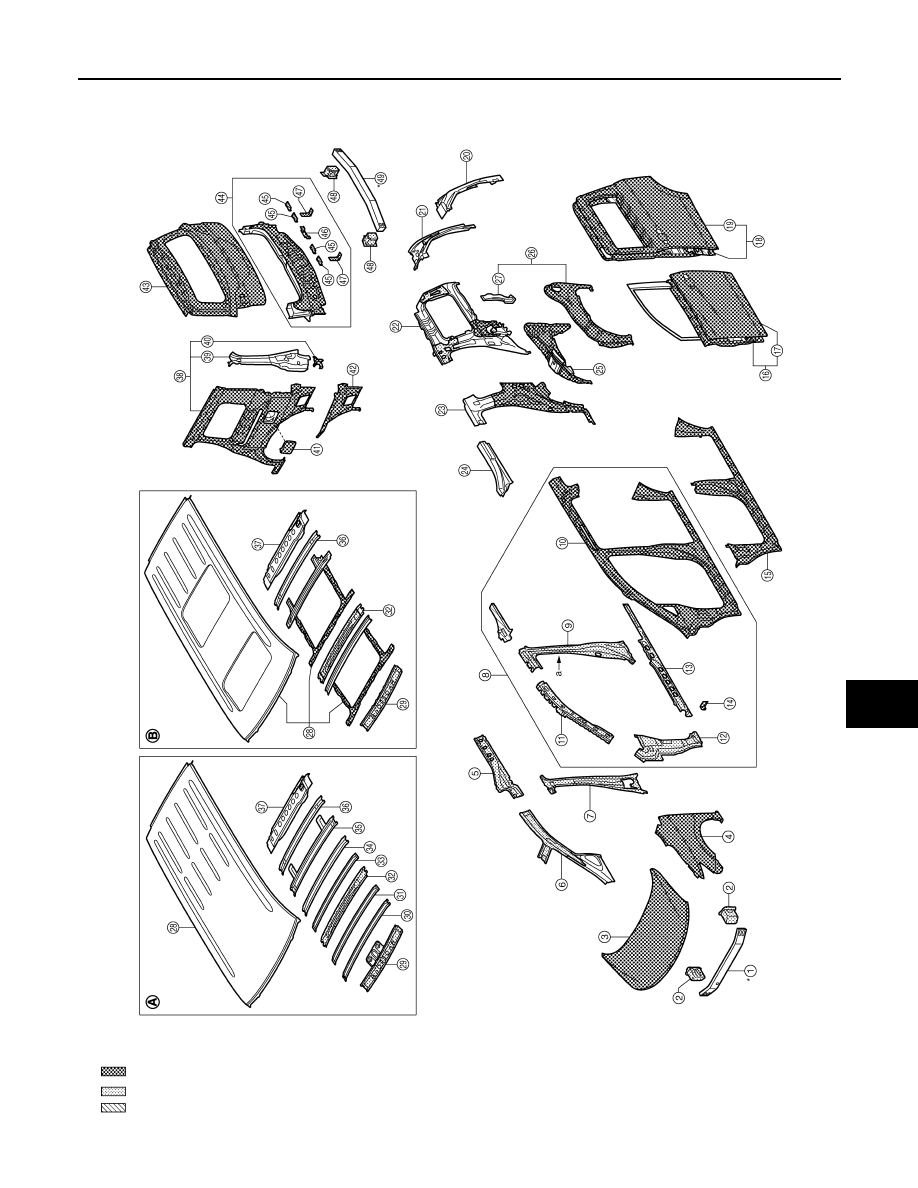

Body Component Parts

INFOID:0000000009648864

A.

Standard roof models

B.

With sunroof models

: Both sided anti-corrosive precoated steel sections
: High strength steel (HSS) sections

: Both sided anti-corrosive steel and HSS sections

*: Aluminum portion

JSKIA2475ZZ

BRM-12

< PREPARATION >

BODY COMPONENT PARTS

No.

Parts name

Tensile strength

(MPa)

Both sided

anti-corrosive

precoated

steel sections

Aluminum

portion

1.

Front bumper armature assembly

—

—

×

2.

Front bumper stay (RH & LH)

440

—

—

3.

Hood

Under 440

×

—

4.

Front fender (RH & LH)

Under 440

×

—

5.

Inner side roof rail (RH & LH)

590

—

—

6.

Upper inner front pillar (RH & LH)

590

—

—

7.

Inner center pillar (RH & LH)

590

—

—

8.

Side body assembly (RH & LH)

Refer to No.9–14

9.

Center pillar reinforcement (RH & LH)

a.

T=1.8mm
(0.071 in)

980 MPa

caution

590

—

—

10.

Outer front side body (RH & LH)

440

×

—

11.

Upper front pillar reinforcement (RH & LH)

590

—

—

12.

Front pillar brace (RH & LH)

590

—

—

13.

Outer sill reinforcement (RH & LH)

590

×

—

14.

Front fender bracket assembly (RH & LH)

Under 440

×

—

15.

Outer sill (RH & LH)

Under 440

×

—

16.

Front door assembly (RH & LH)

Under 440

×

—

17.

Outer front door panel (RH & LH)

Under 440

×

—

18.

Slide door assembly (RH & LH)

590

×

—

19.

Outer slide door panel (RH & LH)

Under 440

×

—

20.

Back pillar reinforcement assembly (RH & LH)

440

—

—

21.

Inner back pillar (RH & LH)

440

—

—

22.

Inner rear pillar (RH & LH)

440

—

—

23.

Inner rear pillar reinforcement (RH & LH)

Under 440

×

—

24.

Outer side roof rail (RH & LH)

Under 440

—

—

25.

Inner rear wheelhouse (RH & LH)

440

×

—

26.

Outer rear wheelhouse (RH & LH)

Under 440

×

—

27.

Outer rear wheelhouse extension (RH & LH)

Under 440

—

—

28.

Roof

Under 440

—

—

29.

Front roof rail

590

—

—

30.

Front roof rail rear

Under 440

—

—

31.

Roof bow No. 1

Under 440

—

—

32.

Roof bow No. 2

590

—

—

33.

Roof bow No. 3

Under 440

—

—

34.

Roof bow No. 4

Under 440

—

—

35.

Roof bow No. 5

Under 440

—

—

36.

Rear roof bow

Under 440

—

—

37.

Rear roof rail

440

—

—

38.

Rear fender (RH & LH)

Under 440

×

—

39.

Outer back pillar (RH & LH)

Under 440

—

—

40.

Rear fender extension (RH & LH Bracket)

Under 440

×

—

BODY COMPONENT PARTS

BRM-13

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

NOTE:

• For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.

• In the above table, Tensile strength (MPa) column shows the highest tensile strength of the part excluding the area using ultra high

strength steel.

CAUTION:

If the high strength steel (ultra high strength steel) of this is broken, replace by assembly for the supply part.

41.

Fuel filler lid

Under 440

×

—

42.

Rear fender extension (RH & LH)

Under 440

×

—

43.

Back door

Under 440

×

—

44.

Upper rear panel

Under 440

×

—

45.

Upper rear bumper retainer

Under 440

×

—

46.

Upper rear bumper retainer (center)

Under 440

×

—

47.

Rear bumper fascia bracket

Under 440

×

—

48.

Rear bumper stay (RH & LH)

440

—

—

49.

Inner center rear bumper reinforcement

—

—

×

No.

Parts name

Tensile strength

(MPa)

Both sided

anti-corrosive

precoated

steel sections

Aluminum

portion
