Nissan Quest E52. Manual - part 143

SYSTEM

AV-451

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

Audio system operation can be performed with multifunction switch, preset switch, steering switch, touch
panel function or voice recognition function.
• Operating signal is transmitted to AV control unit with AV communication when it is operated by multifunction

switch or preset switch.

• The disk eject signal is transmitted to AV control unit by hardwire, when disk eject switch is operated.
• Operating signal is transmitted to AV control unit with steering switch signal when it is operated by steering

switch.

• Operation status of audio is indicated at front display.

AM/FM Radio Function

• AM/FM radio tuner is built into AV control unit.
• AM/FM radio wave is received by radio antenna, next it is amplified by antenna amp., and finally it is input to

AV control unit.

• FM radio wave is received by FM sub antenna, and it is transmitted to the AV control unit directly.
• Audio signal is input to BOSE amp. and BOSE amp. outputs to woofer and each speaker.

Satellite Radio Function

• Satellite radio tuner is built into AV control unit.
• Sound signal and data signal (satellite radio) are received by satellite radio antenna. There are input to AV

control unit. AV control unit outputs sound signal to woofer and each speaker via BOSE amp. and data sig-
nal to front display unit.

CD Function

• CD function is built into AV control unit.
• AV control unit outputs sound signal to BOSE amp., and BOSE amp. outputs to woofer and each speaker

when CD is inserted to AV control unit.

• For further information about CD function specifications, refer to

AV-433, "AV Control Unit"

Bluetooth

Audio Function

• Bluetooth

audio function is adopted to play music data in the portable audio in wireless communication.

• Five units of Bluetooth

communication devices including audio devices and cellular phones can be regis-

tered to the AV control unit.

• When the Bluetooth

audio is connected to the portable audio through Bluetooth

, it can play the music data

in the portable audio.

• For further information about Bluetooth

compliant profile, refer to

AV-433, "AV Control Unit"

Speed Sensitive Volume Function

• The AV control unit receives the vehicle speed signal from the combination meter via CAN communication

and changes the sound volume in conjunction with the vehicle speed.

• The control level can be selected by the customer.

DVD PLAY FUNCTION

• DVD is played by inserting DVD into the AV control unit.
• DVD image signals are transmitted to the front display unit, and DVD sound signals are transmitted to

woofer and each speaker via BOSE amp.

• DVD image signals are transmitted to rear display unit via video distributor, and DVD sound signals are

transmitted to rear display unit. The rear display unit transmits the sound signals to the headphone via infra-
red communication.

• For further information about DVD function specifications, refer to

AV-433, "AV Control Unit"

MOBILE ENTERTAINMENT SYSTEM

Image and sound (DVD, USB memory-stored video data, and auxiliary input) played by AV control unit can be
enjoyed in rear seat using rear display unit and headphone.

Operating Signal

• The mobile entertainment system can be controlled by one of the remote controller.
• It receives the operation signal of the remote controller by the remote control receiver built into rear display

unit, and then transmits it to the AV control unit.

Headphone Sound

Headphone sound signals are transmitted to infrared communication between rear display unit and head-
phone.

Screen rear display

AV-452

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

SYSTEM

• Image signal output from AV control unit is transmitted to the rear display unit.
• The rear display unit receives the composite image signal (DVD, USB memory-stored video data, and auxil-

iary input) from the AV control unit.

• The rear display unit switches composite images through the communications with the AV control unit via AV

communication.

BLUETOOTH

HANDS-FREE PHONE FUNCTION

• When the cellular phone is connected to the AV control unit in Bluetooth

communication, hands-free phone

communication can be performed.

• Simply operating the steering switch without releasing hands from the steering wheel allows the driver to

make a phone call or receive a phone call.

• When a Bluetooth

communication compliant phone is registered to the AV control unit, hands-free phone

communication can be performed. Five units of Bluetooth

communication devices including audio devices

and cellular phones can be registered to the AV control unit.

• The content of the memory (telephone book) of the cellular phone can be recorded in the AV control unit.
• For further information about Bluetooth

compliant profile, refer to

AV-433, "AV Control Unit"

When A Call Is Originated

Spoken voice sound output from the microphone (microphone signal) is input to AV control unit. AV control unit
outputs to cellular phone with Bluetooth

communication as a TEL voice signal. Voice sound is then heard at

the other party.

When Receiving A Call

Voice sound is input to own cellular phone from the other party. TEL voice signal is output to door speaker, and
the signal is input to BOSE amp. via AV control unit by establishing Bluetooth

communication from cellular

phone.

AUXILIARY INPUT FUNCTION

• Image and sound can be output from an external device by connecting a device with front auxiliary input

jacks.

• AUX image signals are transmitted to front and rear display unit via AV control unit
• AUX sound signals are transmitted to each unit as follows:
- To each speaker via AV control unit and BOSE amp.
- To the rear display unit via AV control unit, and headphone sound signals are transmitted to infrared commu-

nication between rear display unit and headphone.

USB CONNECTION FUNCTION

• Connecting iPod

or USB memory allows the driver to play iPod

music files or USB memory-stored music

files, video data, and image viewer data.

• Sound signals of music files stored in iPod

or USB memory are transmitted from the USB connector to the

AV control unit. The AV control unit transmits the sound signals to the BOSE amp. and video distributor.

• Sound signals transmitted from the BOSE amp. to woofer and each speaker, and sound signals transmitted

to headphone via rear display unit

• Video signals and image viewer file signals are transmitted from the USB connector to the AV control unit.

The data and files are displayed on the front display unit screen.

• Video signals are transmitted from the USB connector to the AV control unit. The data and files are displayed

on the rear display unit screen.

• iPod

is recharged when connected to USB connector.

• Compliant USB memory and data recorded are limited.

• Only files that meet the following conditions will be played.

USB memory

USB2.0

File system

FAT16

FAT32

Music file

Video file

Image viewer file

File format

“MP3”, “WMA”, “AAC”, “M4A”

“DivX”, “MPEG4 (ASF)”

“JPEG”

SYSTEM

AV-453

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

NOTE:
• iPod

is a trademark of Apple inc., registered in the U.S. and other countries.

• Image signals cannot be received from iPod

• Use the enclosed USB harness when connecting iPod

to USB connector.

• If a video-sound codec combination is not satisfied, its video file may not be played.
• Signals cannot be transmitted to video distributor under the following conditions:
- Only sound signal or only image viewer data is stored in iPod

- Only sound signal or only image viewer data is stored in USB memory

VOICE RECOGNITION FUNCTION

• By speaking a command, operations of navigation and hands-free phone can be performed.
• To perform the voice control, press the

switch of the steering switch. The system changes to the speech

reception status. When a command is spoken, the speech recognition result is displayed, and the operation
is executed.

• The voice control cannot be performed under the conditions listed below.
- When the hand-free phone is used
- When the vehicle is moving backwards

Major Functions

With this function, the list of commands used for telephone, and navigation operation can be checked.

TOUCH PANEL SYSTEM

Each operation of multi AV system can be performed by directly touching a front display.

AROUND VIEW MONITOR FUNCTION

• This system is equipped with wide-angle cameras on the front and rear of the vehicle and on both right and

left door mirrors. The images from front view, rear view, front-side view (RH side), and birds-eye view that
shows the view from the top of the vehicle are displayed to monitor the vehicle surroundings.

• Around view monitor control unit cuts out and expands the image received from each camera to create each

view.

• In front view and rear view, the vehicle width, distance lines and predictive course lines are superimposed

and displayed. In front-side view, the vehicle distance guiding line and vehicle width guiding line are dis-
played.

• The Birds-Eye view converts the images from 4 cameras into the overhead view and displays the status of

the vehicle on display. The vehicle icon that are displayed on the Birds-Eye view display are rendered by
around view monitor control unit.

Around View Monitor Screen

• Around view monitor combines and displays the travel direction view and “Birds-Eye view”, “Front-Side

view”.

• Around view monitor control unit renders the view icon and warning message on display. Language of warn-

ing message can be selected by CONSULT.

• Around view monitor control unit renders the view icon and warning message on display.

File extension

“.mp3”, “.wma”, “.aac”, “.m4a”

“.divx”, “.afs”, “.avi”

“.jpg”, “.jpeg”

Maximum file size

2 GB

2 MB

Music file

Video file

Image viewer file

AV-454

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

SYSTEM

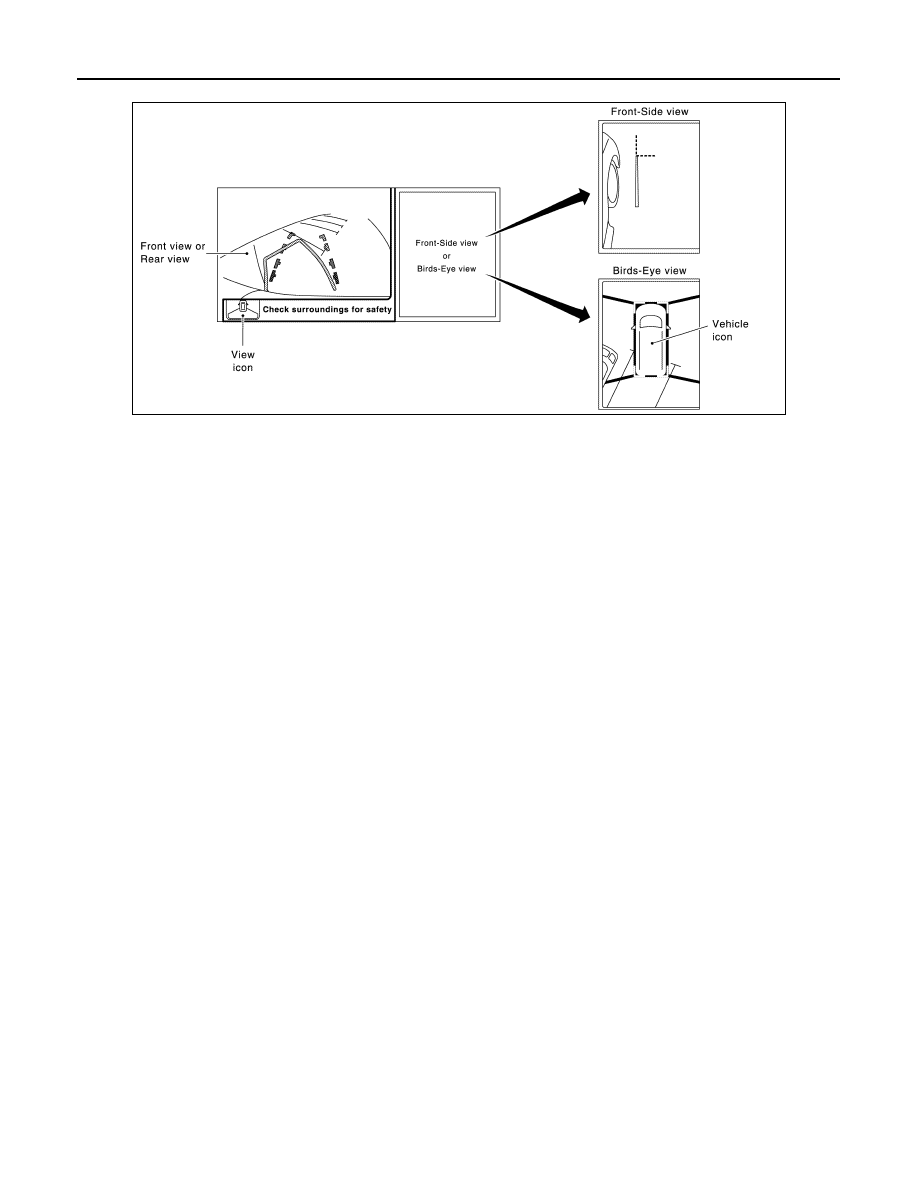

Screen constitution

Operation Description

• Around view monitor operates by pressing the “CAMERA” switch or shifting the selector lever to the reverse

position.

• When the selector lever is in any position other than the reverse position, the screen is switched to the

around view monitor by pressing the “CAMERA” switch.

• The screen is switched to the around view monitor by shifting the selector lever to the reverse position.
• In the around view monitor, Birds-Eye view, Front-side view can be switched by pressing the “CAMERA”

switch.

• The around view monitor is cancelled 3 minutes after pressing the “CAMERA” switch, and then the screen

returns to the screen before displaying the around view monitor when selector lever is in a position other
than the reverse position.

• In the Birds-Eye view, the invisible area is displayed to show the border of 4 camera images. In addition, red

fixed lines are displayed in 4 corners of the vehicle icon. After turning the ignition switch ON, the invisible
area is highlighted with yellow and red fixed lines are blink only once.

JSNIA3982GB
