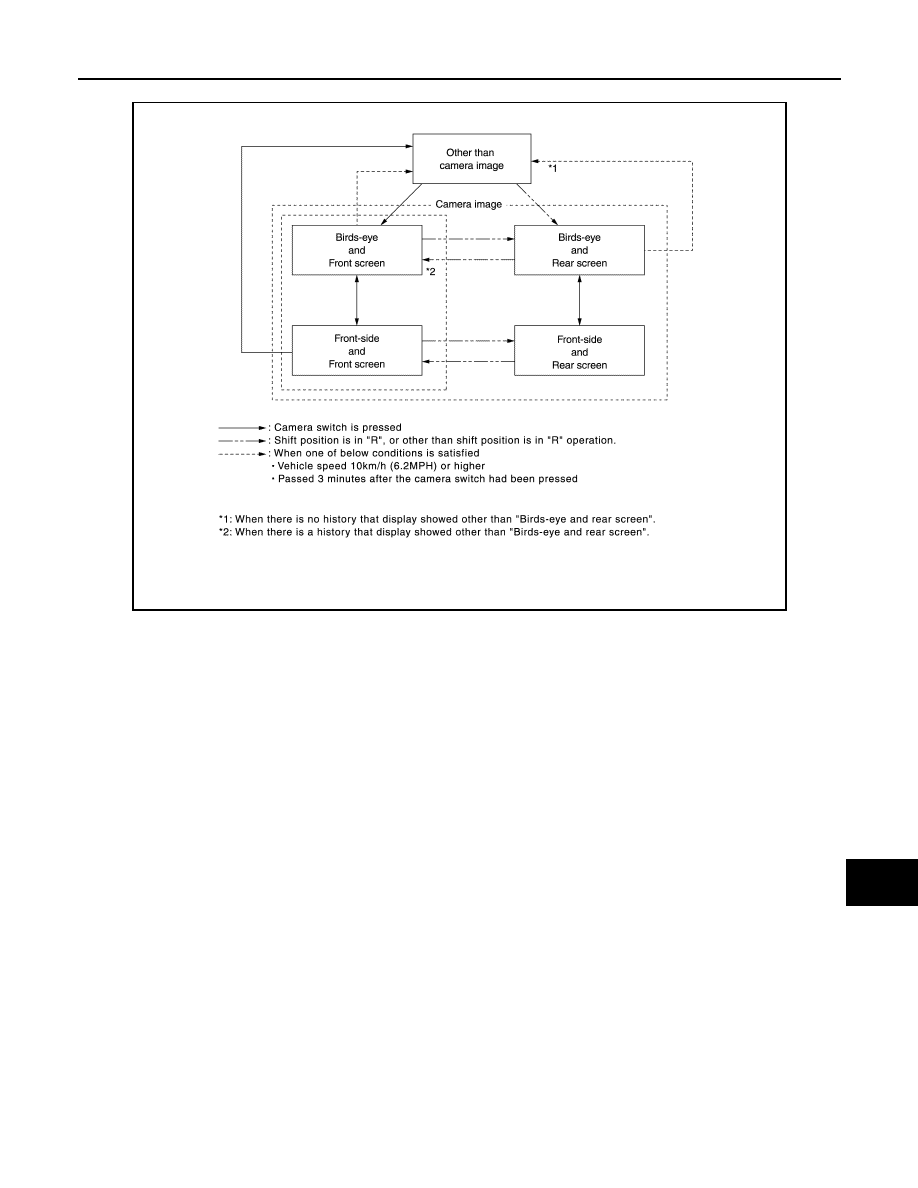

Around view monitor screen transition

FRONT VIEW

• The front view image is from the front camera.
• When the selector lever is in any position other than the reverse position, the front view is displayed by

pressing the “CAMERA” switch. It improves the visibility of obstacles in front of the vehicle and helps driving
by the images displayed from Birds-Eye view and Front-Side view.

• Display the vehicle width guiding line and vehicle distance guiding line in front view and display the predic-

tive course line according to the steering angle.

• If the steering angle is within approximately 90 degrees, the predictive course lines on the left/right side are

displayed. If the steering angle is exceeding approximately 90 degrees, only the predictive course line on the
outside (in the opposite side of steering direction) is displayed.

• Around view monitor control unit receives the steering angle signal from steering angle sensor via CAN com-

munication, and controls the direction and distance of the predictive course line.

• ON/OFF setting of predictive course line can be performed by CONSULT

JSNIA4607GB

AV-456

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

SYSTEM

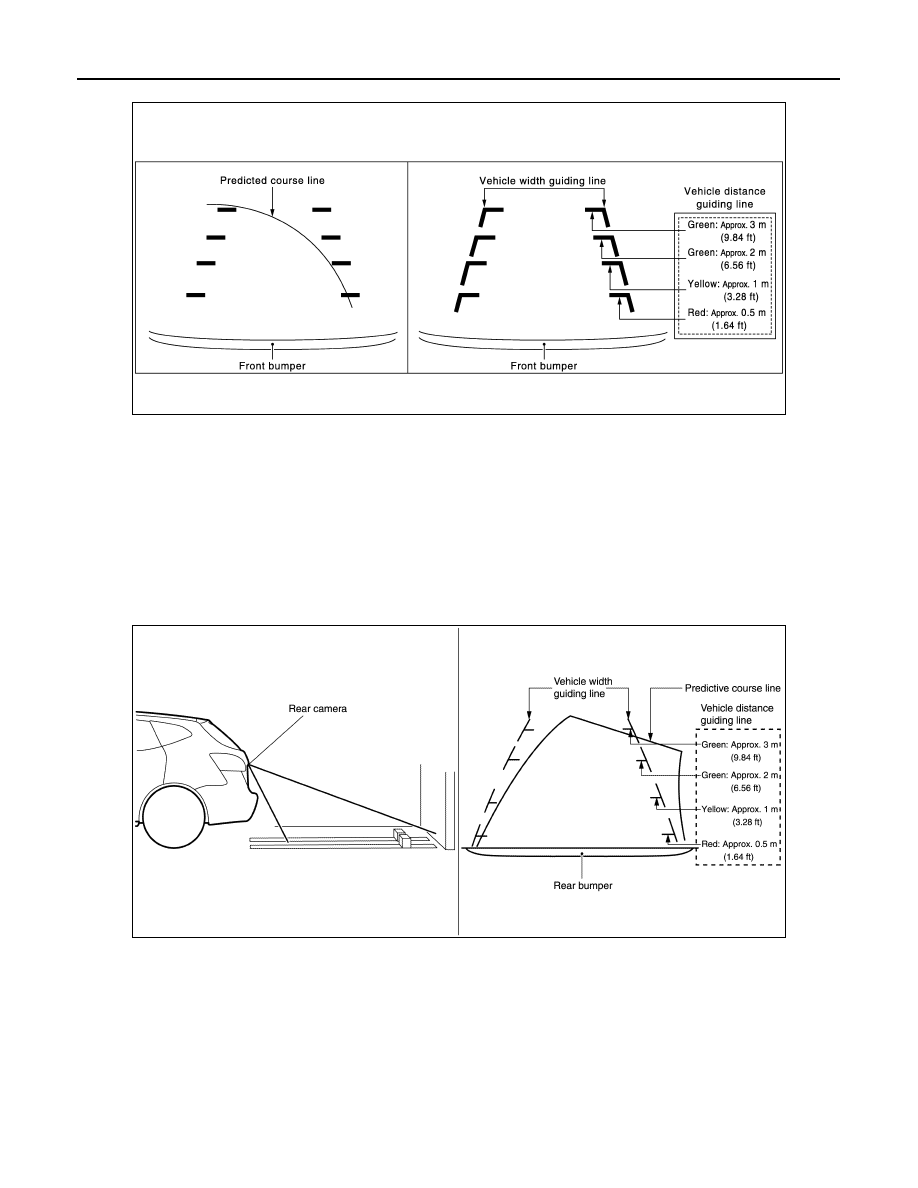

Front view guiding lines

REAR VIEW

• The rear view image is from the rear camera.
• When the selector lever is in the reverse position, the rear view is displayed. Backing and parking are

improved by the images from Birds-Eye view and Front-Side view.

• Display the vehicle width guiding line and vehicle distance guiding line in Rear view and display the predic-

tive course line according to the steering angle.

• The predictive course line is not displayed at the steering neutral position.
• Around view monitor control unit receives the steering angle signal from steering angle sensor via CAN com-

munication, and controls the direction and distance of the predictive course line.

• ON/OFF setting of predictive course line can be performed by CONSULT

Rear view guiding lines

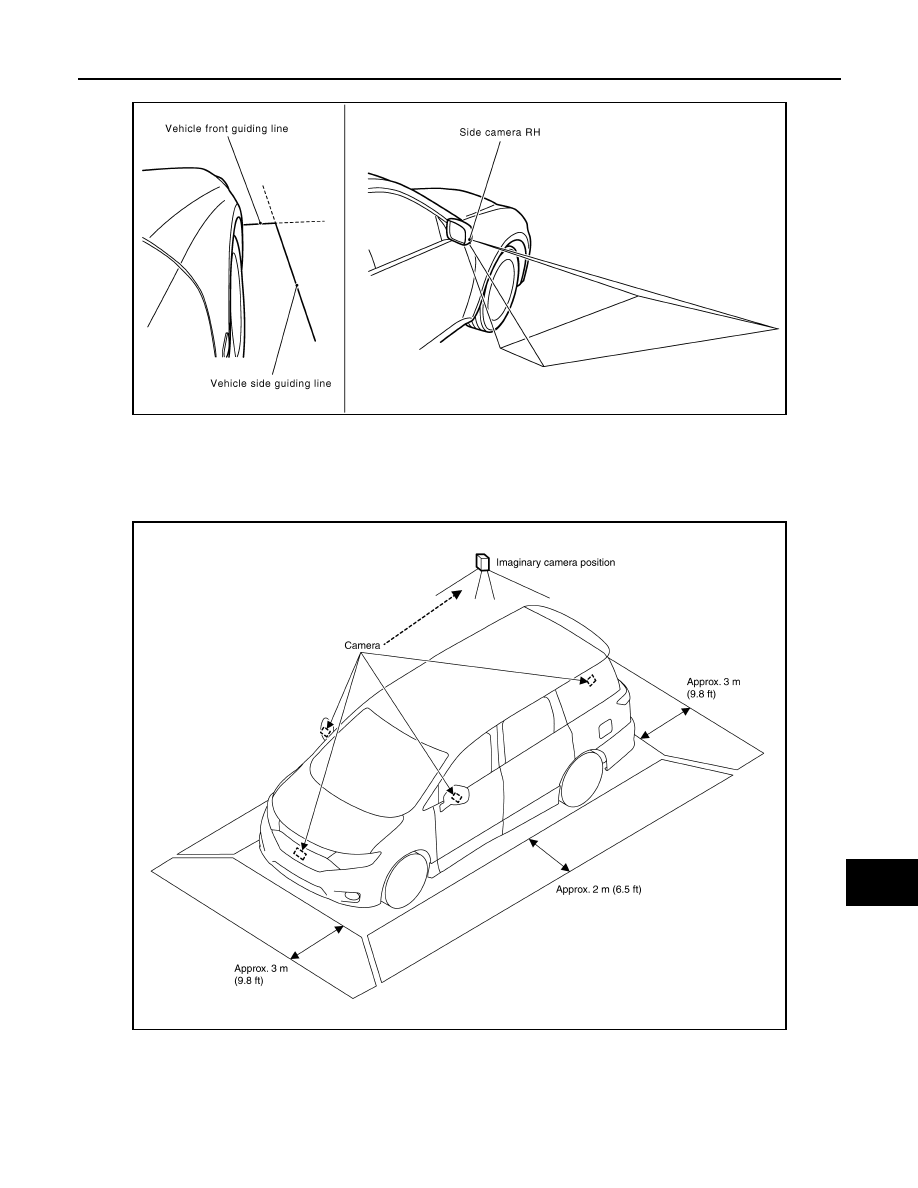

FRONT-SIDE VIEW

• The front-side view image is from the side camera RH.
• In Front-Side view, display the vehicle distance guiding line and vehicle width guiding line.

JSNIA0770GB

JSNIA4567GB

AV

SYSTEM

AV-457

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Front-side view area and guiding line

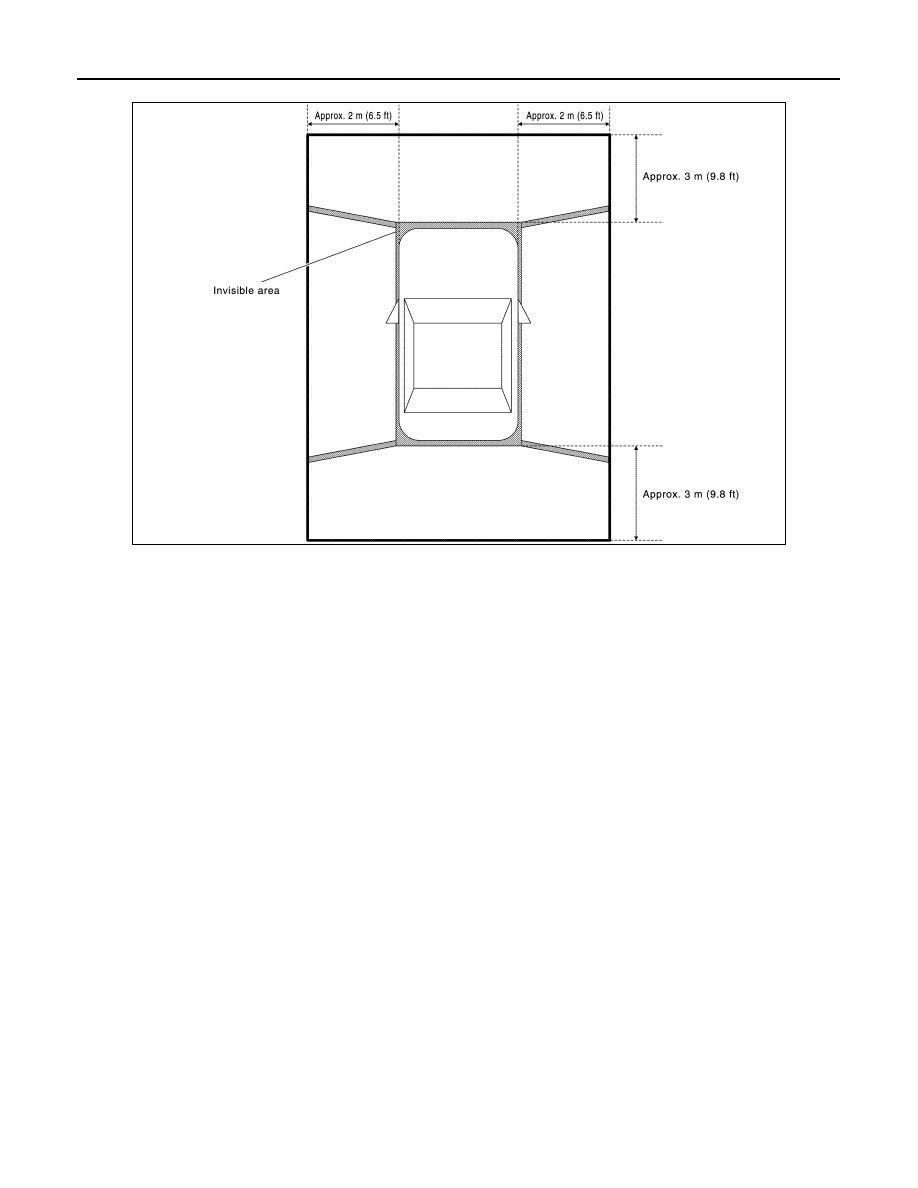

BIRDS-EYE VIEW

• The image from the 4 cameras is cut out and converted into the overhead view, and the surroundings of the

vehicle is displayed in birds-eye view.

• In Birds-Eye view, the invisible area is displayed on the image to specify the boundary of the 4 cameras.

Birds-Eye view display image

JSNIA0771GB

JSNIA5375GB

AV-458

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

SYSTEM

Birds-Eye view display area

Camera Image Operation Principle

• If the camera image calibration is incomplete, the applicable camera position is indicated as an error on the

Birds-Eye view display. (Calibration operation is necessary when replacing each camera or when replacing
around view monitor control unit.)

• Around view monitor control unit receives the camera switch signal via CAN communication from AV control

unit by pressing the “CAMERA” switch.

• Around view monitor control unit that receives the camera switch signal supplies the power to each camera

and inputs the camera image from each camera.

• When the selector lever is in the reverse position, around view monitor control unit receives the reverse sig-

nal, supplies the power to each camera, and inputs the camera image from each camera.

• Around view monitor control unit that receives the camera image signal from each camera cuts out the

required screen for each view, superimposes the camera image, vehicle icon, guiding lines, and outputs
them to the AV control unit.

Precautions for Vehicle Width Guide Line and Predictive Course Line Display on The Rear View Monitor Display

Side distance guide lines and predictive course line on the display may be different from actual lines depend-
ing on vehicle conditions and road conditions.

PRECAUTIONS FOR ROAD CONDITIONS

JSNIA3986GB
