Affixing any mirror-type window films or metallic items (e.g. commercial antenna) on the rear side win-
dow glass causes a reduction in the radio receiver sensitivity.

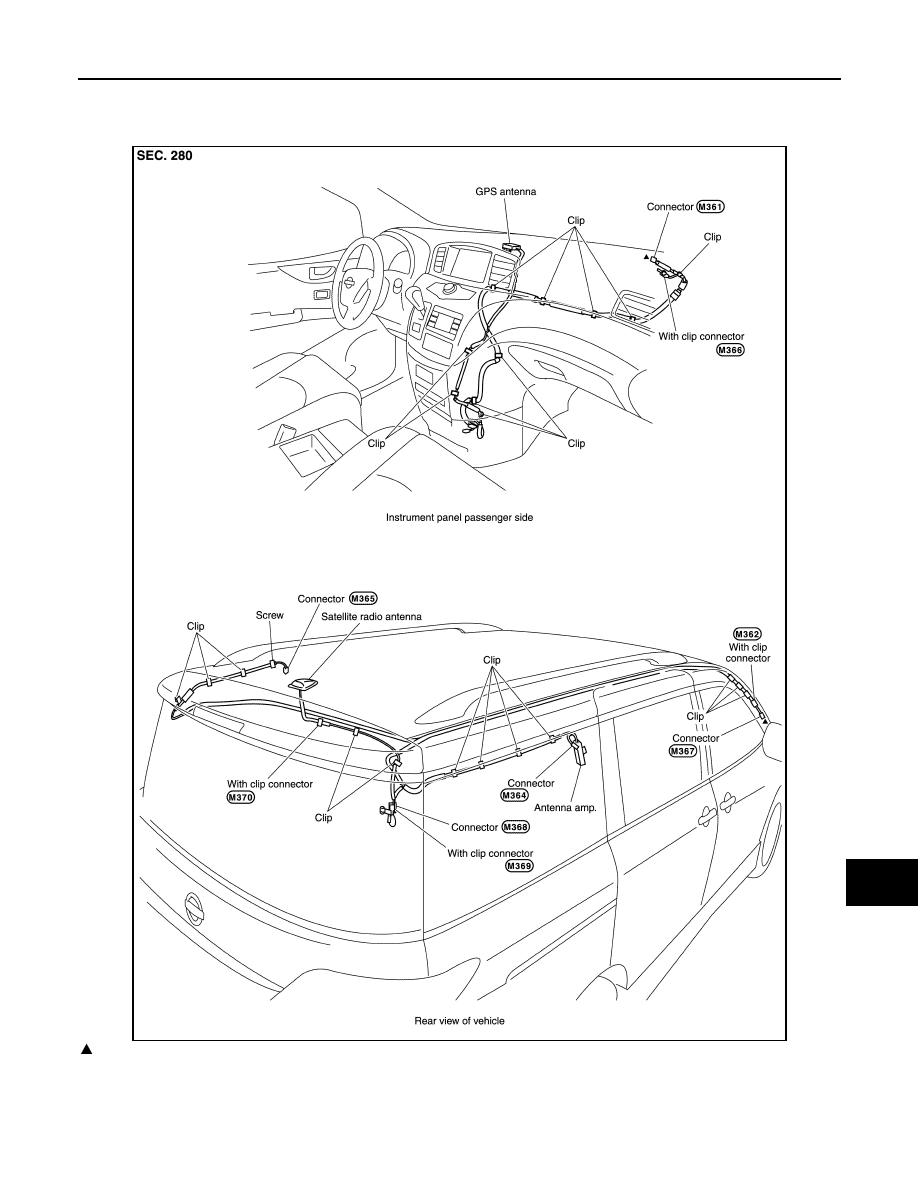

ANTENNA FEEDER LAYOUT

: Indicates that the part is connected at points with same symbol in actual vehicle.

Satellite Radio Antenna

INFOID:0000000009652268

SATELLITE RADIO ANTENNA

JSNIA4207GB

AV-444

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

COMPONENT PARTS

• Satellite radio antenna is installed to the rear center of the roof.
• Receives satellite radio waves and outputs it to AV control unit.

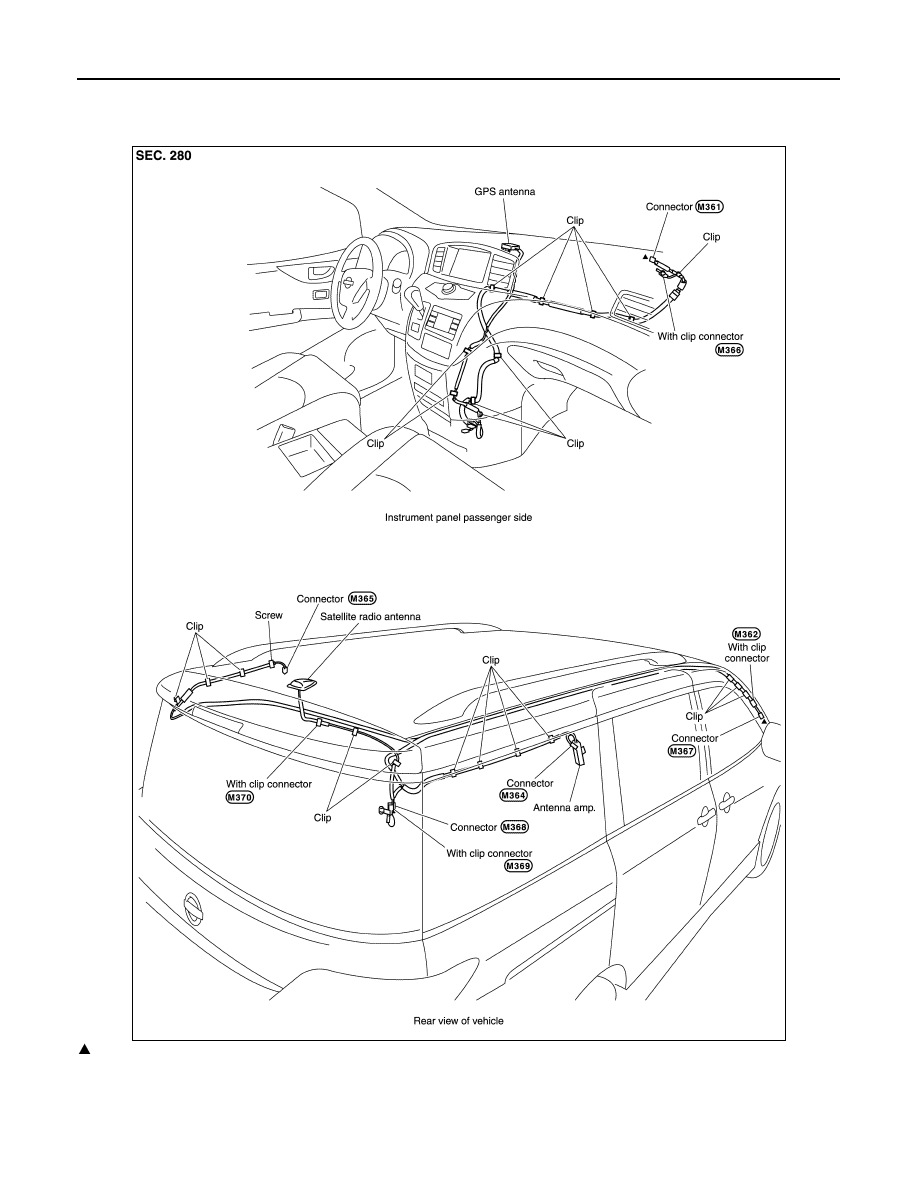

ANTENNA FEEDER LAYOUT

: Indicates that the part is connected at points with same symbol in actual vehicle.

JSNIA4207GB

AV

COMPONENT PARTS

AV-445

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

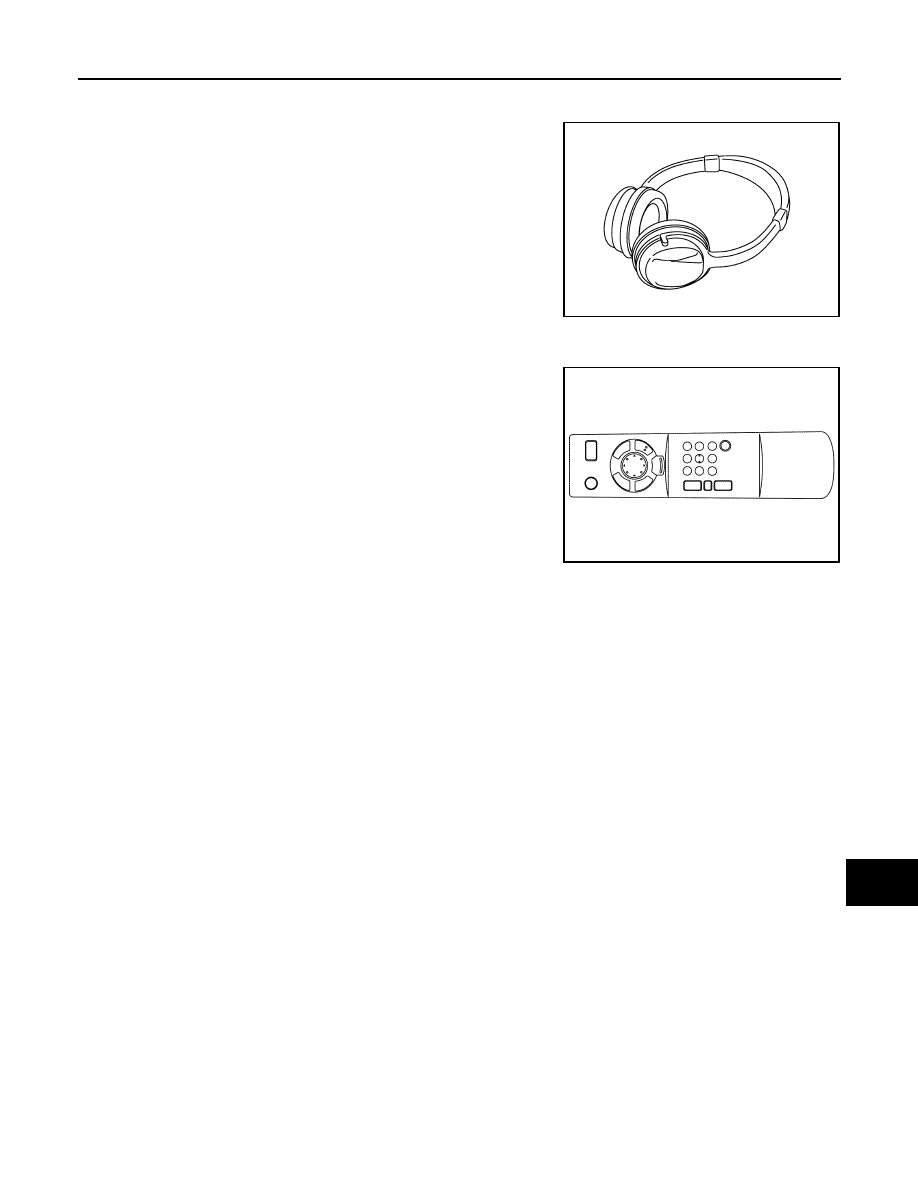

Headphone

INFOID:0000000009652269

• The adoption of the wireless headphone allows the independent

audio listening on the rear seat.

• Sound signals are received from the rear display unit via infrared

communication.

Remote Controller

INFOID:0000000009652270

• The adoption of the infrared remote controller allows audio opera-

tion and other operations on the rear seat.

• The light-receptive spot is included in the rear display unit.

Battery:

AAA battery

×

 2

JSNIA3450ZZ

Battery:

AA battery

×

 2

JSNIA4231ZZ

AV-446

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

SYSTEM

SYSTEM

MULTI AV SYSTEM

MULTI AV SYSTEM : System Description

INFOID:0000000009942742

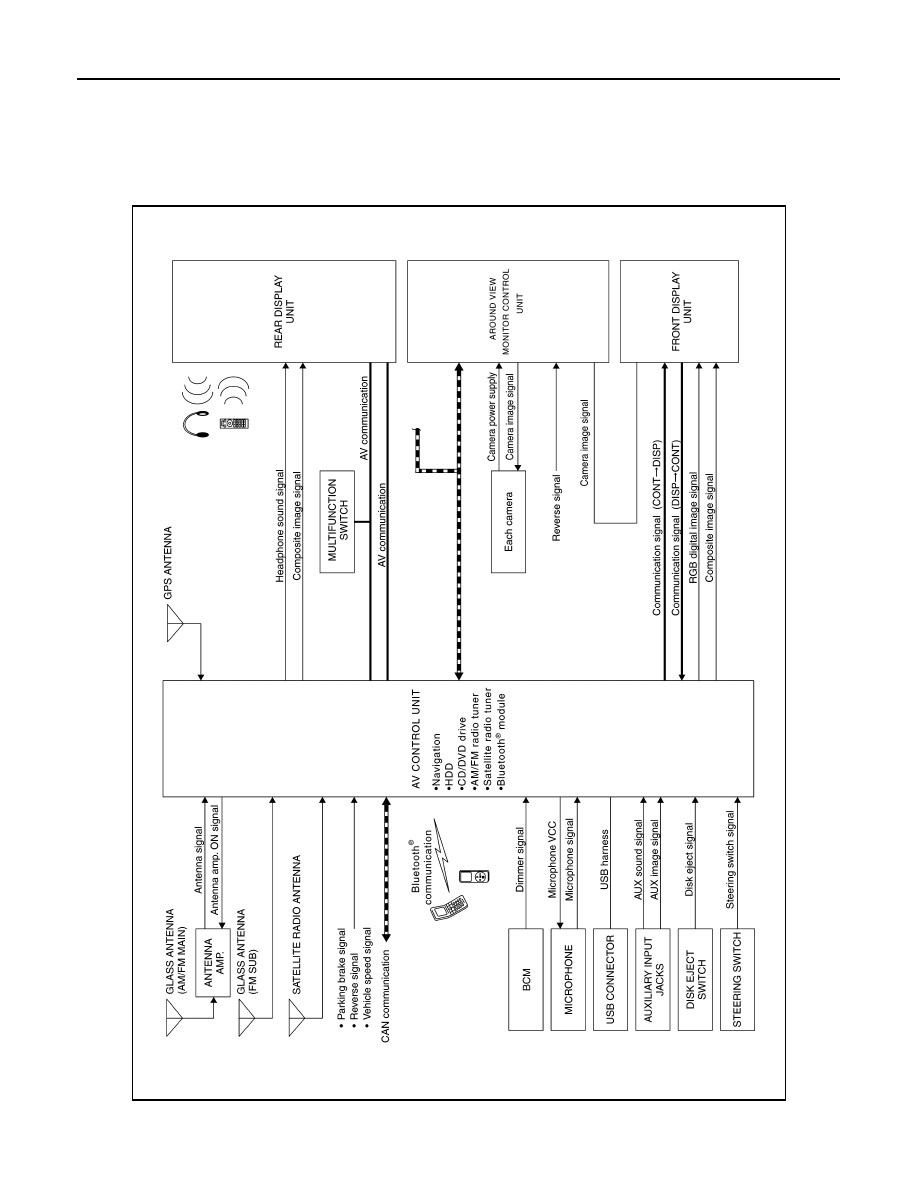

SYSTEM DIAGRAM

NOTE:

JSNIA5381GB
