Nissan Quest E52. Manual - part 140





AV

COMPONENT PARTS

AV-439

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

φ

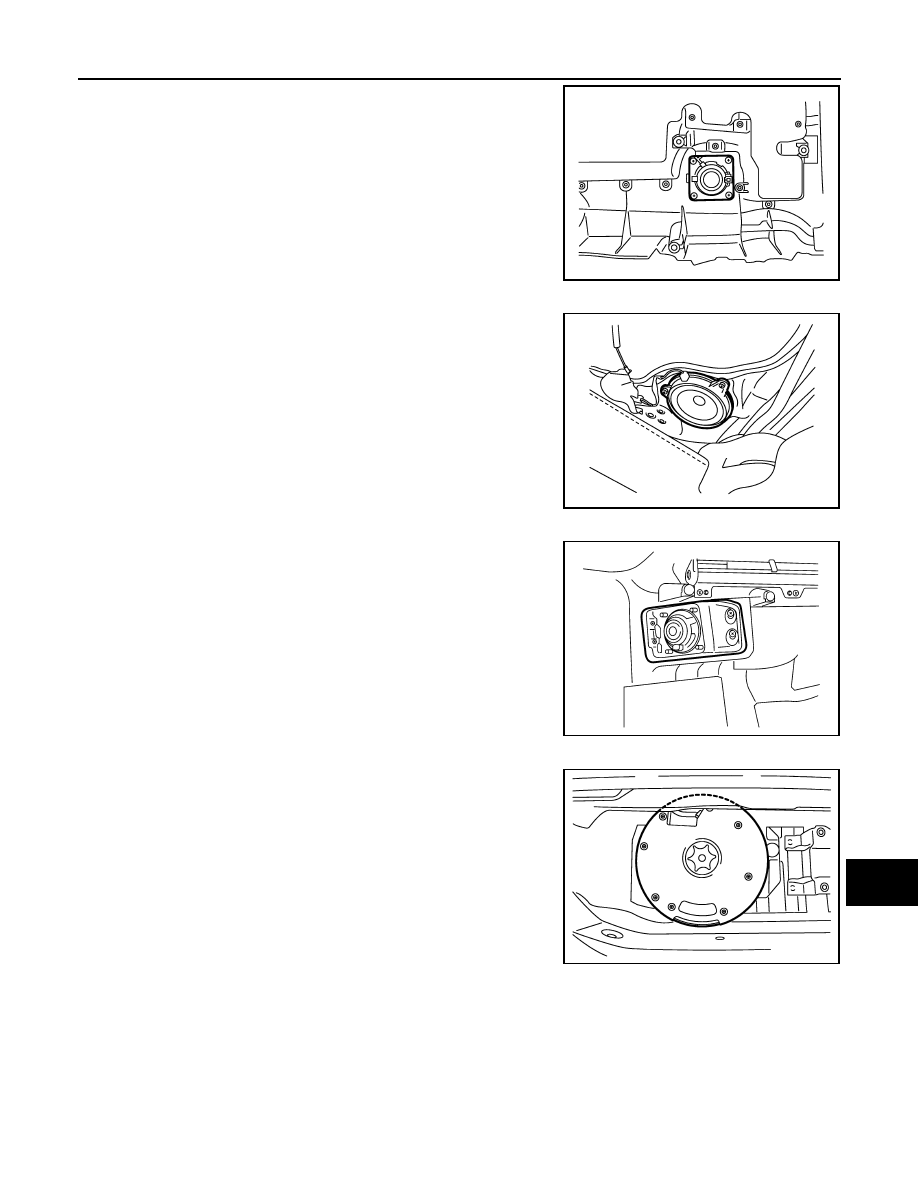

 8 cm (3 in) squawker is located at the lower part of the front of

the slide door.

• Sound signal is input from the BOSE amp. to output high and mid

range sounds.

SLIDE DOOR SPEAKER

φ

 16 cm speaker is located at the lower part of the back of the slide

door.

• Sound signal is input from the BOSE amp. to output high, mid, and

low range sounds.

LUGGAGE SQUAWKER

φ

 8 cm (3 in) squawker is installed to the side of luggage room.

• Sound signal is input from the BOSE amp. to output high and mid

range sounds.

WOOFER

• Woofer integral with the enclosure is located in the luggage floor

box to improve the sound-field characteristics of the bass range.

• Composed of two woofers and a woofer amp.

Rated input

: 7.6 W

Maximum
input

: 22.5 W

Impedance

: 3.6

JSNIA3409ZZ

Rated input

: 12.9 W

Maximum
input

: 38.5 W

Impedance

: 2.1

JSNIA3405ZZ

Rated input

: 7.6 W

Maximum
input

: 22.5 W

Impedance

: 3.6

JSNIA3406ZZ

JSNIA3407ZZ

AV-440

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

COMPONENT PARTS

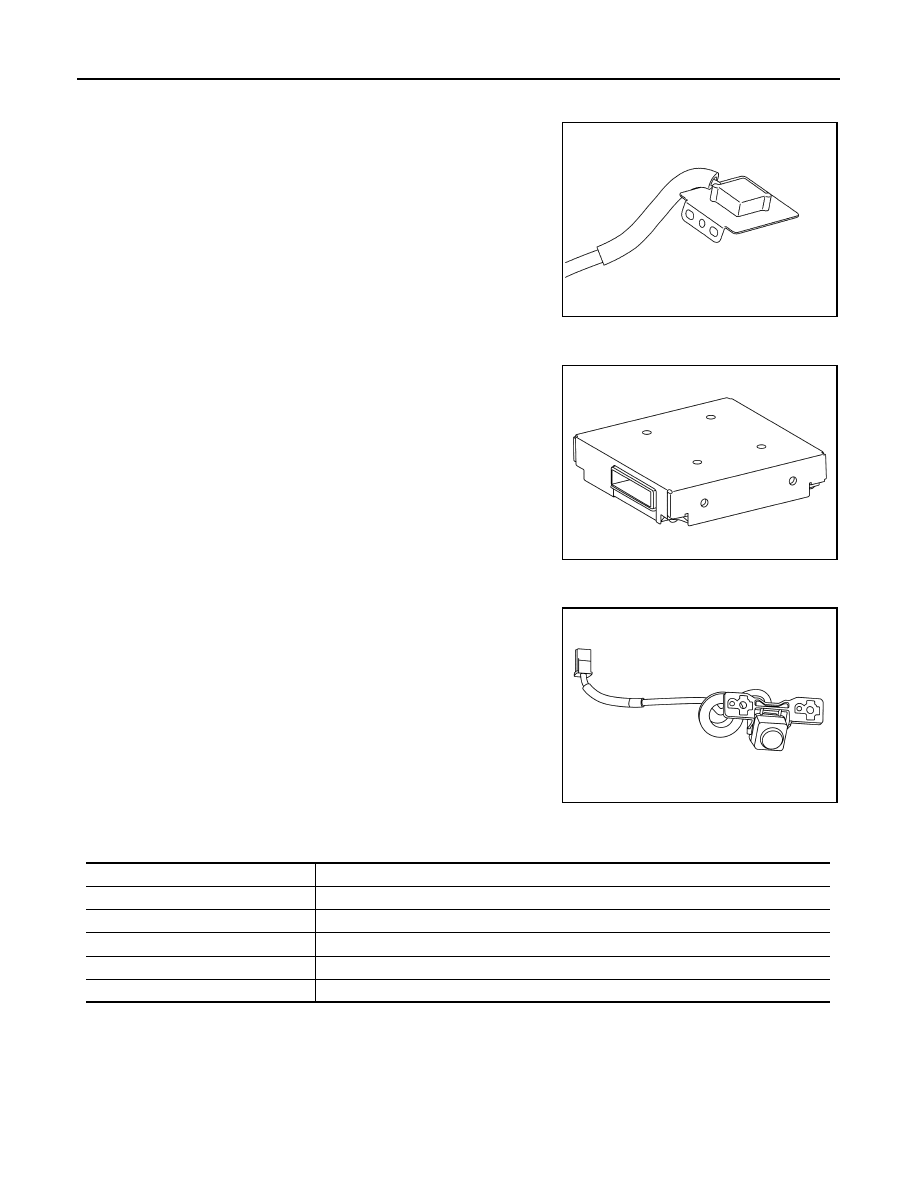

GPS Antenna

INFOID:0000000009652258

• The GPS antenna is installed at the back of the front display unit.
• Power is supplied from the AV control unit.
• This antenna amplifies radio waves received from the GPS satel-

lite and transmits the GPS signal to the AV control unit.

NOTE:
An object on the instrument panel may cause the reception sensitiv-
ity to be decreased.

Around View Monitor Control Unit

INFOID:0000000009942718

• The around view monitor control unit is installed at the end of the

glove box assembly.

• Necessary signals are transmitted/received to/from control unit via

CAN communication.

• Camera image signals received from each camera are converted/

synthesized in the around view monitor control unit and transmitted
to the front display unit.

• Vehicle width guide lines, predicted course line, vehicle front guid-

ing line and vehicle side line, and vehicle icon are rendered with
the around view monitor control unit and combined with camera
image.

Rear Camera

INFOID:0000000009942719

• The rear camera is installed to the back door finisher.
• Super-small CMOS camera (color) using CMOS

*

 for the image

pickup element is adopted.

• With the mirror processing function, a mirror image is sent as if it is

viewed by a rear view mirror.

• Power for the camera is supplied from the around view monitor

control unit, and the image at the rear of the vehicle is sent to the
around view monitor control unit.

NOTE:
*: “CMOS” is abbreviation of Complementary Metal Oxide Semicon-
ductor, and features low power consumption and  high speed read-
ing rate of electric charge.

Specification

JSNIA3535ZZ

JSNIA5395ZZ

JSNIA5396ZZ

Manufacturer name

SONY Corp.

Image pickup element

1/4-inch CMOS image sensor

Effective number of pixels

Approx. 300,000 pixels (632

×

 480)

Minimum brightness

1 lx

Angle of view

H: 190.4

°

 V: 141.8

°


With mirror processing function

AV

COMPONENT PARTS

AV-441

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

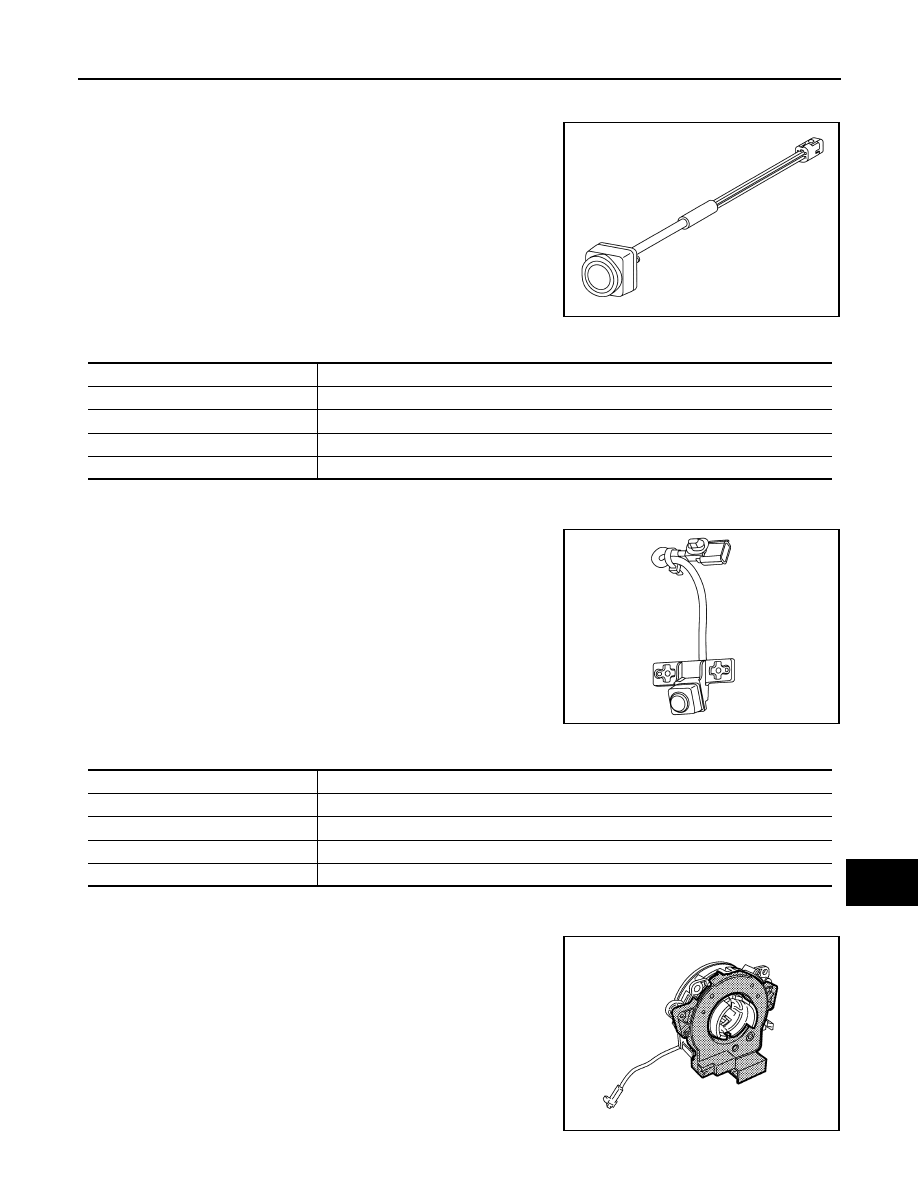

Side Camera

INFOID:0000000009652261

• The side camera is installed to the door mirror.
• Super-small CMOS camera (color) using CMOS

*

 for the image

pickup element is adopted.

• Power for the camera is supplied from the around view monitor

control unit, and the image at the side of the vehicle is sent to the
around view monitor control unit.

NOTE:
*: “CMOS” is abbreviation of Complementary Metal Oxide Semicon-
ductor, and features low power consumption and  high speed read-
ing rate of electric charge.

Specification

Front Camera

INFOID:0000000009652262

• The front camera is installed to the front grille.
• Super-small CMOS camera (color) using CMOS

*

 for the image

pickup element is adopted.

• Power for the camera is supplied from the around view monitor

control unit, and the image at the front of the vehicle is sent to the
around view monitor control unit.

NOTE:
*: “CMOS” is abbreviation of Complementary Metal Oxide Semicon-
ductor, and features low power consumption and  high speed read-
ing rate of electric charge.

Specification

Steering Angle Sensor

INFOID:0000000009652263

• Steering sensor is installed to the spiral cable.
• Steering angle sends the steering signal necessary for predictive

course line of the rear view monitor function to the AV control unit
via CAN communication.

JSNIA5397ZZ

Manufacturer name

SONY Corp.

Image pickup element

1/4-inch CMOS image sensor

Effective number of pixels

Approx. 300,000 pixels (632

×

 480)

Minimum brightness

1 lx

Angle of view

H: 190.4

°

 V: 141.8

°

JSNIA5398ZZ

Manufacturer name

SONY Corp.

Image pickup element

1/4-inch CMOS image sensor

Effective number of pixels

Approx. 300,000 pixels (632

×

 480)

Minimum brightness

1 lx

Angle of view

H: 190.4

°

 V: 141.8

°

JSNIA1571ZZ

AV-442

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

COMPONENT PARTS

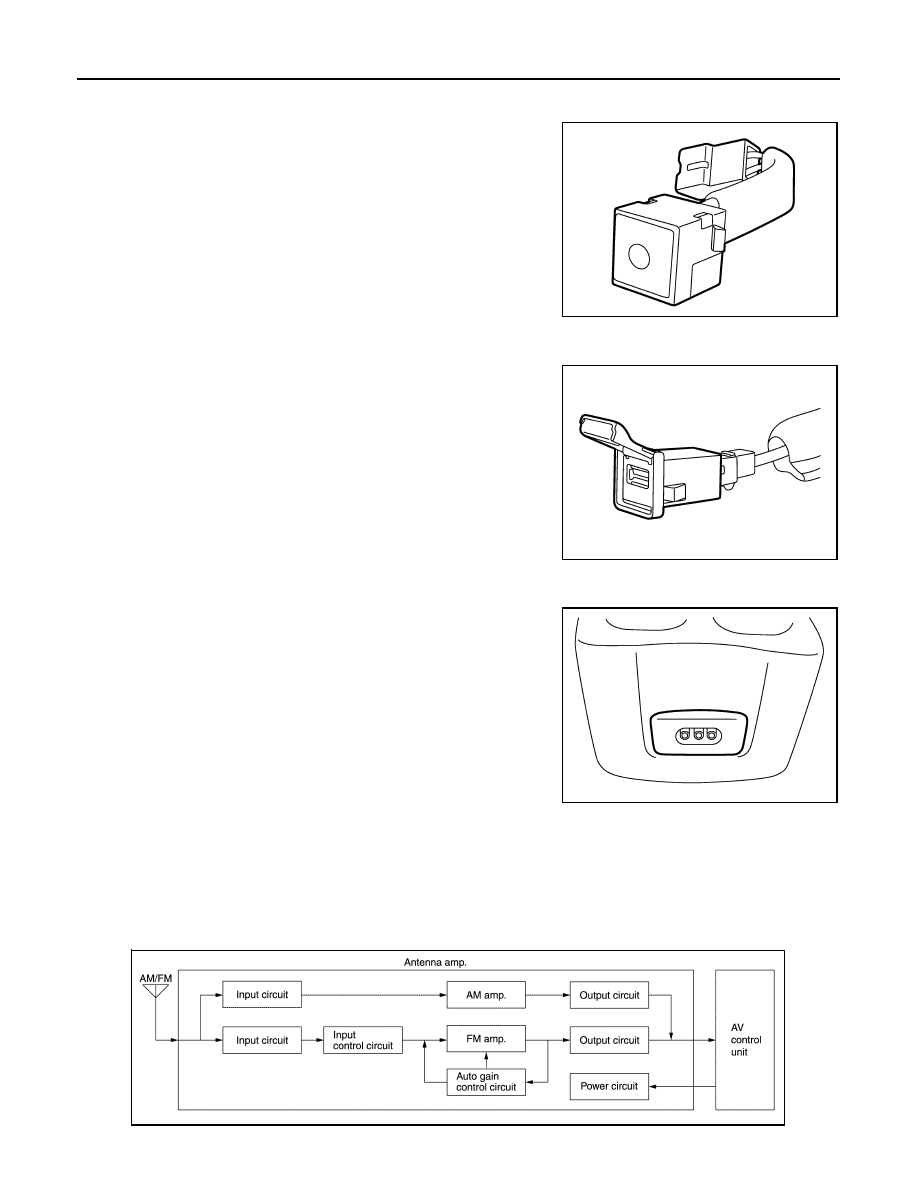

Microphone

INFOID:0000000009652264

• The voice control/TEL microphone is installed on the left side of

the map lamp assembly.

• The power is supplied from the AV control unit to the microphone,

transmitting sound signals to the AV control unit at the voice con-
trol or during hands-free phone communication.

USB Connector

INFOID:0000000009652265

• USB connector is installed to the console box.
• iPod

®

 and USB memory can be connected to the AV control unit.

Auxiliary Input Jacks

INFOID:0000000009652266

• Installed to the rear of center console.
• Sound signals and image signals from the external equipment are

transmitted to the AV control unit.

Antenna Amp., Radio Antenna, and Antenna Feeder

INFOID:0000000009652267

RADIO ANTENNA

• AM/FM radio main antenna is located on the right rear side window glass and FM radio sub antenna on the

left rear side window glass.

• The AM/FM radio main antenna path has an antenna amp. to obtain sufficient reception power.

CAUTION:

JPNIA1448ZZ

JPNIA1447ZZ

JSNIA3417ZZ

JSNIA4204GB
