PREPARATION

PREPARATION

Commercial Service Tools

INFOID:0000000009652248

Tool

Description

Power tool

Loosening screws

PBIC0191E

AV-432

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

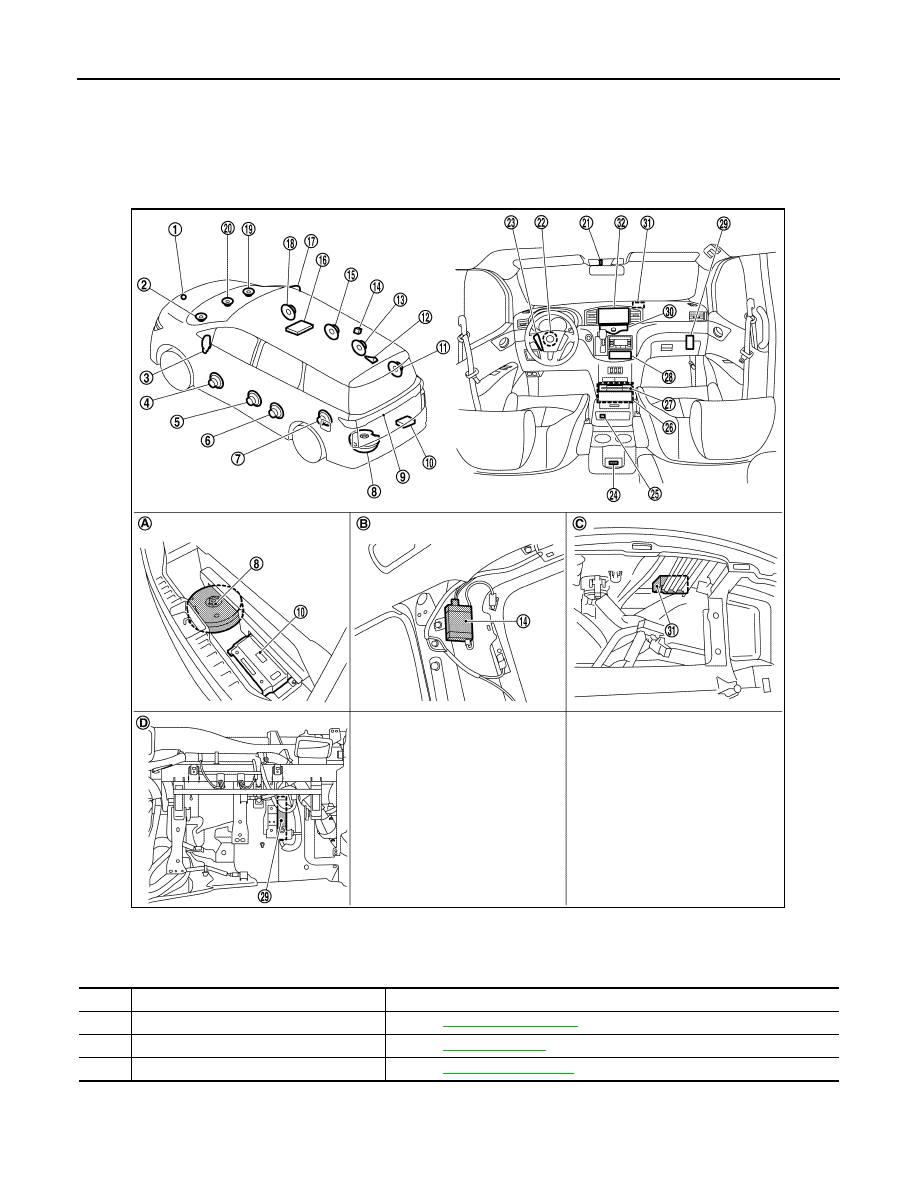

Component Parts Location

INFOID:0000000009652249

A. Within luggage floor box

B. Rear pillar garnish (RH) is removed.

C. Front display unit is removed.

D.

Glove box assembly is removed.

JSNIA5394ZZ

No.

Component

Function

1.

Front camera

Refer to

AV-441, "Front Camera"

.

2,19.

Front squawker

Refer to

AV-438, "Speaker"

.

3,17.

Side camera

Refer to

AV-441, "Side Camera"

.

AV

COMPONENT PARTS

AV-433

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

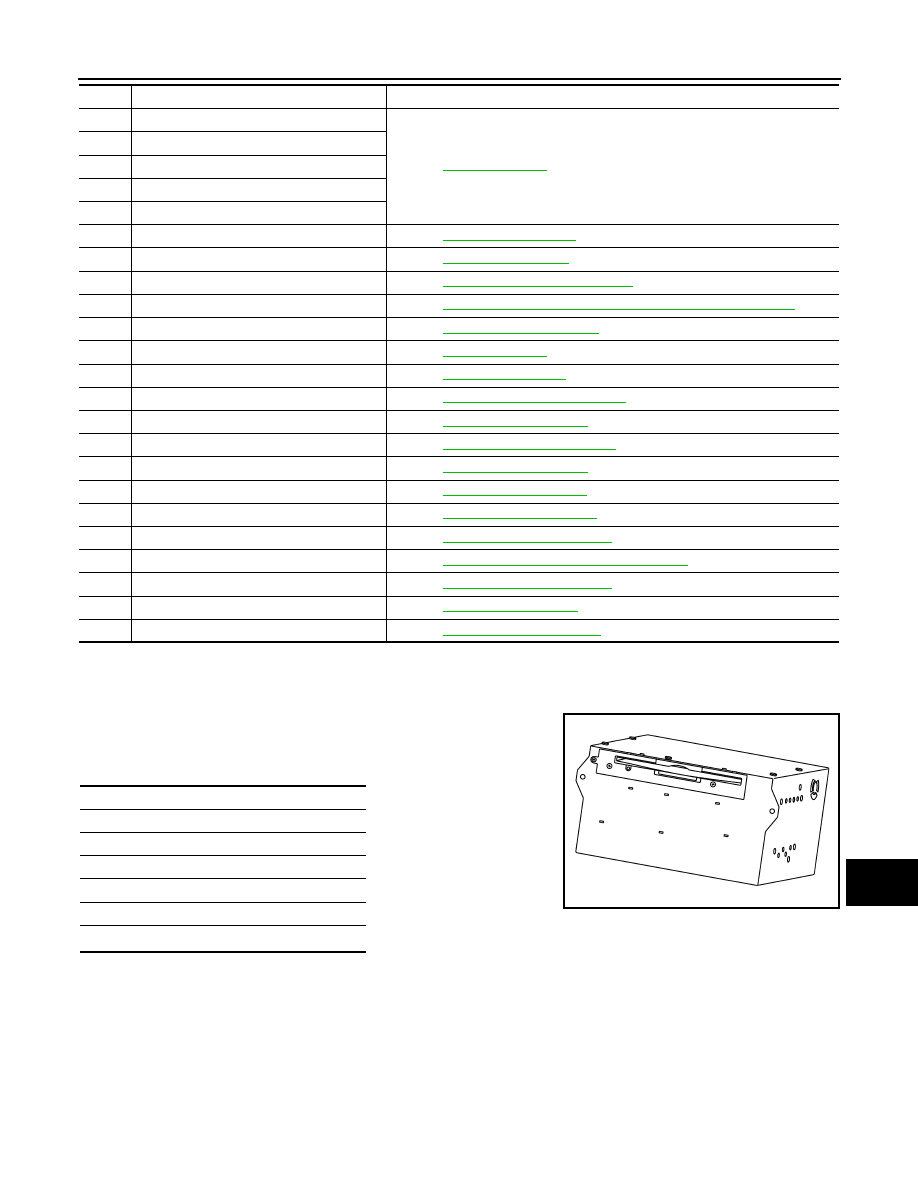

AV Control Unit

INFOID:0000000009652250

DESCRIPTION

• The AV control unit is equipped with the following parts. It is the

master unit integrated with functions and controls the multi-AV sys-
tem.

• Signals necessary for the vehicle information display function are received from ECM and the combination

meter via CAN communication.

• Signals necessary for vehicle setting functions are sent and received with BCM via CAN communication.
• It inputs the signal for driving status recognition (vehicle speed signal, reverse signal, and parking brake sig-

nal).

• A possible route line is generated on the camera image from the rear view camera, and it is shown on the

display.

• The AV control unit contains an HDD with map data and sensors used for automatic location calculation, i.e.

a gyroscope (angular velocity sensor) and a G sensor.

- HDD
• The AV control unit records map data, traffic regulations data, and guidance information.

4,18.

Front door woofer

Refer to

AV-438, "Speaker"

.

5,15.

Slide door squawker

6,13.

Slide door speaker

7,11.

Luggage squawker

8.

Woofer

9.

Rear camera

Refer to

AV-440, "Rear Camera"

.

10.

BOSE amp.

Refer to

AV-438, "BOSE Amp."

.

12.

Satellite radio antenna

Refer to

AV-443, "Satellite Radio Antenna"

.

14.

Antenna amp.

Refer to

AV-442, "Antenna Amp., Radio Antenna, and Antenna Feeder"

.

16.

Rear display unit

Refer to

AV-436, "Rear Display Unit"

.

20.

Center speaker

Refer to

AV-438, "Speaker"

.

21.

Microphone

Refer to

AV-442, "Microphone"

.

22.

Steering angle sensor

Refer to

AV-441, "Steering Angle Sensor"

.

23.

Steering switch

Refer to

AV-437, "Steering Switch"

.

24.

Auxiliary input jack

Refer to

AV-442, "Auxiliary Input Jacks"

.

25.

USB connector

Refer to

AV-442, "USB Connector"

.

26.

AV control unit

Refer to

AV-433, "AV Control Unit"

.

27.

Disk eject switch

Refer to

AV-437, "Disk Eject Switch"

.

28.

Preset switch

Refer to

AV-437, "Multifunction Switch"

.

29.

Around view monitor control unit

Refer to

AV-440, "Around View Monitor Control Unit"

.

30.

Multifunction switch

Refer to

AV-437, "Multifunction Switch"

.

31.

GPS antenna

Refer to

AV-440, "GPS Antenna"

.

32.

Front display unit

Refer to

AV-436, "Front Display Unit"

.

No.

Component

Function

Units equipped

HDD (hard disk drive)

AM/FM electronic tuner

Satellite radio tuner

CD/DVD drive

USB interface

Bluetooth

®

 module

JSNIA2364ZZ

AV-434

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

COMPONENT PARTS

- Gyroscope
• Detects vehicle cornering condition.
- Acceleration sensor
• Detects the inclination angle and height variation of the vehicle.
NOTE:
For details of each functions, refer to

AV-446, "MULTI AV SYSTEM : System Description"

.

HDD

The adoption of a fast high-capacity 40 GB HDD improves the navigation performance.

AM/FM Electronic Tuner

The adoption of the PLL frequency synthesizer system enables the signal outputting with accurate frequen-
cies.

Satellite Radio Tuner

• The adoption of the PLL frequency synthesizer system enables the signal outputting with accurate frequen-

cies.

• Receives satellite radio antenna signal and converts it into the sound signal and data signal.
• It outputs sound signal to BOSE amp. and outputs data signal to front display unit.

CD/DVD drive

• It is CD-R/CD-RW compliant and enables MP3, WMA, and AAC files to play music.
• It displays the artist name, album title or song title recorded to the file by the ID3 tag/WMA tag/AAC tag dis-

play function.

• DVD playback function is equipped.

USB Interface

• Music can be played by connecting an iPod

®

 or USB memory.

Bluetooth

®

 Module

• Wireless connection to the audio device equipped with Bluetooth

®

 communication can play music.

• Once a Bluetooth

®

 communication compliant phone has been registered in the AV control unit, hands-free

phone communication can be carried out without connecting the cellular phone to the TEL harness.

• Five units of Bluetooth

®

 communication devices including audio devices and cellular phones can be regis-

tered to the AV control unit.

Specification

Manufacturer name

Clarion Co., Ltd.

HDD

Total capacity

40 GB

Map data capacity

Applox. 20 GB

Audio amplifier

External amplifier
