AV

ANTENNA AMP.

AV-423

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ANTENNA AMP.

Removal and Installation

INFOID:0000000009652234

REMOVAL

1.

Remove rear pillar garnish RH. Refer to

INT-27, "REAR PILLAR GARNISH : Removal and Installation"

.

2.

Remove screw and disconnect connector, and remove antenna amp.

INSTALLATION

Install in the reverse order of removal.

AV-424

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

SATELLITE RADIO TUNER

SATELLITE RADIO TUNER

Removal and Installation

INFOID:0000000009652235

REMOVAL

1.

Remove luggage side lower finisher. Refer to

INT-43, "LUGGAGE SIDE LOWER FINISHER : Removal

and Installation"

.

2.

Remove bolts to remove satellite radio tuner with brackets as a single unit from the body.

3.

Remove brackets screws to remove satellite radio tuner.

INSTALLATION

Install in the reverse order of removal.

AV

SATELLITE RADIO ANTENNA

AV-425

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

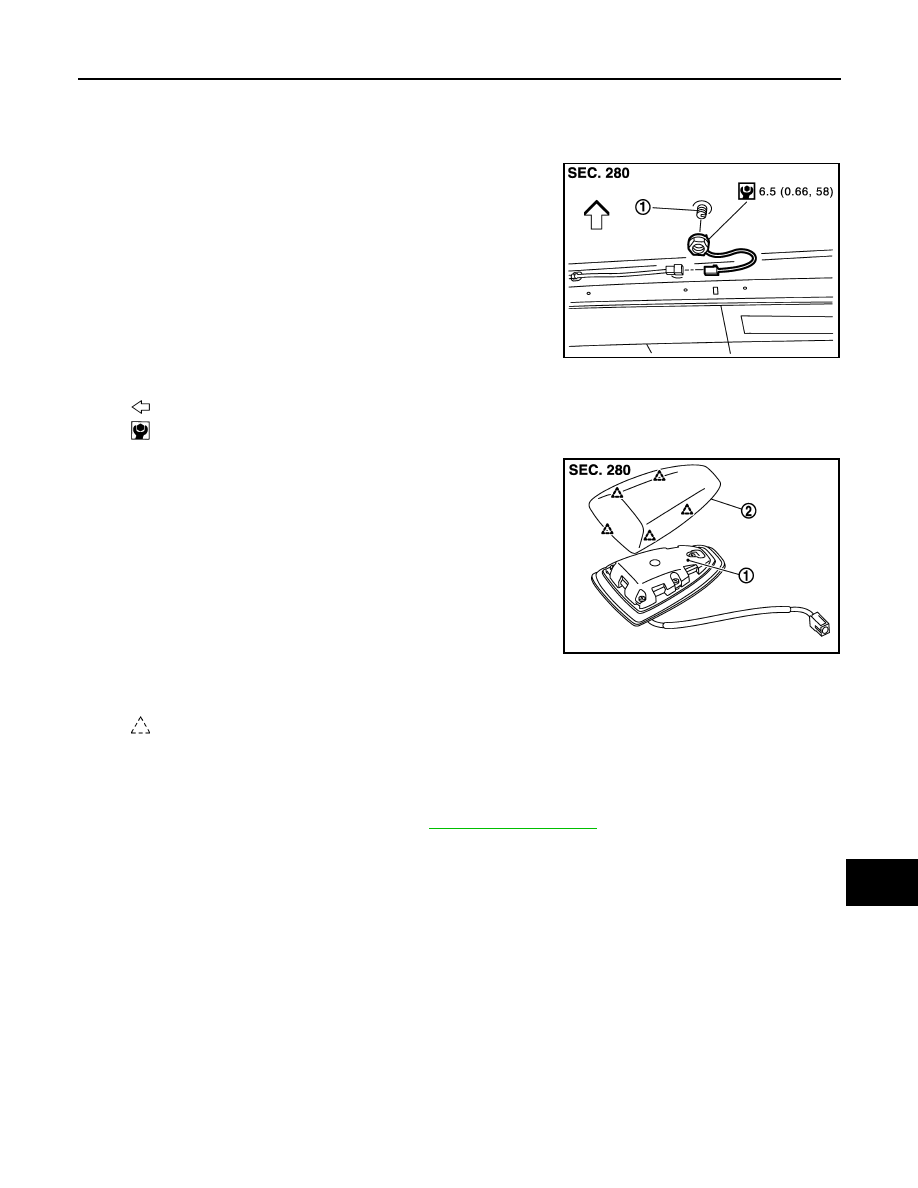

SATELLITE RADIO ANTENNA

Exploded View

INFOID:0000000009652236

REMOVAL

DISASSEMBLY

Removal and Installation

INFOID:0000000009652237

REMOVAL

1.

Remove rear upper ventilator duct 2. Refer to

HA-56, "Exploded View"

.

2.

Disconnect antenna feeder connector.

3.

Remove nut, and remove satellite radio antenna and the cover from the vehicle as a single unit.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

If the satellite radio antenna mounting nut is tightened looser than the specified torque, then this will
lower the sensitivity of the antenna. On the other hand, if the nut is tightened tighter than the specified
torque, then this will deform the roof panel.

Disassembly and Assembly

INFOID:0000000009652238

DISASSEMBLY

Insert cloth-covered driver into gaps between satellite radio antenna and the cover, and remove the cover from
satellite radio antenna.

ASSEMBLY

Assemble in the reverse order of disassembly.

JSNIA3188ZZ

1.

Satellite radio antenna

 :

Vehicle front

 :

N·m (kg-m, in-fb)

JSNIA3284ZZ

1.

Satellite radio antenna

2.

Cover

 :

Pawl

AV-426

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

REAR VIEW CAMERA

REAR VIEW CAMERA

Removal and Installation

INFOID:0000000009943277

REMOVAL

1.

Remove back door finisher. Refer to

EXT-47, "Removal and Installation"

.

2.

Remove screws to remove rear view camera from back door finisher.

INSTALLATION

Install in the reverse order of removal.
NOTE:
Adjust the guide line position if the guide line position is shifted after installing the rear view camera. Refer to

AV-426, "Adjustment"

.

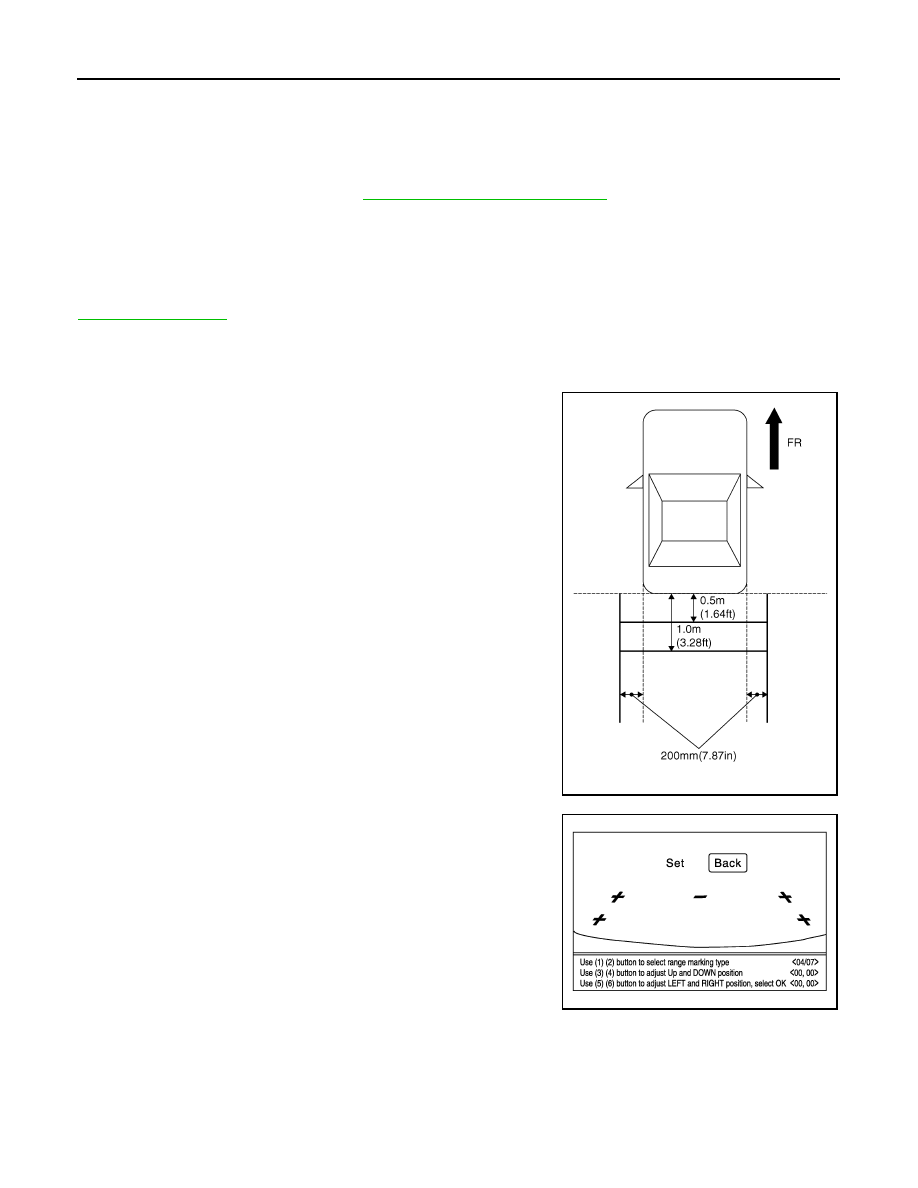

Adjustment

INFOID:0000000009878736

Adjust the guide line position if the guide line position is shifted after installing the rear view camera.

1.

Draw lines on rearward area of the vehicle passing through the
following points: 200 mm (7.87 in) from both sides of the vehicle,
and 0.5 m (1.64 ft), 1.0 m (3.28 ft) from the rear end of the
bumper.

2.

Set into “Camera system” mode of Confirmation / Adjustment
mode.

3.

Press “1” or “2” switches, and then select the guiding line pattern
so that its angle is aligned with the correction line of the rear of
the vehicle.

4.

Make fine adjustment to the correction line of the rear of the
vehicle with “3”, “4”, “5” or “6” switches so that its position is
aligned with the guiding line. Press “PUSH ENTER” switch and
record the adjusted guiding line position to the camera control
unit.

CAUTION:

Never operate other function such as pressing BACK while writing index data.

SKIB3691E

Selected pattern

: 7

Up/Down adjustment range

: (

−

20) – (20)

Left/Right adjustment range

: (

−

20) – (20)

JSNIA1876ZZ
