TM-162

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

DIFFERENTIAL SIDE OIL SEAL

DIFFERENTIAL SIDE OIL SEAL

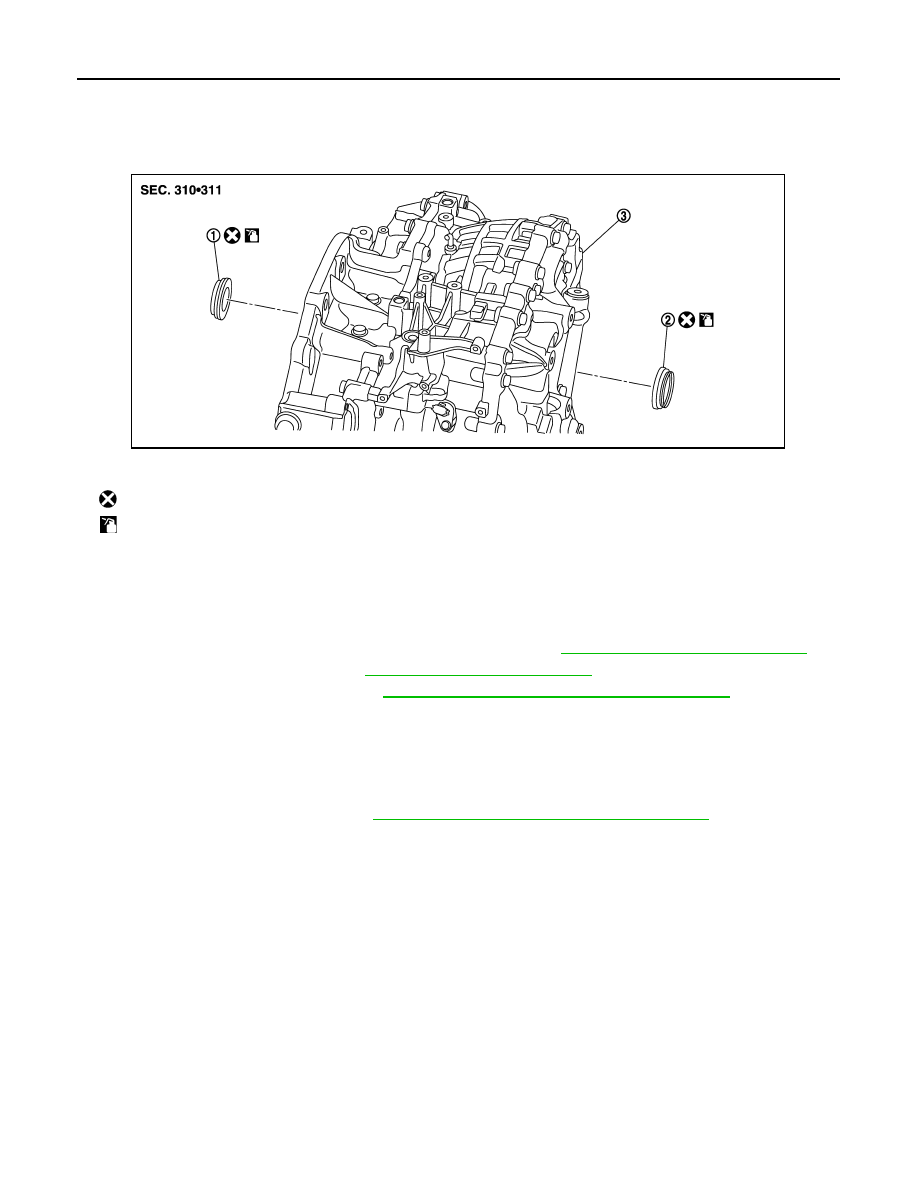

Exploded View

INFOID:0000000009650237

Removal and Installation

INFOID:0000000009650238

REMOVAL

RH Differential Side Oil Seal

1.

Disconnect the battery cable from the negative terminal. Refer to

PG-105, "Removal and Installation"

.

2.

Remove exhaust front tube. Refer to

EX-6, "Removal and Installation"

.

3.

Remove right front drive shaft. Refer to

FAX-19, "RIGHT SIDE : Removal and Installation"

.

4.

Use oil seal remover or a similar means and remove the RH differential side oil seal.

CAUTION:

When removing the differential side oil seal, be careful not to scratch the oil seal mounting sur-
faces of the transaxle case and converter housing.

LH Differential Side Oil Seal

1.

Remove left front drive shaft. Refer to

FAX-18, "LEFT SIDE : Removal and Installation"

.

2.

Use oil seal remover or a similar means and remove the LH differential side oil seal.

CAUTION:

When removing the differential side oil seal, be careful not to scratch the oil seal mounting sur-
faces of the transaxle case and converter housing.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Never reuse differential side oil seals.
• Apply CVT fluid to the differential side oil seal lip and around the oil seal.
• When inserting the drive shaft, be sure to use a protector (SST: KV38107900).

1.

RH differential side oil seal

2.

LH differential side oil seal

3.

Transaxle assembly

 : Always replace after every disassembly.

 : Apply CVT fluid

JPDIA0832ZZ

DIFFERENTIAL SIDE OIL SEAL

TM-163

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

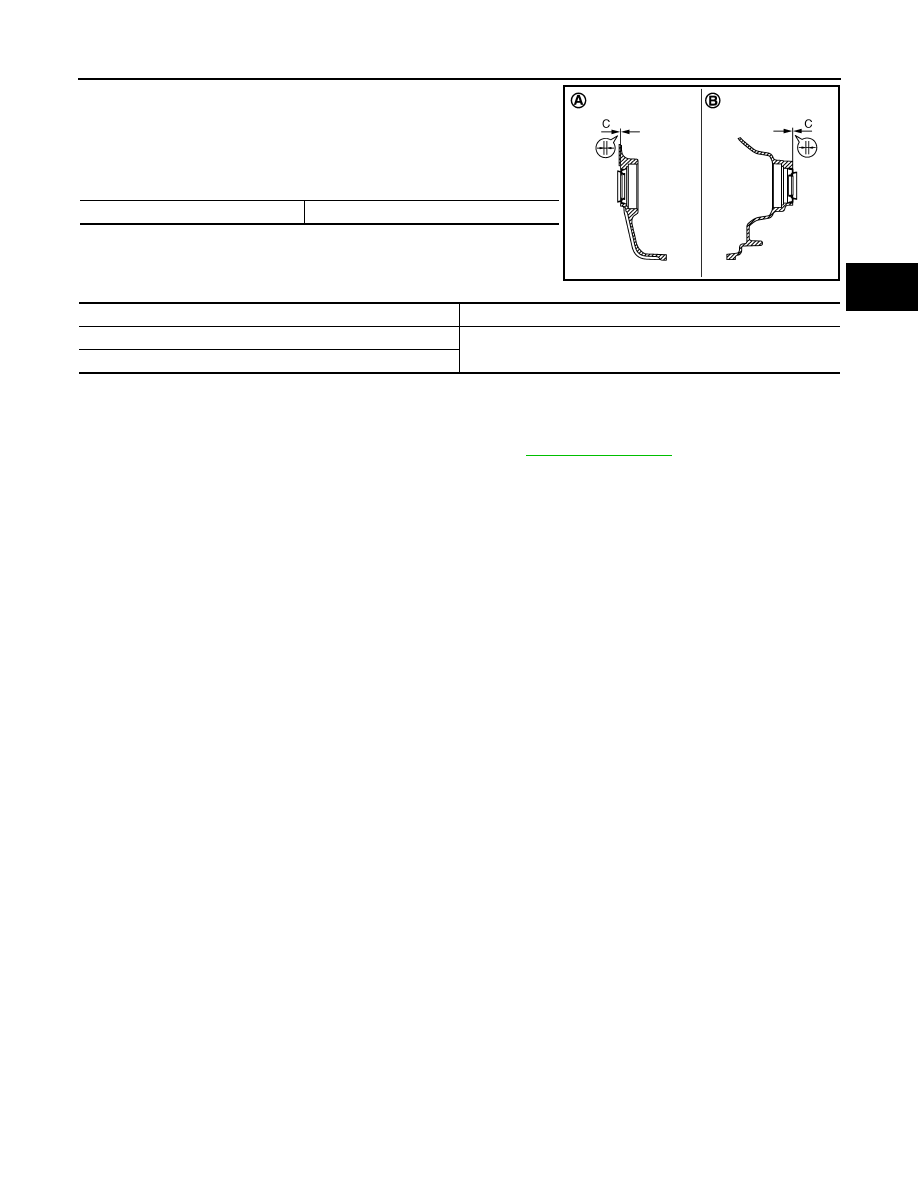

• Drive each differential side oil seal evenly using the drift so that dif-

ferential side oil seal protrudes by the dimension (C) respectively.

Unit: mm (in)

NOTE:
Differential side oil seal pulling direction is used as the reference.

Drift to be used:

Inspection

INFOID:0000000009650239

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage and check CVT fluid level. Refer to

TM-149, "Inspection"

.

A

: Transaxle case side

B

: Converter housing side

Dimension C

±

 0.5 (0

±

 0.020)

JPDIA0618ZZ

Location

Tool number (Kent-Moore No.)

Transaxle case side

ST33400001 (J-26082)

Converter housing side

TM-164

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

OIL PAN

OIL PAN

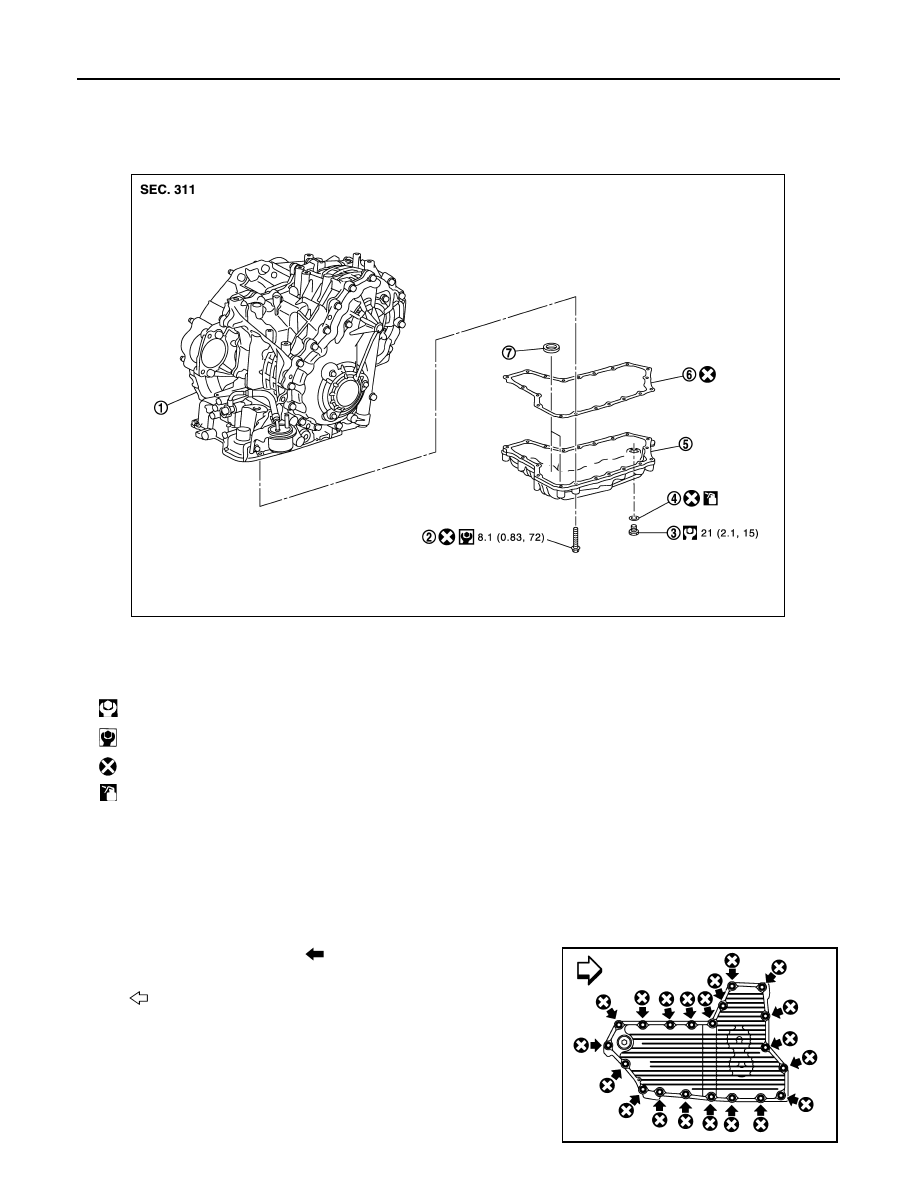

Exploded View

INFOID:0000000009650240

Removal and Installation

INFOID:0000000009650241

REMOVAL

1.

Remove engine under cover with power tool.

2.

Remove drain plug and then drain CVT fluid.

3.

Remove O-ring from drain plug.

4.

Remove oil pan fitting bolts (

) from oil pan.

5.

Remove oil pan.

1.

Transaxle assembly

2.

Oil pan fitting bolt

3.

Drain plug

4.

O-ring

5.

Oil pan

6.

Oil pan gasket

7.

Magnet

 : N·m (kg-m, ft-lb)

 : N·m (kg-m, in-lb)

 : Always replace after every disassembly.

 : Apply CVT fluid

JPDIA0608GB

: Vehicle front

SCIA8135J

OIL PAN

TM-165

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

6.

Remove oil pan gasket (1) from oil pan (2).

7.

Remove magnet (3) from oil pan.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Never reuse oil pan gasket, O-ring, and oil pan fitting bolts.
• Apply CVT fluid to O-ring.
• Completely remove all moisture, oil and old gasket, etc. from the oil pan gasket mounting surface of

transaxle case and oil pan.

• Install the oil pan to the transaxle case with the following procedure.

1.

Install the oil pan gasket to the oil pan.

2.

Install the oil pan assembly to the transaxle case, and then temporarily tighten the oil pan mounting bolt.

3.

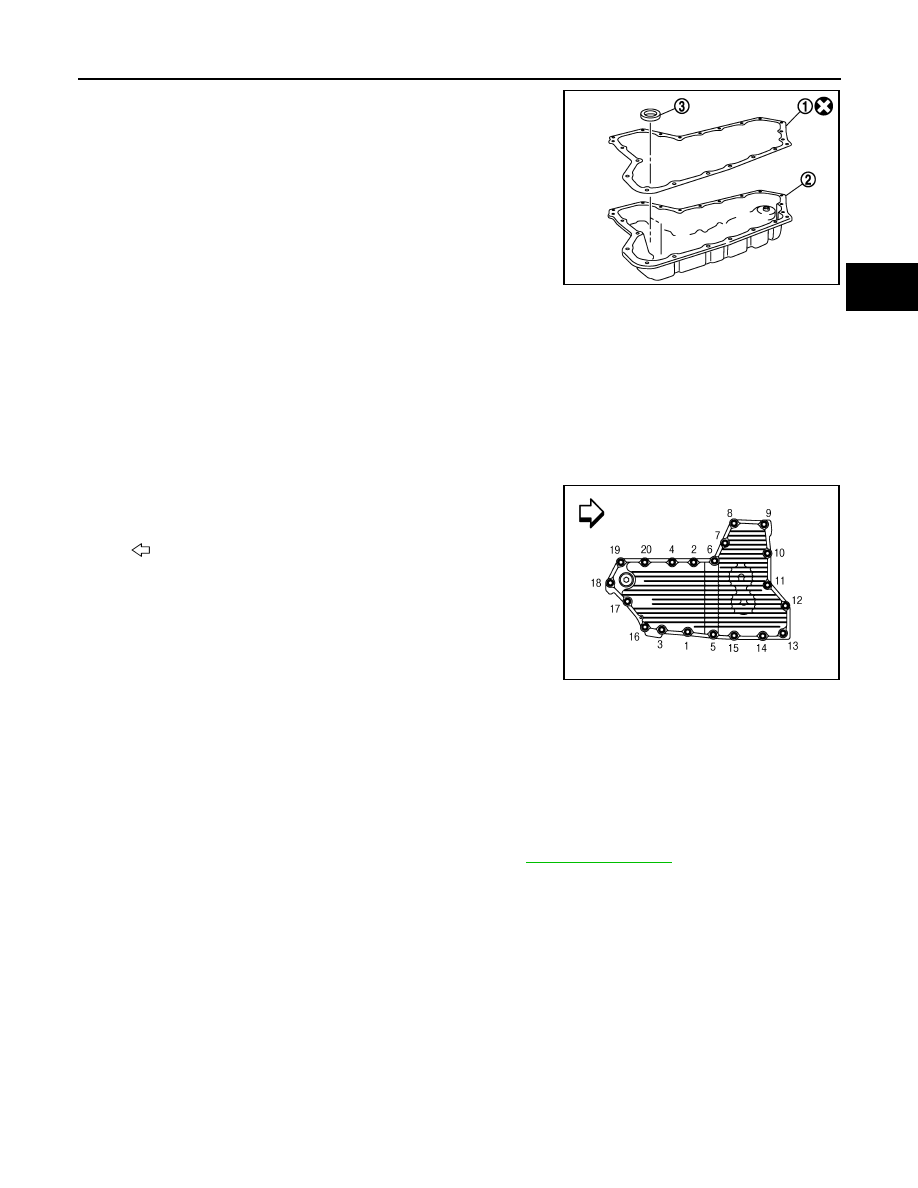

Tighten the oil pan mounting bolts in the order shown in the fig-
ure to the specified torque.

4.

Tighten the oil pan mounting bolts again clockwise from (1)
shown in the figure to the specified torque.

Inspection

INFOID:0000000009650242

INSPECTION AFTER REMOVAL

• If a large amount of worn material is found, clutch plate may be worn.
• If iron powder is found, bearings, gears, or clutch plates may be worn.
• If aluminum powder is found, bushing may be worn, or chips or burrs of aluminum casting parts may enter.
Check points where wear is found in all cases.

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage and check CVT fluid level. Refer to

TM-149, "Inspection"

.

SCIA8219J

: Vehicle front

SCIA8264J
