Nissan Quest E52. Manual - part 1231

TM-154

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

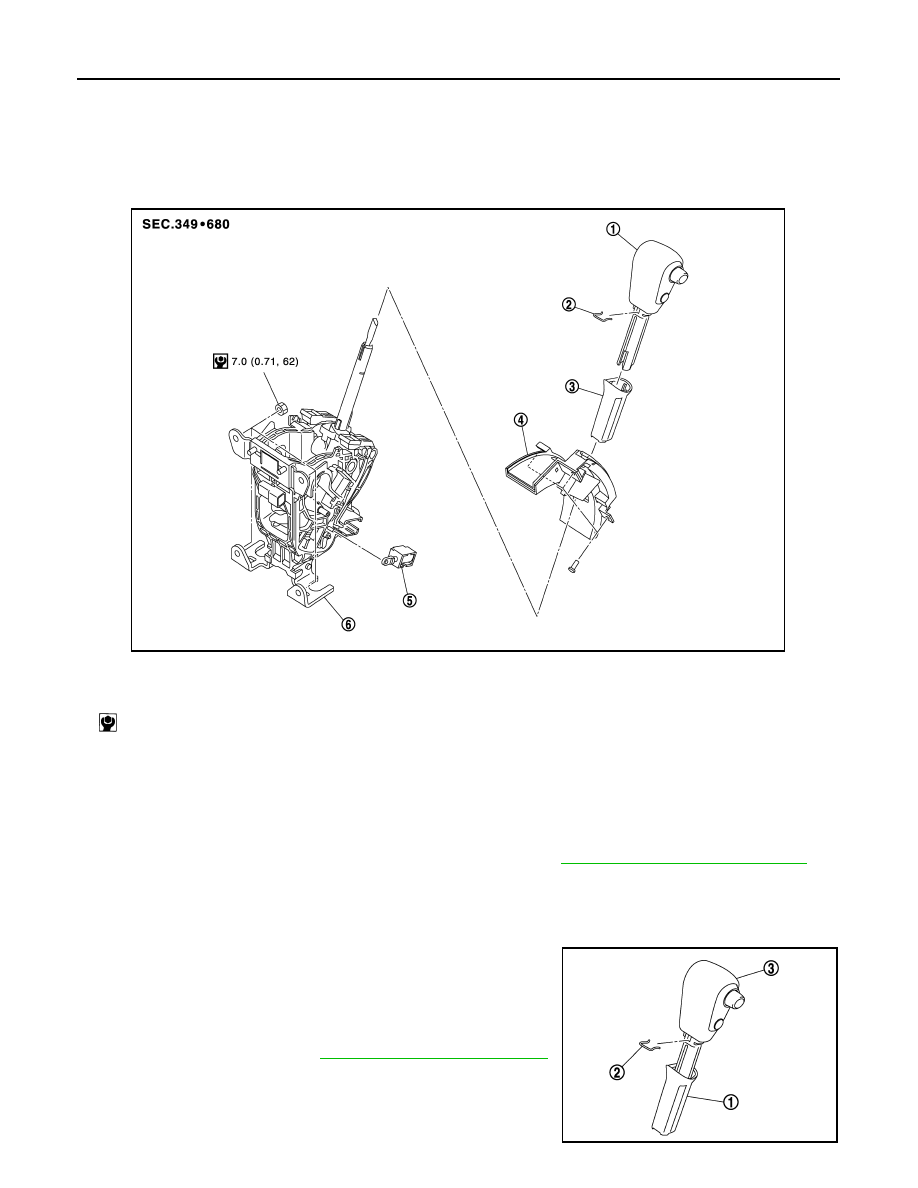

CVT SHIFT SELECTOR

REMOVAL AND INSTALLATION

CVT SHIFT SELECTOR

Exploded View

INFOID:0000000009650222

Removal and Installation

INFOID:0000000009650223

REMOVAL

CAUTION:

Always apply the parking brake before performing removal and installation.
1.

Disconnect the battery cable from the negative terminal. Refer to

PG-105, "Removal and Installation"

.

2.

Move selector lever to “N” position.

CAUTION:

When pushing shift lock release button, warp waste around the tip of flat screw driver to prevent
damage.

3.

Slide knob cover (1) below selector lever downward.

CAUTION:

Be careful not to damage knob cover.

4.

Pull lock pin (2) out of selector lever knob (3).

5.

Remove selector lever knob and knob cover.

6.

Remove cluster lid C. Refer to

IP-14, "Removal and Installation"

.

7.

Disconnect CVT shift selector connector.

1.

Selector lever knob

2.

Lock pin

3.

Knob cover

4.

Slide plate

5.

Shift lock solenoid

6.

CVT shift selector assembly

 : N·m (kg-m, in-lb)

JPDIA1209GB

JPDIA1211ZZ

CVT SHIFT SELECTOR

TM-155

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

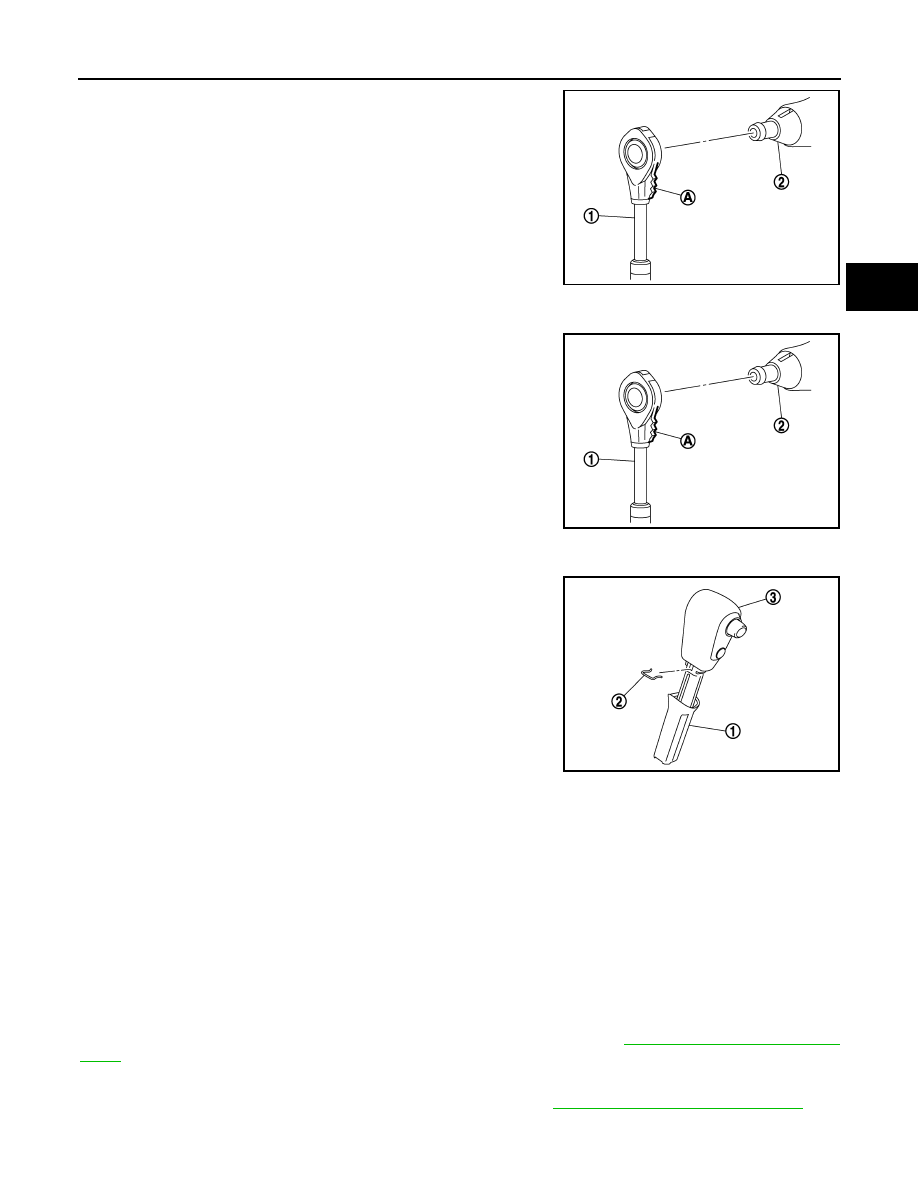

8.

Remove control cable (1) from CVT shift selector assembly (2).

9.

Remove CVT shift selector assembly.

INSTALLATION

Note the following, and install in the reverse order of removal.
• When installing control cable (1) to CVT shift selector assembly

(2), check that control cable is fully pressed in with the ribbed (A)
surface facing rearward.

• Refer to the followings when installing the selector lever knob to the CVT shift selector assembly.
1.

Install the lock pin (2) to the selector lever knob (3).

2.

Install the knob cover (1) to the selector lever knob.

3.

Insert the selector lever knob into the CVT shift selector assem-
bly until it clicks.

CAUTION:

• When pressing the selector lever knob onto the selector

lever, never press the selector lever knob button.

• Never strike the selector lever knob to press it into place.

4.

After installing the selector lever knob to the CVT shift selector
assembly, check that the pulling on the selector lever knob does
not disconnect it.

Disassembly and Assembly

INFOID:0000000009650224

Disassembly

1.

Remove slide plate from cluster lid C.

2.

Disconnect the shift lock solenoid connector.

3.

Remove shift lock solenoid from CVT shift selector assembly.

Assembly

Assembly in the reverse order of disassembly.

Inspection and Adjustment

INFOID:0000000009650225

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT positions after installing CVT shift selector assembly. Refer to

TM-70, "Inspection and Adjust-

ment"

.

INSPECTION AFTER INSTALLATION

Check the CVT positions after adjusting the CVT positions. Refer to

TM-70, "Inspection and Adjustment"

.

A

: The ribbed

JPDIA1210ZZ

JPDIA1210ZZ

JPDIA1211ZZ

TM-156

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

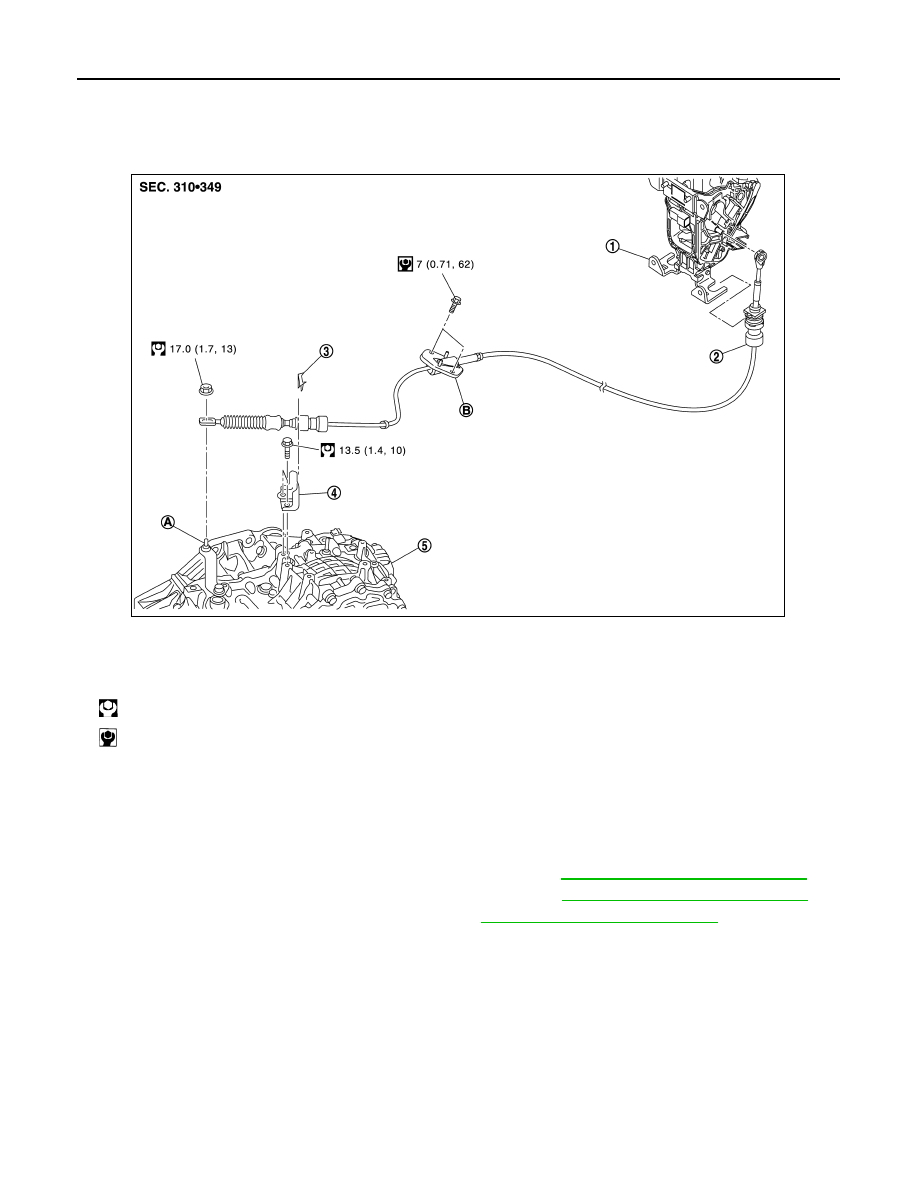

CONTROL CABLE

CONTROL CABLE

Exploded View

INFOID:0000000009650226

Removal and Installation

INFOID:0000000009650227

REMOVAL

CAUTION:

Always apply the parking brake before performing removal and installation.

1.

Disconnect the battery cable from the negative terminal. Refer to

PG-105, "Removal and Installation"

.

2.

Remove control cable from CVT shift selector assembly. Refer to

TM-154, "Removal and Installation"

.

3.

Remove air duct (inlet) and air cleaner case. Refer to

EM-26, "Removal and Installation"

.

4.

Remove the control cable installation nut from the manual lever.

1.

CVT shift selector assembly

2.

Control cable

3.

Lock plate

4.

Bracket

5.

Transaxle assembly

A.

Manual lever

B.

Retainer

 : N·m (kg-m, ft-lb)

 : N·m (kg-m, in-lb)

JPDIA1212GB

CONTROL CABLE

TM-157

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

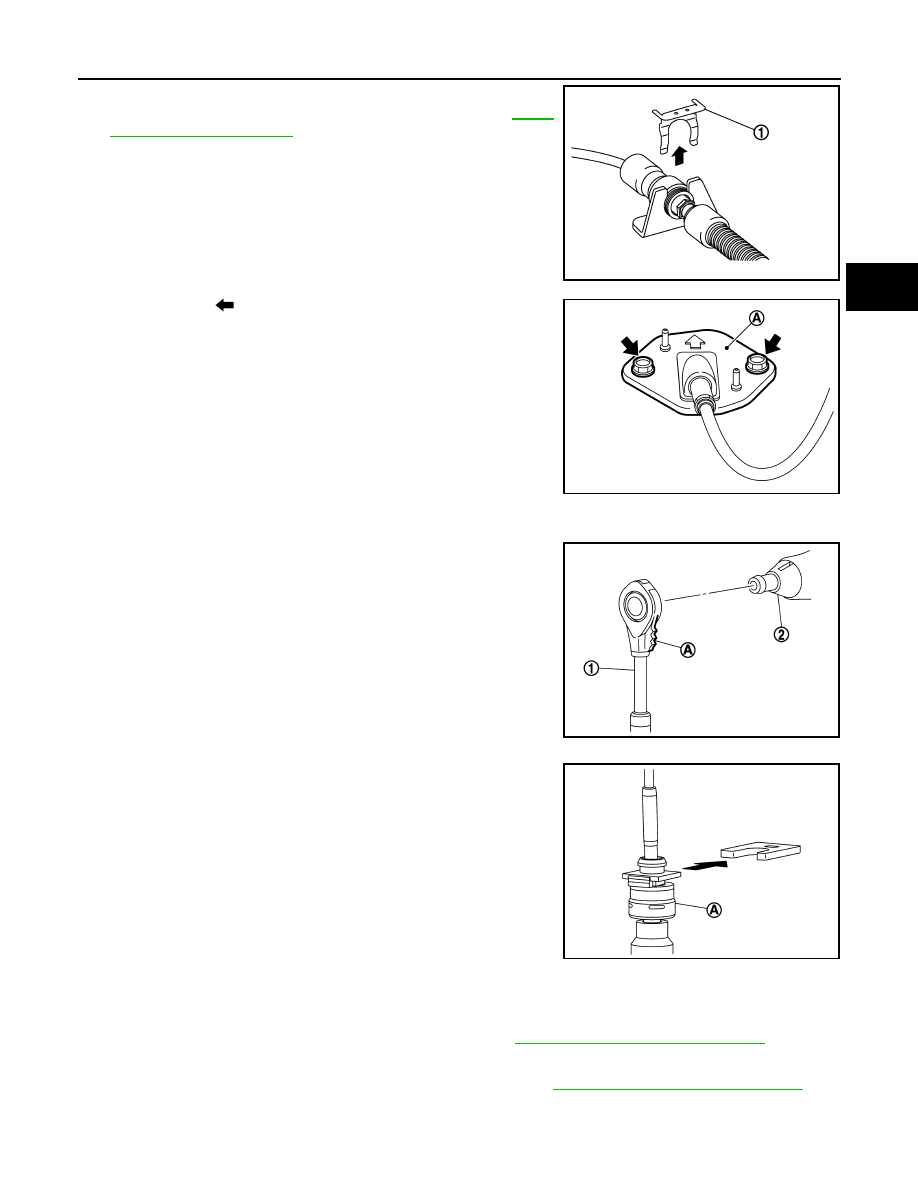

5.

Remove lock plate (1) from control cable.

6.

Remove instrument lower cover center. Refer to

IP-14,

"Removal and Installation"

.

7.

Remove bolts (

) of retainer (A).

8.

Remove the control cable from the vehicle.

9.

Remove bracket from transaxle assembly.

INSTALLATION

Note the following, and install in the reverse order of removal.
• When installing control cable (1) to CVT shift selector assembly

(2), check that control cable is fully pressed in with the ribbed (A)
surface facing rearward.

• Install the socket (A) onto the CVT shift selector assembly.

CAUTION:

• Place the socket onto the CVT shift lever, then fasten it in

place from above.

• Check that the pulling on the socket does not disconnect it.

Inspection and Adjustment

INFOID:0000000009650228

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT positions after installing control cable. Refer to

TM-70, "Inspection and Adjustment"

.

INSPECTION AFTER INSTALLATION

Check the CVT positions after adjusting the CVT positions. Refer to

TM-70, "Inspection and Adjustment"

.

JSDIA1812ZZ

JSDIA2329ZZ

JPDIA1210ZZ

JSDIA2320ZZ
