Nissan Quest E52. Manual - part 1229





TM-146

< SYMPTOM DIAGNOSIS >

[CVT: RE0F09B]

SYSTEM SYMPTOM

21

Others

Maximum speed low.

ON vehicle

1. CVT fluid level and state

TM-149

2. Line pressure test

TM-65

3. Accelerator pedal position sensor

TM-122

4. CAN communication line

TM-72

5. Stall test

TM-64

6. Step motor

TM-125

7. Primary speed sensor

TM-86

8. Secondary speed sensor

TM-88

9. Primary pressure sensor

TM-109

10. Secondary pressure sensor

TM-104

11. CVT fluid temperature sensor

TM-83

OFF vehicle

12. Torque converter

TM-177

13. Oil pump assembly

TM-174

14. Gear system

15. Forward clutch

16. Control valve

22

With selector lever in
“P” position, vehicle
does not enter parking
condition or, with se-
lector lever in another
position, parking con-
dition is not cancelled.

ON vehicle

1. Transmission range switch

TM-80

2. CVT position

TM-70

OFF vehicle

3. Parking components

TM-174

23

Vehicle drives with
CVT in “P” position.

ON vehicle

1. Transmission range switch

TM-80

2. CVT fluid level and state

TM-149

3. CVT position

TM-70

OFF vehicle

4. Parking components

TM-174

5. Gear system

6. Control valve

24

Vehicle drives with
CVT in “N” position.

ON vehicle

1. Transmission range switch

TM-80

2. CVT fluid level and state

TM-149

3. CVT position

TM-70

OFF vehicle

4. Gear system

TM-174

5. Forward clutch

6. Reverse brake

7. Control valve

No.

Item

Symptom

Condition

Diagnostic item

Reference

SYSTEM SYMPTOM

TM-147

< SYMPTOM DIAGNOSIS >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

25

Others

Engine stall.

ON vehicle

1. CVT fluid level and state

TM-149

2. Engine speed signal

TM-91

3. Primary speed sensor

TM-86

4. Torque converter clutch solenoid valve

TM-92

5. CAN communication line

TM-72

6. Stall test

TM-64

7. Secondary pressure sensor

TM-104

OFF vehicle

8. Torque converter

TM-177

9. Control valve

TM-174

26

Engine stalls when
selector lever is shift-
ed “N”

“D” or “R”.

ON vehicle

1. CVT fluid level and state

TM-149

2. Engine speed signal

TM-91

3. Primary speed sensor

TM-86

4. Torque converter clutch solenoid valve

TM-92

5. CAN communication line

TM-72

6. Stall test

TM-64

OFF vehicle

7. Torque converter

TM-177

8. Control valve

TM-174

27

Engine speed does
not return to idle.

ON vehicle

1. CVT fluid level and state

TM-149

2. Accelerator pedal position sensor

TM-122

3. Secondary speed sensor

TM-88

4. CAN communication line

TM-72

OFF vehicle

5. Control valve

TM-174

28

CVT does not shift

ON vehicle

1. CVT fluid level and state

TM-149

2. CVT position

TM-70

3. Line pressure test

TM-65

4. Engine speed signal

TM-91

5. Accelerator pedal position sensor

TM-122

6. CAN communication line

TM-72

7. Primary speed sensor

TM-86

8. Secondary speed sensor

TM-88

9. Step motor

TM-125

OFF vehicle

10. Control valve

TM-174

11. Oil pump assembly

29

Engine does not start
in “N” or “P” position.

ON vehicle

1. Ignition switch and starter

PWO-4

STR-5

2. CVT position

TM-70

3. Transmission range switch

TM-80

No.

Item

Symptom

Condition

Diagnostic item

Reference

TM-148

< SYMPTOM DIAGNOSIS >

[CVT: RE0F09B]

SYSTEM SYMPTOM

30

Others

Engine starts in posi-
tions other than “N” or
“P”.

ON vehicle

1. Ignition switch and starter

PWO-4

STR-5

2. CVT position

TM-70

3. Transmission range switch

TM-80

31

When brake pedal is
depressed with igni-
tion switch ON, selec-
tor lever cannot be
shifted from “P” posi-
tion to other position.

ON vehicle

1. Stop lamp switch

TM-16

2. Shift lock solenoid

3. CVT shift selector

32

When brake pedal is
not depressed with ig-
nition switch ON, se-
lector lever can be
shifted from “P” posi-
tion to other position.

ON vehicle

1. Stop lamp switch

TM-16

2. Shift lock solenoid

3. CVT shift selector

33

Cannot be changed to
overdrive OFF condi-
tion.

ON vehicle

1. Overdrive control switch

TM-131

2. CAN communication line

TM-72

3. Combination meter

MWI-72

34

OD OFF indicator
lamp is not turned ON.

ON vehicle

1. CAN communication line

TM-72

2. Combination meter

MWI-72

3. TCM power supply and ground

TM-114

No.

Item

Symptom

Condition

Diagnostic item

Reference

CVT FLUID

TM-149

< PERIODIC MAINTENANCE >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

PERIODIC MAINTENANCE

CVT FLUID

Inspection

INFOID:0000000009650219

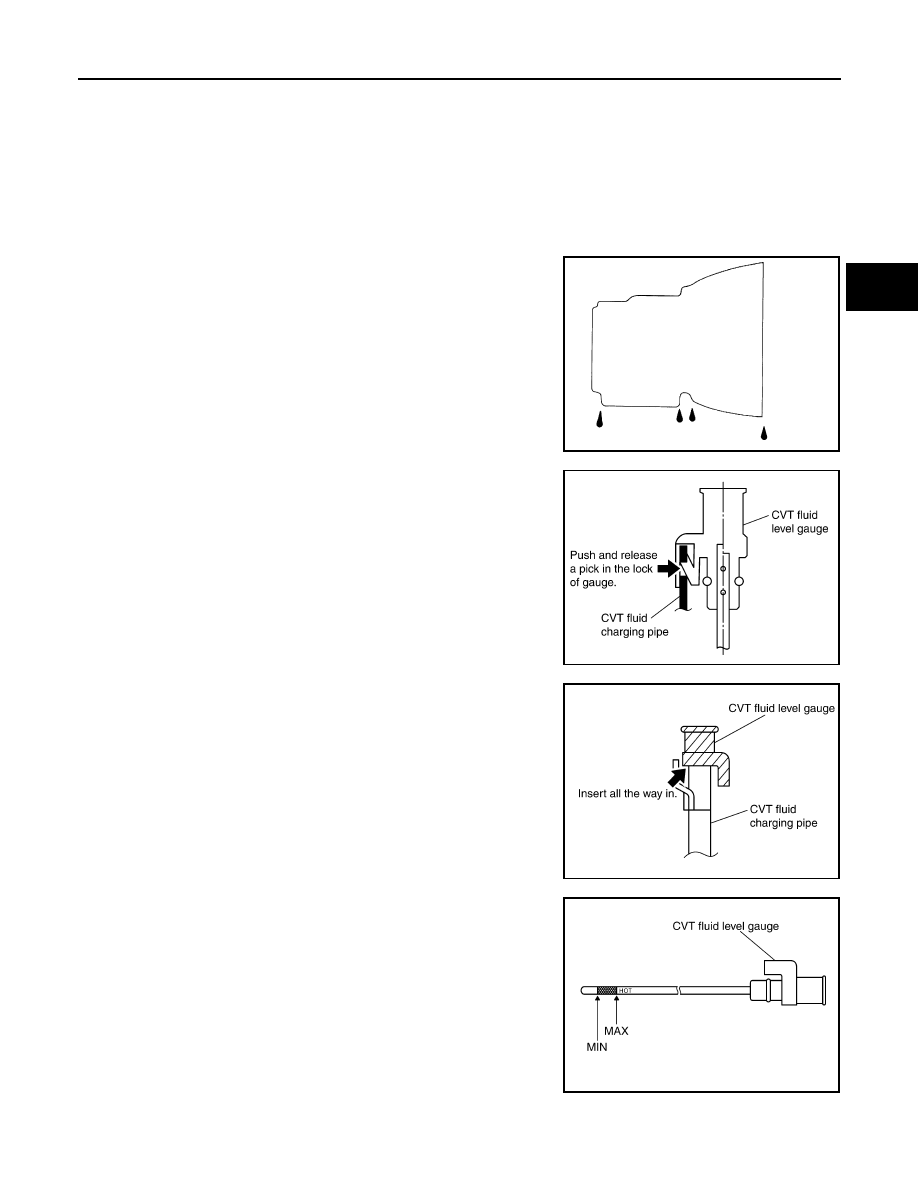

CHECKING CVT FLUID

The fluid level should be checked with the fluid warmed up to 50 to 80

°

C (122 to 176

°

F). The fluid level check

procedure is as follows:
1.

Check for fluid leakage.

2.

With the engine warmed up, drive the vehicle in an urban area.
When ambient temperature is 20

°

C (68

°

F), it takes about 10

minutes for the CVT fluid to warm up to 50 to 80

°

C (122 to

176

°

F).

3.

Park the vehicle on a level surface.

4.

Apply parking brake firmly.

5.

With engine at idle, while depressing brake pedal, move shift
selector throughout the entire shift range.

6.

Pull out the CVT fluid level gauge from the CVT fluid charging
pipe after pressing the tab on the CVT fluid level gauge to
release the lock.

7.

Wipe fluid off the CVT fluid level gauge. Insert the CVT fluid
level gauge rotating 180

°

 from the originally installed position,

then securely push the CVT fluid level gauge until it meets the
top end of the CVT fluid charging pipe.

CAUTION:

When wiping away the CVT fluid level gauge, always use
lint-free paper, not a cloth rag.

8.

Place the selector lever in “P” or “N” and check that the fluid
level is within the specified range.

CAUTION:

When reinstalling CVT fluid level gauge, insert it into the
CVT fluid charging pipe and rotate it to the original installa-
tion position until securely locked.

CVT FLUID CONDITION

SMA146B

SCIA1933E

SCIA1931E

SCIA1932E
