THIRD SEAT

SE-133

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

3.

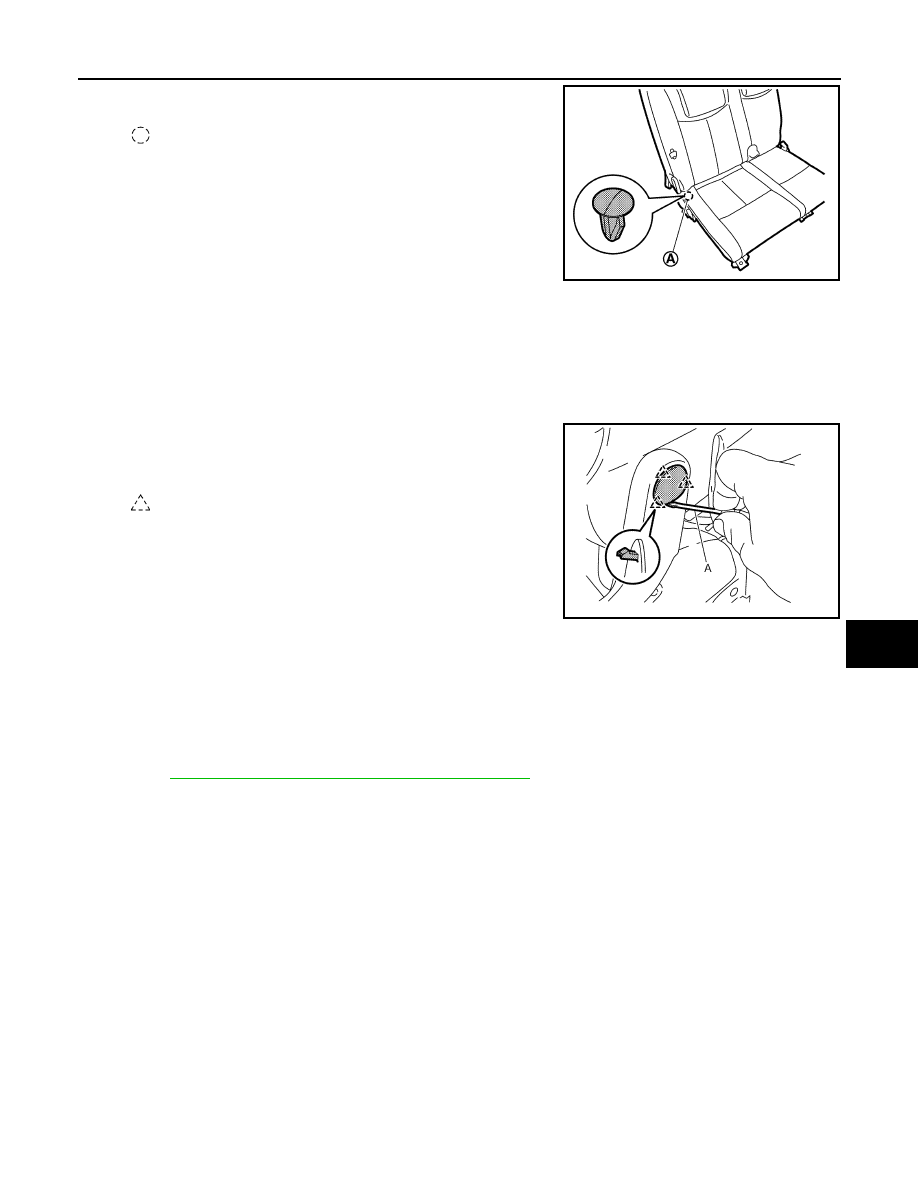

Disengage seat cushion trim fixing clip (A).

4.

Remove seat cushion trim and seat cushion pad from seat cushion frame assembly.

5.

Remove hog rings, and separate the seatback trim and seatback pad.

CAUTION:

Before performing separating operation, check the installation position of hog rings.

6.

Remove seat cushion frame assembly from seatback.

a.

Remove mounting bolts, and then remove seat cushion frame assembly from seat link assembly.

b.

Disengage pawls using a screwdriver (A), and then remove seat
cushion hinge cover cap of the seat cushion outer hinge cover
and seat cushion inner hinge cover.

c.

Remove mounting bolts, and then remove seat cushion frame assembly from seatback.

7.

Remove following parts from seat cushion frame assembly.
• Remove fixing screw, and then remove seat cushion outer hinge cover.
• Remove fixing screw, and then remove seat cushion inner hinge cover.

8.

Remove mounting bolts, and then remove seat link assembly from seat adjuster assembly.

9.

Remove mounting nuts, and then remove reinforcement pipe assembly, seat hinge assembly and reclin-
ing device assembly from seat adjuster assembly.
Refer to

SE-127, "SEATBACK : Disassembly and Assembly"

.

10. Remove control unit bracket from reinforcement pipe assembly. (only for seat with seatback power return

system)

a.

Disconnect harness connector.

b.

Remove mounting nuts, and then remove seatback power return control unit.

c.

Remove harness clamp installed on control unit bracket.

d.

Remove fixing screws, and then remove control unit bracket.

11. Remove actuator bracket from reinforcement pipe assembly. (only for seat with seatback power return

system or seatback power folding system)

a.

Disconnect harness connector.

b.

Remove fixing nuts and wire clamp, and then remove seatback lock release actuator from actuator
bracket.

c.

Disconnect harness connector, and then remove seatback lock release relay.

d.

Remove fixing screw, and then remove actuator bracket.

12. Remove seat harness assembly from seat adjuster assembly. (only for seat with seatback power return

system or seatback power folding system)

13. Remove seat torsion bar.
a.

Remove mounting bolt, and then remove seat torsion bar inner bracket.

: Clip

JMJIA6112ZZ

: Pawl

JMJIA4945ZZ

SE-134

< REMOVAL AND INSTALLATION >

THIRD SEAT

b.

Remove fixing screws, and then remove seat torsion bar outer bracket.

c.

Remove seat torsion bar from seat adjuster assembly.

14. Remove seat torsion bar silencer from seat torsion bar.

LH side seat

1.

Remove LH seat belt buckle. Refer to

SB-19, "SEAT BELT BUCKLE : Removal and Installation"

.

2.

Remove seat cushion trim retainer from seat cushion frame assembly.

3.

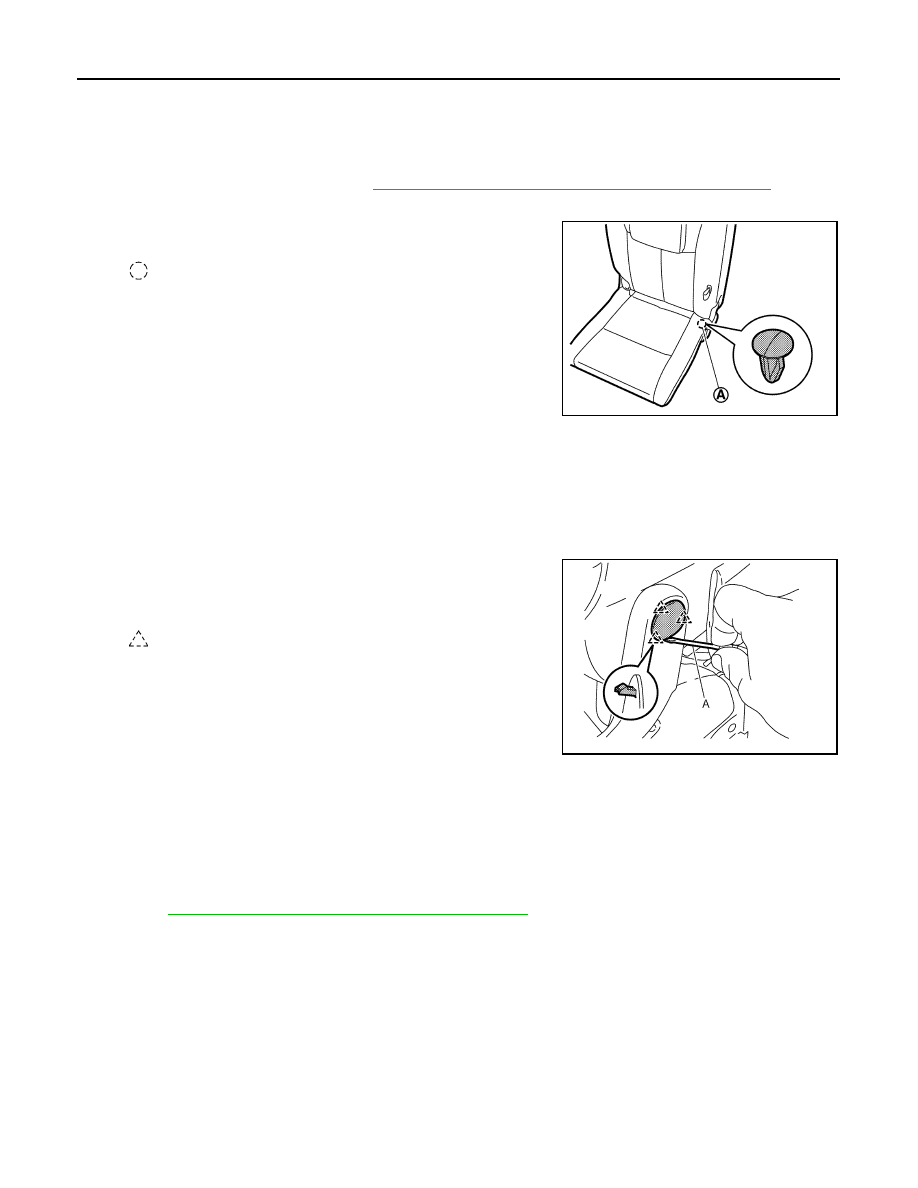

Disengage seat cushion trim fixing clip (A).

4.

Remove seat cushion trim and seat cushion pad from seat cushion frame assembly.

5.

Remove hog rings, and separate the seatback trim and seatback pad.

CAUTION:

Before performing separating operation, check the installation position of hog rings.

6.

Remove seat cushion frame assembly from seatback.

a.

Remove mounting bolt, and then remove seat cushion frame assembly from seat link assembly.

b.

Disengage pawls using a screwdriver (A), and then remove seat
cushion hinge cover cap of the seat cushion outer hinge cover
and seat cushion inner hinge cover.

c.

Remove mounting bolts, and then remove seat cushion frame assembly from seatback.

7.

Remove following parts from seat cushion frame assembly.
• Remove fixing screw, and then remove seat cushion outer hinge cover.
• Remove fixing screw, and then remove seat cushion inner hinge cover.

8.

Remove mounting bolts, and then remove seat link assembly from seat adjuster assembly.

9.

Remove mounting nuts, and then remove seat hinge assembly and reclining device assembly from seat
adjuster assembly.
Refer to

SE-127, "SEATBACK : Disassembly and Assembly"

.

10. Remove seatback lock release actuator. (only for seat with seatback power return system or seatback

power folding system)

a.

Disconnect harness connector.

b.

Remove fixing nuts and wire clamp, and then remove seatback lock release actuator from seat adjuster
assembly.

11. Remove seatback lock release relay. (only for seat with seatback power return system or seatback power

folding system)

a.

Disconnect harness connector.

b.

Remove mounting nut, and then remove seatback lock release relay from seat adjuster assembly.

12. Remove seat harness assembly from seat adjuster assembly. (only for seat with seatback power return

system or seatback power folding system)

: Clip

JMJIA6113ZZ

: Pawl

JMJIA4945ZZ

THIRD SEAT

SE-135

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

13. Remove seat torsion bar.

a.

Remove mounting bolt, and then remove seat torsion bar inner bracket.

b.

Remove fixing screws, and then remove seat torsion bar outer bracket.

c.

Remove seat torsion bar from seat adjuster assembly.

14. Remove seat torsion bar silencer from seat torsion bar.

ASSEMBLY

Note the following, and assemble in the reverse order of disassembly.

CAUTION:

• Check seat cushion trim and seat cushion pad for damage. Replace with new part if necessary.

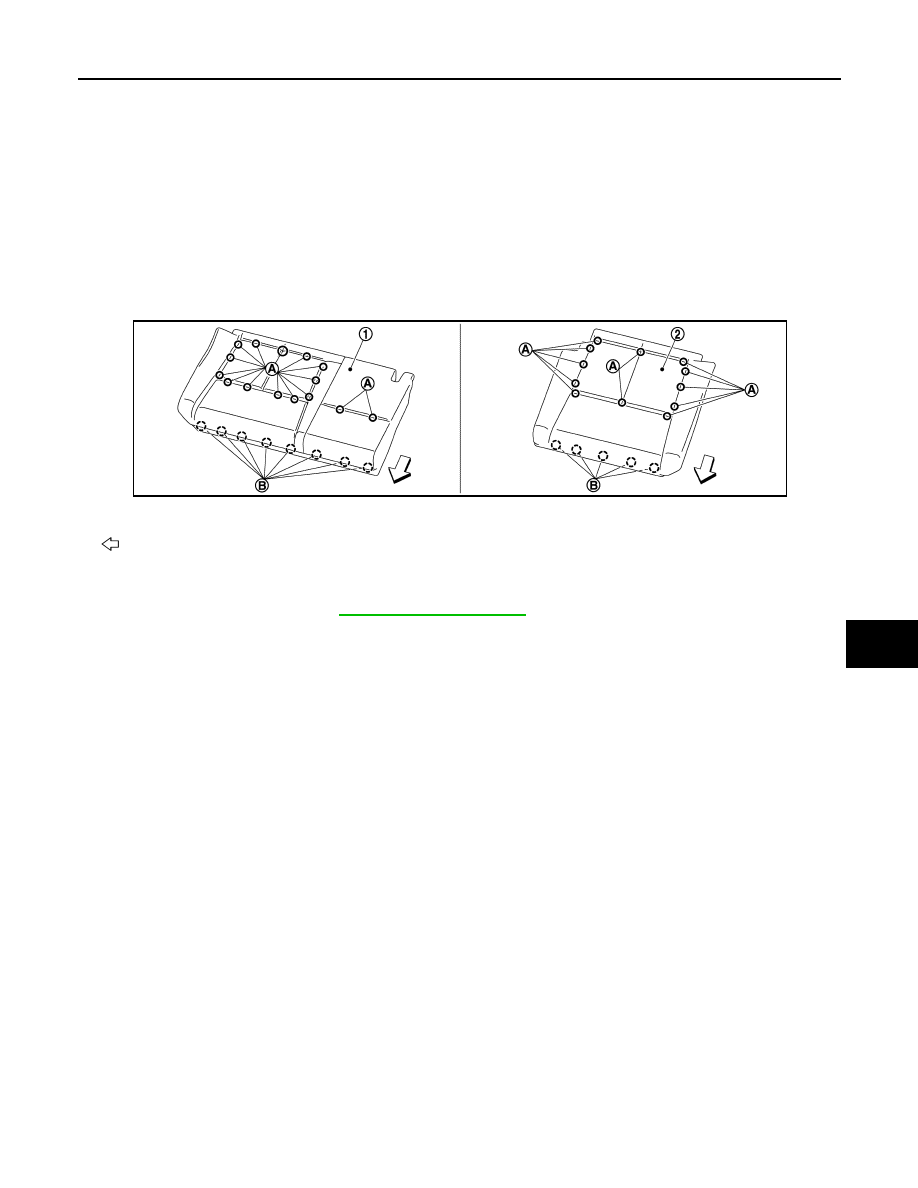

• Install seat cushion front hog rings (A) and seat cushion back hog rings (B) to the specified posi-

tions.

• If crimping using a hog ring is unsuccessful, secure using a new hog ring.
• Tighten seat belt buckle anchor bolt to the specified torque.

For the specified torque, refer to

SE-122, "Exploded View"

.

1.

Seat cushion RH

2.

Seat cushion LH

: Vehicle front

JMJIA6273ZZ

SE-136

< REMOVAL AND INSTALLATION >

THIRD SEAT FOLD SWITCH

THIRD SEAT FOLD SWITCH

Removal and Installation

INFOID:0000000009652999

REMOVAL

1.

Remove luggage side lower finisher. Refer to

INT-43, "LUG-

GAGE SIDE LOWER FINISHER : Removal and Installation"

.

2.

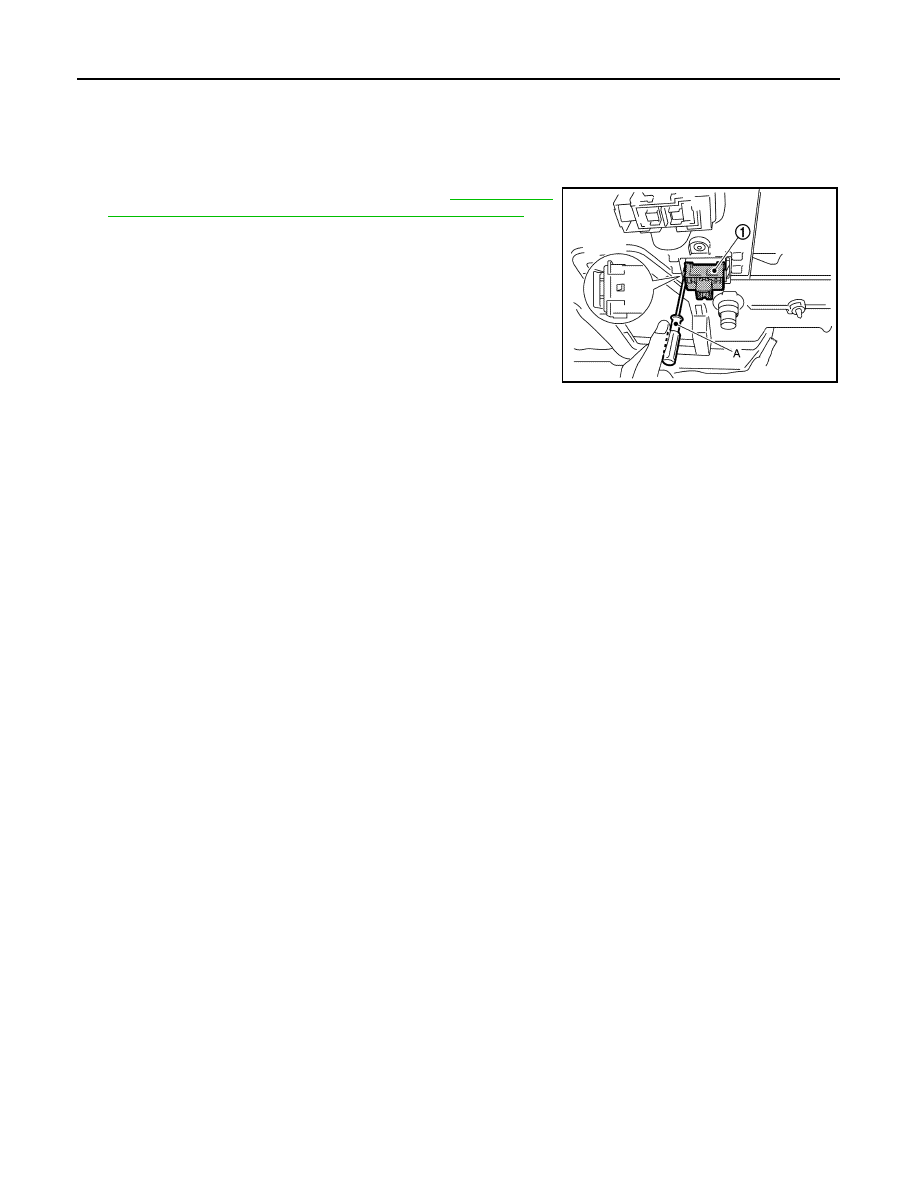

Remove third seat fold switch (1) from luggage side lower fin-
isher using remover tool (A).

INSTALLATION

Install in the reverse order of removal.

JMJIA4752ZZ
