Nissan Quest E52. Manual - part 1074

THIRD SEAT

SE-125

< REMOVAL AND INSTALLATION >

Removal and Installation

INFOID:0000000009652996

REMOVAL

RH side seat

Remove headrest.

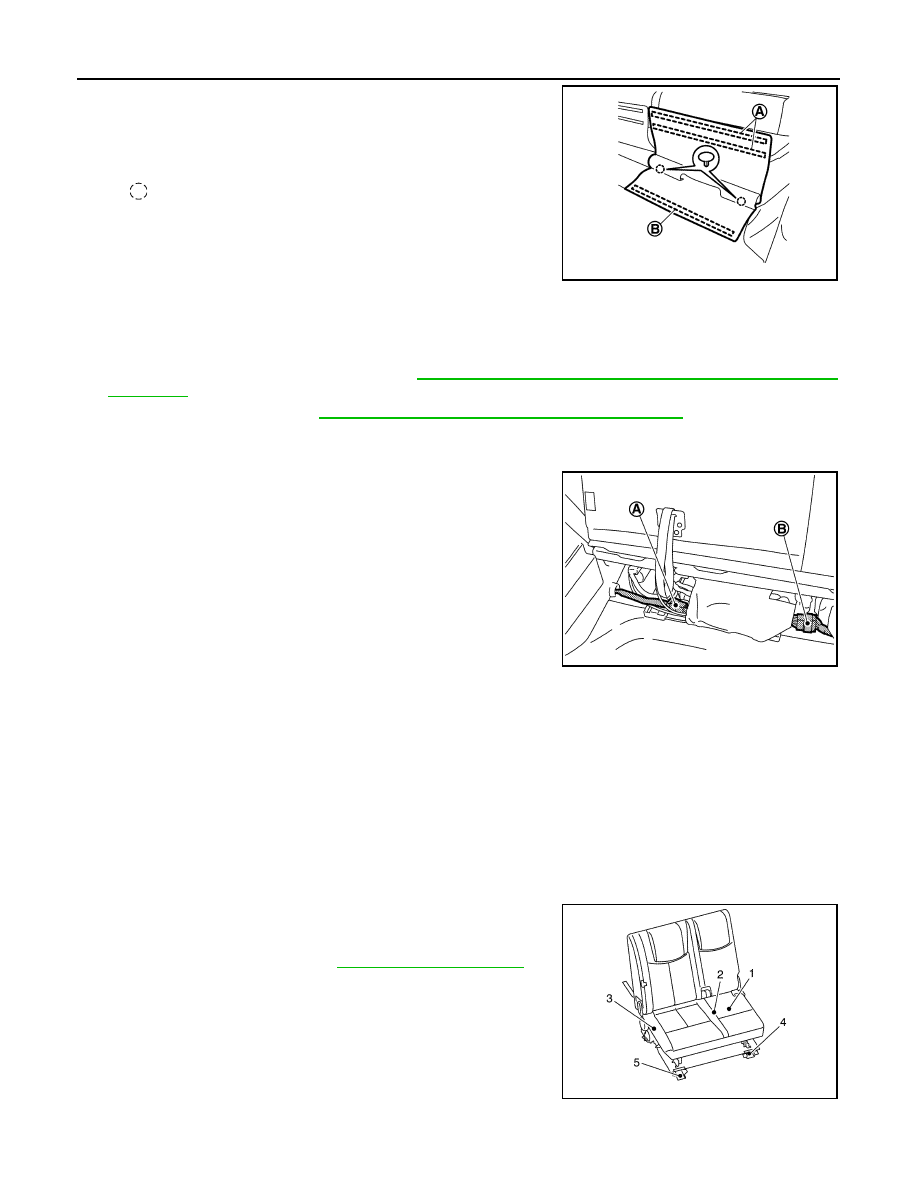

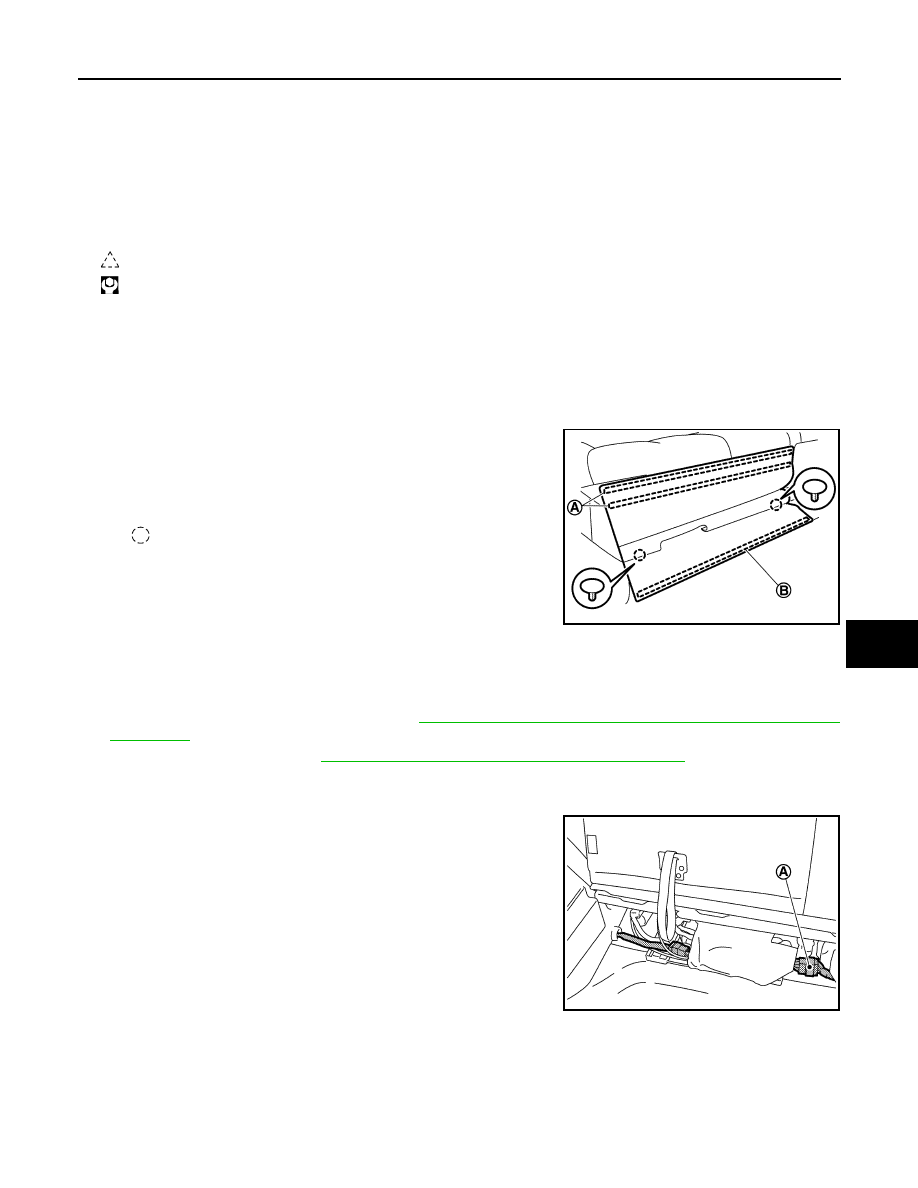

Remove hook and loop fastener (A) on seat cushion carpet and
disengage clips.

Remove hook and loop fastener (B) on seat cushion carpet and
remove seat cushion carpet.

Remove front outer mounting bolt.

Remove front inner mounting bolt.

Operate seatback strap and fold seatback toward vehicle front.

Remove luggage floor rear board. Refer to

INT-40, "LUGGAGE FLOOR REAR BOARD : Removal and

Installation"

Remove cable cover. Refer to

INT-41, "CABLE COVER : Removal and Installation"

Remove rear outer mounting bolt.

10. Remove rear inner mounting bolt.

11. Disconnect harness connector (A). (only for seat with seatback

power return system or seatback power folding system)

12. Remove seat from the vehicle.

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

LH side seat

Remove headrest.

19. Seat torsion bar

20. Seat torsion bar outer bracket

21. Torsion bar silencer

22. Bush A

23. Washer

24. Seat adjuster assembly

25. Seat cushion carpet

26. Seatback lock relay

27. Seatback lock actuator

28. Seat harness assembly

29. Seat hinge arm cover

30. Seat hinge assembly

31. Seat cushion outer hinge cover

32. Reclining cable

33. Seatback board

34. Seatback hook assembly

35. Seatback frame

36. Reclining device assembly

37. Bush B

38. Reclining arm cover

39. Seat cushion frame assembly

40. Seat hinge cover

41. Seat link assembly

: Pawl

: N·m (kg-m, ft-lb)

: Clip

JMJIA4922ZZ

JMJIA6104ZZ

SE-126

< REMOVAL AND INSTALLATION >

THIRD SEAT

Remove hook and loop fastener (A) on seat cushion carpet and
disengage clips.

Remove hook and loop fastener (B) on seat cushion carpet and
remove seat cushion carpet.

Remove front outer mounting bolt.

Remove front inner mounting bolt.

Operate seatback strap and fold seatback toward vehicle front.

Remove luggage floor rear board. Refer to

INT-40, "LUGGAGE FLOOR REAR BOARD : Removal and

Installation"

Remove cable cover. Refer to

INT-41, "CABLE COVER : Removal and Installation"

Remove rear outer mounting bolt.

10. Remove rear inner mounting bolt.

11. Disconnect harness connector (A) and (B). (only for seat with

seatback power return system or seatback power folding sys-
tem)

12. Remove seat from the vehicle.

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

INSTALLATION

RH side seat

Note the following items, and install in the reverse order of removal.

CAUTION:

• When removing and installing, use shop cloths to protect parts from damage.
• Before tightening bolts, check that the carpet is not caught in bolt holes on mounting portion.
• When installing seat to the vehicle, fold seatback toward vehicle front, and then mount the seat to

the vehicle.

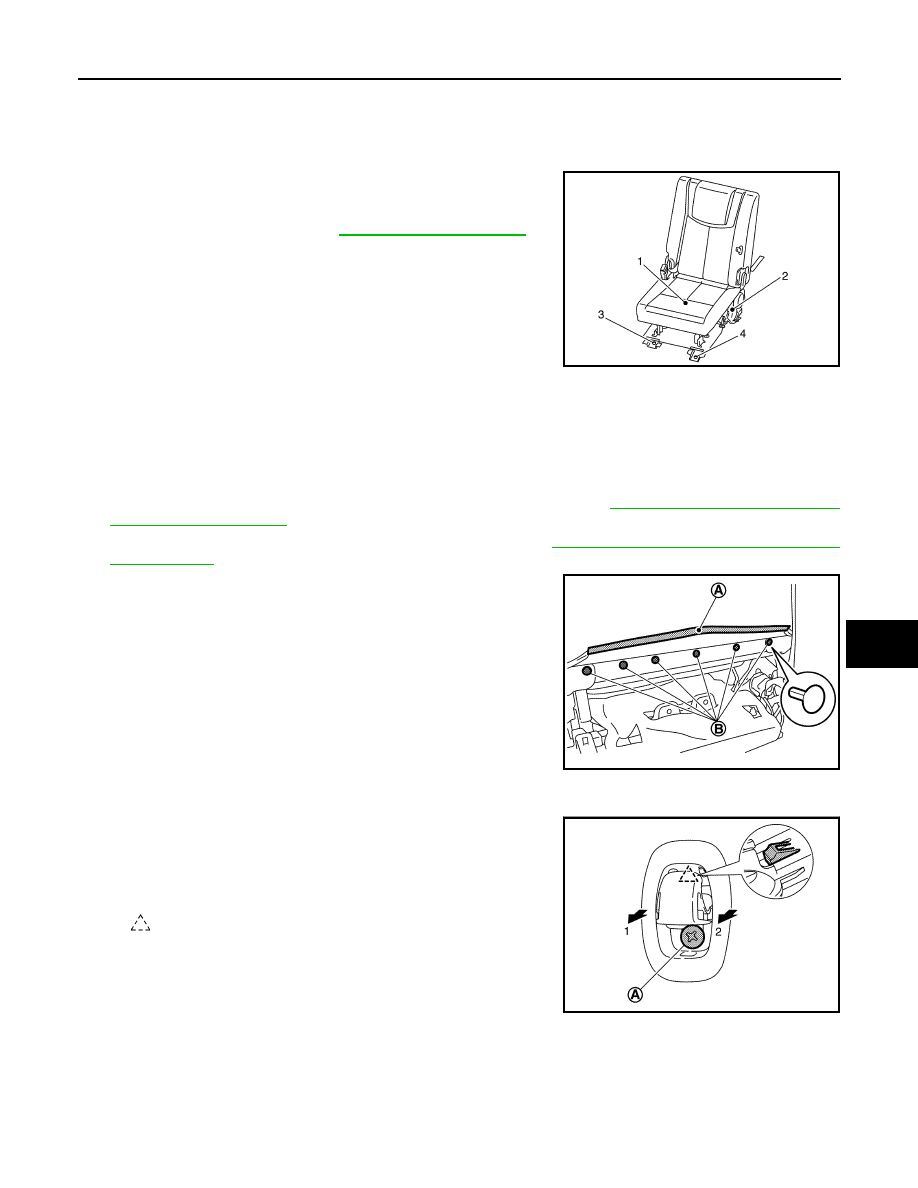

• When installing, tighten mounting bolts according to the

numerical order as shown in the figure, starting from rear
inner mounting bolt.
For the specified torque, refer to

SE-122, "Exploded View"

LH side seat

Note the following items, and install in the reverse order of removal.

: Clip

JMJIA4923ZZ

JMJIA6105ZZ

JMJIA6106ZZ

THIRD SEAT

SE-127

< REMOVAL AND INSTALLATION >

CAUTION:

the vehicle.

• When installing, tighten mounting bolts according to the

numerical order as shown in the figure, starting from rear
inner mounting bolt.
For the specified torque, refer to

SE-122, "Exploded View"

SEATBACK

SEATBACK : Disassembly and Assembly

INFOID:0000000009652997

DISASSEMBLY

RH side seat

Remove RH seat belt buckle and center seat belt buckle. Refer to

SB-19, "SEAT BELT BUCKLE :

Removal and Installation"

Remove seat cushion frame assembly from seatback. Refer to

SE-132, "SEAT CUSHION : Disassembly

and Assembly"

Remove seatback hook and loop fastener (A).

Roll up seatback trim, and then remove seatback trim fixing clips
(B).

Remove seatback hook assembly.

Rotate seatback hook to the position where mounting screw (A)
can be removed, and then remove screw.

Pull seatback hook assembly forward, disengage pawl, and then
remove seatback hook assembly from the seatback.

JMJIA6107ZZ

JMJIA6109ZZ

: Pawl

JMJIA4730ZZ

SE-128

< REMOVAL AND INSTALLATION >

THIRD SEAT

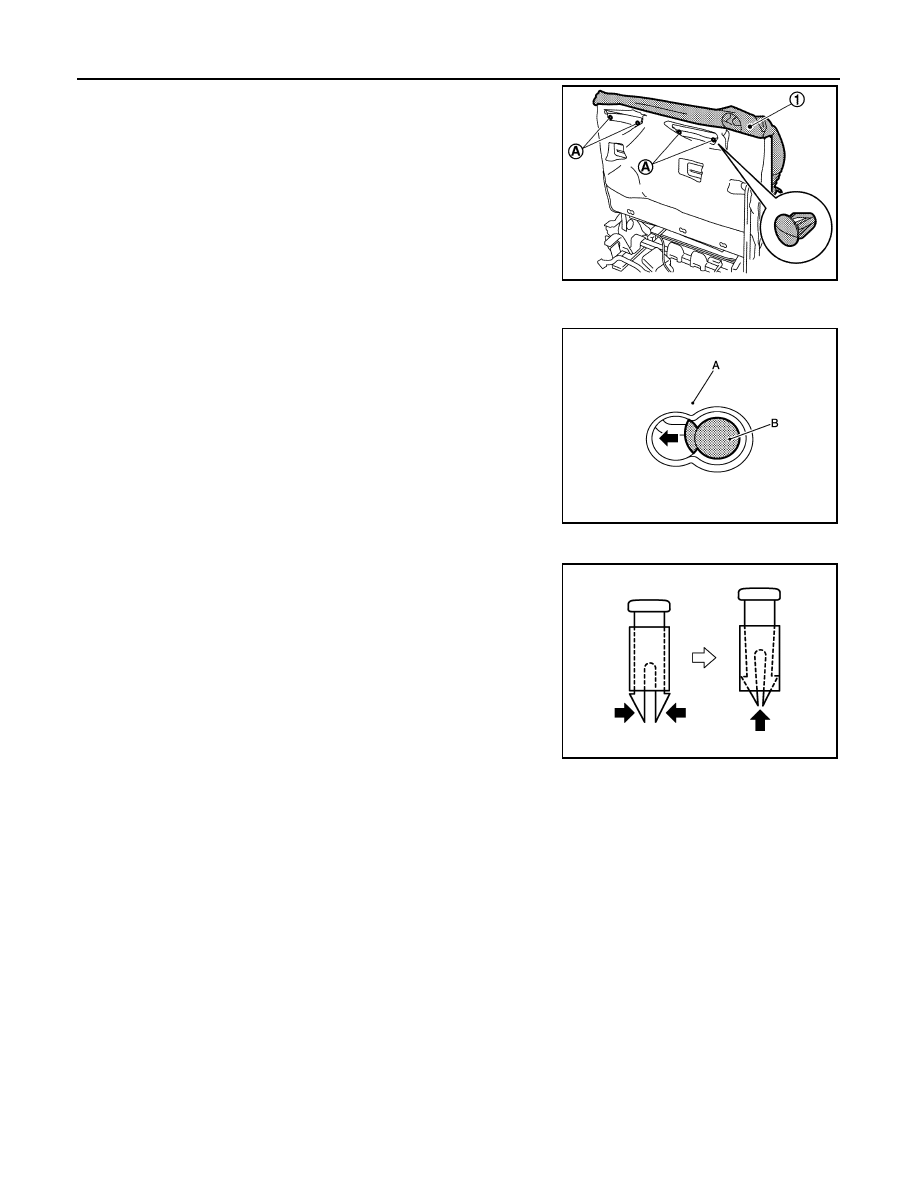

Pull up seatback trim (1) to the position where seatback trim
mounting clips (A) can be removed.

CAUTION:

Be careful not to damage seatback trim when pulling up
seatback trim.

Remove seatback trim fixing clips.

Remove seatback board and seatback board fixing clips from seatback frame.

Slide and align the clips (B) to the holes on the seatback as
shown in the figure, and then remove the seatback board (A).

CAUTION:

Always slide clips before removing seatback board. Clips
may be damaged if seatback board is removed without slid-
ing the clips.

Remove seatback board fixing clips from seatback frame.

Use pincers, etc., to press up pawls as shown by the arrows in
the figure, and remove headrest holder from seatback.

CAUTION:

Before installing headrest holder check its orientation.
(front/rear and right/left)

10. Pull out seatback strap from seatback pad.

11. Remove seatback trim and seatback pad from seatback frame.
12. Remove hog rings, and separate the seatback trim and seatback pad.

CAUTION:

Before performing separating operation, check the installation position of hog rings.

13. Remove seatback silencer from seatback frame.

14. Remove seat hinge assembly and reclining device assembly from seat adjuster assembly.

Remove seat adjuster lower carpet retainer, and then remove seat adjuster lower carpet from seat
adjuster assembly.

Remove fixing screws, and then remove seat hinge arm cover and seat hinge cover from seat hinge
assembly.

Remove fixing screws and clip, and then remove reclining arm cover and reclining device cover from
reclining device assembly.

Remove following parts from reclining device assembly.

JMJIA6108ZZ

JMJIA4076ZZ

PIIB4084J
