SECOND SEAT

SE-117

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

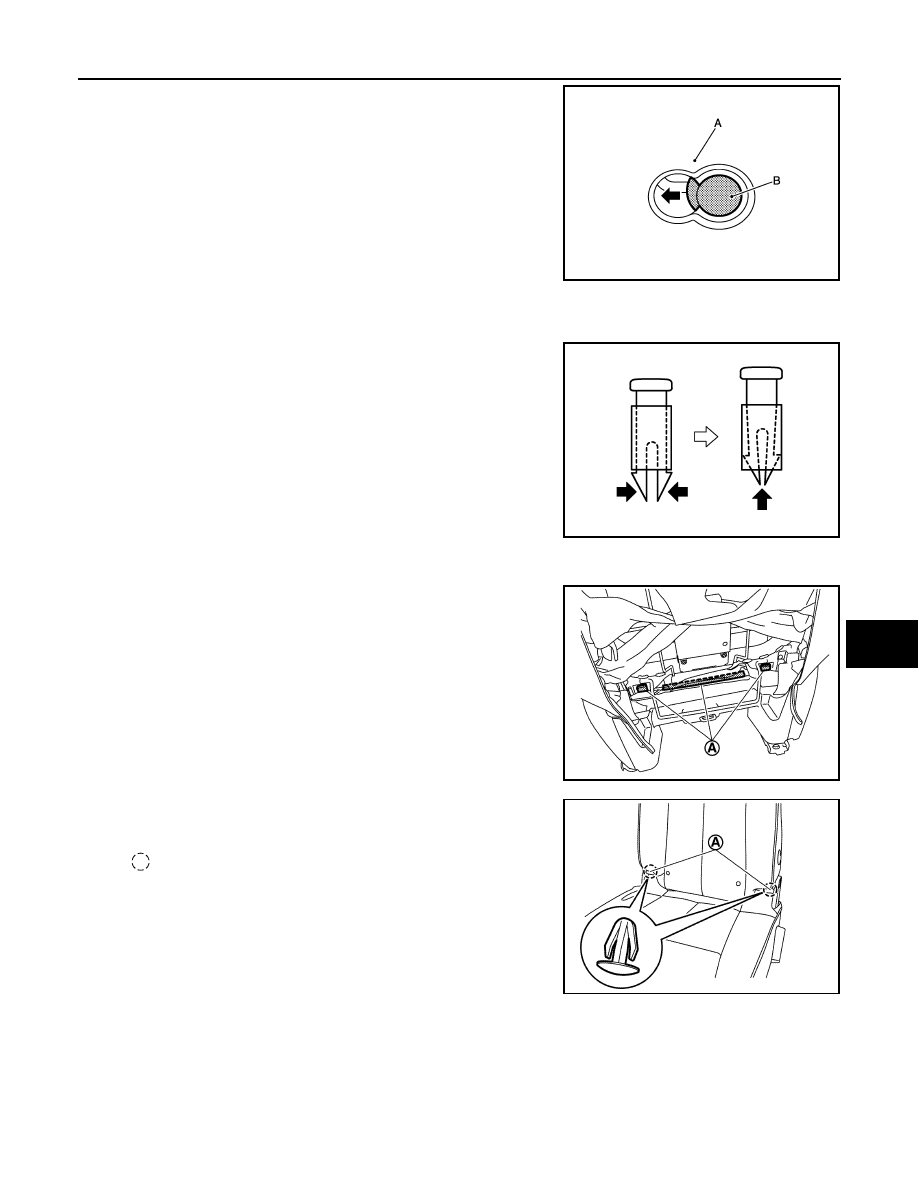

e.

Slide and align the clips (B) to the holes on the seatback as
shown in the figure, and then remove the seatback board (A).

CAUTION:

Always slide clips before removing seatback board. Clips
may be damaged if seatback board is removed without slid-
ing the clips.

f.

Remove seatback board fixing clips from seatback frame assembly.

4.

Set the seatback vertically.

5.

Use pincers, etc., to press up pawls as shown by the arrows in
the figure, and remove headrest holder from seatback.

CAUTION:

Before installing headrest holder check its orientation.
(front/rear and right/left)

6.

Remove seatback trim and seatback pad from seat frame & adjuster assembly.

a.

Remove retainer (A) installed on seat frame & adjuster assem-
bly.

b.

Remove seat cushion trim fixing clips (A) installed on seatback
trim.

JMJIA4076ZZ

PIIB4084J

JMJIA6252ZZ

: Clip

JMJIA6253ZZ

SE-118

< REMOVAL AND INSTALLATION >

SECOND SEAT

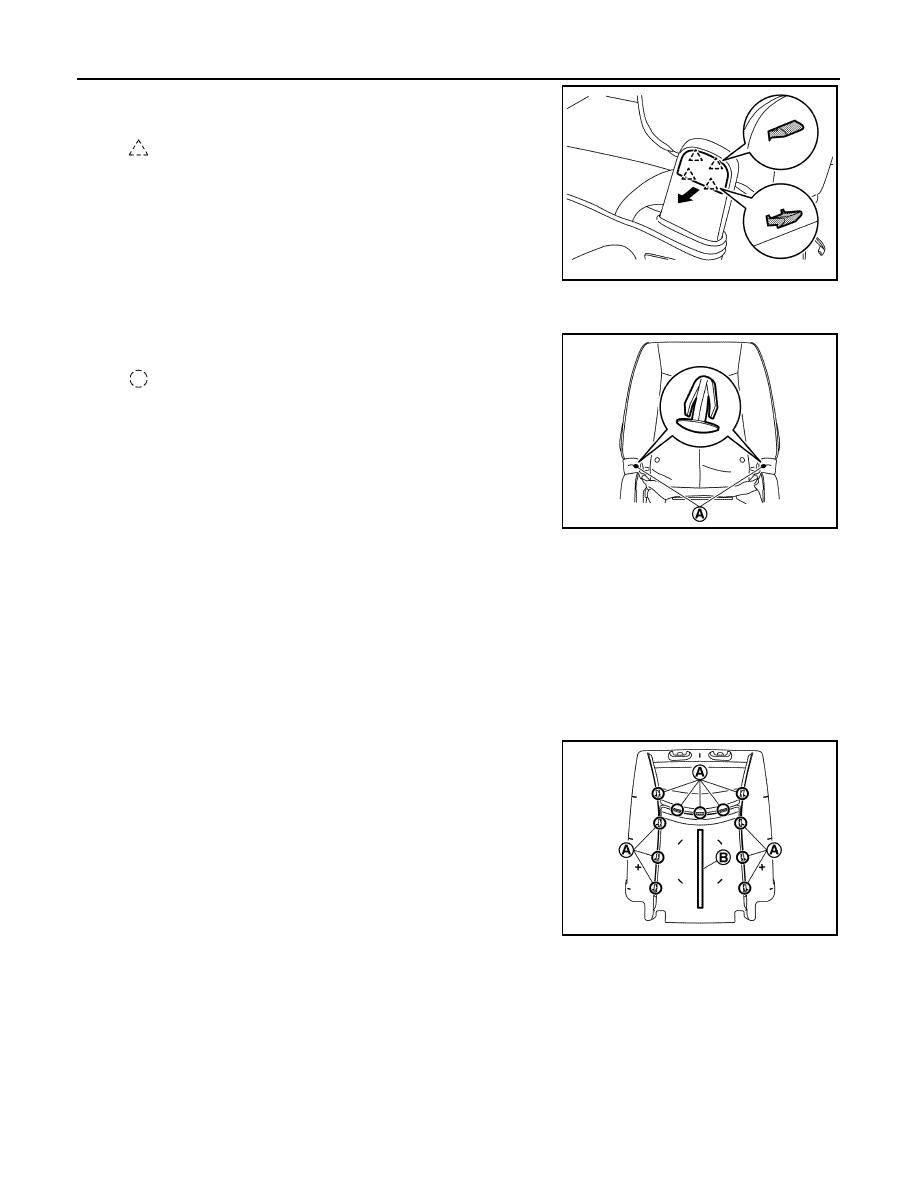

c.

Disengage pawls and remove seat hinge finisher caps. (Inner
side and outer side.)

d.

Remove seat cushion frame assembly mounting bolts. Remove seat cushion assembly from seat frame
assembly.

e.

Remove seatback trim fixing clips (A).

f.

Remove seatback trim and seatback pad from seat frame assembly.

7.

Remove hog rings, and separate the seatback trim and seatback pad.

CAUTION:

Before performing separating operation, check the installation position of hog rings.

8.

Remove fixing clip and screw, and then remove reclining device inner cover from seat frame assembly.

9.

Remove fixing clip and screw, and then remove reclining device outer cover from seat frame assembly.

INSTALLATION

Note the following, and assembly in the reverse order of disassembly.

CAUTION:

• Check seatback trim and seatback pad for damage. Replace with new part if necessary.
• Install hog ring (A) to the specified position as shown in the

figure.

• If crimping using a hog ring is unsuccessful, secure using a new hog ring.

SEAT CUSHION

SEAT CUSHION : Disassembly and Assembly

INFOID:0000000009652994

DISASSEMBLY

: Pawl

JMJIA6254ZZ

: Clip

JMJIA6255ZZ

B.

hook and loop fastener

JMJIA6256ZZ

SECOND SEAT

SE-119

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

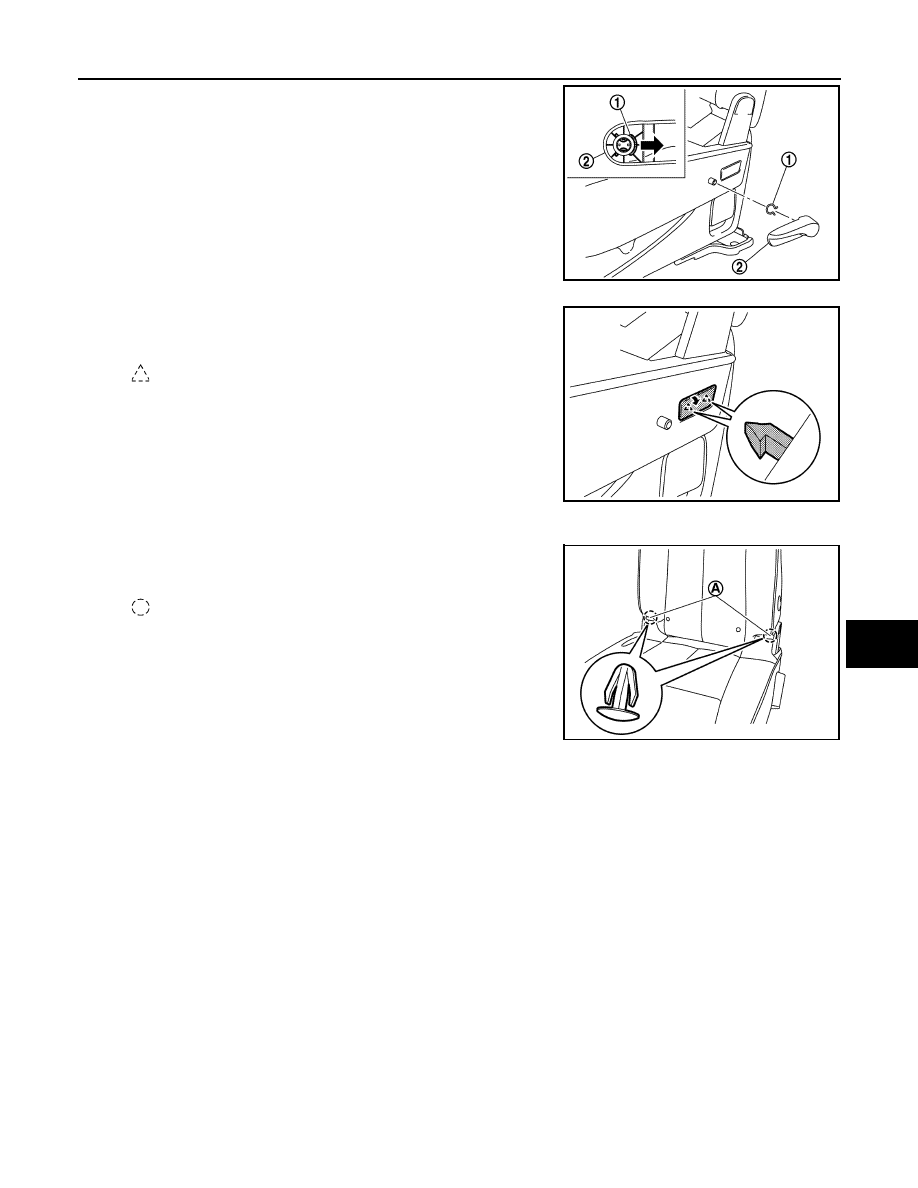

1.

Remove snap ring (1) using a hook & pick tool, and then remove
seat reclining device lever knob (2).
NOTE:
Remove snap ring while pressing seat cushion trim to the inner
side of the seat. Snap ring can be easily removed.

2.

Disengage pawls and remove seat hinge finisher patch from
seat cushion trim.

3.

Remove seat cushion trim and seat cushion pad from seat cushion frame assembly.

a.

Remove seat cushion trim fixing clips (A) installed on seat back
trim.

b.

Remove seat cushion trim retainer from seat cushion frame assembly.

c.

Remove seat cushion trim J hook from seat cushion frame assembly.

d.

Remove seat cushion trim hook and loop fastener.

e.

Remove seat cushion trim fixing clips installed on seat frame assembly.

f.

Remove seat cushion trim and seat cushion pad from seat cushion frame assembly.

4.

Remove hog rings, and separate the seatback trim and seatback pad.

CAUTION:

Before performing separating operation, check the installation position of hog rings.

5.

Remove seat cushion silencer from seat cushion frame assembly.

6.

Remove seat hinge outer finisher (LH and RH).

JMJIA6257ZZ

: Pawl

JMJIA6258ZZ

: Clip

JMJIA6253ZZ

SE-120

< REMOVAL AND INSTALLATION >

SECOND SEAT

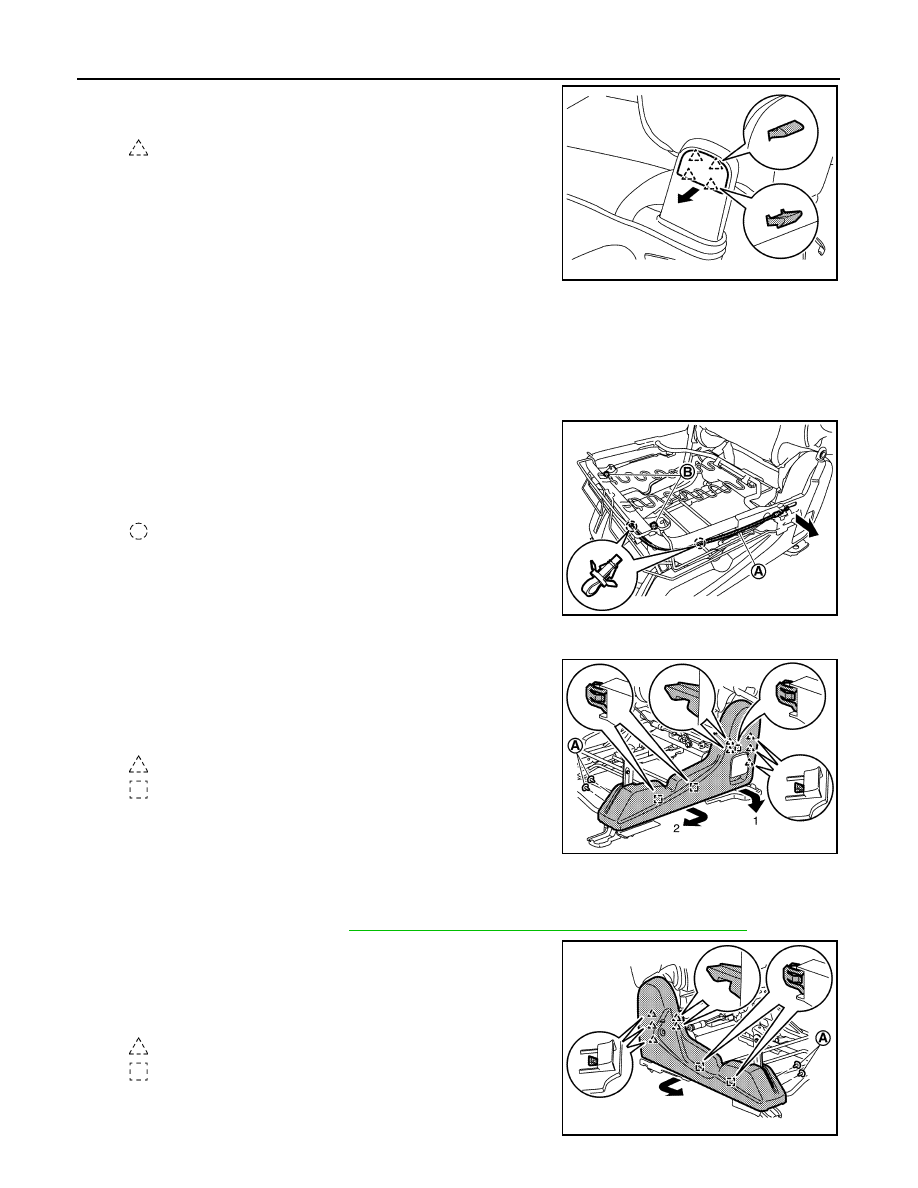

a.

Disengage pawls and remove seat hinge finisher cap. (Inner
side and outer side.)

b.

Remove seat cushion frame assembly rear side mounting bolt, and then remove seat cushion assembly
from seat frame assembly.

c.

Remove seat hinge outer finisher (LH and RH) fixing screws.

d.

Remove seat hinge outer finisher (LH and RH).

7.

Remove seat hinge inner finisher (LH and RH).

8.

Remove seat cushion frame assembly from seat frame assembly.

a.

Remove cable (A) from seat cushion frame assembly.

b.

Remove cable fixing clips.

c.

Remove seat cushion frame assembly front side mounting bolt
(B) and then remove seat cushion frame assembly.

9.

Remove seat cushion outer finisher.

a.

Remove fixing clips (A).

b.

Pull seat cushion outer finisher in direction indicated by the
arrow. Disengage pawls and metal clips. Remove seat cushion
outer finisher.

10. Remove seat front outer leg cover (rear).

11. Remove seat cushion inner finisher.

a.

Remove seat belt buckle. Refer to

SB-13, "SEAT BELT BUCKLE : Removal and Installation"

.

b.

Remove fixing clips (A).

c.

Pull seat cushion inner finisher in direction indicated by the
arrow. Disengage pawls and metal clips. Remove seat cushion
inner finisher.

: Pawl

JMJIA6254ZZ

: Clip

JMJIA6259ZZ

: Pawl

: Metal clip

JMJIA6260ZZ

: Pawl

: Metal clip

JMJIA6265ZZ
